25-1

GROUP 25

PROPELLER SHAFT

CONTENTS

GENERAL INFORMATION . . . . . . . .

25-2

GENERAL SPECIFICATIONS . . . . . .

25-3

SERVICE SPECIFICATIONS. . . . . . .

25-3

LUBRICANT. . . . . . . . . . . . . . . . . . . .

25-3

PROPELLER SHAFT DIAGNOSIS . .

25-3

INTRODUCTION TO PROPELLER



SHAFT DIAGNOSIS . . . . . . . . . . . . . . . . . .

25-3

PROPELLER SHAFT DIAGNOSTIC
TROUBLESHOOTING STRATEGY . . . . . .

25-3

SYMPTOM CHART . . . . . . . . . . . . . . . . . . .

25-4

SYMPTOM PROCEDURES  . . . . . . . . . . . .

25-4

SPECIAL TOOL  . . . . . . . . . . . . . . . . .

25-5

ON-VEHICLE SERVICE . . . . . . . . . . .

25-5

PROPELLER SHAFT UNIVERSAL



JOINT CHECK. . . . . . . . . . . . . . . . . . . . . . .

25-5

PROPELLER SHAFT . . . . . . . . . . . . .

25-7

REMOVAL AND INSTALLATION  . . . . . . . .

25-7

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

25-9

GENERAL INFORMATION

TSB Revision

PROPELLER SHAFT

25-2

GENERAL INFORMATION

M1251000100421

The 2-piece, 3-joint type propeller shaft with a center
bearing is adopted.
It has the following features:

• The DOJ, which is of less sliding resistance, is

used for the No.2 joint to reduce idling vibration.

• An insulator is installed to the vehicle body joint of

the center bearing to reduce vibration.

• The heat protector is adopted to the center bear-

ing bracket.

• Inside the rear propeller shaft, the dynamic

damper is integrated to reduce a booming noise
caused by the resonance at the high engine
speed.

• Adopting the friction welding method, the installa-

tion structure is streamlined to reduce weight.

• Lead-free grease is used for the universal joint.

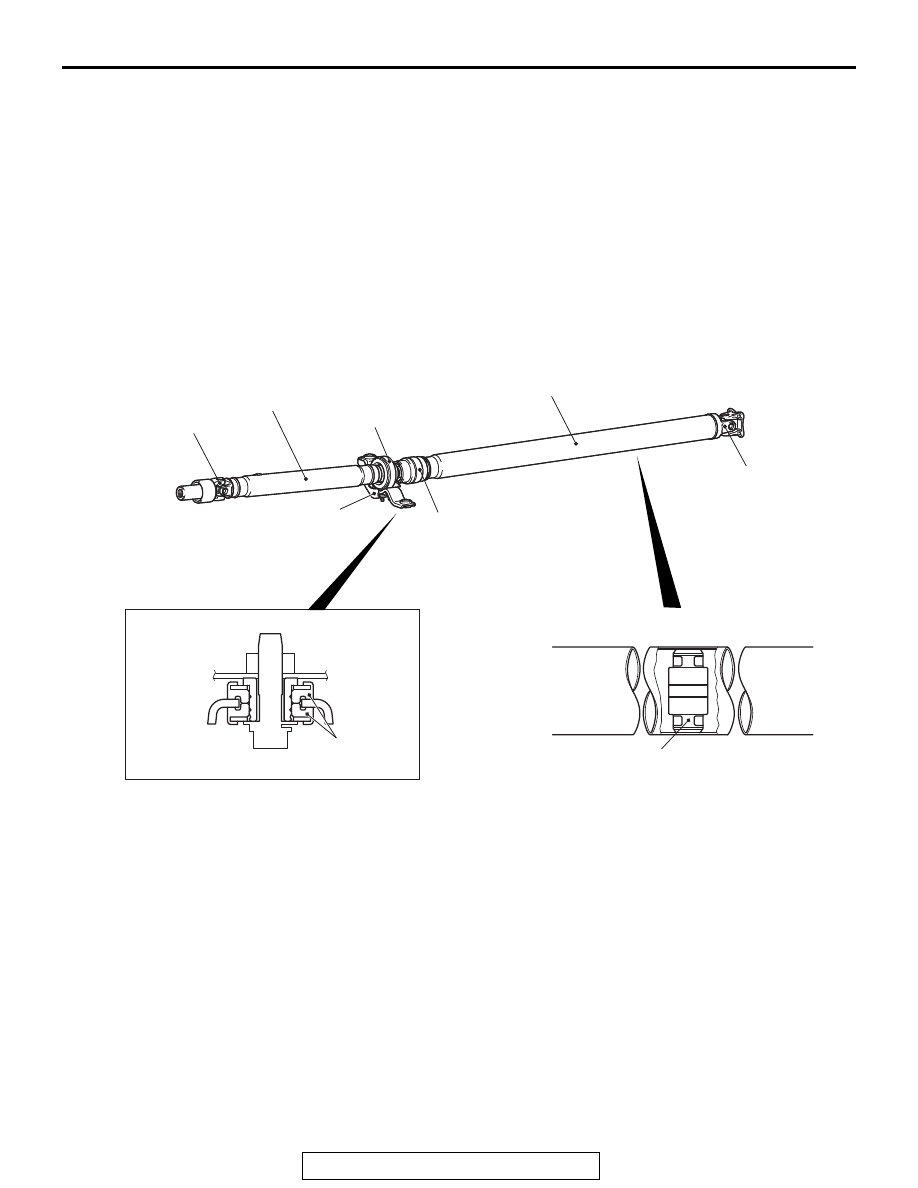

CONSTRUCTION DIAGRAM

AC703128

Rear propeller shaft

Center bearing

Dynamic damper

Insulator

AB

Front propeller
shaft

No.2 joint (DOJ)

No.3 joint

No.1 joint

Heat protector

GENERAL SPECIFICATIONS

TSB Revision

PROPELLER SHAFT

25-3

GENERAL SPECIFICATIONS

M1251000200183

NOTE: *: Indicates the distance between each joint
center.

SERVICE SPECIFICATIONS

M1251000300362

LUBRICANT

M1251000400499

PROPELLER SHAFT DIAGNOSIS

INTRODUCTION TO PROPELLER SHAFT DIAGNOSIS

M1251001800122

If an abnormal noise is heard from the propeller shaft
while driving, some parts of the propeller shaft may
be worn or damaged, or some mounting bolts may
be loose.

PROPELLER SHAFT DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1251001900130

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted all of the possible ways to find a pro-
peller shaft fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

Item

Specification

Propeller shaft

Type

2-piece, 3-joint type propeller shaft

Length*

× Outer

diameter mm (in)

Front

708.6

× 65 (27.9 × 2.56)

Rear

1178.9

× 75 (46.4 × 2.95)

Universal joint

Type

No.1

Cross type (caulking method)

No.2

Constant velocity type (DOJ)

No.3

Cross type (caulking method)

Bearing

Needle roller bearing (maintenance-free
type)

Item

Limit

Propeller shaft runout mm (in)

Front

0.5 (0.02)

Rear

0.8 (0.03)

Item

Specified lubricant

Quantity

Front propeller shaft yoke

Hypoid gear oil API classification GL-5
SAE90

as required

PROPELLER SHAFT DIAGNOSIS

TSB Revision

PROPELLER SHAFT

25-4

SYMPTOM CHART

M1251002000129

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Noise at Start

DIAGNOSIS

STEP 1. Check if the propeller shaft mounting
nuts and the center bearing mounting nuts are
loose (Refer to

P.25-7

).

Q: Are the mounting nuts tightened to the specified

torque?
YES :

Go to Step 2.

NO :

Tighten the propeller shaft mounting nuts to
54

± 5 N⋅m (40 ± 3 ft-lb). Tighten the center

bearing mounting nuts to 41

± 5 N⋅m (30 ± 3

ft-lb). Then go to Step 4.

STEP 2. Check the sleeve yoke's spline of the
front propeller shaft for wear.

Q: Is wear apparent?

YES :

Replace the propeller shaft. Then go to Step

4.

NO :

Go to Step 3.

STEP 3. Check the propeller shaft for looseness.

Q: Is looseness recognized?

YES :

Replace the propeller shaft. Then go to Step

4.

NO :

Go to Step 4.

STEP 4. Retest the system.

Q: Is the abnormal noise eliminated?

YES :

The procedure is complete.

NO :

Recheck from Step 1.

INSPECTION PROCEDURE 2: Noise and Vibration at High Speed

DIAGNOSIS

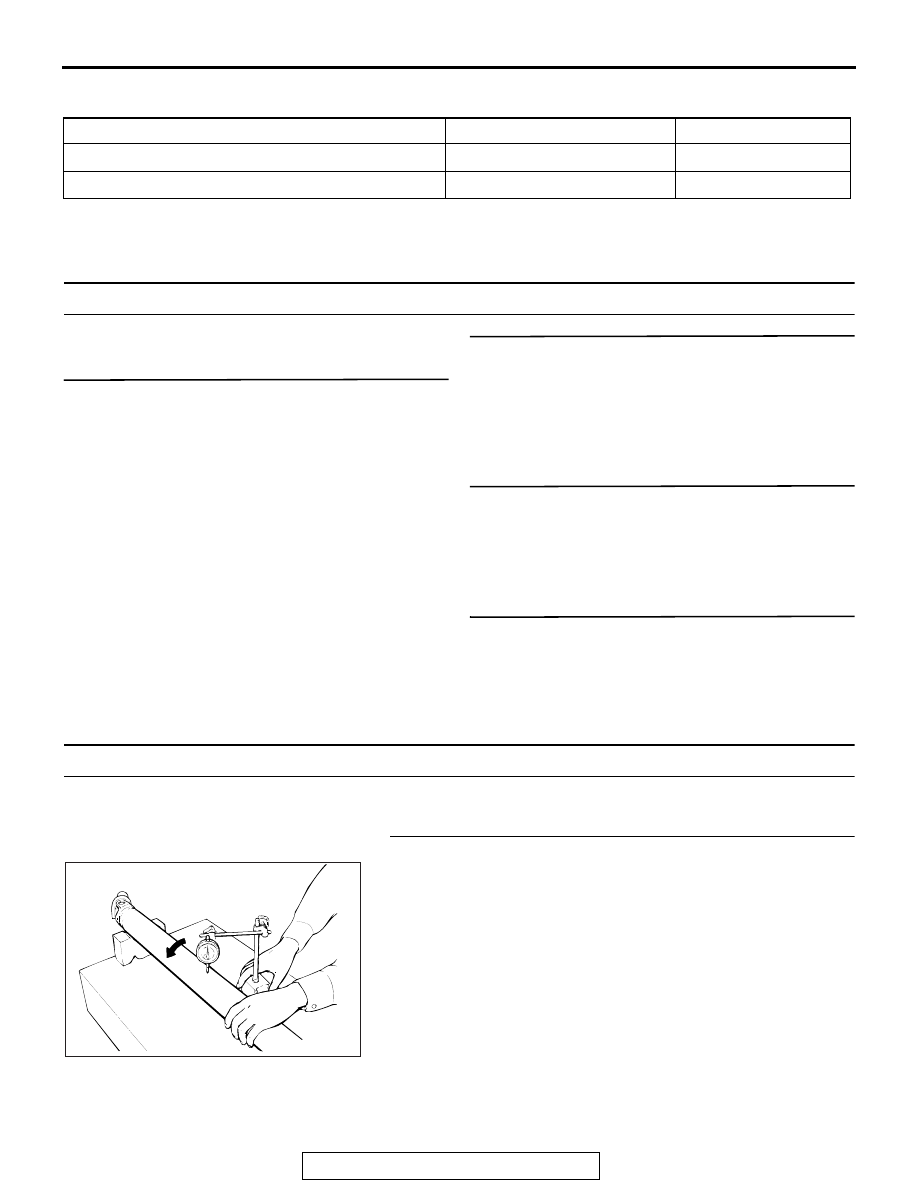

STEP 1. Check the propeller shaft runout.
Q: Is the measured value within the limit; Front :0.5 mm

(0.02 inch) or Rear: 0.8 mm (0.03 inch) ?
YES : Go to Step 2.
NO :  Replace the propeller shaft. Then go to Step 3.

Symptom

Inspection procedure

Reference page

Noise at start

1

P.25-4

Noise and vibration at high speed

2

P.25-4

AC703130AB
