AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-475

6. Place three old tires without wheels on top of the tire

secured to the air bag module, and secure all tires together
with ropes (four locations).

WARNING

•

Before deployment, check carefully to be sure that
no one is nearby.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
air bag deployment. See Deployed Air Bag Module
and Operated Seat Belt Pre-tensioner Disposal
(Refer to

P.52B-481

) for post-deployment handling

instructions.

•

If the air bag fails to deploy, do not go near the
module.

7. At a location as far away from the air bag module as

possible, and from a shielded position, disconnect the two
connected wires from each other, and connect them to the
two terminals of the battery (which has been removed from
the vehicle) to deploy the air bag.

8. Discard the deployed air bag module as specified in

Deployed Air Bag Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to

P.52B-481

).

.

DEPLOYMENT OUTSIDE VEHICLE< SIDE-AIR
BAG MODULE>

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Deploy the air bag in a wide, flat area at least 6
meters (20 feet) away from obstacles and other
people.

•

Do not perform deployment outside if a strong
wind is blowing. If there is a slight breeze, place
the air bag module downwind from the battery.

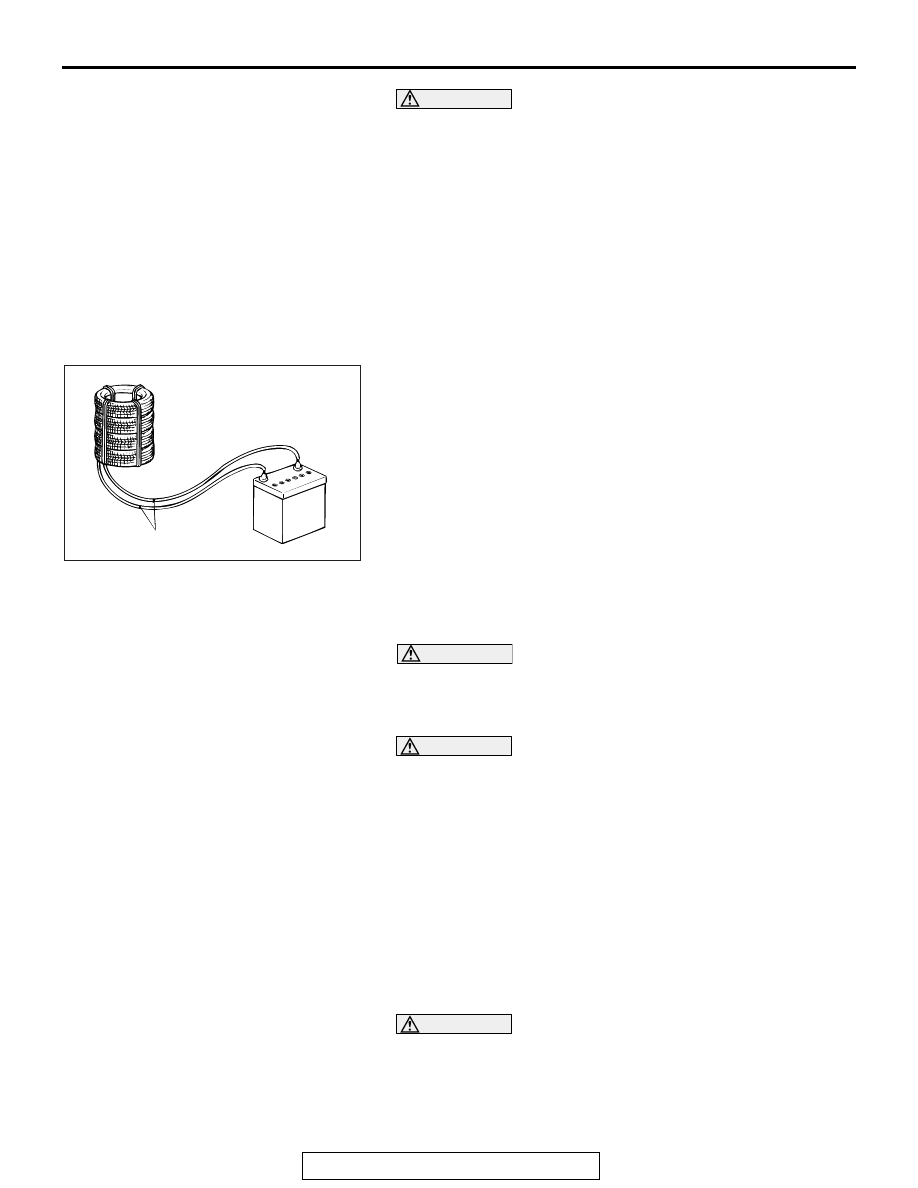

1. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

ACX00611 AC

Old tires
without wheels

Deployment wires

ACX01315 AD

Deployment wires

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-476

CAUTION

Once disconnected, both electrodes of the side-air bag
module connector short automatically to prevent acciden-
tal deployment caused by static etc. Still, in consideration
of the accidental deployment, store the air bag module on
flat place with deployment surface facing up. Also, do not
put anything on it.
2. Remove the side-air bag module from the front seat

assembly incorporated in the side-air bag. (Refer to GROUP
52A-FRONT SEAT ASSEMBLY

P.52A-17

.)

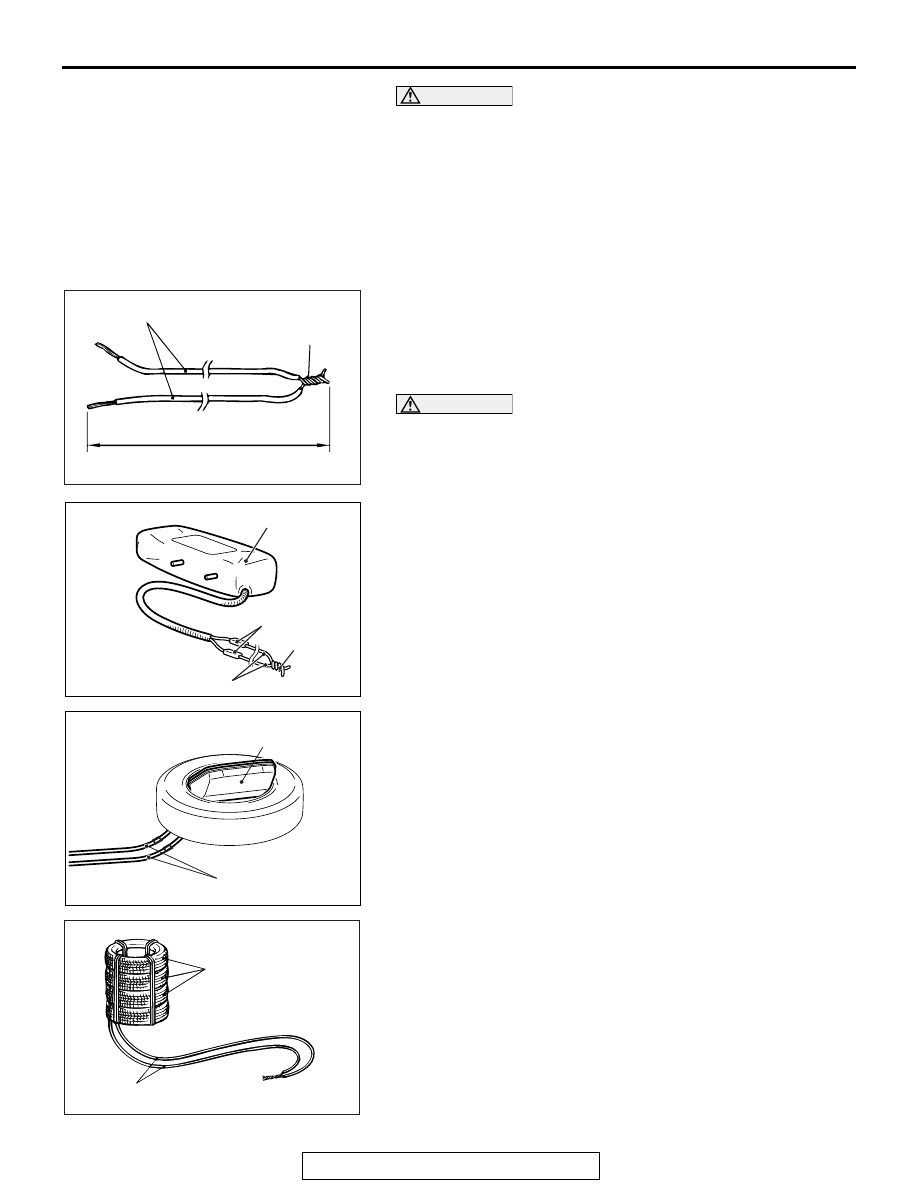

3. Obtain two suitable wires, which are 6 meters (20 feet) or

longer, as deployment wires. Then connect the wires at one
end to short.
NOTE: This prevents the air bags from unintentional deploy-
ment caused by static electricity, etc.

CAUTION

Never fail to do Step 4 in order to prevent accidental
deployment caused by static.
4. Touch the vehicle body with bare hands to release the

charged static.

5. Cut off the side-air bag module wiring harness connector

from the wiring harness with nippers. Connect the
deployment wire to each of the two cut wiring harnesses,
and cover the connection areas with insulation tape.

6. Pass the deployment wire under the tire with wheel, and

connect it to the side-air bag module connector.

7. Install a surplus nut to the side-air bag module bolt. Then, tie

a thick wire for fixing the wheel to the bolt. Fix the side-air
bag module to the wheel of old tire with the module
deployment surface facing upward.

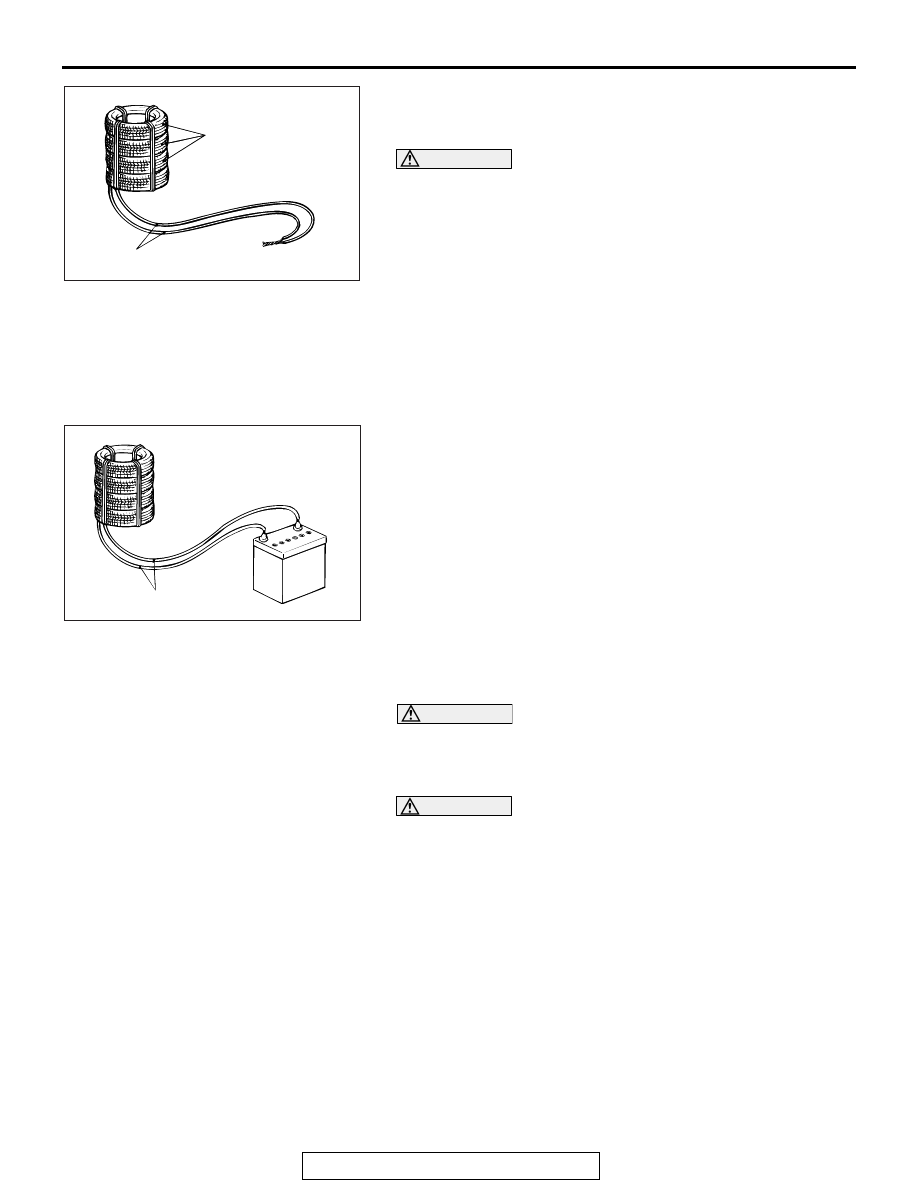

8. Place three old tires without wheels on top of the tire

secured to the air bag module, and secure all tires together
with ropes (four locations).

AC100450 AC

Connection

Deployment wires

6 m or longer

AC406391AD

Connection

Deployment wires

Insulator tape

Side-airbag module

AC300990

AJ

Side-air bag module

Deployment wires

ACX00611 AC

Old tires
without wheels

Deployment wires

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-477

WARNING

•

Before deployment, check carefully to be sure that
no one is nearby.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
air bag deployment. See Deployed Air Bag Module
and Operated Seat Belt Pre-tensioner Disposal
(Refer to

P.52B-481

) for post-deployment handling

instructions.

•

If the air bag fails to deploy, do not go near the
module.

9. At a location as far away from the air bag module as

possible, and from a shielded position, disconnect the two
connected wires from each other, and connect them to the
two terminals of the battery (which has been removed from
the vehicle) to deploy the air bag.

10.Discard the deployed air bag module as specified in

Deployed Air Bag Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to

P.52B-481

).

.

DEPLOYMENT OUTSIDE THE VEHICLE
<CURTAIN AIR BAG MODULE>

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Deploy the air bag in a wide, flat area at least 6
meters (20 feet) away from obstacles and other
people.

•

Do not perform deployment outside if a strong
wind is blowing. If there is a slight breeze, place
the air bag module downwind from the battery.

1. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

WARNING

Store the curtain air bag module on a flat surface with
its operation surface facing up. Do not place anything
on top of them.

2. Remove the curtain air bag module from the vehicle (Refer

to

P.52B-453

).

ACX01315 AD

Deployment wires

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-478

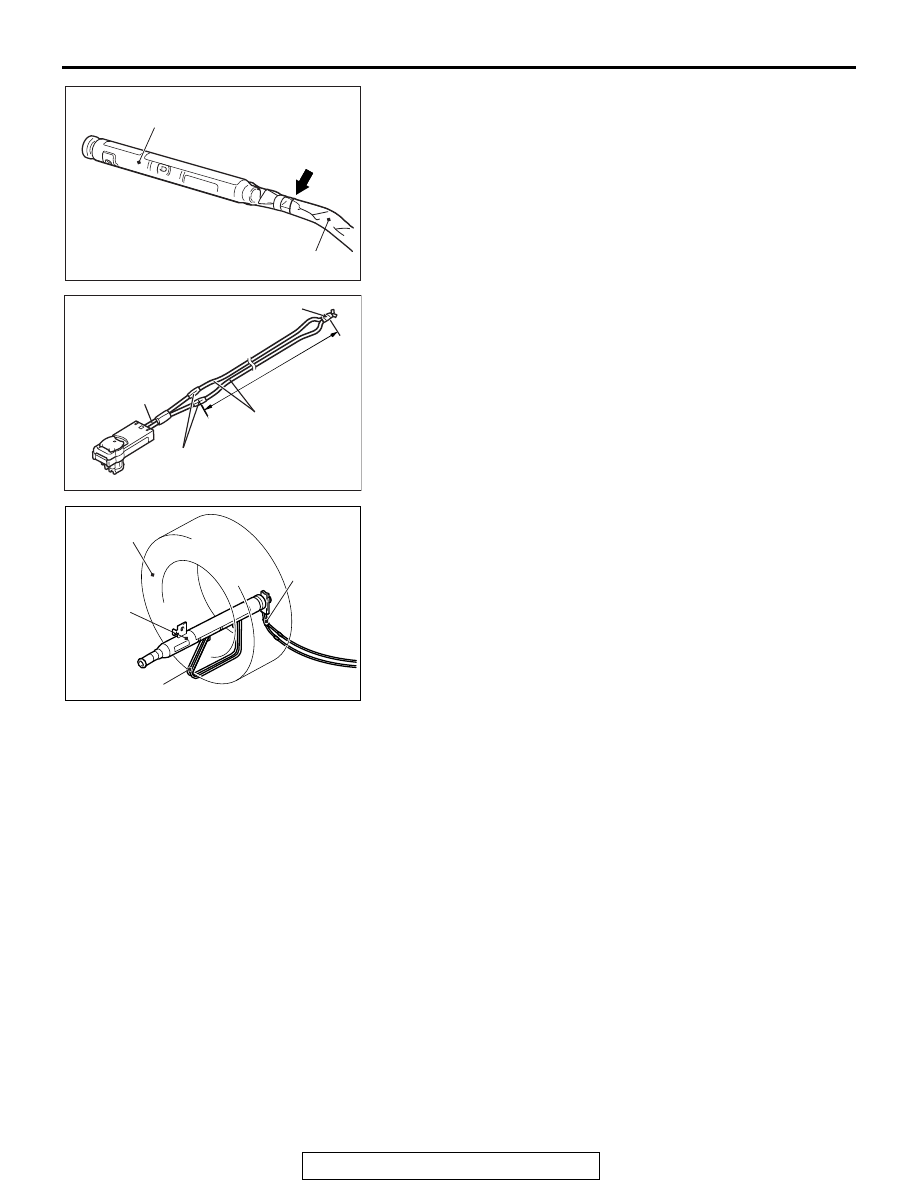

3. Cut the inflator from the air bag as shown in the figure using

a cutter or a similar tool.

4. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB991885, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected deployment
of the air bag module.
NOTE: This prevents the air bags from being unintentionally
deployed because of the static and others.

5. Connect the special tool MB991885 to the curtain air bag

module.

6. Feed a thick wire through the bracket of the inflator, and

connect it to an old tire without a wheel.

AC303536AB

Inflator

Air bag

AC103480

MB991885

AJ

Connection

Deployment wires

Insulator tape

6 m (20 ft) or
longer

AC303641

MB991885

AD

Inflator

Wire

Old tire
without wheel
