AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-467

WARNING

•

Before deploying the air bag in this manner, first
check to be sure that there is no one in or near the
vehicle. Wear safety glasses.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
the air bag deployment. See Deployed Air Bag
Module and Operated Seat Belt Pre-tensioner Dis-
posal (Refer to

P.52B-481

) for post-deployment

handling instructions.

•

If the air bag module fails to deploy, do not go near
the module.

10.At a location as far away from the vehicle as possible,

disconnect the two connected wires from each other, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag.

11.After deployment, dispose of the front seatback assembly

(air bag module) according to the Deployed Air Bag Module
and Operated Seat Belt Pre-tensioner Disposal (Refer to

P.52B-481

).

.

DEPLOYMENT INSIDE THE VEHICLE (WHEN
DISPOSING OF A VEHICLE) <CURTAIN AIR BAG
MODULE>

1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

2. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

3. Remove the headlining (Refer to GROUP 52A,

HEADLINING

P.52A-15

).

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-468

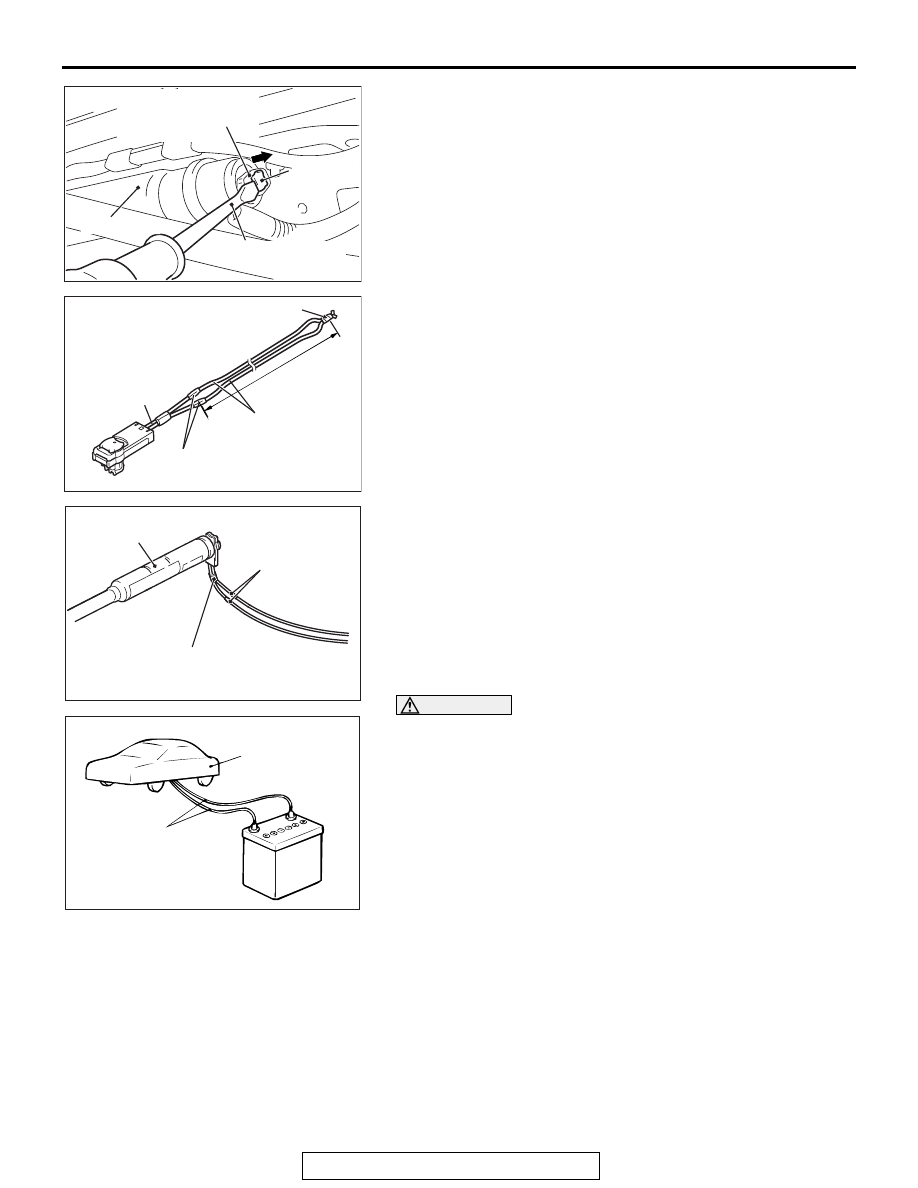

4. Use the flat-tipped screwdriver to pull out the locking button

of curtain air bag harness side connector. After releasing the
lock, disconnect the connector.
NOTE: If the curtain air bag module connector is discon-
nected from the floor wiring harness side connector, both
electrodes of the curtain air bag module connector will be
automatically shorted to prevent unintended deployment of
the curtain air bag module due to static electricity, etc.

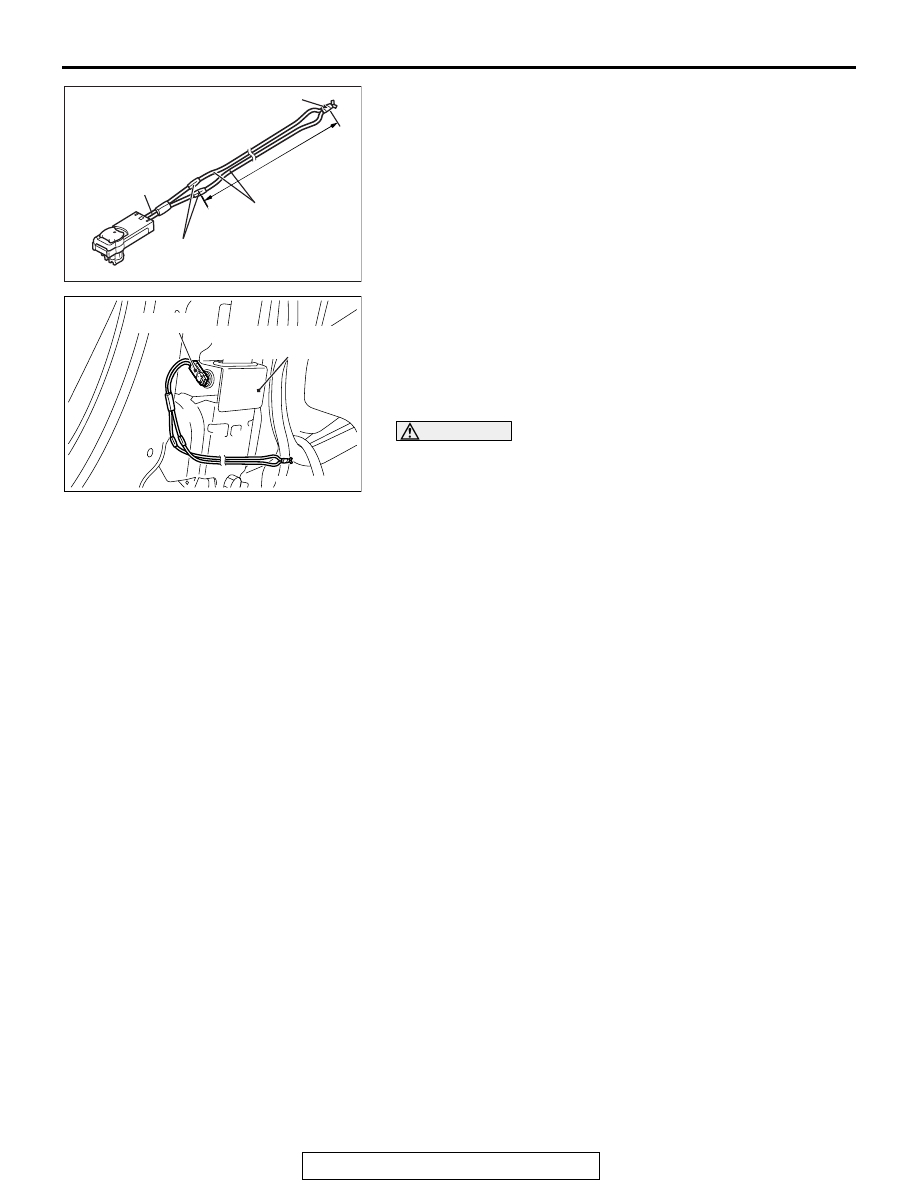

5. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB991885, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected deployment
of the curtain air bag module.

6. Connect the special tool MB991885 to the inflator, and then

pull out the deployment wire to outside the vehicle.

WARNING

If the glass is scratched, air bag deployment could
cause it to crack and fly out of the vehicle, so always
put a cover over the vehicle.

7. To suppress the deployment sound as much as possible,

completely close all door windows, close the doors and put
the cover on the vehicle.

AC506711AC

Curtain air bag wiring
harness connector
 (2-pin, black)

Locking
button

Flat-tipped screwdriver

Inflator

AC103480

MB991885

AJ

Connection

Deployment wires

Insulator tape

6 m (20 ft) or
longer

AC301520

MB991885

AH

Inflator

Deployment wires

ACX01308AE

Cover

Deployment wire
6 m (20 ft) or longer

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-469

WARNING

•

Before deploying the air bag in this manner, first
check to be sure that there is no one in or near the
vehicle. Wear safety glasses.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
the air bag deployment. See Deployed Air Bag
Module and Operated Seat Belt Pre-tensioner Dis-
posal (Refer to

P.52B-481

) for post-operation han-

dling instructions.

•

If the air bag module fails to deploy, do not go near
the air bag module.

8. At a location as far away from the vehicle as possible,

disconnect the two connected wires from each the, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag.

9. After deployment, dispose of the air bag module according

to the Deployed Air Bag Module and Operated Seat belt
Pre-tensioner Disposal (Refer to

P.52B-481

).

.

DEPLOYMENT INSIDE THE VEHICLE (WHEN
DISPOSING OF A VEHICLE) <SEAT BELT
PRE-TENSIONER>

1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

2. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

3. Remove the center pillar trim, lower (Refer to GROUP 52A,

Trims

P.52A-10

).

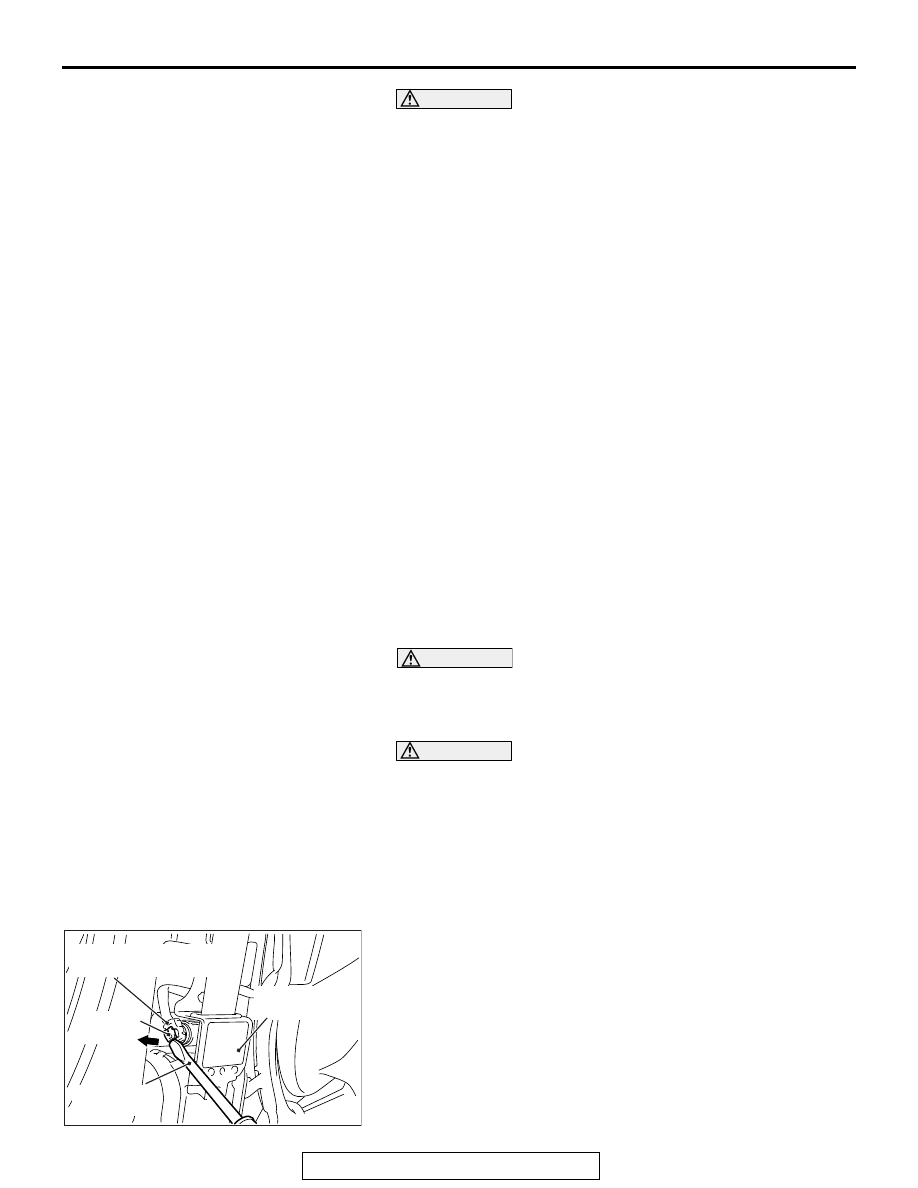

4. Use the slotted (

−) screwdriver to pull out the locking button

of floor harness side connector. After releasing the lock,
disconnect the connector.
NOTE: If the seat belt pre-tensioner connector is discon-
nected from the floor wiring harness side connector, both
electrodes of the seat belt pre-tensioner connector will be
automatically shorted to prevent unintended operation of the
seat belt pre-tensioner due to static electricity, etc.

AC506363AB

Seat belt
pre-tensioner

Floor wiring harness side
connector (2-pin, black)

Locking
button

Flat-tipped
screwdriver

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-470

5. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB991885, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected operation of
the seat belt pre-tensioner.

6. Connect the special tool MB991885 to the two-pin connector

of seat belt pre-tensioner, and then pull out the deployment
wire to outside the vehicle.

7. In order to suppress the operation sound as much as

possible, fully close all the door windows and close the
doors.

WARNING

•

Before operating the seat belt pre-tensioner in this
manner, first check to be sure that there is no one
in or near the vehicle. Wear safety glasses.

•

The inflator will be quite hot immediately following
the operation, so wait at least 30 minutes to allow
it to cool before attempting to handle it. Although
not poisonous, do not inhale gas from the seat belt
pre-tensioner operation. See Deployed Air Bag
Module and Operated Seat Belt Pre-tensioner Dis-
posal (Refer to

P.52B-481

) for post-operation han-

dling instructions.

•

If the seat belt pre-tensioner fails to operate, do
not go near the seat belt pre-tensioner.

8. At a location as far away from the vehicle as possible,

disconnect the two connected wires from each the, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to operate the seat belt
pre-tensioner.

9. After operation, dispose of the seat belt pre-tensioner

according to the Deployed Air Bag Module operated Seat
Belt Pre-tensioner Disposal (Refer to

P.52B-481

).

.

AC103480

MB991885

AJ

Connection

Deployment wires

Insulator tape

6 m (20 ft) or
longer

AC702040

AB

MB991885

Seat belt pre-tensioner

connector
