SEAT BELTS WITH PRE-TENSIONER

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-459

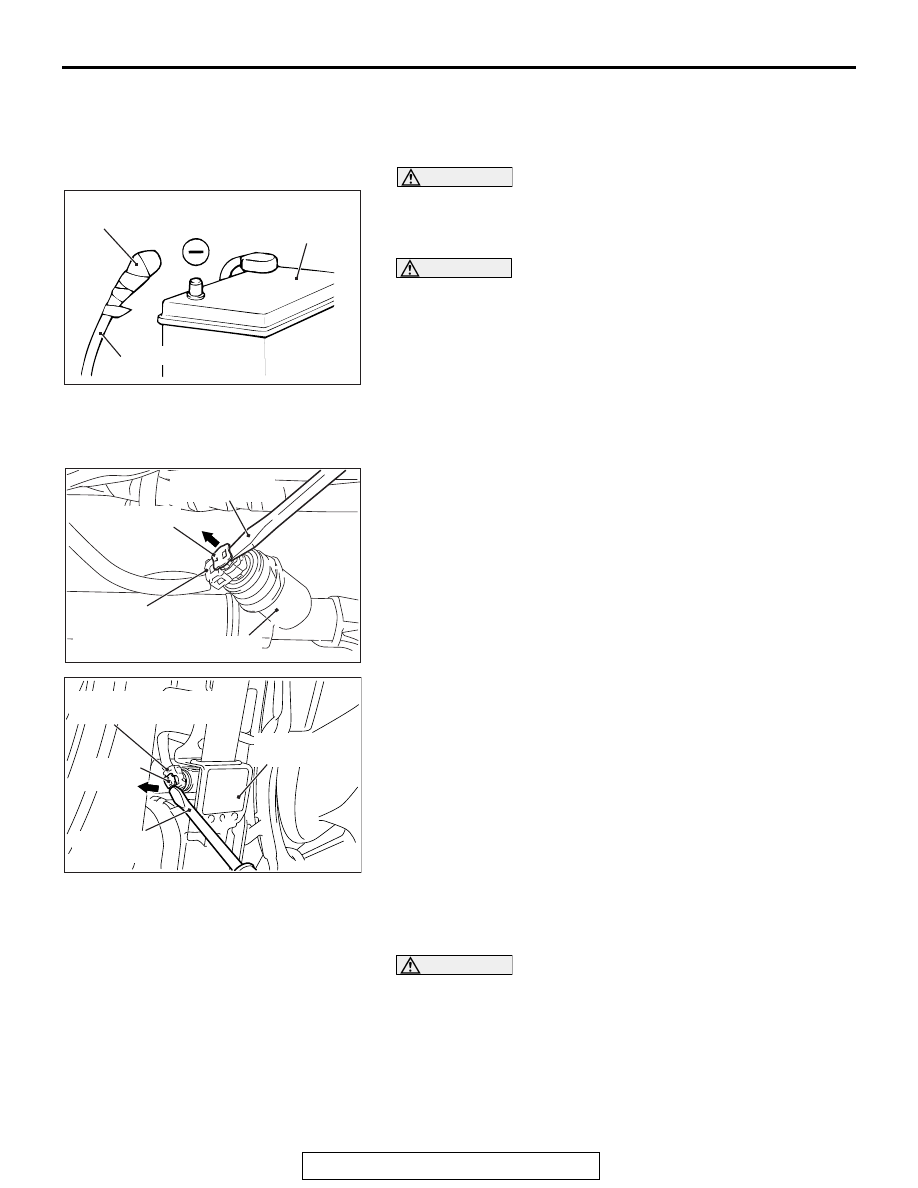

REMOVAL SERVICE POINTS

.

<<A>> NEGATIVE (

−) BATTERY CABLE DISCON-

NECTION

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (

−) battery cable from the battery and

tape the terminal to prevent accidental connection and seat belt
pre-tensioner operation.

.

<<B>> LAP PRE-TENSIONER CONNECTOR
DISCONNECTION

Use a flat-tipped screwdriver to unlock the locking button of the
floor wiring harness side connector. After releasing the lock,
disconnect the connector.

.

<<C>> SEAT BELT PRE-TENSIONER
CONNECTOR DISCONNECTION

Use a flat-tipped screwdriver to unlock the locking button of the
floor wiring harness side connector. After releasing the lock,
disconnect the connector.

.

<<D>> SEAT BELT WITH PRE-TENSIONER
REMOVAL

CAUTION

When discarding the seat belt with pre-tensioner, discard
after operating the pre-tensioner as specified in the ser-
vice procedure. (Refer to

P.52B-461

.)

ACX00583

Insulating tape

Battery cable

Battery

AF

AC702016AB

Floor wiring harness
side connector

Locking button

Flat-tipped
screwdriver

Lap pre-tensioner

AC506363AB

Seat belt
pre-tensioner

Floor wiring harness side
connector (2-pin, black)

Locking
button

Flat-tipped
screwdriver

SEAT BELTS WITH PRE-TENSIONER

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-460

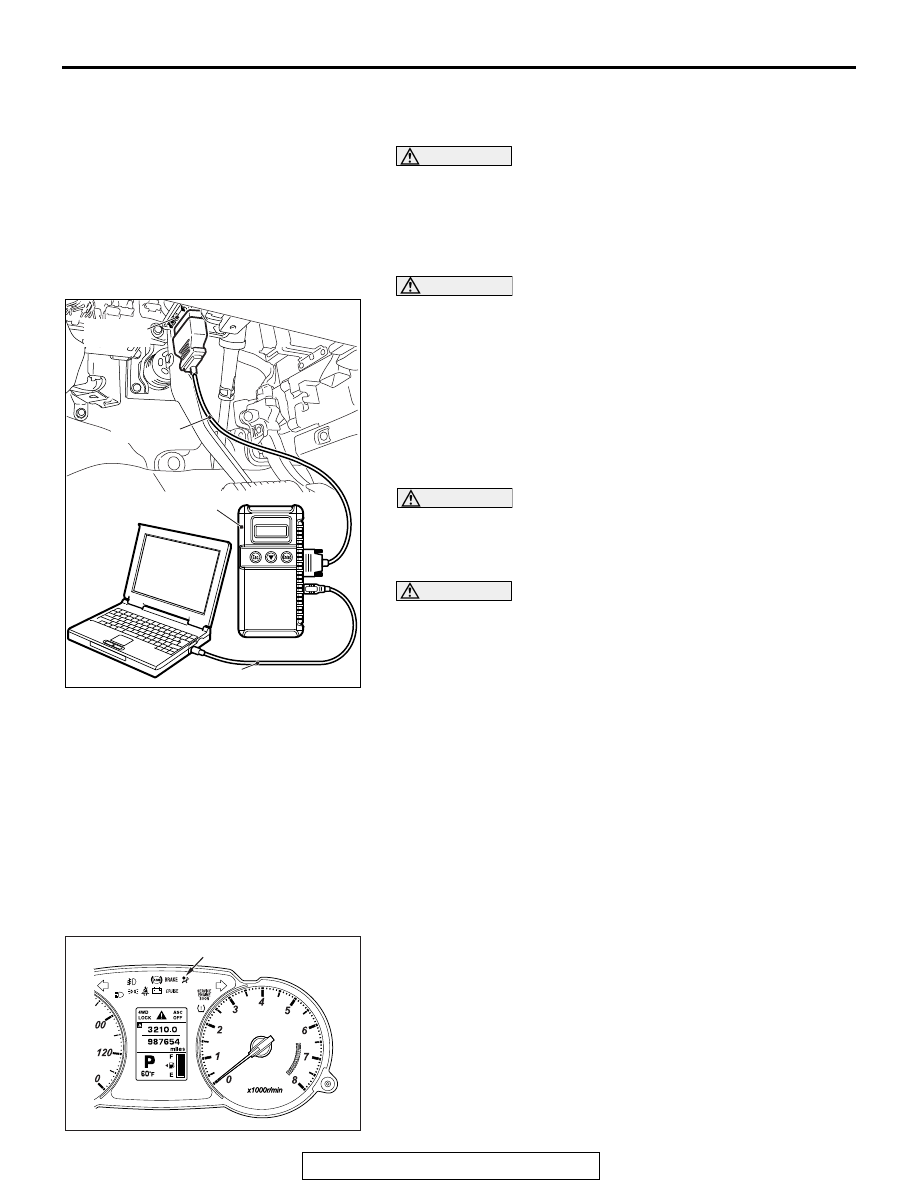

INSTALLATION SERVICE POINTS

.

>>A<< PRE-INSTALLATION INSPECTION

WARNING

Dispose of seat belt pre-tensioner only according to
the specified procedure. (Refer to

P.52B-461

).

1. When installing the new seat belt pre-tensioner, refer to

“INSPECTION” (

P.52B-461

).

2. Connect the negative (

−) battery cable.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
3. Connect scan tool MB991958 to the data link connector.
4. Turn the ignition switch to the “ON” position.
5. Check DTCs using scan tool MB991958 to ensure entire

SRS operates properly.
At this time, check that no DTC except B1C35, B1C3A and
B1C49 are set.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

6. Turn the ignition switch to the "LOCK" (OFF) position.

Disconnect the negative (

−) battery cable and tape the

terminal to prevent accidental connection and seat belt
pre-tensioner operation.

.

>>B<< PRE-TENSIONER CONNECTOR
CONNECTION

Connect the pre-tensioner connector then securely lock the
locking button of the harness-side connector.

.

>>C<< POST-INSTALLATION INSPECTION

1. Reconnect the negative (

−) battery cable.

2. Turn the ignition switch to the “ON” position.
3. Does the "SRS" warning light illuminate for approximately

seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If not, refer to

P.52B-344

.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

AC901647

SRS Warning light

AB

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-461

INSPECTION

M1524004200632

WARNING

•

If any component damage is found during the fol-
lowing inspection, replace the seat belt with
pre-tensioner with a new one. Dispose of the old
one according to the specified procedure (Refer to

P.52B-461

).

•

Never attempt to measure the circuit resistance of
the seat belt pre-tensioner even if you are using
the specified tester. If the circuit resistance is mea-
sured with a tester, accidental seat belt pre-ten-
sioner operation will result in serious personal
injury.

1. Check seat belt pre-tensioner for dents, cracks or

deformation.

2. Check the connectors for damage, the terminals for

deformation, and the harness for binding.

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

DISPOSAL PROCEDURES

M1524001201937

Before disposing of an air bag or a vehicle equipped with an air
bag, follow the procedures below to deploy the air bag.

UNDEPLOYED AIR BAG MODULE DISPOSAL

Required Special Tools:

• MB992102: Air Bag Inflation Adapter Harness

• MB991885: Pre-tensioner Adapter Harness (For pre-ten-

sioner)

WARNING

•

If the vehicle is to be scrapped or otherwise dis-
posed of, deploy the air bags and operate the seat
belt pre-tensioners inside the vehicle. If the vehicle
will continue to be used and only the air bag mod-
ules and seat belt pre-tensioner are to be disposed
of, deploy the air bags and operate the seat belt
pre-tensioners outside the vehicle.

•

Since a large amount of smoke is produced when
the air bag is deployed and the seat belt pre-ten-
sioner is operated, avoid residential areas when-
ever possible.

•

Since there is a loud noise when the air bags are
deployed and when the seat belt pre-tensioners
are operated, avoid residential areas whenever
possible. If anyone is nearby, give warning of the
impending noise.

•

Suitable ear protection should be worn by person-
nel performing these procedures or by people in
the immediate area.

.

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-462

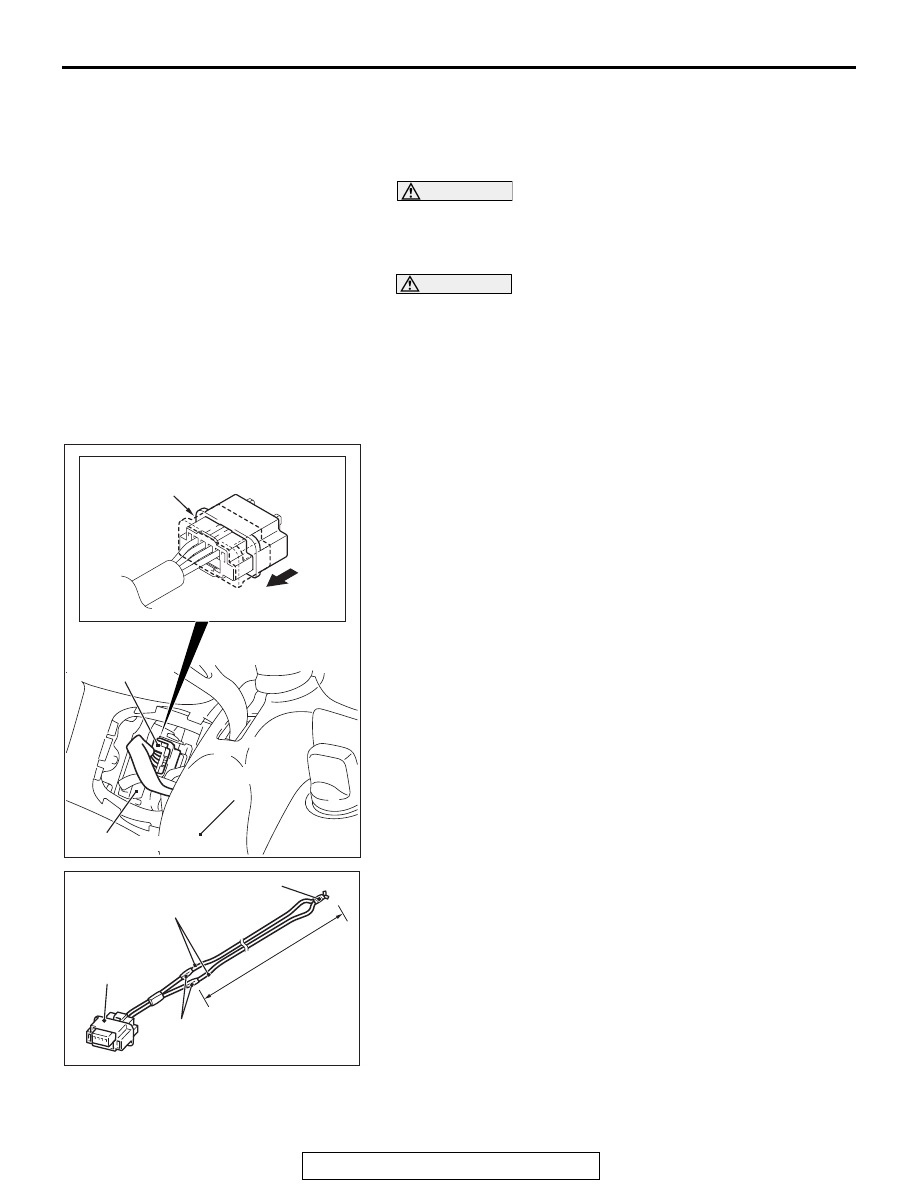

DEPLOYMENT INSIDE THE VEHICLE (WHEN
DISPOSING OF A VEHICLE) <DRIVER'S AIR BAG
MODULE>

1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

2. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

3. Remove the cover (Refer to

P.52B-439

).

4. Slide the outer housing of the driver’s air bag module

connector in the arrow direction shown, and disconnect the
connector.
NOTE: When the driver's air bag module connector is dis-
connected from the inflator, the four pins of inflator connec-
tor are automatically shorted. This prevents the
unintentional deployment of driver's air bags caused by the
static or others.

5. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB992102, and cover
the connections with insulator tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected deployment
of the air bag module.
NOTE: This prevents the air bags from being unintentionally
deployed because of the static and others.

AC607302

AC600868

Outer housing of the driver's air bag
module connector

Horn connector

Lower column
cover

Driver's air bag
module connector
(4-pin, yellow)

AB

AC502991AE

MB992102

Connection

Deployment wires

Insulator tape

6 m (20 ft) or
longer
