AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-471

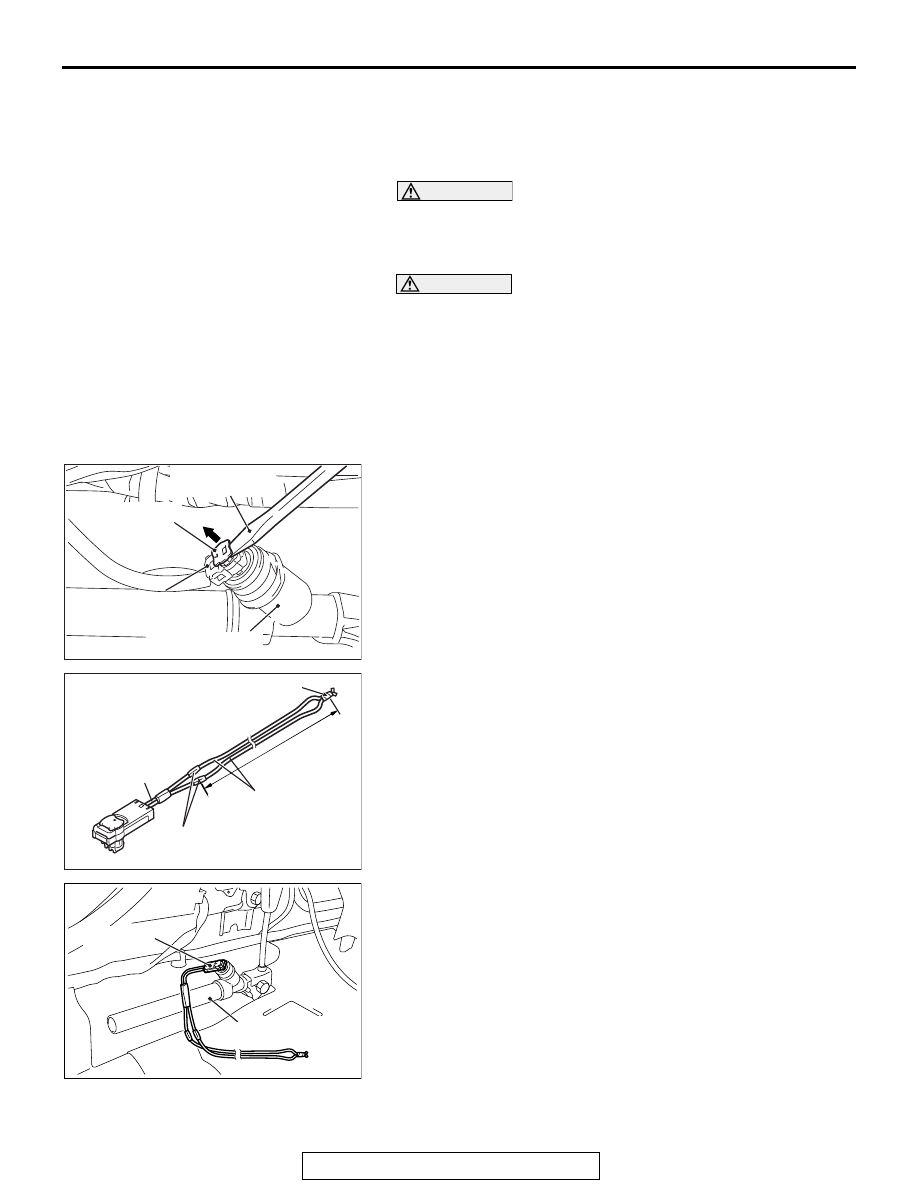

DEPLOYMENT INSIDE THE VEHICLE (WHEN
DISPOSING OF A VEHICLE) <LAP
PRE-TENSIONER>

1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

2. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

3. Remove the center pillar trim lower cover (Refer to GROUP

52A, Trims

P.52A-10

).

4. Use the slotted (

−) screwdriver to pull out the locking button

of floor wiring harness side connector. After releasing the
lock, disconnect the connector.
NOTE: If the lap pre-tensioner connector is disconnected
from the floor wiring harness side connector, both electrodes
of the lap pre-tensioner connector will be automatically
shorted to prevent unintended operation of the lap pre-ten-
sioner due to static electricity, etc.

5. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB991885, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected operation of
the lap pre-tensioner.

6. Connect the special tool MB991885 to the two-pin connector

of lap pre-tensioner, and then pull out the deployment wire to
outside the vehicle.

7. In order to suppress the operation sound as much as

possible, fully close all the door windows and close the
doors.

.

AC702041AB

Flat-tipped
screwdriver

Locking button

Floor wiring harness side
connector (2-pin, black)

Lap pre-tensioner

AC103480

MB991885

AJ

Connection

Deployment wires

Insulator tape

6 m (20 ft) or
longer

AC702019

AB

MB991885

Lap pre-tensioner

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-472

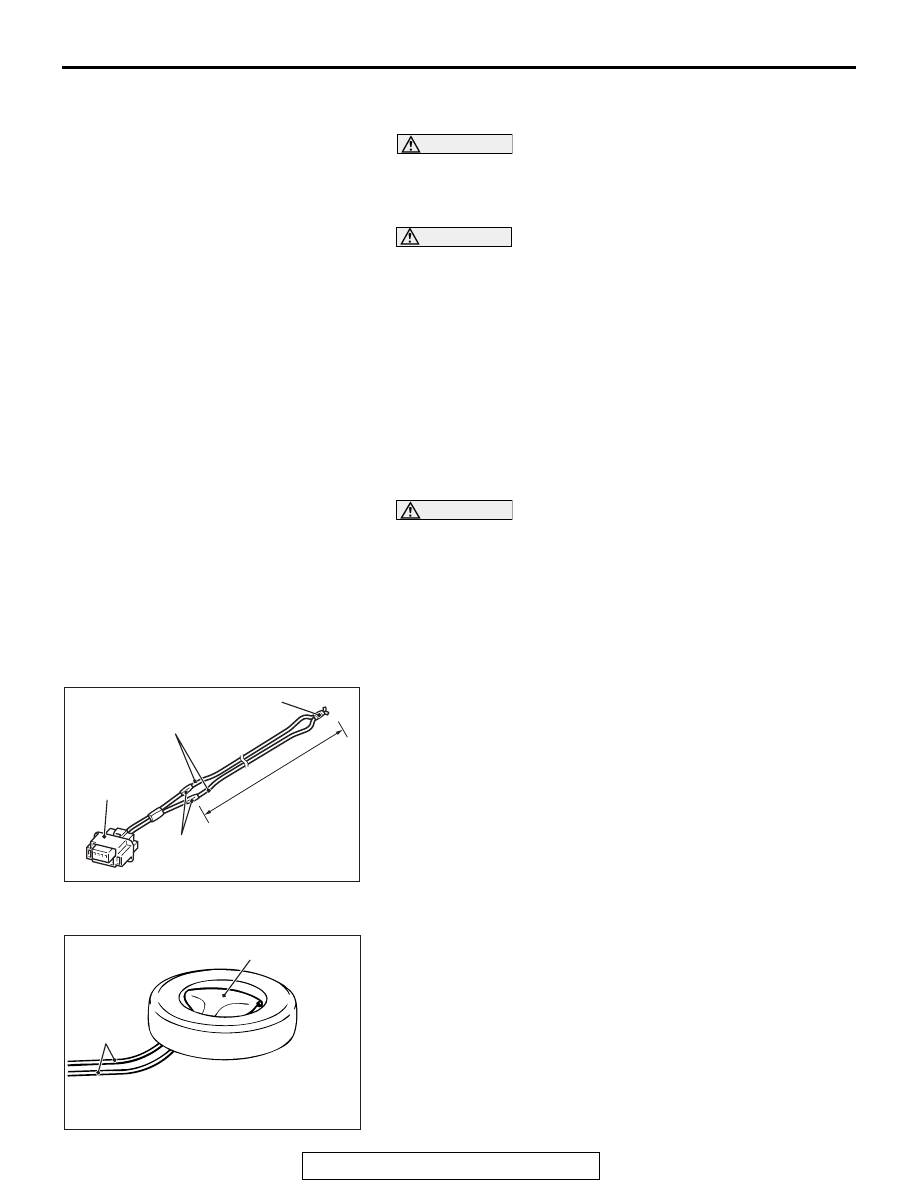

DEPLOYMENT OUTSIDE THE VEHICLE
<DRIVER'S AIR BAG MODULE>

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Deploy the air bag in a wide, flat area at least 6
meters (20 feet) away from obstacles and other
people.

•

Do not perform deployment outside if a strong
wind is blowing. If there is a slight breeze, place
the air bag module downwind from the battery.

1. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

CAUTION

Once disconnected, both electrodes of the driver’s air bag
module connector short automatically to prevent acciden-
tal deployment caused by static etc. Still, in consideration
of the accidental deployment, store the air bag module on
a flat place with deployment surface facing up. Do not put
anything on it.
2. Remove the air bag module from the vehicle (Refer

P.52B-439

3. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB992102, and cover
the connections with insulator tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected deployment
of the air bag module.
NOTE: This prevents the air bags from being unintentionally
deployed because of the static and others.

4. Connect the special tool MB992102 to the driver’s air bag

module.

5. To the torx screw installation hole located at the backside of

air bag module, tie a thick wire for fixing the wheel.

6. Route the deployment wires connected to the driver’s air

bag module beneath an old tire and wheel assembly. Then,
using the wire tied to the bolt, secure the driver’s air bag
module to the tire and wheel assembly with the deployment
surface facing up.

AC502991AE

MB992102

Connection

Deployment wires

Insulator tape

6 m (20 ft) or
longer

AC100482AC

Driver's air bag module

Deployment
wires

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-473

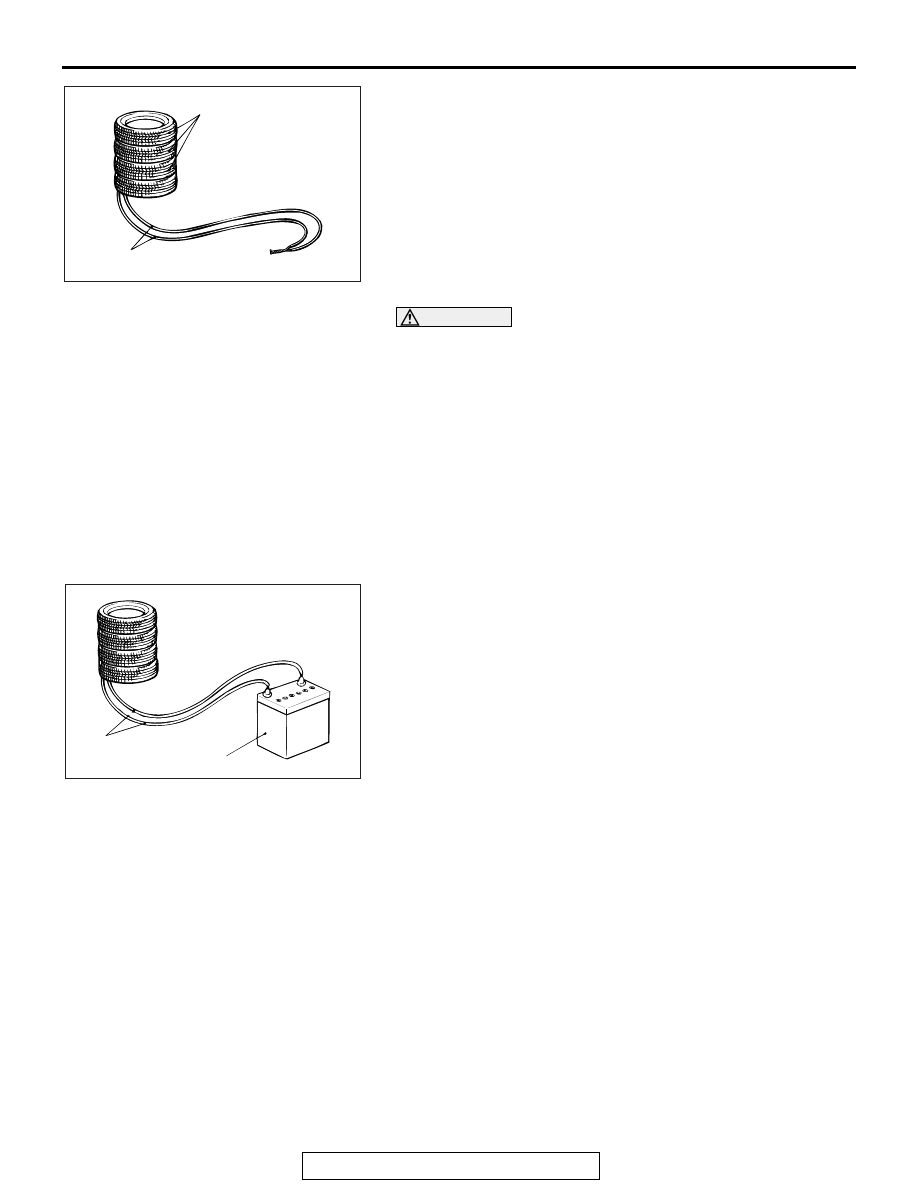

7. Place three old tires without wheels on the tire secured with

the driver’s air bag module.

WARNING

•

Before deployment, check carefully to be sure that
no one is nearby.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
air bag deployment. See Deployed Air Bag Module
and Operated Seat Belt Pre-tensioner Disposal
(Refer to

P.52B-481

) for post-deployment handling

instructions.

•

If the air bag fails to deploy, do not go near the
module.

8. At a location as far away from the air bag module as

possible, and from a shielded position, disconnect the two
connected wires from each other, and connect them, to the
two terminals of the battery (which has been removed from
the vehicle) to deploy the air bag.

9. Discard the deployed air bag module as specified in

Deployed Air Bag Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to

P.52B-481

).

.

ACX00610 AD

Old tires
without wheels

Deployment wires

ACX01313 AD

Deployment wires

Vehicle battery

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-474

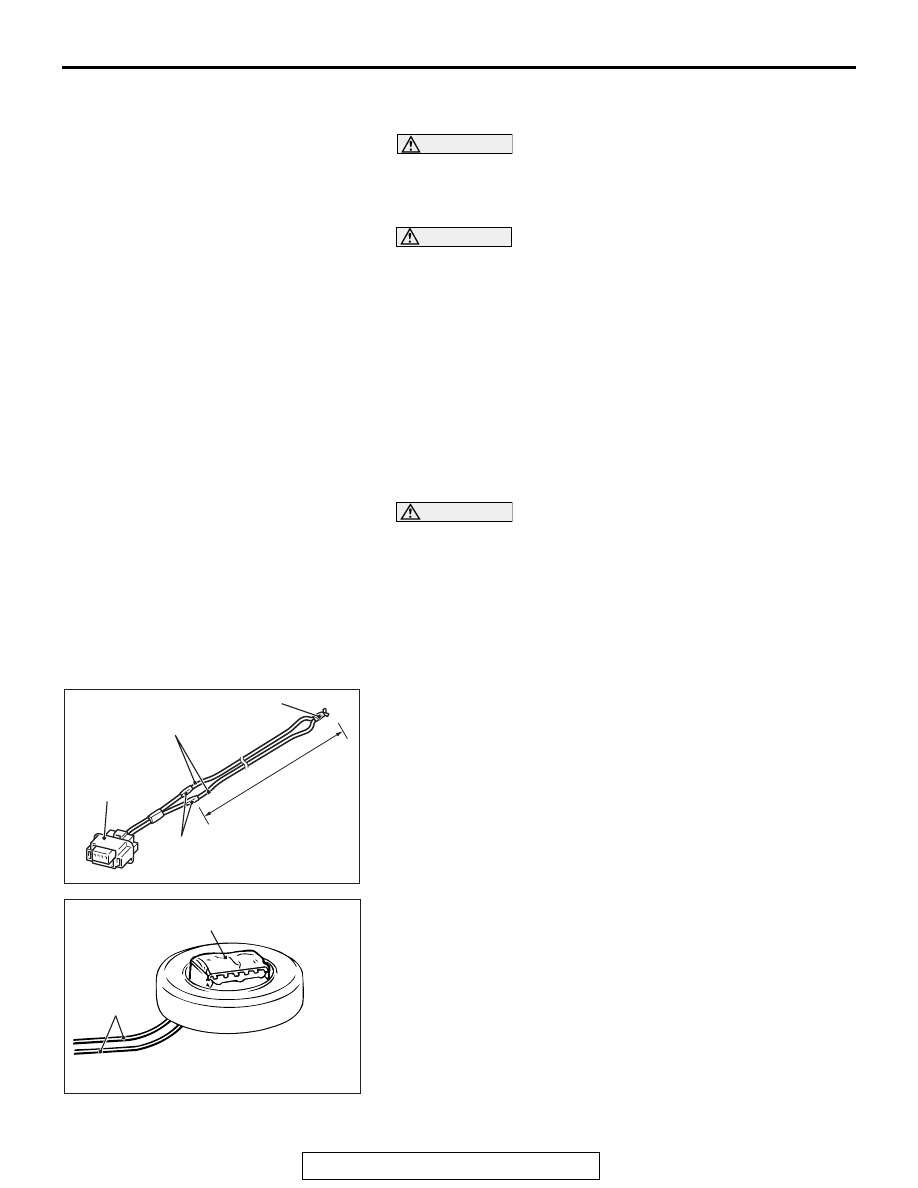

DEPLOYMENT OUTSIDE THE VEHICLE
<PASSENGER'S (FRONT) AIR BAG MODULE>

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

).

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Deploy the air bag in a wide, flat area at least 6
meters (20 feet) away from obstacles and other
people.

•

Do not perform deployment outside if a strong
wind is blowing. If there is a slight breeze, place
the air bag module downwind from the battery.

1. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

CAUTION

Once disconnected, both electrodes of the front passen-
ger’s air bag module connector short automatically to pre-
vent accidental deployment caused by static etc. Still, in
consideration of possible accidental deployment, store the
air bag module on flat place with deployment surface fac-
ing up. Do not put anything on it.
2. Remove the air bag module from the vehicle (Refer to

P.52B-439

).

3. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB992102, and cover
the connections with insulator tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected deployment
of the air bag module.
NOTE: This prevents the air bags from being unintentionally
deployed because of the static and others.

4. Connect the special tool MB992102 to the passenger’s

(front) air bag module.

5. Pass the thick wire through the hole of air bag module

mounting bracket. When, with the air bag module
deployment surface facing upward, fit the module to the old
tire with wheel.

AC502991AE

MB992102

Connection

Deployment wires

Insulator tape

6 m (20 ft) or
longer

AC300520AC

Passenger's (front) air bag module

Deployment
wires
