AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-479

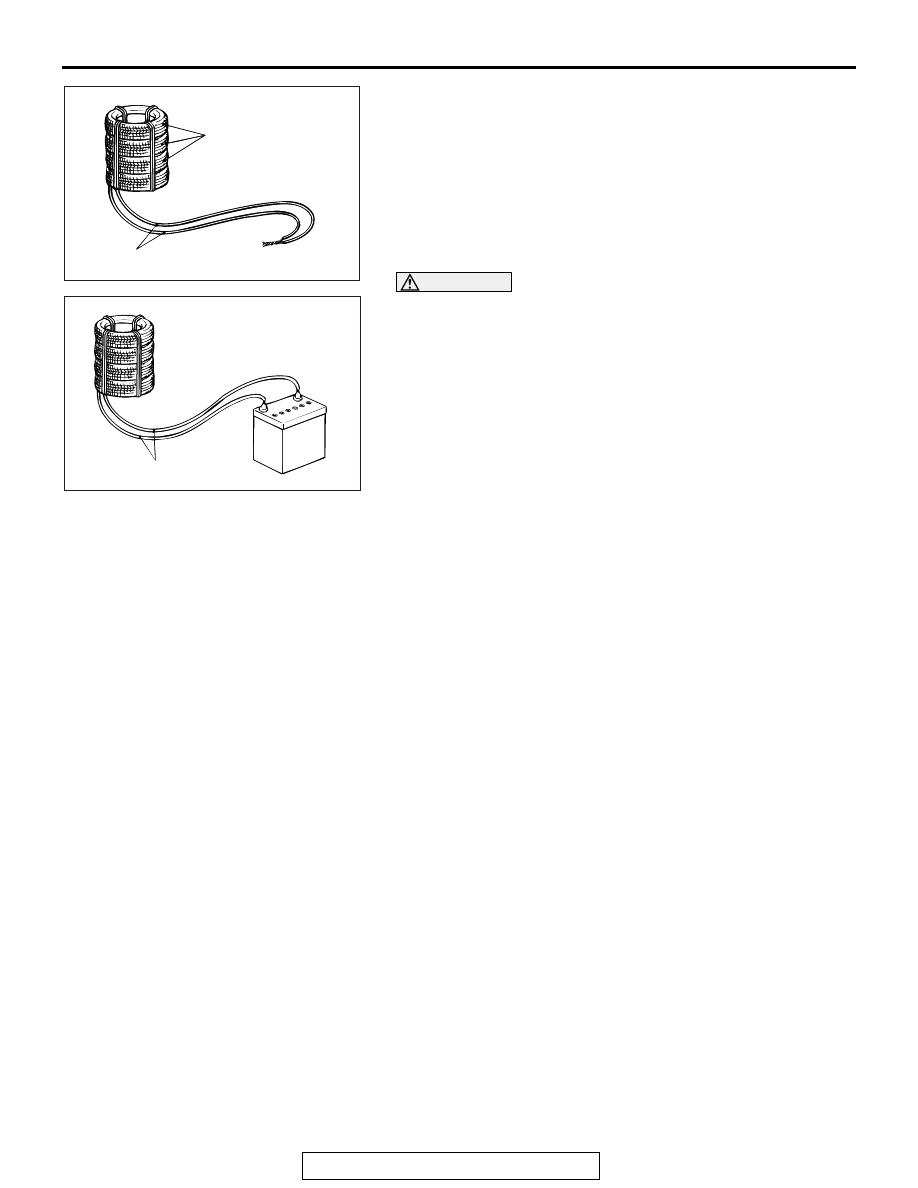

7. Place the tire to which the inflator is fixed onto the two

stacked tires. Then, place 1 or more old tires without wheel
onto the stacked tires, and tie and fix all the tires with rope.
(4 positions)

WARNING

•

Before operation, check carefully to be sure that
no one is nearby.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
air bag deployment. See Deployed Air Bag Module
and Operated Seat Belt Pre-tensioner Disposal
(Refer to

P.52B-481

) for post-operation handling

instructions.

•

If the air bag fails to deploy, do not go near the
module.

8. At a location as far away from the air bag module as

possible, and from a shielded position, disconnect the two
connected wires from each other, and connect them to the
two terminals of the battery (which has been removed from
the vehicle) to deploy the air bag.

9. Discard the deployed air bag module as specified in

Deployed Air Bag Module and Seat Belt Pre-tensioner
Disposal (Refer to

P.52B-481

ACX00611 AC

Old tires
without wheels

Deployment wires

ACX01315 AD

Deployment wires

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-480

DEPLOYMENT OUTSIDE THE VEHICLE <SEAT
BELT PRE-TENSIONER AND LAP
PRE-TENSIONER>

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-25

WARNING

•

Battery posts, terminals and related accessories
contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

•

Operate the seat belt pre-tensioner in a wide, flat
area at least 6 meters (20 feet) away from obsta-
cles and other people.

•

Do not perform operation outside if a strong wind
is blowing. If there is a slight breeze, place the seat
belt pre-tensioner downwind from the battery.

1. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

WARNING

Store the seat belt pre-tensioner on a flat surface with
its operation surface facing up. Do not place anything
on top of them.

2. Remove the seat belt pre-tensioner from the vehicle (Refer

P.52B-457

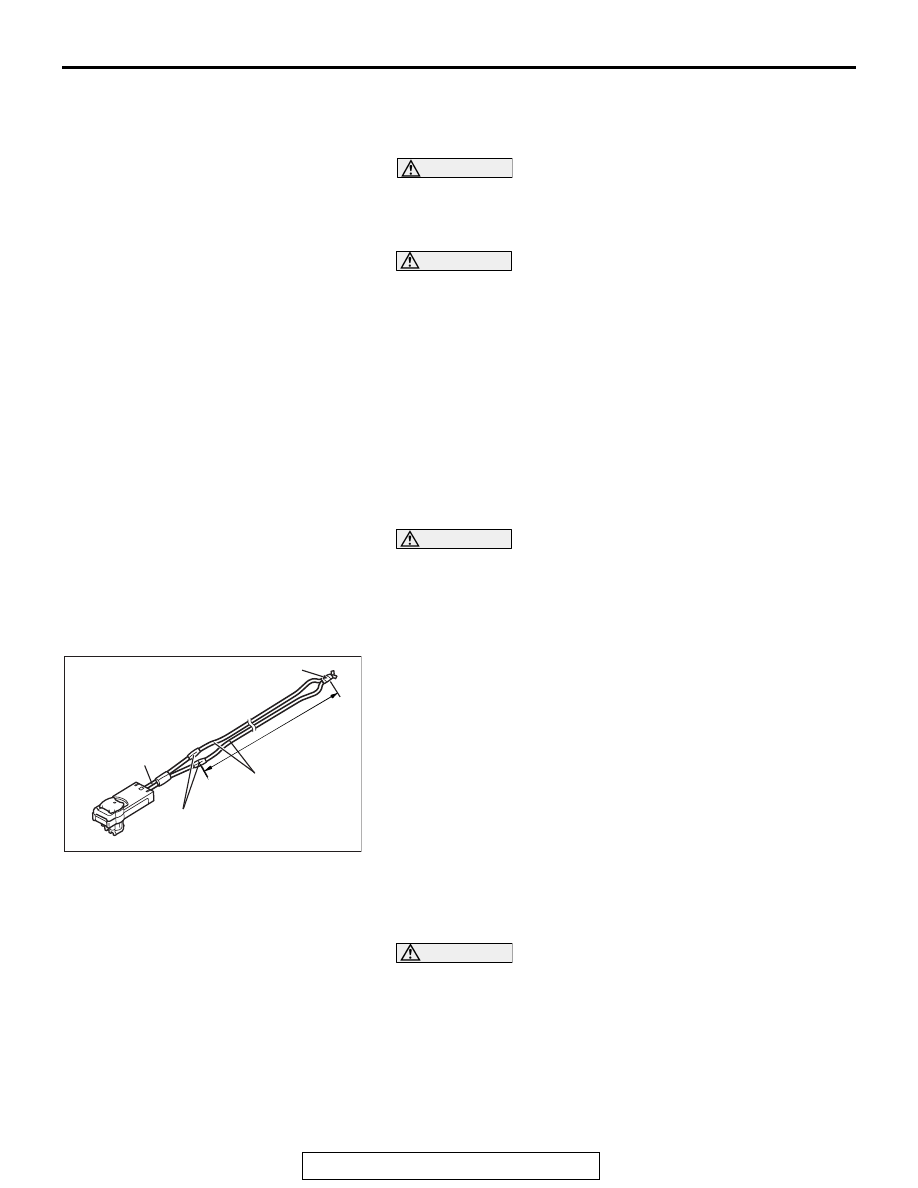

3. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of special tool MB991885, and cover
the connections with insulation tape. The other ends of the
deployment wires should be connected to each other
(short-circuited), to prevent sudden unexpected operation of
the seat belt pre-tensioner.
NOTE: This prevents the unintentional activation of inflator
caused by the static or others.

4. Connect the special tool MB991885, which the deployment

wires is attached to, to the seat belt pre-tensioner connector.
<Seat belt pre-tensioner>

5. Connect the special tool MB991885, which the deployment

wires is attached to, to the lap pre-tensioner connector. <Lap
pre-tensioner>

CAUTION

The adapter harness below the wheel should be loose. If it
is too tight, the reaction when the seat belt pre-tensioner
operates could damage the adapter harness.
6. Pass the thick wires through the hole on the seat belt

pre-tensioner bracket and secure them to the front (raised
part) of the wheel in two places.

AC103480

MB991885

Connection

Deployment wires

Insulator tape

6 m (20 ft) or
longer

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-481

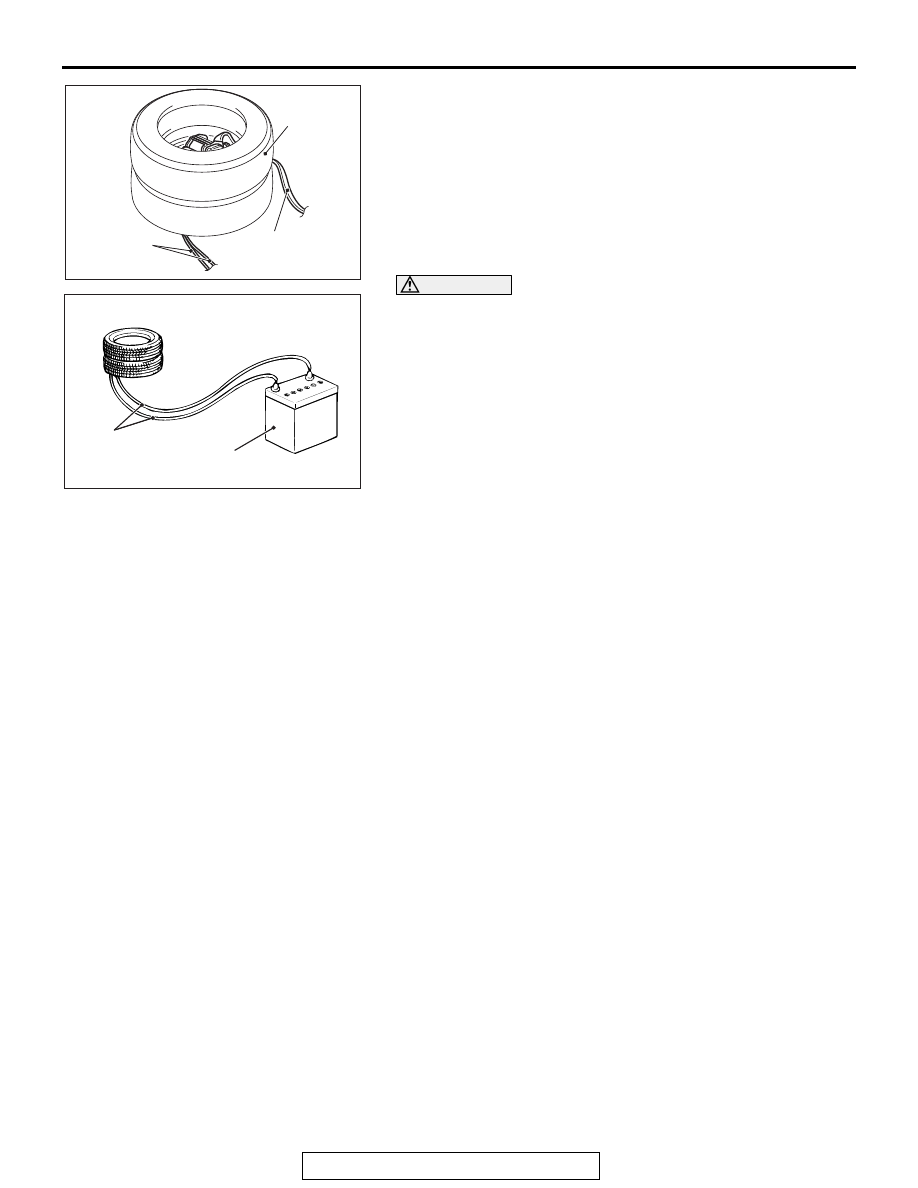

7. Pull the seat belt out to the outside of the tire, and then place

one tire without a wheel on top.

WARNING

•

Before operation, check carefully to be sure that
no one is nearby.

•

The inflator will be quite hot immediately following
the operation, so wait at least 30 minutes to allow
it to cool before attempting to handle it. Although
not poisonous, do not inhale gas from seat belt
pre-tensioner operation. See Deployed Air Bag
Module and Operated Seat Belt pre-tensioner Dis-
posal (Refer to

P.52B-481

) for post-operation han-

dling instructions.

•

If the seat belt pre-tensioner fails to operate, do
not go near the seat belt pre-tensioner.

8. At a location as far away from the air bag module as

9. Discard the operated seat belt pre-tensioner as specified in

Deployed Air Bag Module and Seat Belt pre-tensioner
Disposal (Refer to

P.52B-481

DEPLOYED AIR BAG MODULE AND OPERATED
SEAT BELT PRE-TENSIONER DISPOSAL

After deployment and operation, the air bag module and seat
belt pre-tensioner should be disposed of in the same manner
as any other scrap parts, adhering to local laws and/or legisla-
tion. Observe the following precautions during air bag or seat
belt pre-tensioner disposal:
1. The inflator will be quite hot immediately following

deployment, so wait at least 30 minutes to allow it cool
before attempting to handle it.

2. Do not put water or oil on the air bag after deployment or on

the seat belt pre-tensioner after operation.

AC105388AF

Tires
without
wheels

Seat belt

Deployment
wires

AC004294 AF

Vehicle battery

Deployment wires

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-482

WARNING

If after following these precautions, any material does
get into the eyes or on the skin, immediately rinse the
affected area with a large amount of clean water. If
any irritation develops, seek medical attention.

3. There may be material on the deployed air bag module or

the operated seat belt pre-tensioner, that could irritate the
eye and/or skin. Wear gloves and safety glasses when
handling a deployed air bag module or the operated seat
belt pre-tensioner.

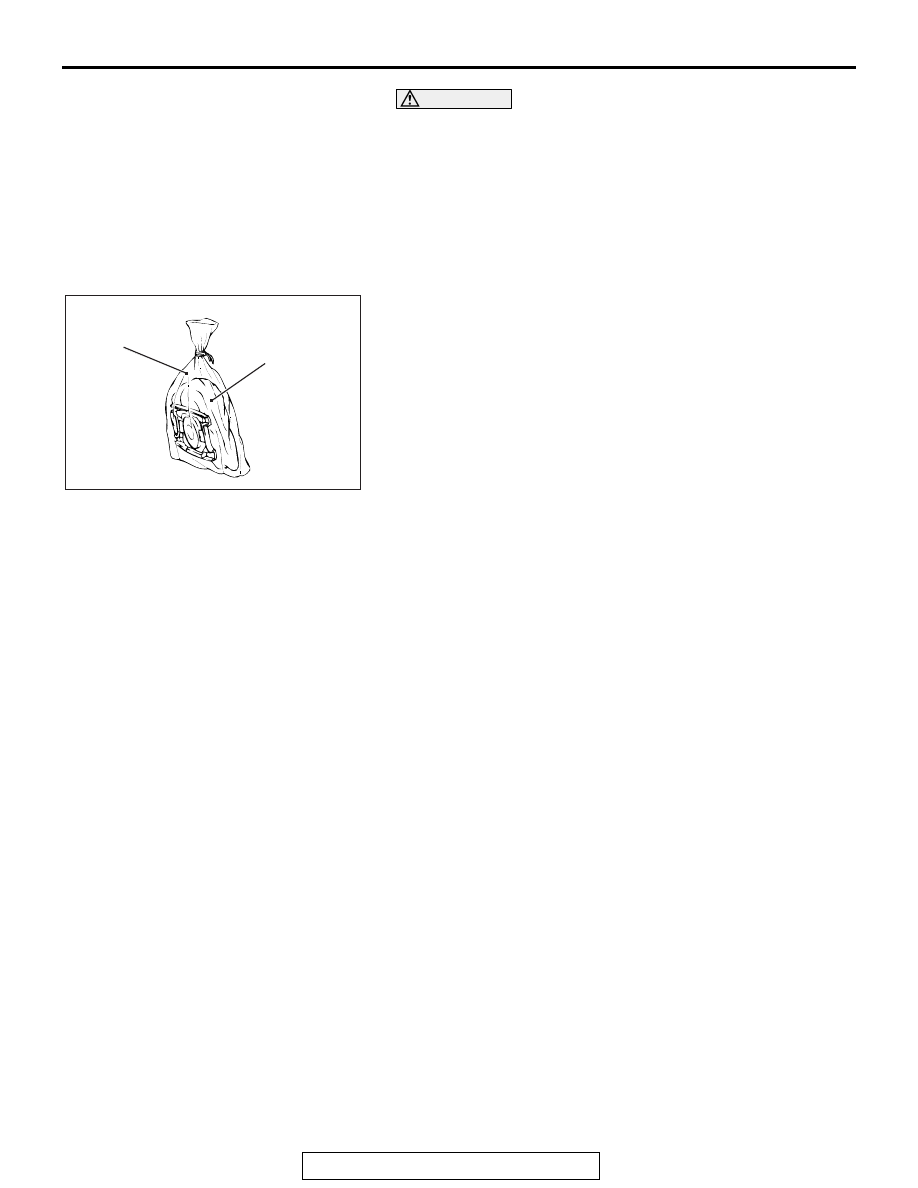

4. Tightly seal the air bag module and seat belt pre-tensioner in

a strong plastic bag for disposal.

5. Be sure to always wash your hands after completing this

operation.

ACX00613AL

Air bag module

Strong plastic bag
