TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-21

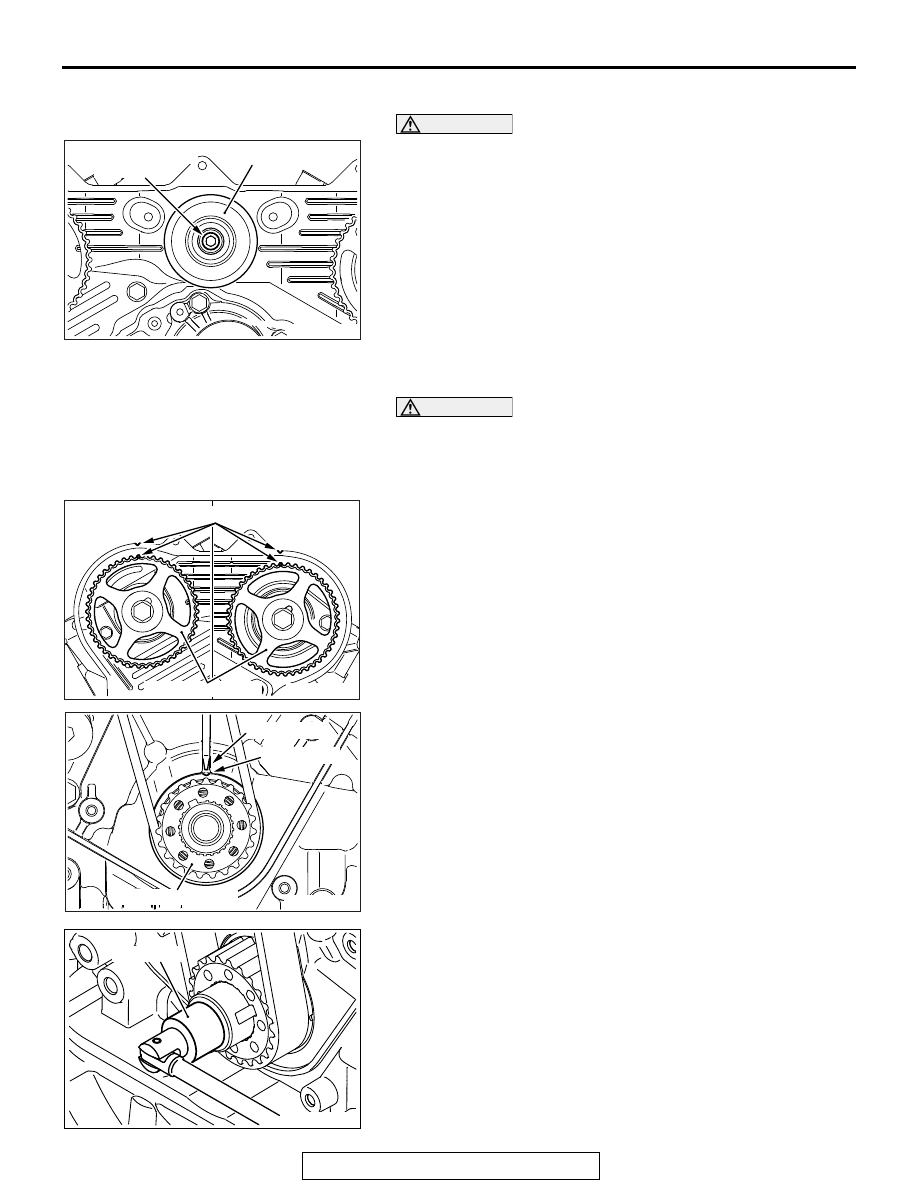

>>C<< IDLER PULLEY INSTALLATION

CAUTION

Because of the shallow hexagon hole of the hexagon
socket head bolt, firmly insert the tool and carefully work
not to damage the hexagon hole.
Install the idler pulley using a hexagon wrench with 8 mm width
across flats.

.

>>D<< TIMING BELT INSTALLATION

CAUTION

Remove and install the timing belt, aligning the timing
marks of the crankshaft sprocket and the camshaft
sprocket with the Number1 at the Top Dead Center of the
compression stroke.
1. Check the timing marks of the crankshaft sprocket and the

camshaft sprocket are aligned with the Number1 at the Top
Dead Center of the compression stroke. If they are not, align
the timing marks again, paying attention to the interference
between the valve and the piston.

2. Install the timing belt on each sprocket in the following

sequence.

(1) Install the timing belt on the crankshaft sprocket and then

on the water pump pulley, while tightening it to prevent
slackness.

(2) Line up the timing marks of the left bank camshaft

sprockets.

(3) Install the timing belt on the idler pulley, while taking up

the slack.

(4) Install the timing belt on the right bank camshaft sprocket.
(5) Install the timing belt on the tensioner pulley.

3. Check to see that the timing marks of all the sprockets are in

a alignment.

4. Using special tool MD998716, rotate the crankshaft a

quarter of a turn counterclockwise. Then rotate it back
clockwise to verify that all the timing marks are in alignment.

5. Pull out the pin of the auto-tensioner.

AK601718AC

Hexagon socket
head bolt

Idler pulley

AK600823

Right bank

Left bank

AC

Camshaft sprocket

Timing marks

AK600822 AC

Timing mark

Timing mark

Crankshaft sprocket

AK700677AB

MD998716

TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-22

6. Rotate the crankshaft two turns clockwise and leave it alone

for approximately five minutes.

7. Check that the projection of the rod of the auto-tensioner is

within the standard value.

Standard value: 9.1

− 13.4 mm (0.36 − 0.52 inch)

.

>>E<< AUTO-TENSIONER INSTALLATION

CAUTION

Always bleed the auto-tensioner of air before installing the
auto-tensioner. (Refer to Air bleeding method)

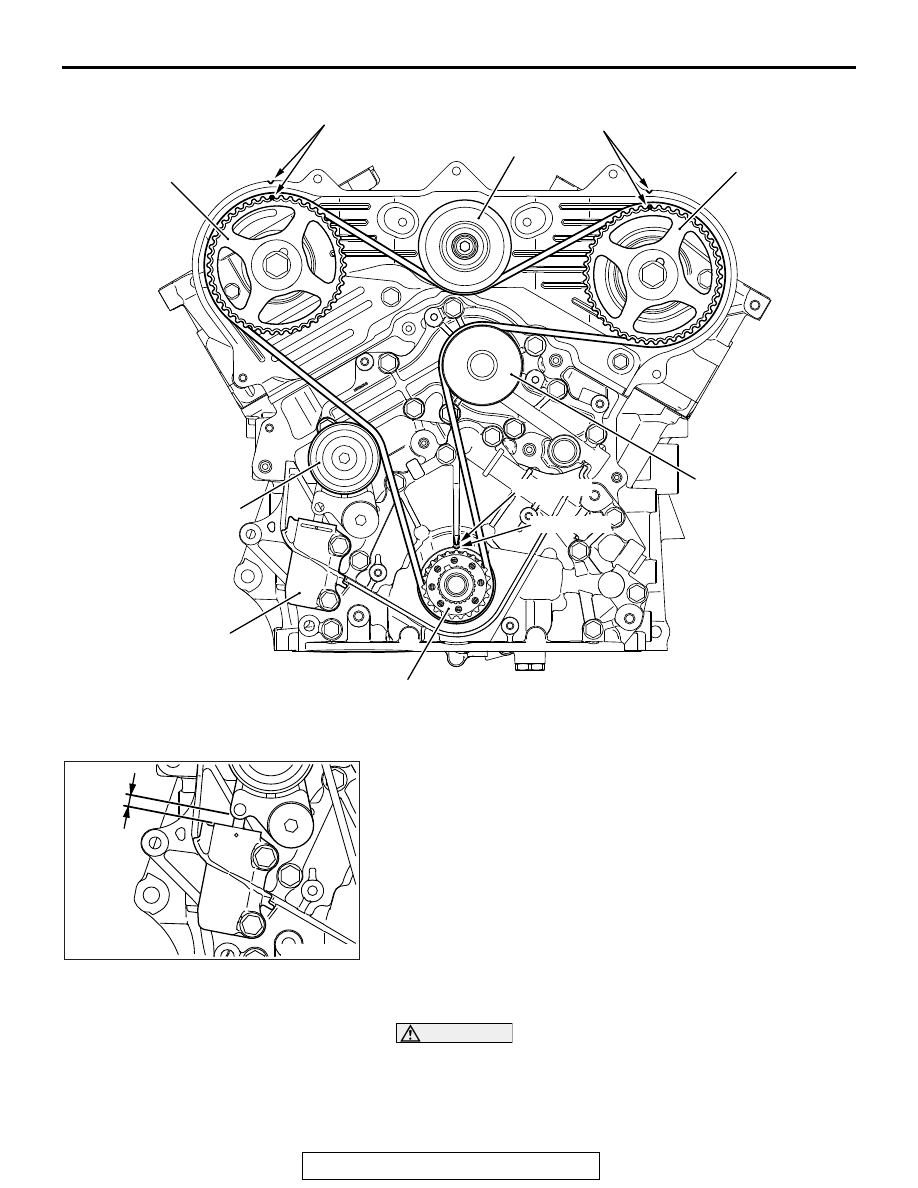

AK600820

Camshaft sprocket

Timing mark

Water pump pulley

Timing mark

Camshaft sprocket

Idler pulley

Timing mark

Timing mark

Tensioner pulley

Auto tensioner

Crankshaft sprocket

AC

Right bank

Left bank

AK600821AC

TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-23

INSPECTION

M1113002001365

.

TIMING BELT

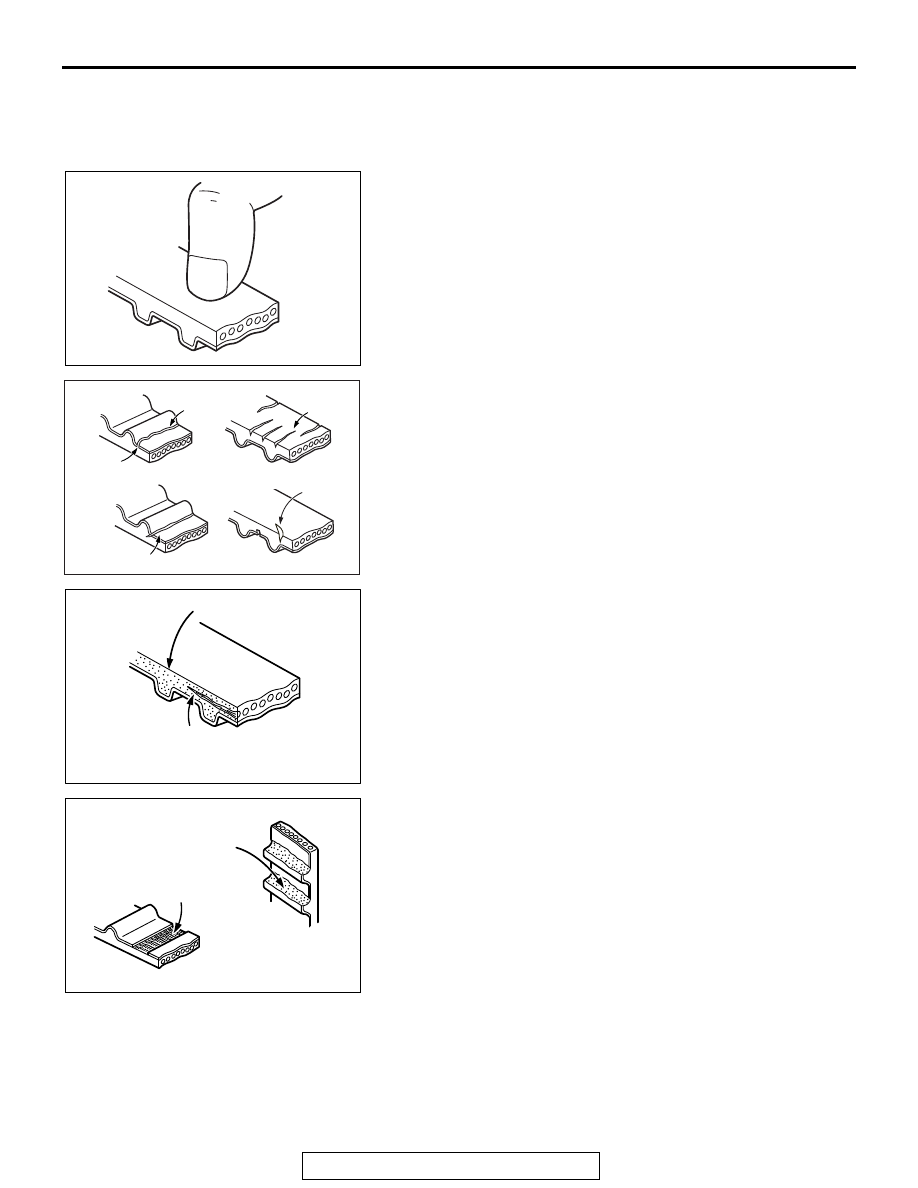

Replace the belt if any of the following conditions exist:
1. Hardening of rubber backing.

Back side should be glossy without resilience and leave no
indent when pressed with fingernail.

2. Cracks on rubber back.
3. Cracks or peeling of canvas.
4. Cracks at bottom of ribs.
5. Cracks on belt sides.

6. Abnormal wear of belt sides. Normal wear is indicated if the

sides are sharp as if cut by a knife. Abnormal wear is
indicated if the sides are ragged.

7. Abnormal wear on teeth.

Initial stage:
Canvas worn (fluffy canvas fibers, rubbery texture
gone, white discoloration, canvas texture indistinct)
Final stage:
Canvas worn, exposing rubber (tooth width reduced)

8. Missing tooth.

.

AK400562

AK400561AD

Cracks

Peeling of canvas

Cracks in tooth roots

Cracks

Cracks in sides

AK400563

AD

Rounded edge

Abnormal wear
(Fluffy strand)

AK400564 AD

Missing
Tooth

Canvas lost and
rubber exposed

TIMING BELT

TSB Revision

ENGINE OVERHAUL <3.0L ENGINE>

11D-24

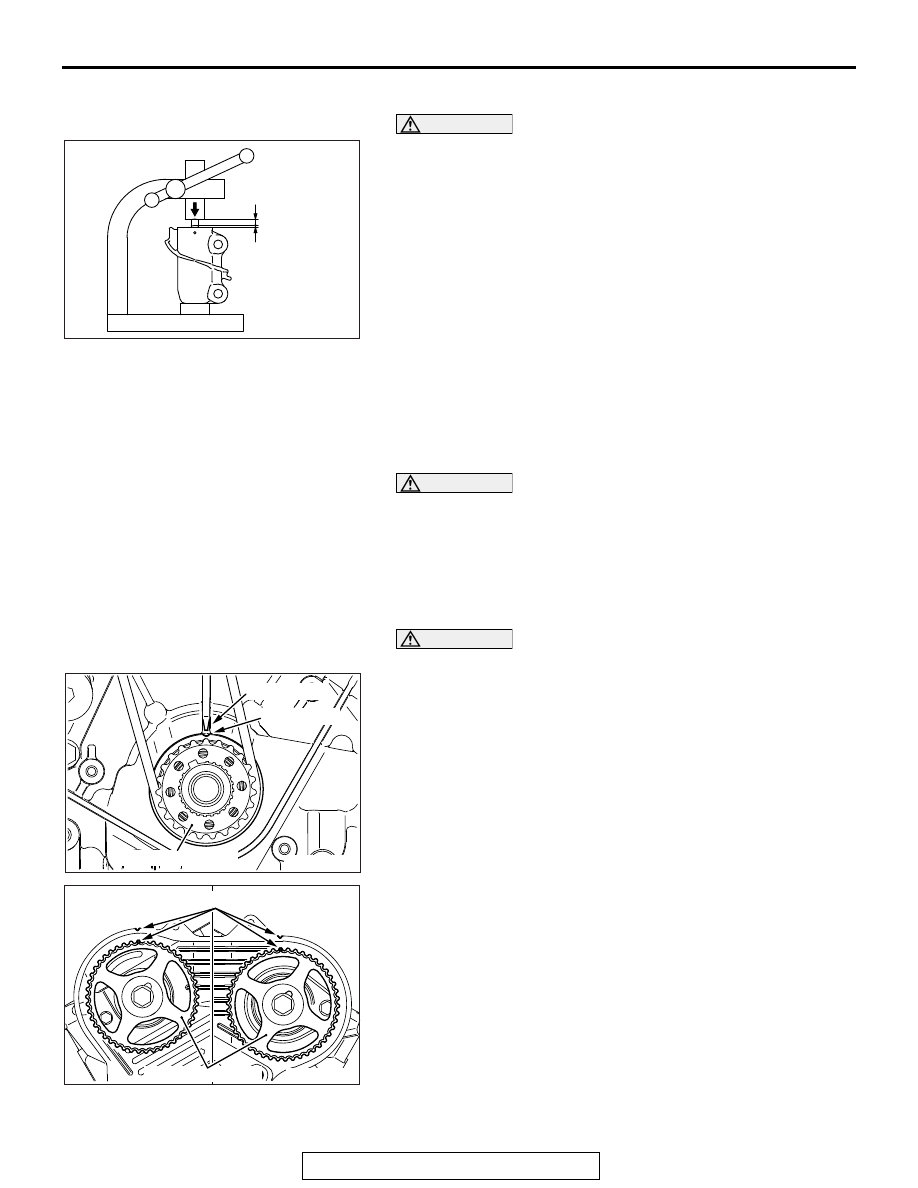

AIR BLEEDING METHOD

CAUTION

• Always use the vertical press and put the auto-ten-

sioner vertically.

• For breakage prevention, Do not apply the load of 5,000

N (1,124 pound) or more to the rod.

• Do not press the rod beyond Dimension "A" shown in

the illustration.

1. Set the auto tensioner as shown in the illustration.
2. Press the rod slowly down to the lowest point "A" shown in

the illustration.

3. Repeat the procedure 2 three times.
4. While the rod is projected at the point "B" shown in the

illustration, push the rod with 100

− 200 N (22 − 44 pound).

Check the enough stiffness. If the stiffness is not enough,
replace the auto tensioner.

5. Press the rod slowly down. Put the pin through the hole and

fix it.

CAUTION

After the air bleeding operation has been completed, do
not tilt the auto-tensioner to 60

° or more from the right

angle position.

.

VALVE CLEARANCE ADJUSTMENT

1. Remove the rocker cover and ignition coil.

CAUTION

Rotate the crankshaft clockwise at any time.
2. Turn the crankshaft clockwise, and align the crankshaft

sprocket timing mark with the position shown in the
illustration.

3. At that time, check the right and left camshaft sprocket

timing marks are in position as shown in the illustration.

AK600816

100 to 200 N
(22 to 44 lb)

Upright
stance

A: 3 mm
(0.12 in)

B: 11.4 mm
(0.45 in)

AC

AK600822 AC

Timing mark

Timing mark

Crankshaft sprocket

AK600823

Right bank

Left bank

AC

Camshaft sprocket

Timing marks
