SUNROOF
TSB Revision
BODY
42A-207

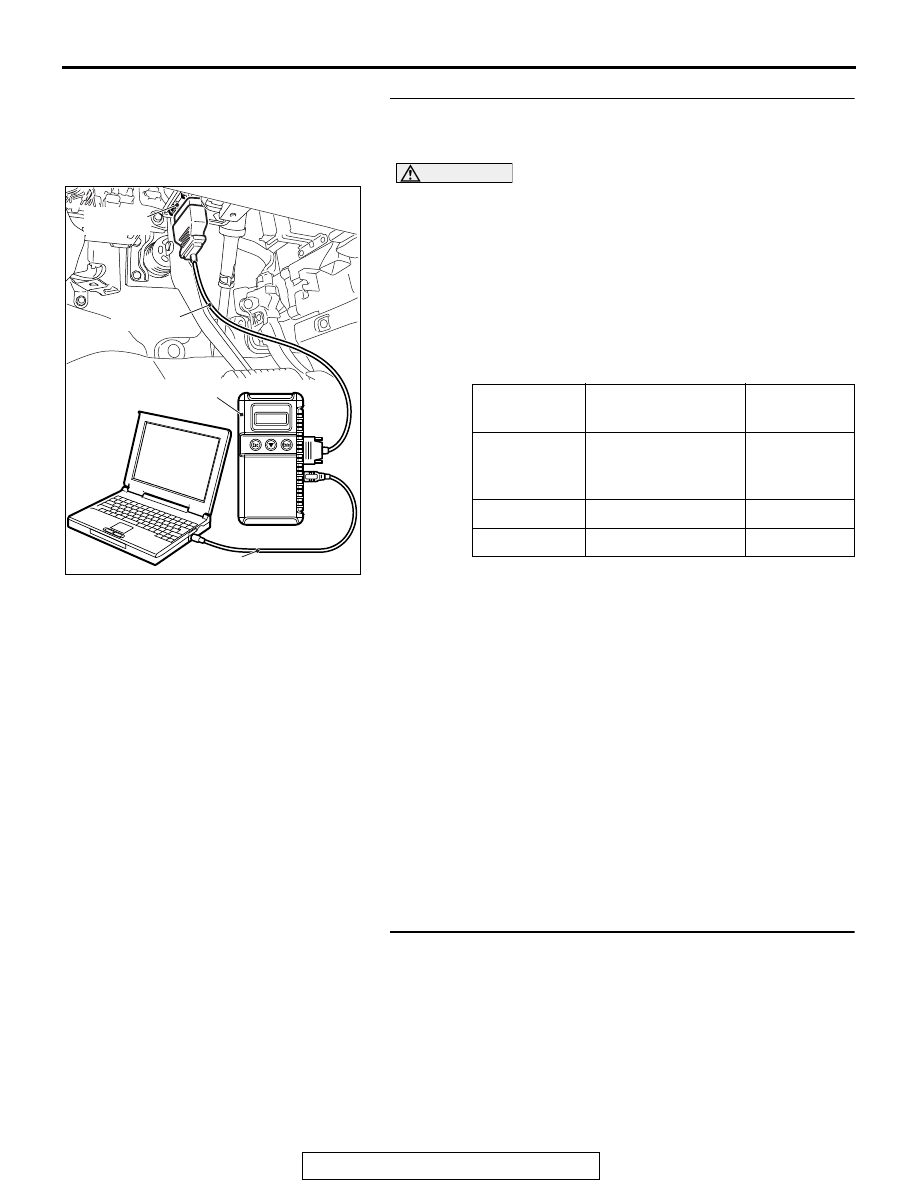

STEP 3. Using scan tool MB991958, check data list.
Check the signals related to the sunroof timer function opera-
tion.
CAUTION
To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to GROUP 42B, "How
to connect scan tool (M.U.T.-III)
P.42B-13
."
(2) Turn the ignition switch to the "ON" position.
(3) Check the data list of the ETACS.
• Turn the ignition switch to the LOCK (OFF) position.
• Close the driver's door.
• Close the passenger's door.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
OK: Normal condition is displayed.
Q: Is the check result normal?
Normal conditions are displayed for all the items. : Go
to Step 4.
Normal condition is not displayed for item No. 254. :
Refer to GROUP 54A, Inspection Procedure 2:
ETACS-ECU does not receive any signal from the
ignition switch (IG1)
Normal condition is not displayed for item No. 256. :
Refer to GROUP 54A Inspection Procedure 5:
ETACS-ECU does not receive any signal from the
front door switch (LH)
.
Normal condition is not displayed for item No. 257. :
Refer to GROUP 54A, Inspection Procedure 6:
ETACS-ECU does not receive any signal from the
front door switch (RH)
.
STEP 4. Retest the system.
Check that the sunroof timer function works normally.
Q: Is the check result normal?
YES : No action is necessary and testing is complete.
NO : Replace the ETACS-ECU. Check that the sunroof
timer function works normally.
Item No.
Item name
Normal
condition
254
IG voltage
Battery
positive
voltage
256
Dr door ajar switch
Close
257
As door ajar switch
Close
ZC501967
AC404789
AC701411AB

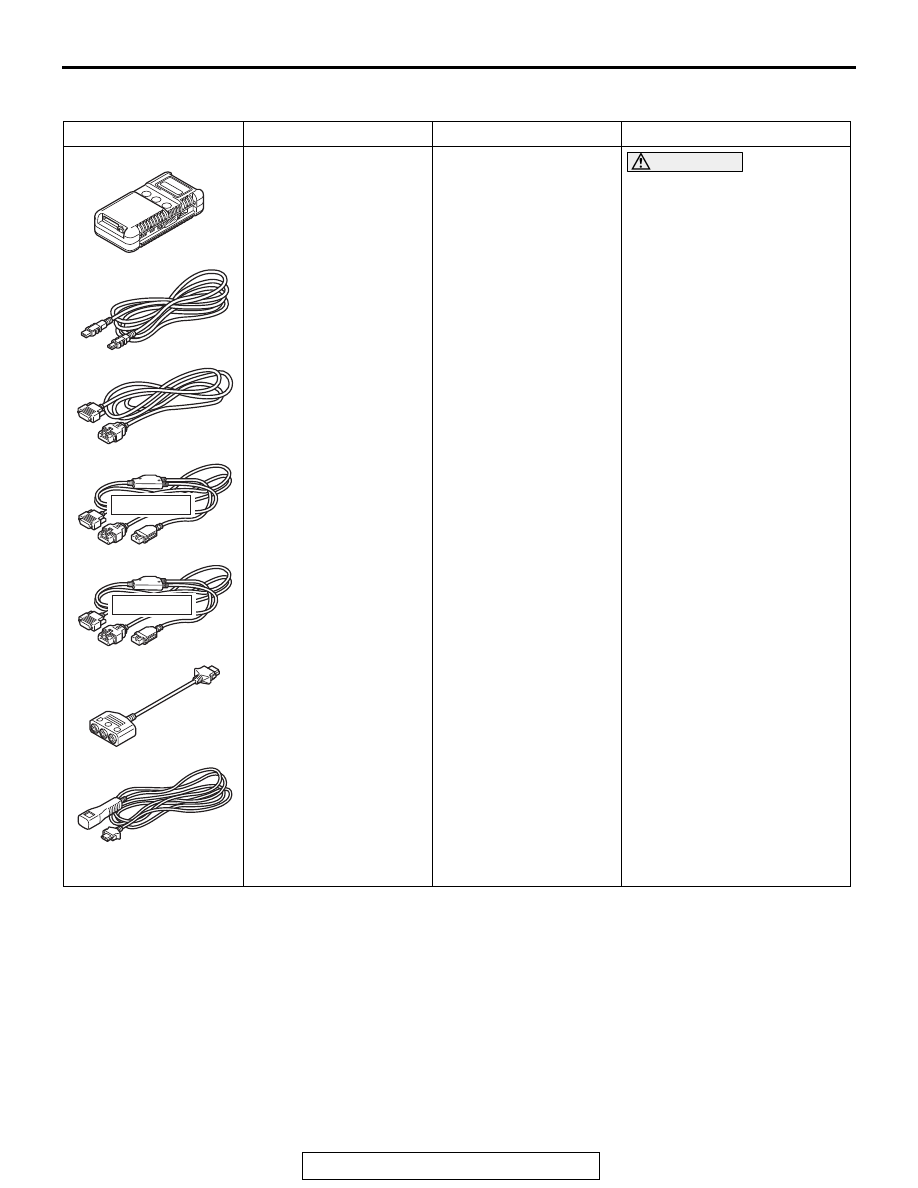

MB991824
MB991827
MB991910
Data link
connector
