SUNROOF

TSB Revision

BODY

42A-211

ON-VEHICLE SERVICE

WATER TEST

M1426000900520

Check if there are any leaks in the sunroof by the following pro-
cedure.
1. Fully close the sunroof lid glass.

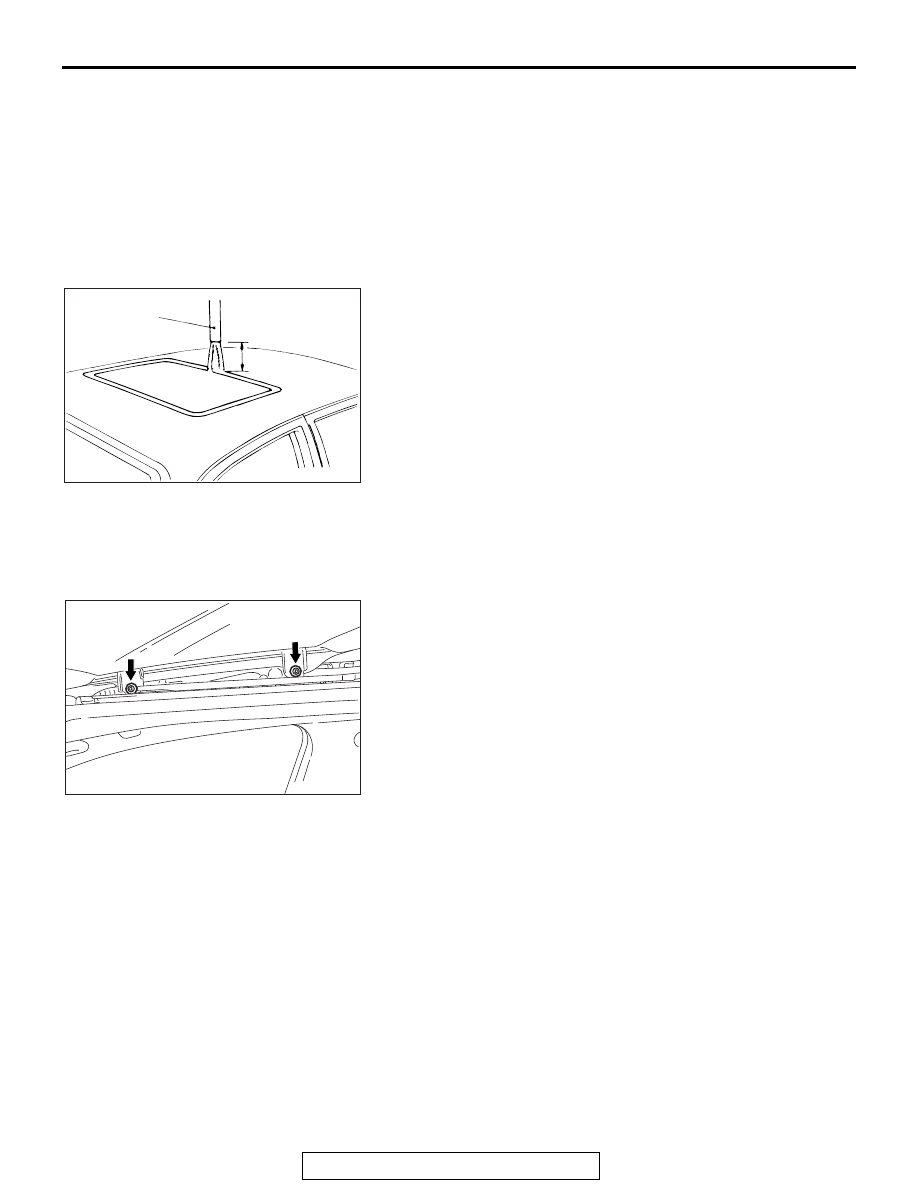

2. Adjust the water pressure so that water comes out of the

hose to a height of approximately 50 cm (19.7 inches) when
the hose is held vertically facing upwards.

3. Hold the end of the hose approximately 30 cm (11.8 inches)

above the roof and let the water run onto the weatherstrip for
5 minutes or more.

4. Check if any water leaks can be found in the room while

watering. Even though there are any water leaks around the
sunroof lid glass, it can be acceptable as long as water is
caught in the drip area.

SUNROOF FIT ADJUSTMENT

M1426001000519

1. Fully close the sunroof lid glass.
2. Fully open the sunshade.
3. Loosen the sunroof lid glass assembly mounting screws.

Adjust the sunroof lid glass height by moving the sunroof lid
glass assembly along the sunroof lid guide oblong hole so
that the clearance between the sunroof lid glass and the
vehicle body is even throughout the circumference.

4. After adjustment, check that the sunroof operates smoothly.

SUNROOF SAFETY FUNCTION CHECK

M1426004400431

1. Close the sunroof lid glass while placing an approximately

10 mm thick piece of wood at right angles with the sunroof
lid glass.

2. Check to see if the sunroof motor assembly turns in the

opposite direction and the sunroof lid glass opens when the
sunroof lid glass touches the wood. If any problem occurs,
perform troubleshooting. (Refer to

P.42A-180

.)

SUNROOF CHECK

M1426004700465

Check to see that the sunroof operates by pressing the sunroof
switch. If it does not operate, perform troubleshooting. Refer to

P.42A-180

.

ACX00572AF

Hose

Approximately
30 cm (11.8 in)

AC506534 AC

SUNROOF

TSB Revision

BODY

42A-212

SUNROOF TIMER FUNCTION CHECK

M1426004300519

Check the system as described below. If the system does not
work, carry out troubleshooting. Refer to

P.42A-180

.

• Close the door and turn the ignition switch to the LOCK

(OFF) position, and then check that the sunroof operates
for 30 seconds.

• Close the door and turn the ignition switch to the LOCK

(OFF) position. While the timer is on, open the driver's or
front passenger's door, and check that the sunroof stays
during the operation. (When the driver's or front passen-
ger's door is opened while the timer is on, the timer will be
turned off.)

SUNROOF LID GLASS OPERATION CURRENT
CHECK

M1426003200490

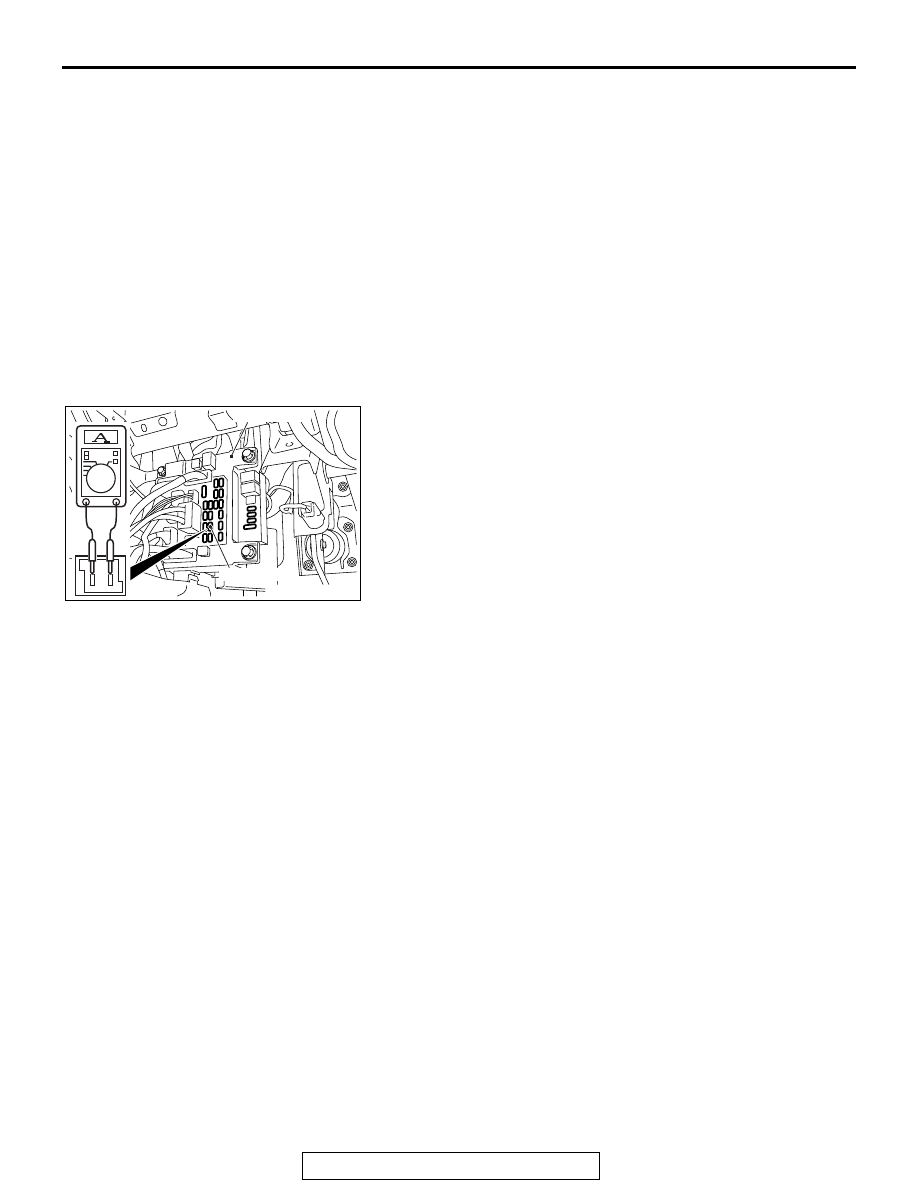

1. Remove the fuse of the sunroof to check that it is normal,

then connect the circuit tester as shown in the Figure.

2. Turn ON the sunroof switch, then measure the operating

current when the sunroof lid glass is halfway opened.

Standard value: 7 A or less [at 20

°C (68 °F)]

3. Check the following areas if the operating current exceeds

the standard value:

• Sunroof installation, deformation and presence of any for-

eign substances.

• Drive cable installation.

• Tilting of sunroof lid glass.

LEARNING PROCEDURES OF THE SUNROOF
FULLY CLOSED POSITION

M1426004600394

SHIFTING CONDITIONS FOR THE FULLY
CLOSED POSITION ADJUSTMENT MODE

• When shifting to the forced fully closed position adjustment

mode
How to shift to the forced fully closed position adjustment
mode

1. Turn the ignition switch to the "ON" position.
2. With the sunroof lid glass stopped (the position of the

sunroof lid glass can be any position between fully
opened and fully closed), press and hold the up switch
for 10 seconds.

• When the anti-trap function (safety mechanism) is activated

consecutively five times

• When the position information may be incorrect due to

abnormal power supply during the sunroof operation

NOTE: When installing the sunroof assembly, or install-
ing/replacing the sunroof motor assembly, operate the forced
fully closed position adjustment mode to adjust the fully closed
position.

AC603340AD

Sunroof fuse

ETACS-ECU

SUNROOF

TSB Revision

BODY

42A-213

HOW TO ADJUST THE FULLY CLOSED POSITION
FORCED FULLY CLOSED POSITION
ADJUSTMENT MODE

1. With the sunroof lid glass stopped (the position of the

sunroof lid glass can be any position between fully opened
and fully closed), press and hold the up switch.
NOTE: If operating the up switch moves the sunroof nor-
mally, use the open switch to fully open the sunroof lid glass.
After the sunroof lid glass stops, press and hold the up
switch.

2. Use the up switch to set the sunroof lid glass to the tilt-up

position. The sunroof lid glass activates for approximately 30
mm and stops automatically when the switch is pressed
once. Repeat this operation until the tilt-up position is
reached and hold there for 3 seconds so that the fully closed
position learning is completed.

HOW TO ADJUST THE FULLY CLOSED POSITION
SUCH AS WHEN THE SAFETY FUNCTION IS
ACTIVATED CONSECUTIVELY FIVE TIMES

Use the up switch to set the sunroof lid glass to the tilt-up posi-
tion. The sunroof lid glass activates for approximately 30 mm
and stops automatically when the switch is pressed once.
Repeat this operation until the tilt-up position is reached and
hold there for 3 seconds so that the fully closed position learn-
ing is completed.

SUNROOF

TSB Revision

BODY

42A-214

SUNROOF OPERATION CHECK

M1426002600569

CAUTION

Check that the following items are normal before carrying out this operation check:

• Installation condition of the sunroof assembly
• Installation condition, deformation and contamination of the sunroof drive cable
• Installation condition of sunroof lid glass
• Sunroof switch and sunroof motor assembly

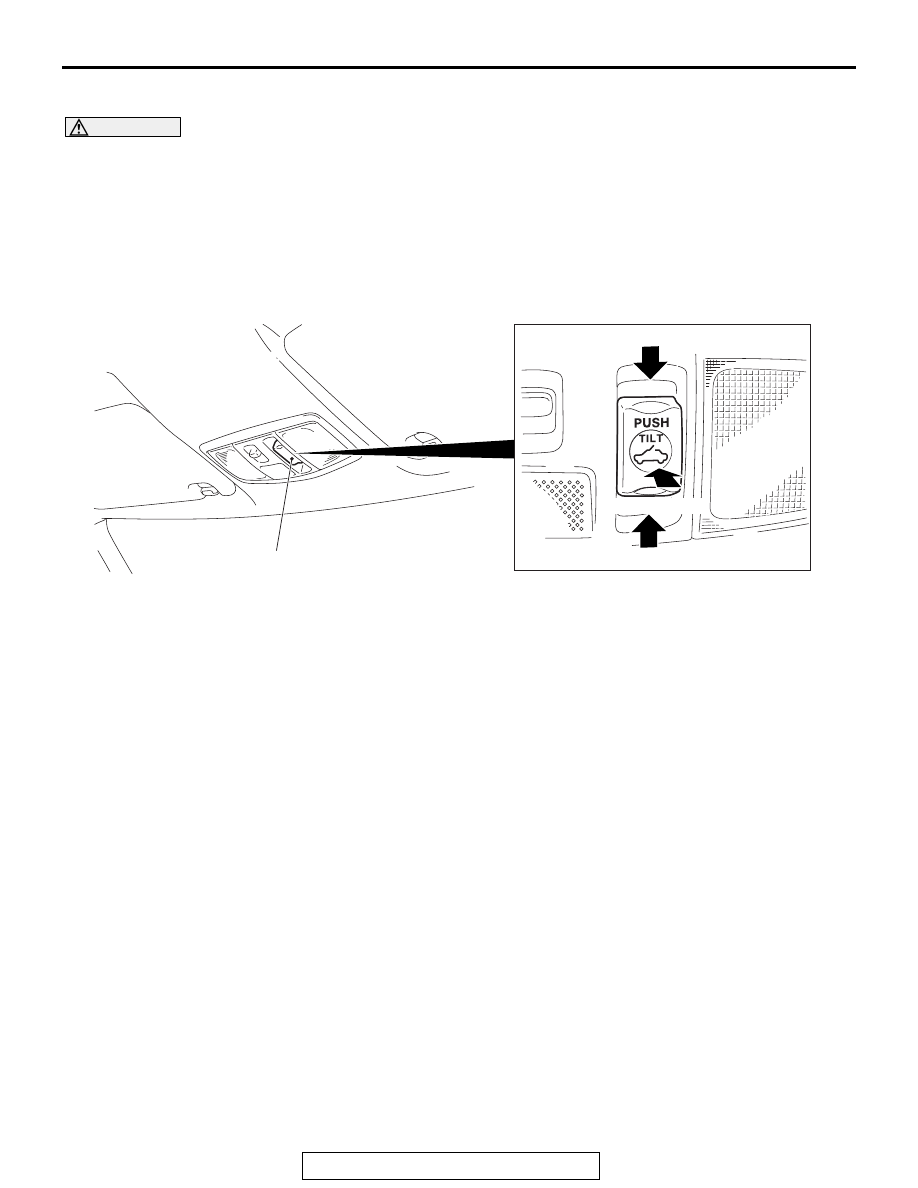

Check that the following items. If faulty, replace the
sunroof motor assembly.

AC505239

AC505240

AC506511AD

Sunroof switch

Open switch

Close/tilt-down switch

Tilt-up switch
