DOOR

TSB Revision

BODY

42A-159

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP

REMOVAL AND INSTALLATION

M1423003101873

ACA02450

1

1

7

2

8

9

3

5

AB

6

4

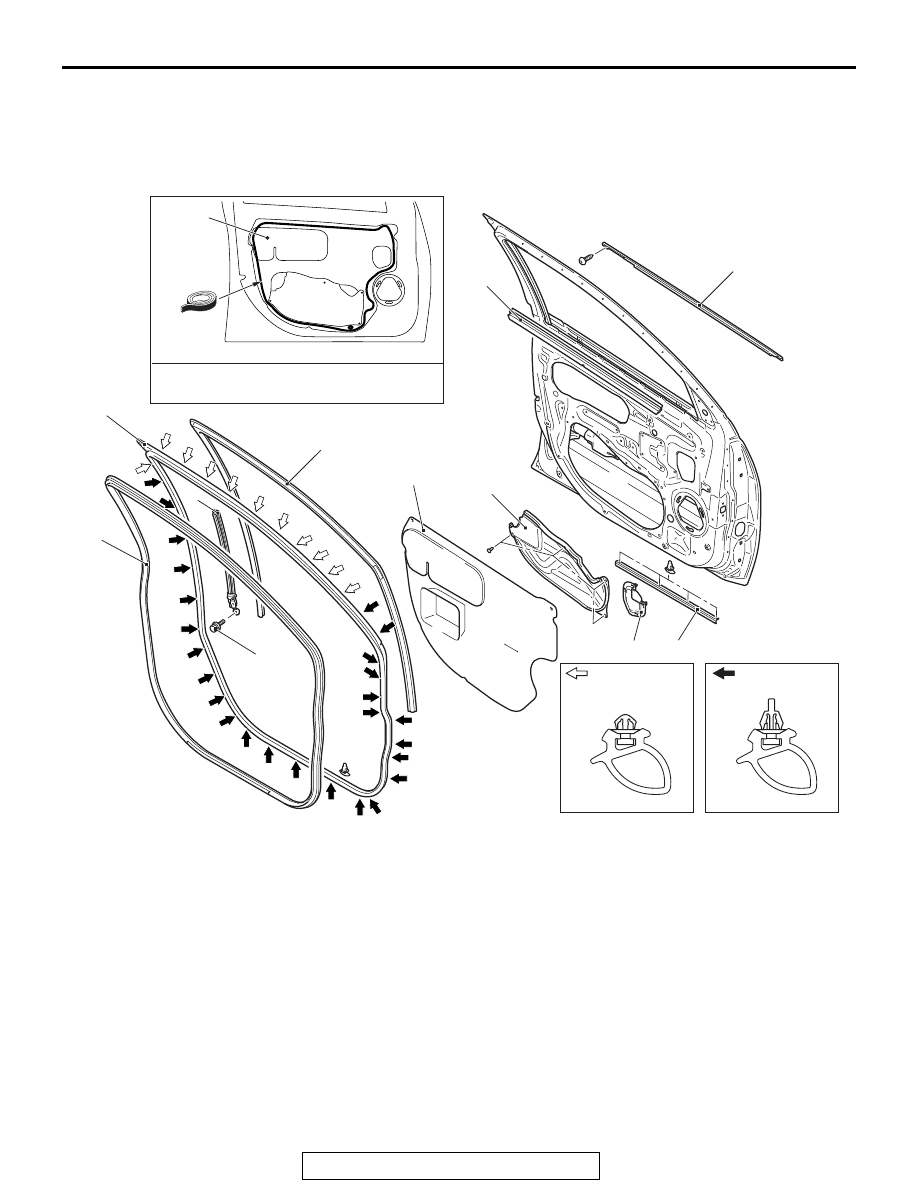

<Front door>

Sealant: 3M™ AAD Part No. 8633
or equivalent

:Sectional view
 of clip position

:Sectional view
 of clip position

5.0 ± 1.0 N·m
44 ± 9 in-lb

10

Waterproof film removal steps

Pull handle bracket (Refer to
GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

1.

Waterproof film
Door window glass runchannel
removal steps

2.

Door window glass runchannel
Door belt line weatherstrip inner
removal steps

Door trim assembly (Refer to
GROUP 52A

− Door Trim

P.52A-11

.)

3.

Door belt line weatherstrip inner

Door belt line moulding removal
steps <Standard>

Door mirror assembly (Refer to
GROUP 51

− Outside Mirror

P.51-120

.)

5.

Door belt line moulding
Door beltline moulding removal
steps <Bright>

Door mirror assembly (Refer to
GROUP 51

− Door Mirror

P.51-120

.)

Door trim assembly (Refer to
GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

1.

Waterproof film

3.

Door beltline weatherstrip inner

DOOR

TSB Revision

BODY

42A-160

4.

Door speaker cover

<<

A

>>

5.

Door beltline moulding
Speaker bracket removal steps
<vehicles with Rockford Fosgate
Premium Sound System>

Pull handle bracket (Refer to
GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

1.

Waterproof film

6.

Speaker bracket
Rear lower sash removal steps

Pull handle bracket (Refer to
GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

1.

Waterproof film

6.

Speaker bracket <vehicles with
Rockford Fosgate Premium Sound
System>

7.

Rear lower sash
Speaker cover removal steps
<vehicles with Rockford Fosgate
Premium Sound System>

Pull handle bracket (Refer to
GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

1.

Waterproof film

4.

Door speaker cover
Door opening weatherstrip inner
removal steps

Cowl side trim and scuff plate
(Refer to GROUP 52A - Interior
Trim

P.52A-10

.)

8.

Door opening weatherstrip inner
Door opening weatherstrip outer
removal steps

Door channel mounting bolt
(door-side) (Refer to

P.42A-153

.)

<<

B

>>

9.

Door opening weatherstrip outer
Door opening weatherstrip lower
removal

10. Door opening weatherstrip lower

Door beltline moulding removal
steps <Bright> (Continued)

DOOR

TSB Revision

BODY

42A-161

AC605599

3

7

1

8

9

2

5

10

AE

6

4

3

N

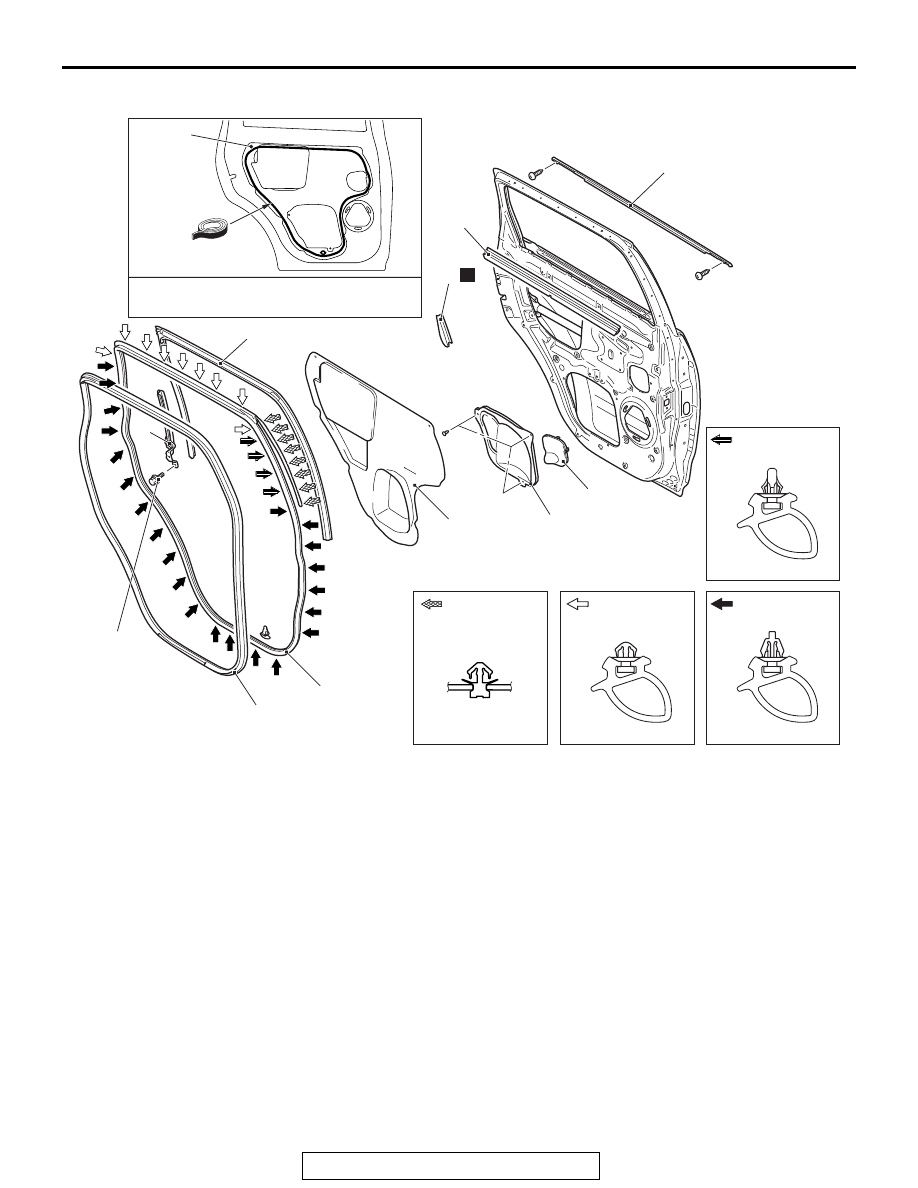

<Rear door>

Sealant: 3M™ AAD Part No. 8633
or equivalent

:Sectional view
 of clip position

:Sectional view
 of clip position

:Sectional view
 of clip position

:Sectional view
 of clip position

5.0 ± 1.0 N·m
44 ± 9 in-lb

Door window glass runchannel
removal

1.

Door window glass runchannel
Door belt line weatherstrip inner
removal steps

Door trim assembly (Refer to
GROUP 52A

− Door Trim

P.52A-11

.)

2.

Door belt line weatherstrip inner
Door belt line moulding removal
<Standard>

5.

Door belt line moulding
Door beltline moulding removal
steps <Bright>

Door trim assembly (Refer to
GROUP 52A

− Door Trim

P.52A-11

.)

2.

Door beltline weatherstrip inner

>>

B

<<

3.

Waterproof film

4.

Door speaker cover

<<

A

>>

5.

Door beltline moulding
Waterproof film removal steps

Rear door arm rest bracket (Refer
to GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

3.

Waterproof film
Speaker bracket removal steps
<vehicles with Rockford Fosgate
Premium Sound System>

Rear door arm rest bracket (Refer
to GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

3.

Waterproof film

6.

Speaker bracket

Door beltline moulding removal
steps <Bright> (Continued)

DOOR

TSB Revision

BODY

42A-162

REMOVAL SERVICE POINTS

.

<<A>> DOOR BELTLINE MOULDING REMOVAL

Pry the door beltline moulding clip positions with a flat-tipped
screwdriver and remove the door beltline moulding upward.

Rear lower sash removal steps

Rear door arm rest bracket (Refer
to GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

3.

Waterproof film

6.

Speaker bracket <vehicles with
Rockford Fosgate Premium Sound
System>

7.

Rear lower sash
Speaker cover removal steps
<vehicles with Rockford Fosgate
Premium Sound System>

Rear door arm rest bracket (Refer
to GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

3.

Waterproof film

4.

Door speaker cover
Door opening weatherstrip inner
removal steps

Cowl side trim, scuff plate, centre
pillar trim (Refer to GROUP 52A -
Interior Trim

P.52A-10

.)

8.

Door opening weatherstrip inner
Door opening weatherstrip outer
removal

Door check mounting bolt
(body-side) (Refer to

P.42A-153

.)

<<

B

>>

9.

Door opening weatherstrip outer
Door tape removal steps

1.

Door window glass runchannel

2.

Door belt line weatherstrip inner

Rear door arm rest bracket (Refer
to GROUP 52A

− Door Trim

P.52A-11

.)

>>

B

<<

3.

Waterproof film

>>

A

<<

10. Door tape

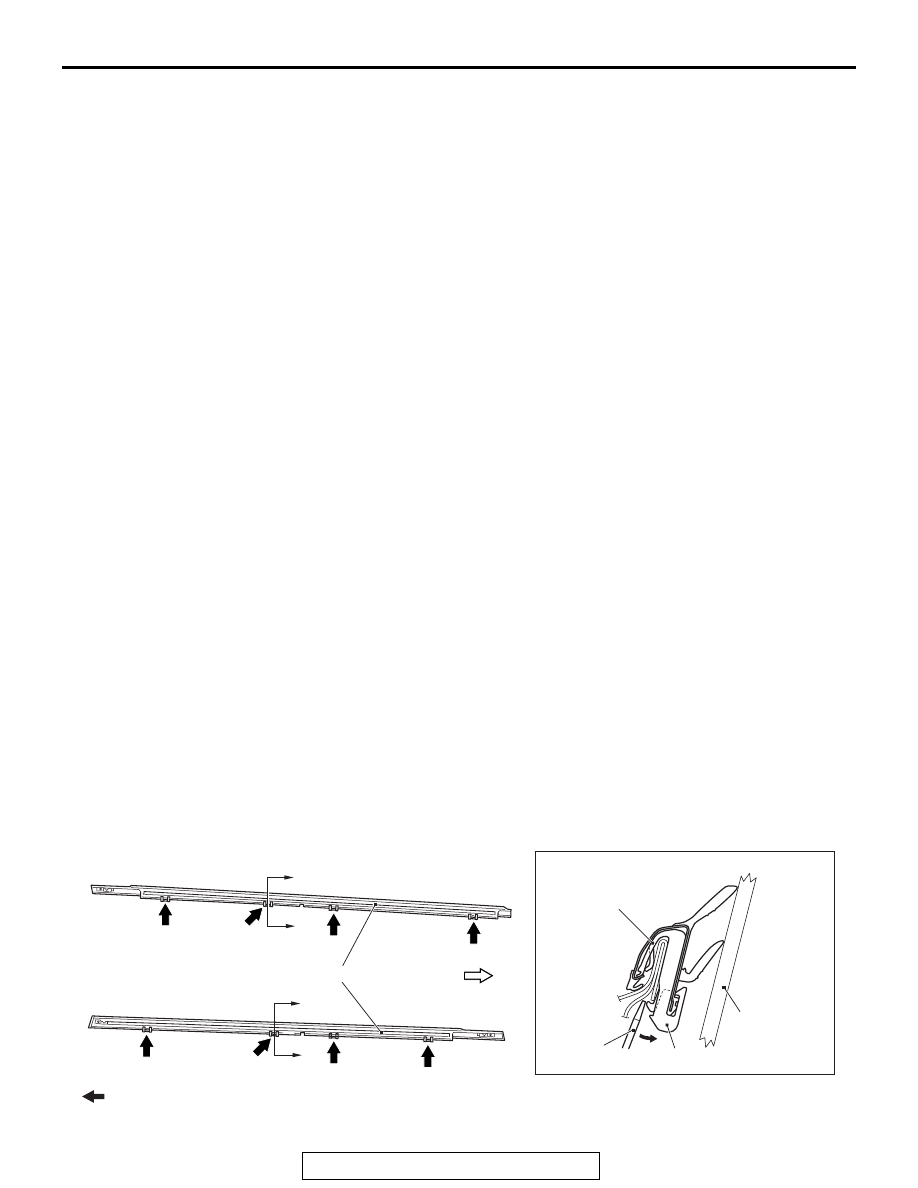

AC902560

Clip

Flat-tipped
screwdriver

Door window
glass assembly

Door beltline molding

Front

Door beltline
molding

Section A – A

NOTE
         : Clip positions

<Front door>

<Rear door>

AB

A

A

A

A
