DOOR

TSB Revision

BODY

42A-163

.

<<B>>DOOR OPENING WEATHERSTRIP OUTER
REMOVAL

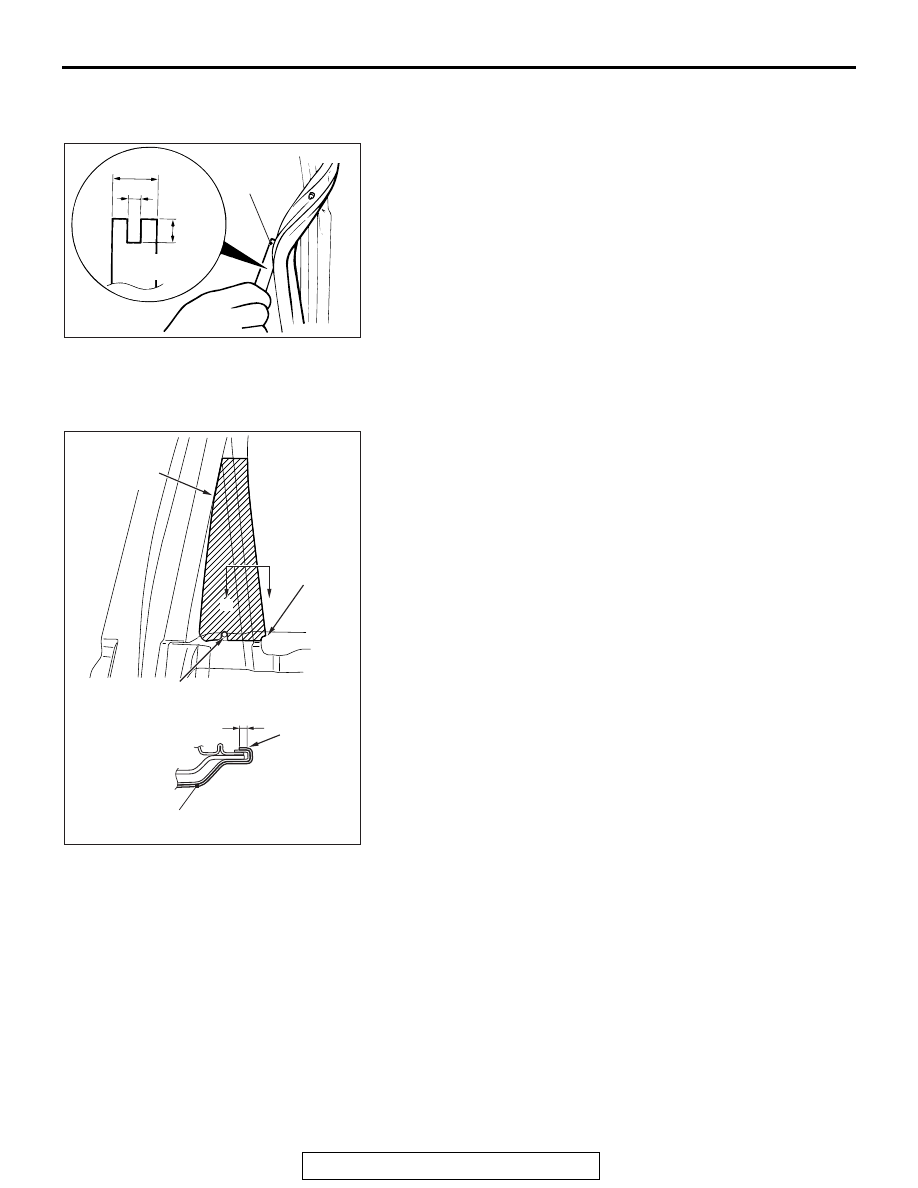

Make the tool as shown in the figure, and remove the weather-
strip from the door panel.

INSTALLATION SERVICE POINTS

.

>>A<< DOOR TAPE INSTALLATION

Apply the specified adhesive to the water-proof film as shown
in the figure and stick the film.

.

AC703359AC

15 (0.60)

8 (0.31)

4 (0.16)

Thickness:

1 (0.04)

Fabricated
tool

mm (in)

AC703360

A

AC

A

Fit the door
tape on the
press line
of the door

Fit the door tape on the
protrusion of the door

3 mm (0.12 in)

Rear door

corner end

Section A – A

Door tape

Fit the door
tape on the
lower end of
the door
cut-out.

DOOR

TSB Revision

BODY

42A-164

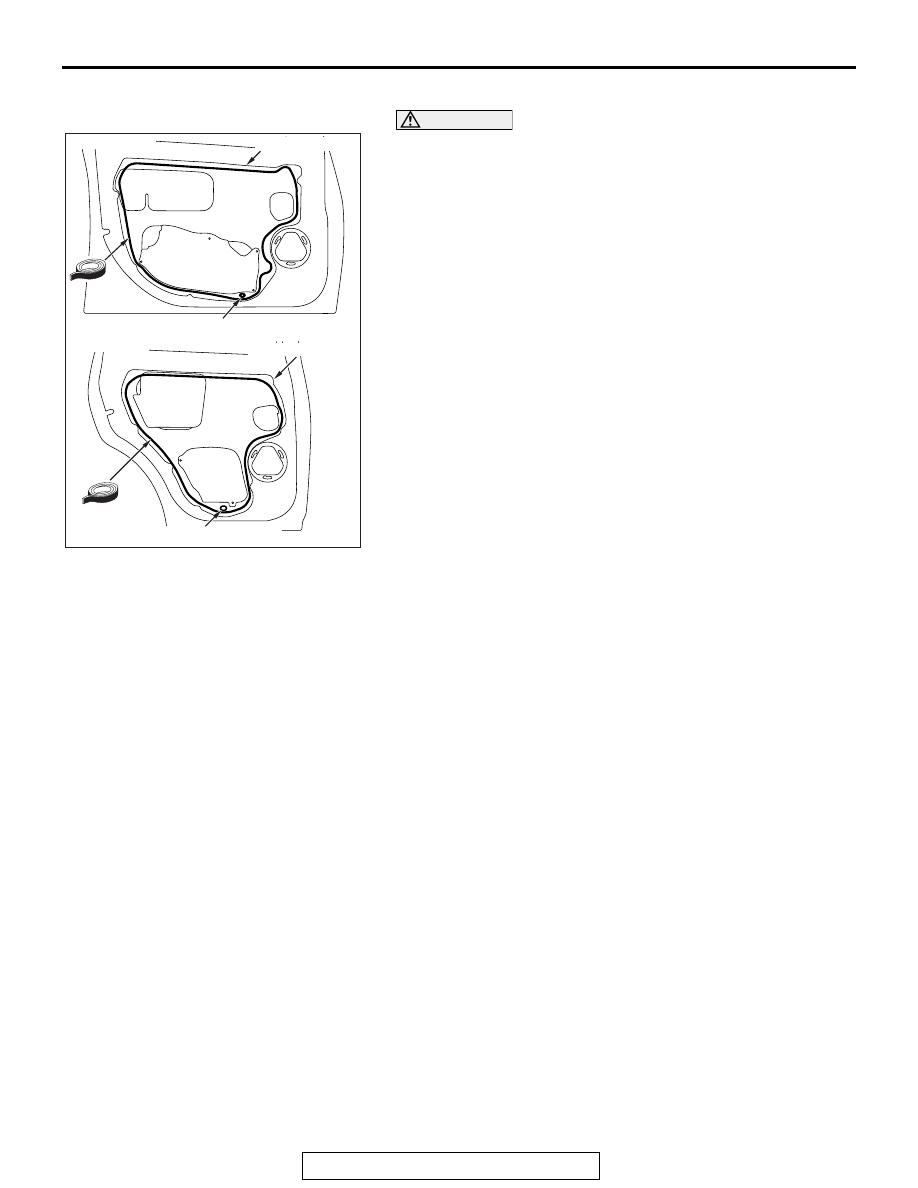

>>B<< WATERPROOF FILM INSTALLATION

CAUTION

When a waterproof film is applied, guide the butyl rubber
tape under the inner panel drain hole.
Apply the specified adhesive to the water-proof film as shown
in the figure and stick the film.

Butyl rubber tape: 3M

™ AAD Part number 8633 or

equivalent

AC605600AB

Waterproof film

<Front door>

Waterproof film

Inner panel water drain hole

Inner panel water drain hole

<Rear door>

LIFTGATE

TSB Revision

BODY

42A-165

LIFTGATE

GENERAL INFORMATION

M1424000100034

LIFTGATE OPENER CONTROL FUNCTION

When the liftgate lock release handle is operated to
open the liftgate (the liftgate lock release handle
open switch turns ON) while the vehicle is parked,
ETACS-ECU turns the unlock relay output ON for 0.3
second, thus the liftgate can be opened by the lift-
gate lock release handle.

SEALANT

M1424002200026

LIFTGATE DIAGNOSIS

INTRODUCTION TO LIFTGATE DIAGNOSIS

M1424002500146

Difficult locking/unlocking, uneven clearance, and
wind noise from the liftgate may be due to improper
adjustment of the liftgate.

LIFTGATE DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1424002600198

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
liftgate fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1424002700162

AC702898AC

ON

OFF

UNLOCK

LOCK

ON

OFF

t

t: 0.3 second

0km/h

Liftgate

Vehicle speed

Liftgate lock
release handle
open switch

Unlock relay
output

Item

Specified sealant

Remark

Liftgate hinge

3M

™ AAD Part No. 8531 Heavy drip check sealer,

3M

™ AAD Part No. 8646 Automotive joint and

seam sealer or equivalent

Body sealer

Symptom

Inspection procedure

Reference page

Difficult locking and unlocking

1

P.42A-166



Uneven body clearance

2

P.42A-166



Uneven height

3

P.42A-166



LIFTGATE

TSB Revision

BODY

42A-166

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Difficult Locking and Unlocking

DIAGNOSIS

STEP 1. Check the engagement of the liftgate
latch and liftgate striker.

Q: Are the liftgate latch and liftgate striker engaged

correctly?
YES :

 Then go to Step 2.

NO :

Align the liftgate latch and liftgate striker
(Refer to

P.42A-168

).

STEP 2. Retest the system.

Q: Does the liftgate lock operate normally?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 2: Uneven Body Clearance

DIAGNOSIS

STEP 1. Check the clearance around the liftgate.

Q: Is the liftgate installed correctly?

YES :

Go to Step 2.

NO :

Adjust clearance around liftgate (Refer to

P.42A-168

).

STEP 2. Retest the system.

Q: Is the clearance around the liftgate even?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Uneven Height

DIAGNOSIS

STEP 1. Check the liftgate damper height.

Q: Is the liftgate damper height proper?

YES :

Go to Step 2.

NO :

Adjust the liftgate damper (Refer to

P.42A-170

). Then go to Step2.

STEP 2. Retest the system.

Q: Is the height between the liftgate and body panels

even?
YES :

The procedure is complete.

NO :

Return to Step 1.
