DOOR

TSB Revision

BODY

42A-151

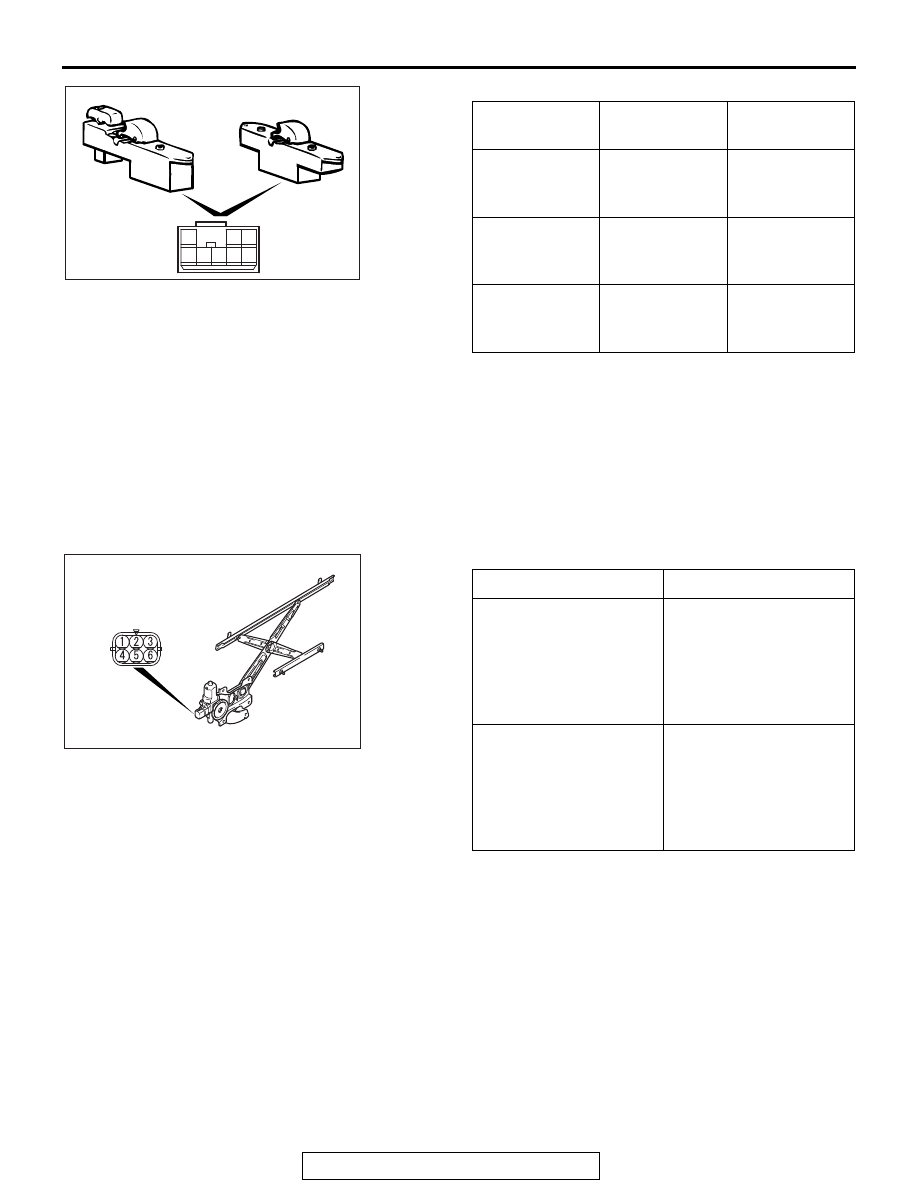

Sub switch

DOOR WINDOW REGULATOR CHECK

.

1. Connect a battery directly to the motor terminals and check

that the motor runs smoothly.

2. Check that the motor runs in the opposite direction when the

battery is connected with the polarity reversed.

3. If a defect is found, replace the window regulator as an

assembly.

.

<Front door (passenger’s side)>

.

Switch
position

Tester
connection

Specified
condition

UP

− 5, 6 − 7

Continuity
exists (2

Ω or

less)

OFF

− 5, 7 − 8

Continuity
exists (2

Ω or

less)

DOWN

− 6, 7 − 8

Continuity
exists (2

Ω or

less)

AC703244

8

3

4 5

1

2

6 7

<Front door>

<Rear door>

AB

Battery connection

Slider position

• Connect terminal No.

1 to the negative
battery terminal.

• Connect terminal No.

4 to the positive
battery terminal.

UP

• Connect terminal No.

4 to the negative
battery terminal.

• Connect terminal No.

1 to the positive
battery terminal.

DOWN

AC703283AB

DOOR

TSB Revision

BODY

42A-152

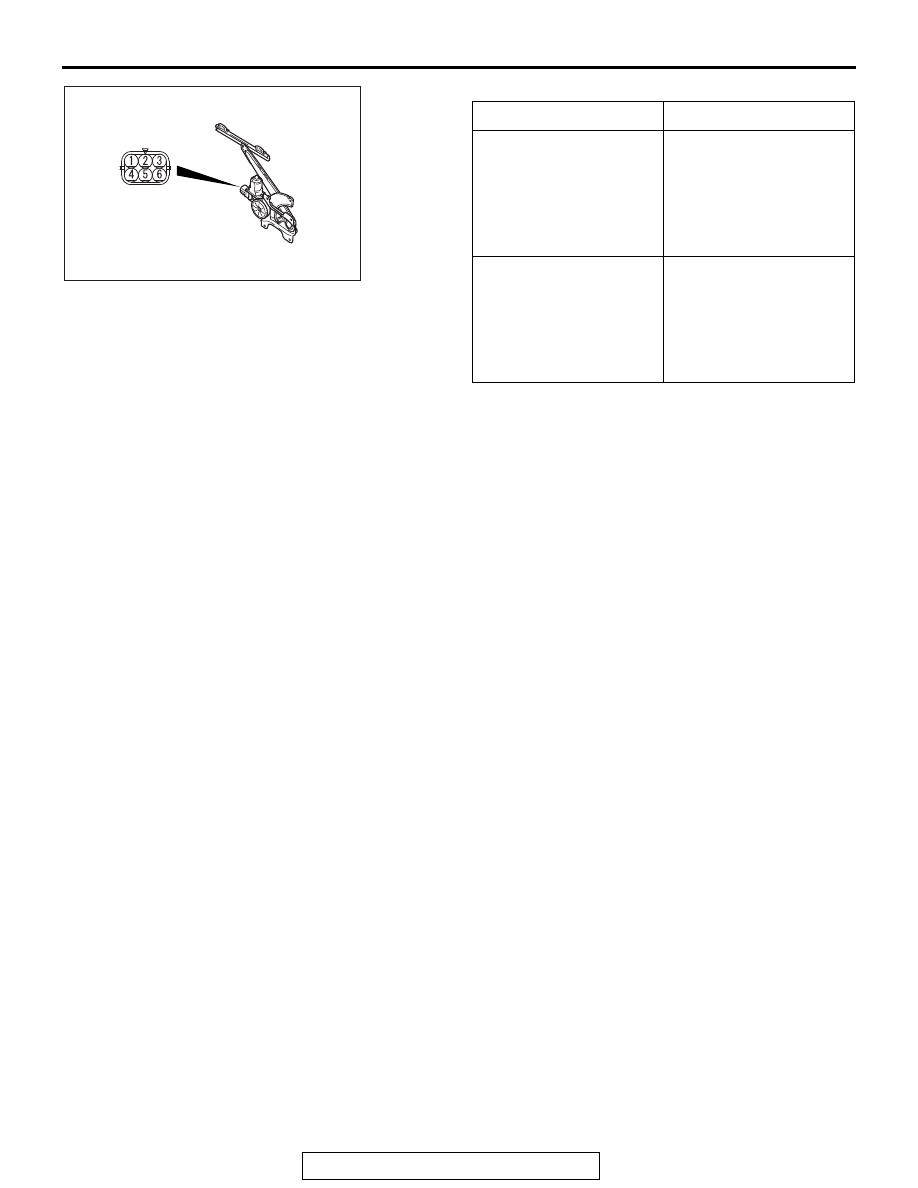

<Rear door>

Battery connection

Slider position

• Connect terminal No.

4 to the negative
battery terminal.

• Connect terminal No.

1 to the positive
battery terminal.

UP

• Connect terminal No.

1 to the negative
battery terminal.

• Connect terminal No.

4 to the positive
battery terminal.

DOWN

AC703282AB

DOOR

TSB Revision

BODY

42A-153

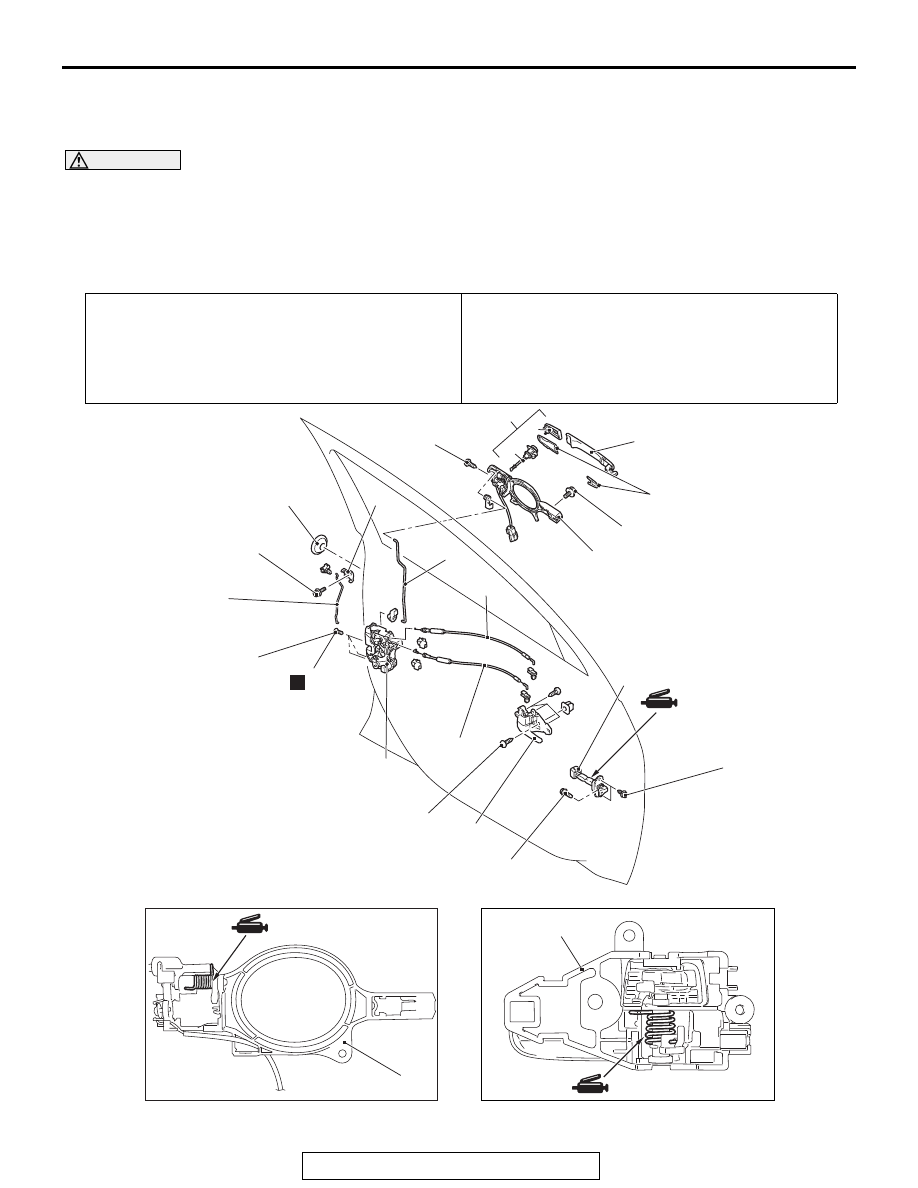

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

M1423004601826

CAUTION

When the door lock cylinder of the vehicle with
WCM is replaced as a full service key set, the key
must be registered with the barcode No. attached
to the ignition key. (Refer to GROUP 42C, ID Code
Registration Judgment Table

P.42C-10

.)

Pre-removal operation
• Door trim assembly removal (Refer to GROUP 52A, Door

Trim

P.52A-11

).

• Waterproof film removal (Refer to

P.42A-159

).

Post-installation operation
• Door inside handle play check (Refer to

P.42A-142

).

• Door outside handle play check (Refer to

P.42A-142

).

• Waterproof film installation (Refer to

P.42A-159

).

• Door trim assembly installation (Refer to GROUP 52A,

Door Trim

P.52A-11

).

AC703288

1

2

5

4

3

6

7

8

9

10

11

12

13

15

16

N

14

AD

<Front door>

25 ± 4 N·m
19 ± 3 ft-lb

7.0 ± 2.0 N·m
43 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

AC703289

1

8

AD

DOOR

TSB Revision

BODY

42A-154

Door inside handle removal

>>B<<

1.

Door inside handle
Door lock key cylinder and door
outside handle removal steps

Rear lower sash (Refer to

P.42A-159

.)

2.

Plug

3.

Door outside handle cover
assembly <driver's side only>

4.

Door lock key cylinder <driver's
side only>

5.

Door outside handle cover

6.

Door outside handle

7.

Door outside handle gasket

8.

Door outside handle base

Door handle and door latch
removal steps

Rear lower sash (Refer to

P.42A-159

.)

9.

Screw

10. Door latch assembly
11. Inside lock cable
12. Inside handle cable
13. Outside handle rod
14. Front door outside lock rod
15. Front door panel bracket

Door check removal steps

Front door speaker (Refer to
GROUP 54A, Speaker

P.54A-692

.)

>>A<<

16. Door check

AC703290

1

4

5

6

9

10

11

12

AC

7

N

3

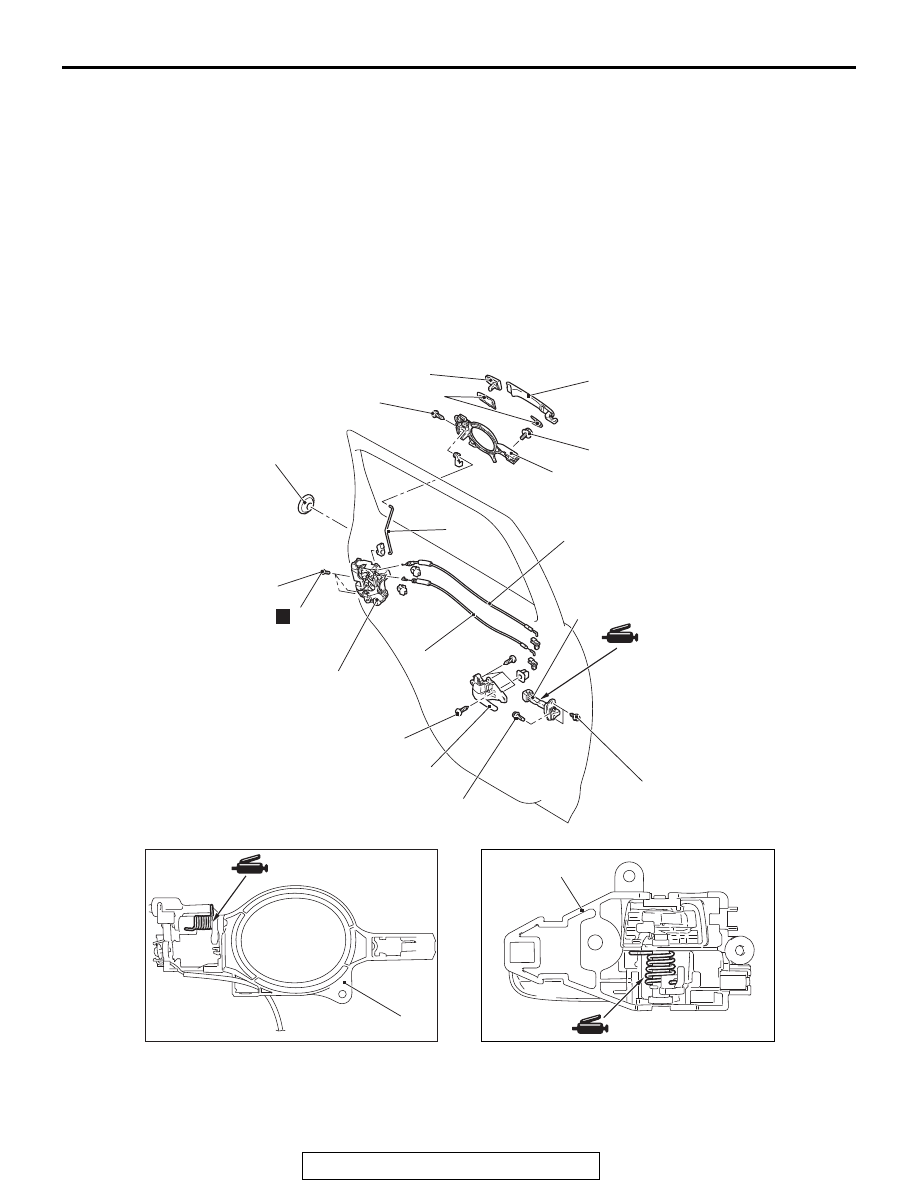

<Rear door>

8

2

25 ± 4 N·m
19 ± 3 ft-lb

7.0 ± 2.0 N·m
43 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

AC703289

1

6

AE

Door inside handle removal

>>B<<

1.

Door inside handle
