DOOR

TSB Revision

BODY

42A-143

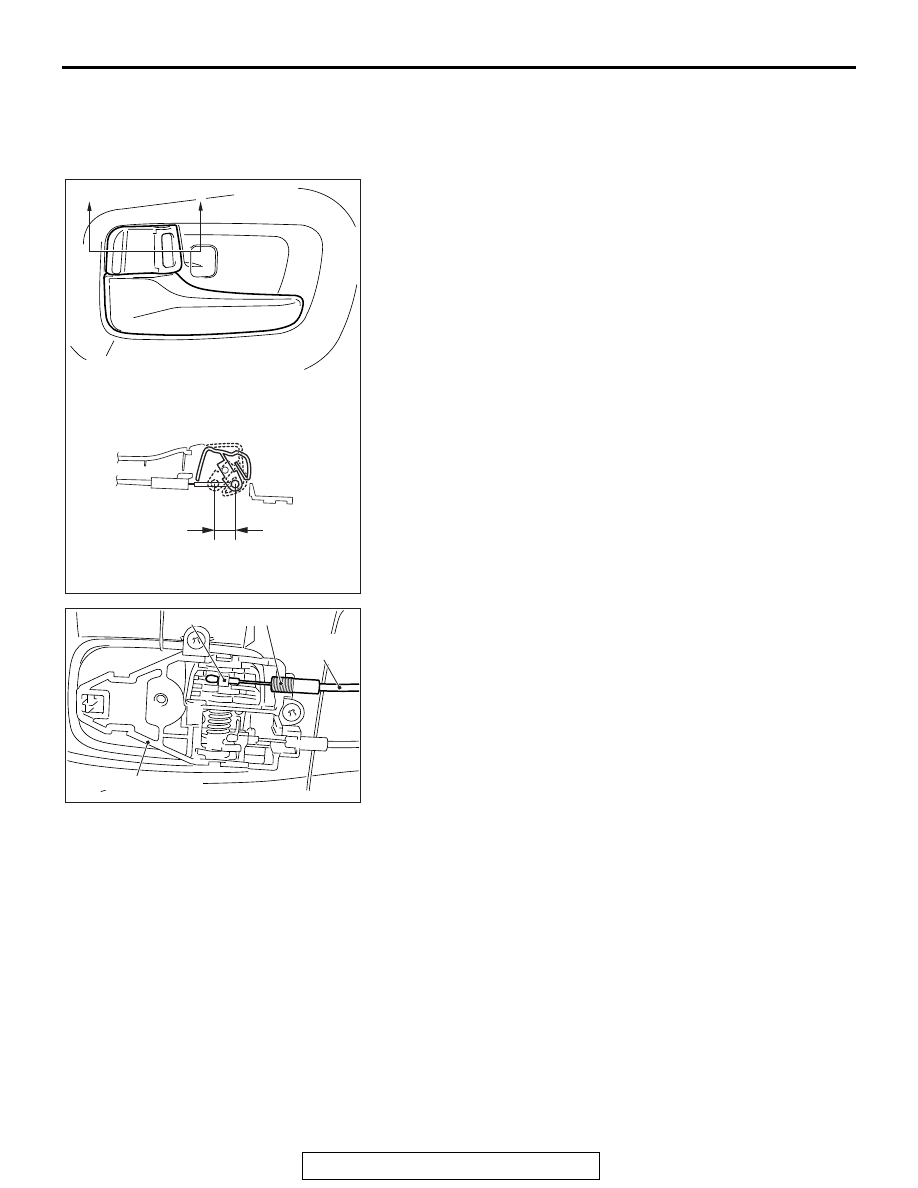

DOOR INSIDE HANDLE LOCK KNOB STROKE
CHECK

1. Remove the door trim assembly (Refer to GROUP 52A

−

Door Trim

P.52A-11

).

2. Check that the stroke of the door inside handle lock knob

meets the standard value.

Standard value (B): 13.7

− 15.0 mm (0.54 − 0.59 inch)

[Target value: 14.7 mm (0.58 inch)]

3. If it is outside the standard value, adjust the stroke of the

inside handle lock knob by using the outer cable end, which
connects the inside handle lock knob to the inside lock
cable.

AC605584

A

B

AC

A

Section A – A

AC605585 AC

Clip

Outer cable end

Inside lock

cable

Door inside handle

DOOR

TSB Revision

BODY

42A-144

CUSTOMIZATION FUNCTION

M1429007800921

Using the ETACS system of scan tool MB991958,
the following functions can be programmed. The pro-
grammed information is held even when the battery
is disconnected.

Adjustment
item (scan tool
MB991958
M.U.T.-III
display)

Adjustment item

Adjusting contents
(scan tool MB991958
display)

Adjusting contents

Door unlock
mode

Adjustment of
power door locks
with selective
unlocking

All doors unlock

Without function: The first operation of
keyless entry system or unlock operation
by KOS unlocks all doors.

Dr door unlock

With function: The first operation of
keyless entry system or unlock operation
by KOS unlocks the driver's door only, and
the second unlock operation within 2
seconds after that unlocks all doors. (initial
condition)

Auto door
unlock

Adjustment of the
auto door unlock
function

Disabled

Without function (initial condition).

Always (P pos)

With function: Operates when the shift
lever or the selector lever is moved to the
P position.

Always (Lock pos)

With function: Operates when the ignition
switch is moved to the LOCK (OFF)
position.

DOOR

TSB Revision

BODY

42A-145

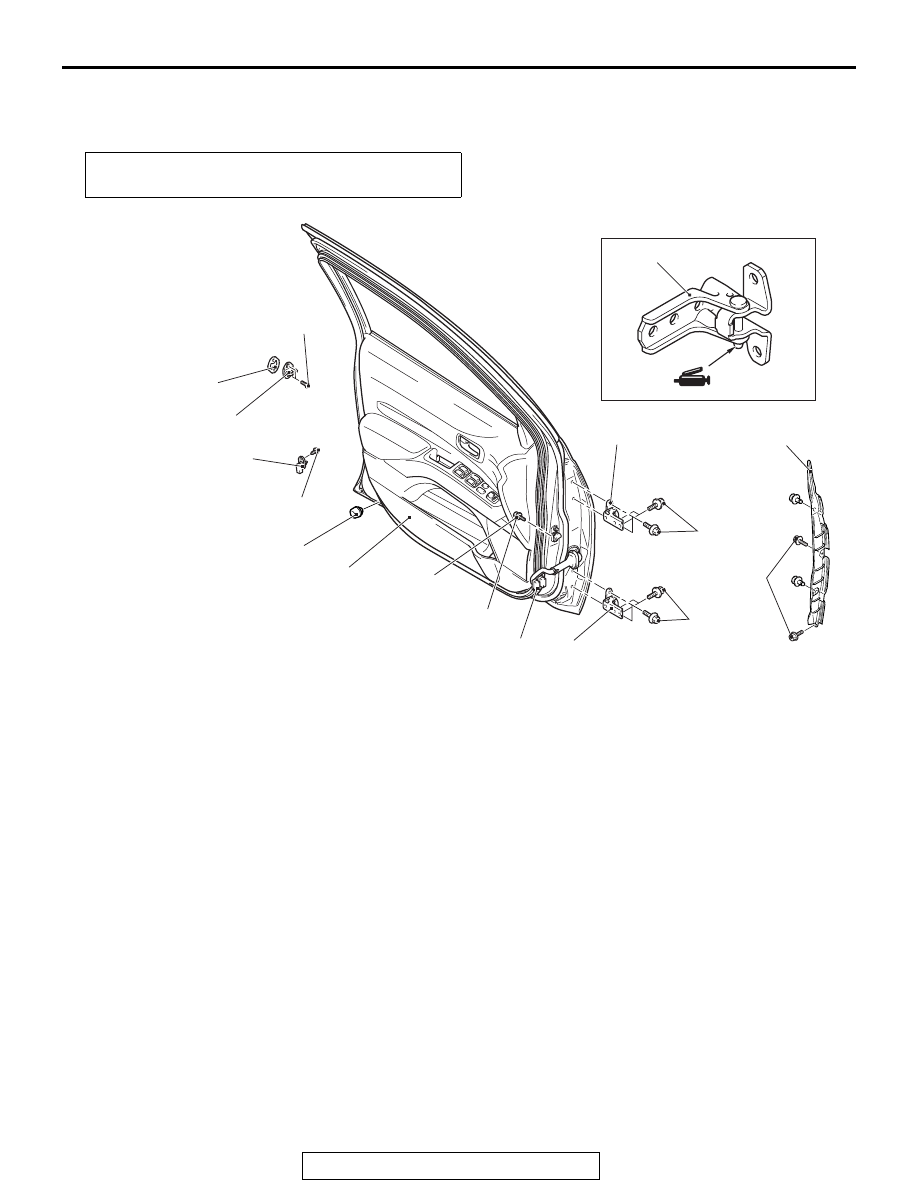

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

M1423002200841

Post-installation operation
• Door adjustment (Refer to

P.42A-136

.)

AC703238

6, 7

1

2

3

4

6

7

9

8

10

AB

26 ± 6 N·m
19 ± 5 ft-lb

26 ± 6 N·m
19 ± 5 ft-lb

25 ± 4 N·m
19 ± 3 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5

<Front door>

Damper removal

1.

Damper
Door assembly and front door
hinge removal steps

•

Front scuff plate, cowl side trim
(Refer to GROUP 52A - Interior
Trim

P.52A-10

.)

2.

Wiring harness connector
connection

3.

Door check connecting bolt

4.

Door assembly

•

Side air dams (Refer to GROUP 51,
Side Air Dams

P.51-20

.)

5.

Fender rear protector

6.

Front door upper hinge

7.

Front door lower hinge
Striker removal steps

>>A<<

8.

Striker

9.

Striker shim
Door switch removal

10. Door switch

Door assembly and front door
hinge removal steps (Continued)

DOOR

TSB Revision

BODY

42A-146

INSTALLATION SERVICE POINT

.

>>A<< STRIKER INSTALLATION

Install the striker so that the striker center does not deviate
more than

±1.5 mm (0.06 inch) from the latch center.

AC703239

5, 6

1

2

3

4

5

6

7

8

9

AB

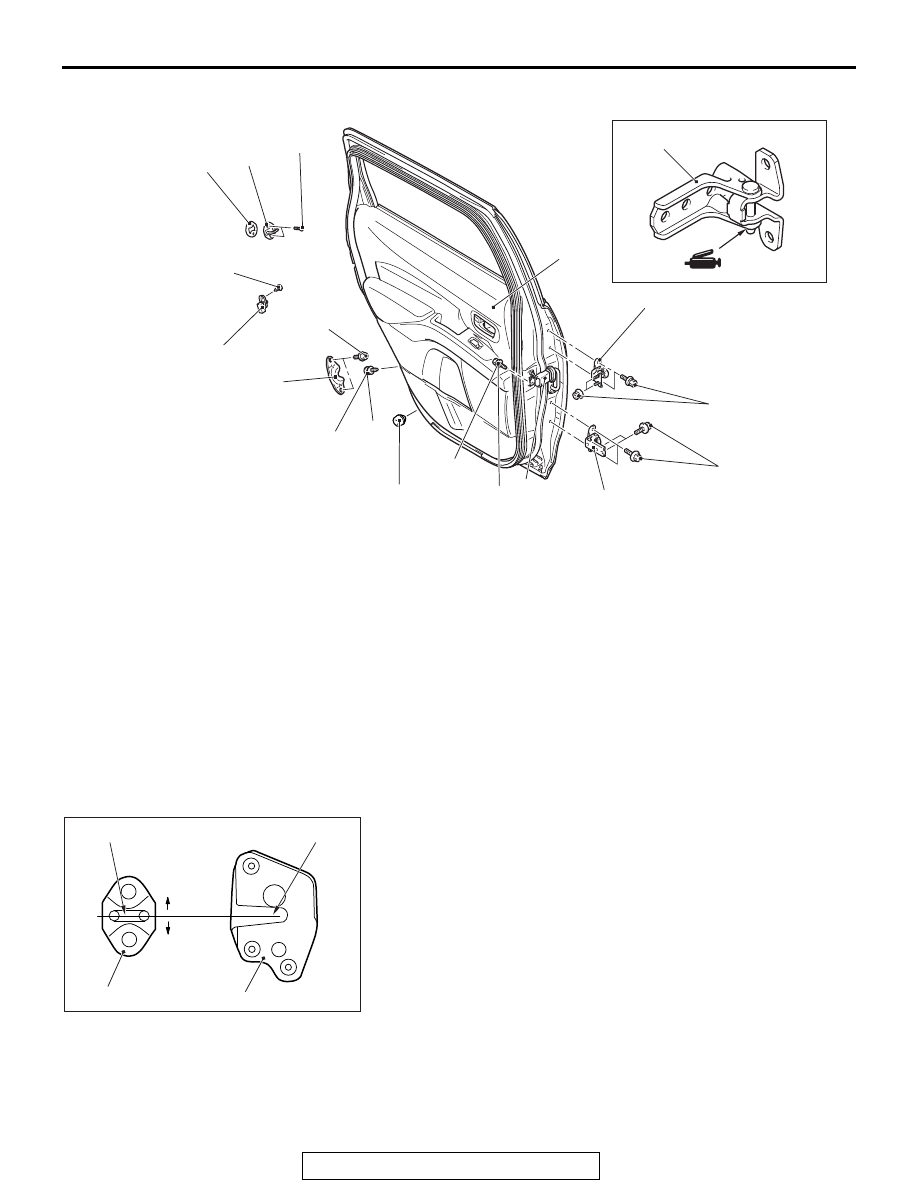

<Rear door>

26 ± 6 N·m
19 ± 5 ft-lb

26 ± 6 N·m
19 ± 5 ft-lb

25 ± 4 N·m
19 ± 3 ft-lb

18 ± 7 N·m
13 ± 5 ft-lb

18 ± 7 N·m
13 ± 5 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

10

11

Damper removal

1.

Damper
Door assembly removal steps

2.

Wiring harness connector
connection

3.

Door check connecting bolt

4.

Door assembly
Rear door hinge removal steps

•

Center pillar trim (Refer to GROUP
52A, Interior Trim

P.52A-10

.)

5.

Rear door upper hinge

6.

Rear door lower hinge

Striker removal steps

>>A<<

7.

Striker

8.

Striker shim
Door switch removal

9.

Door switch
Rear door catch removal

10. Rear door catch

Rear door lock hook removal

11. Rear door lock hook

AC703240AB

+1.5 mm

(0.06 in)

-1.5 mm

(0.06 in)

Striker center

Striker

Latch center

Latch
