DOOR

TSB Revision

BODY

42A-139

• Turn on the power window lock switch of the power window

main switch, and operate the main switch to check that the
driver’s power window works but the front and rear passen-
ger's power windows do not work.

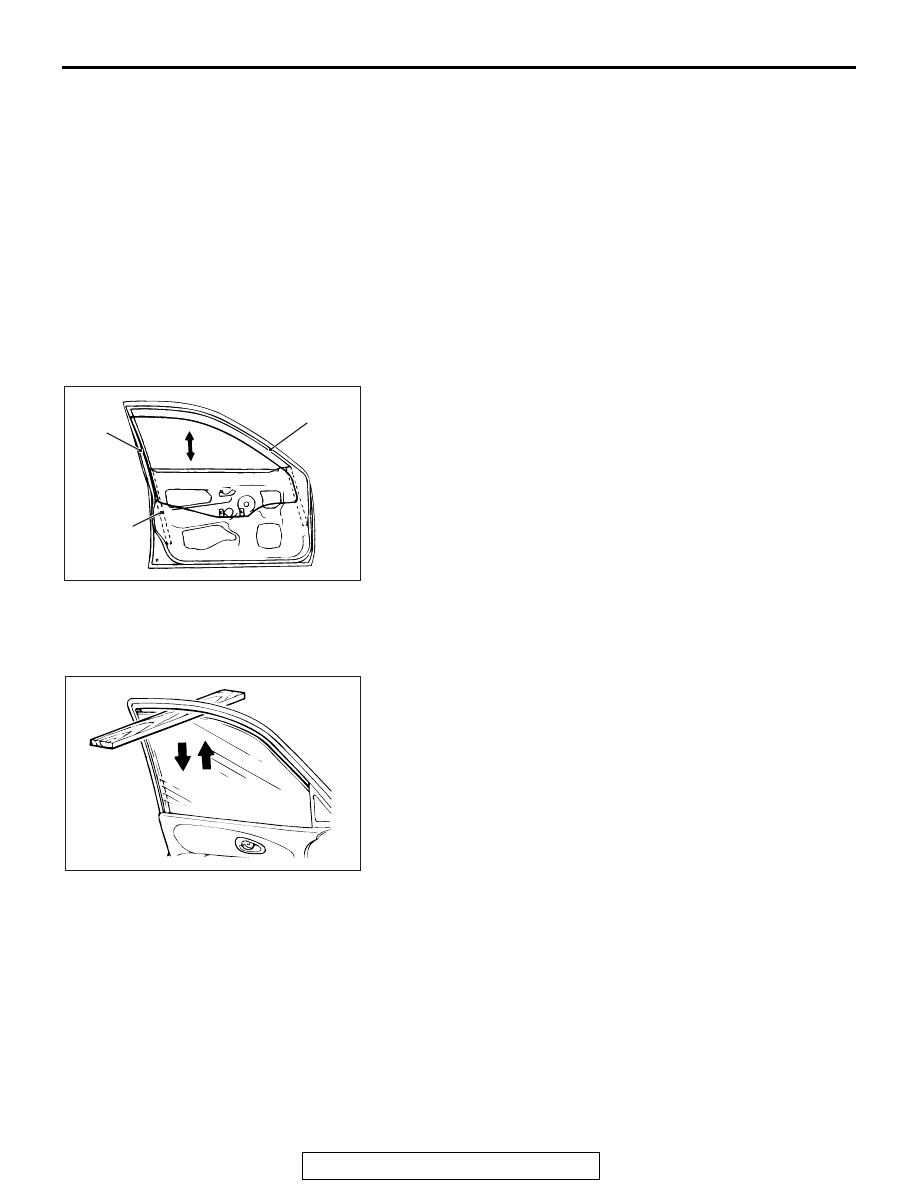

ADJUSTMENT OF FAULTY POWER WINDOW

M1429000900400

If the door window glass wrongly, automatically lowers while
being raised, adjust or replace as follows:
1. Remove the door trim assembly (Refer to GROUP 52A,

Door Trim

P.52A-11

2. Remove waterproof film (Refer to

P.42A-159

3. Remove the window regulator assembly from the door

window glass, and then raise and lower the door window
glass by hand to check the operation force.

4. If the door window glass does not move up and down

smoothly, check and repair as follows:

• Check the installation condition of the runchannel.

• Straighten twist in the door sash.

• Check the installation condition of the lower sash.

5. If repair or adjustment is impossible, replace the door

assembly.

POWER WINDOW SAFETY MECHANISM CHECK
<DRIVER’S SIDE ONLY>

M1429013700161

1. Place an approximately 10 mm (0.39 inch) thick wood board

as shown. Then, close the door window glass by one-shot
up action of the power window switch.

2. Check that the window glass lowers by about 150 mm (5.9

inches) when it clamps the board.This is called anti-trap
function (safety mechanism). If this does not happen, carry
out troubleshooting (Refer to

P.42A-81

3. Check that the window glass continue raising up to the door

upmost position without activating the anti-trap function
while the switch is kept pulling up (this is called forced
closing function).
NOTE: If the anti-trap function (safety mechanism) is acti-
vated consecutively 3 times or more, carry out the learning
procedures of the power window fully closed position (Refer
to

P.42A-140

POWER WINDOW TIMER FUNCTION CHECK

M1429004300659

Check the power window timer as described below. If it does
not work, perform troubleshooting (Refer to

P.42A-129

• Close the door and turn the ignition switch to the LOCK

(OFF) position, and then check that the power windows
operate for 30 seconds.

AC703236AB

Runchannel

Door
sash

Lower
sash

AC605581

DOOR

TSB Revision

BODY

42A-140

• Close the door and turn the ignition switch to the LOCK

(OFF) position. While the timer is on, open the driver's door
or front passenger's door, and check that the timer is can-
celled.

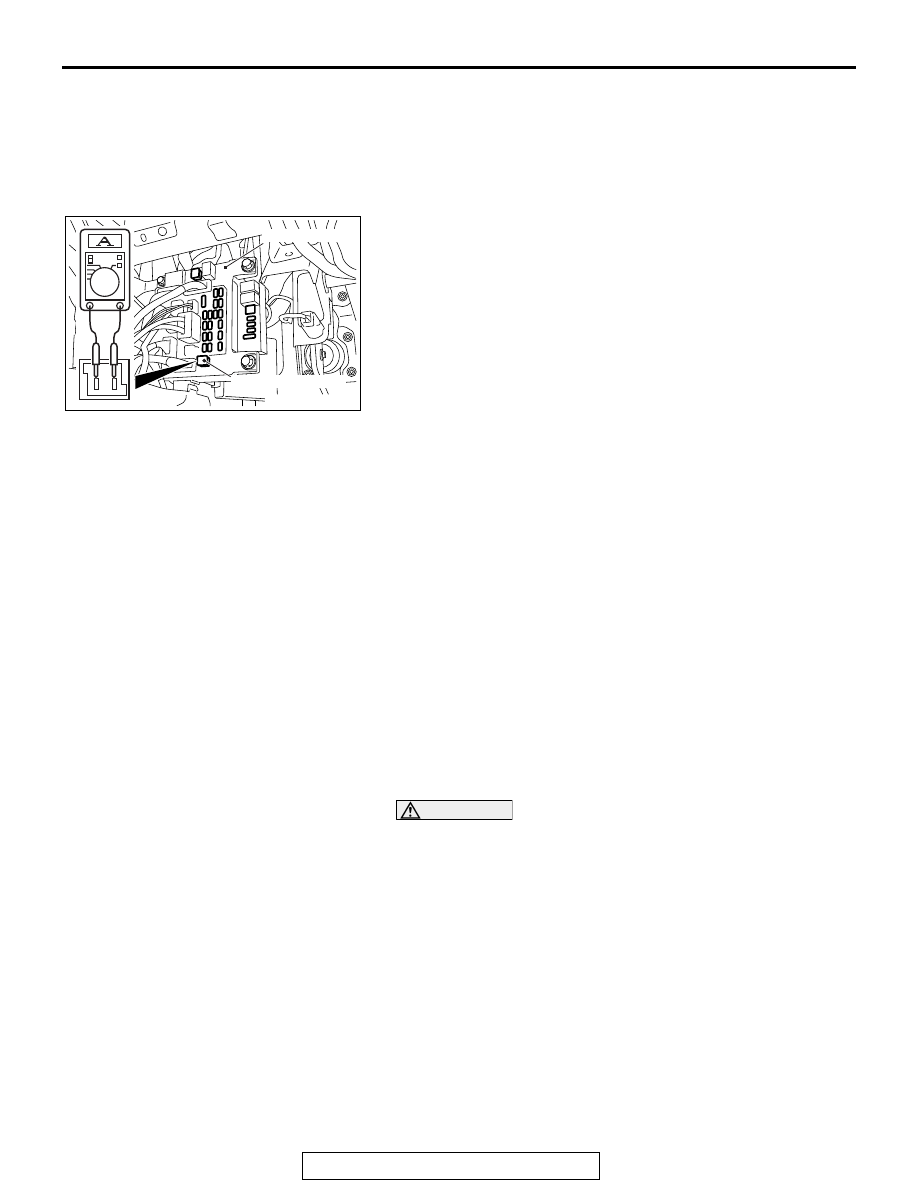

POWER WINDOW OPERATING CURRENT CHECK

M1429001100827

1. Remove the power window fuse to check that it is normal,

and connect a multimeter as shown in the illustration.

2. Raise the power window to measure the current during

operation.

Standard value: 7

± 1 A [Power supply voltage 14.5 ±

0.5 V, at 25

°C (77°F)]

NOTE: If the power supply voltage does not meet the stan-
dard value, check and repair the generator and the battery.
Then carry out this check again.

3. If the operation current is outside the standard value, refer to

P.42A-81

LEARNING PROCEDURES OF THE POWER
WINDOW FULLY CLOSED POSITION <DRIVER’S
SIDE ONLY>

M1429004600508

LEARNING PROCEDURES OF THE FULLY
CLOSED POSITION WHEN THE POWER WINDOW
SWITCH IS REMOVED, OR THE POWER WINDOW
REGULATOR ASSEMBLY IS REMOVED OR
REPLACED

1. If the anti-trap function (safety mechanism) is activated

consecutively three times or more, the fully closed position
that the power window switch has learned will be erased
(initialized).

2. Operate the power window switch and fully open the door

window glass.

CAUTION

The anti-trap function will not activated until the learning
procedures of the fully closed position have been com-
pleted (because the anti-trap function was reset).
3. Operate the power window switch and fully close the door

window glass. The power window activates for 0.7 seconds
and stops automatically when the power window switch is
pressed once. Repeat this operation until the door window
glass fully closes and release the switch once. Then, hold
the power window switch to the fully closed side again for
one second so that the power window switch completes
learning the fully closed position.
NOTE: If the power window switch is operated to open the
door window glass while the switch is learning, the learning
will be cancelled. If this happens, return to step 2.

AC703237

Power window fuse

ETACS-ECU

DOOR

TSB Revision

BODY

42A-141

LEARNING PROCEDURES WHEN THE POWER
WINDOW SWITCH IS REPLACED WITH A NEW
ONE

CAUTION

The anti-trap function will not activated until the learning
procedures of the fully closed position have been com-
pleted (because the anti-trap function was reset).
Operate the power window switch to fully close the door win-
dow glass by one-shot up action so that the power window
switch will complete learning (no initialization is required).

CENTRAL DOOR LOCKING SYSTEM CHECK

M1427001100683

• Check that the central door locking system works by operat-

ing the door lock switches. If it does not operate, perform
troubleshooting. Refer to

P.42A-36

NOTE: When the inside lock knob is operated with the
driver's door opened, the driver's door is not locked.

• Check whether the driver's door is opened when the driver's

door inside handle is pulled with all the doors locked. If it
does not operate, replace the driver's door latch assembly.
Refer to

P.42A-153

KEY-IN PREVENTION FUNCTION CHECK

M1427003300326

Check that the driver's door is not locked when the key cylinder
or door lock switch is operated with the driver's door opened. If
it is locked, replace the door latch. Refer to

P.42A-153

SELECTOR "P" POSITION-LINKED DOOR
UNLOCKING FUNCTION CHECK

M1427003400204

When the selector lever is moved to the "P" (parking) position
with the ignition switch on, all the doors and the liftgate will be
unlocked. Carry out troubleshooting if the door is unlocked.
Refer to

P.42A-36

NOTE: The selector "P" position-linked door unlocking function
can be switched with the customization function. Confirm it
before check. Refer to

P.42A-144

IGNITION "LOCK (OFF)" POSITION-LINKED
DOOR UNLOCKING FUNCTION CHECK

M1427006200061

When the ignition switch is moved to the "LOCK" (OFF) posi-
tion, all the doors and the liftgate will be unlocked. Carry out the
troubleshooting if a door does not operate. Refer to

P.42A-144

NOTE: The ignition "LOCK" position-linked door unlocking
function can be switched with the customize function. Confirm it
before check. Refer to

P.42A-144

DOOR

TSB Revision

BODY

42A-142

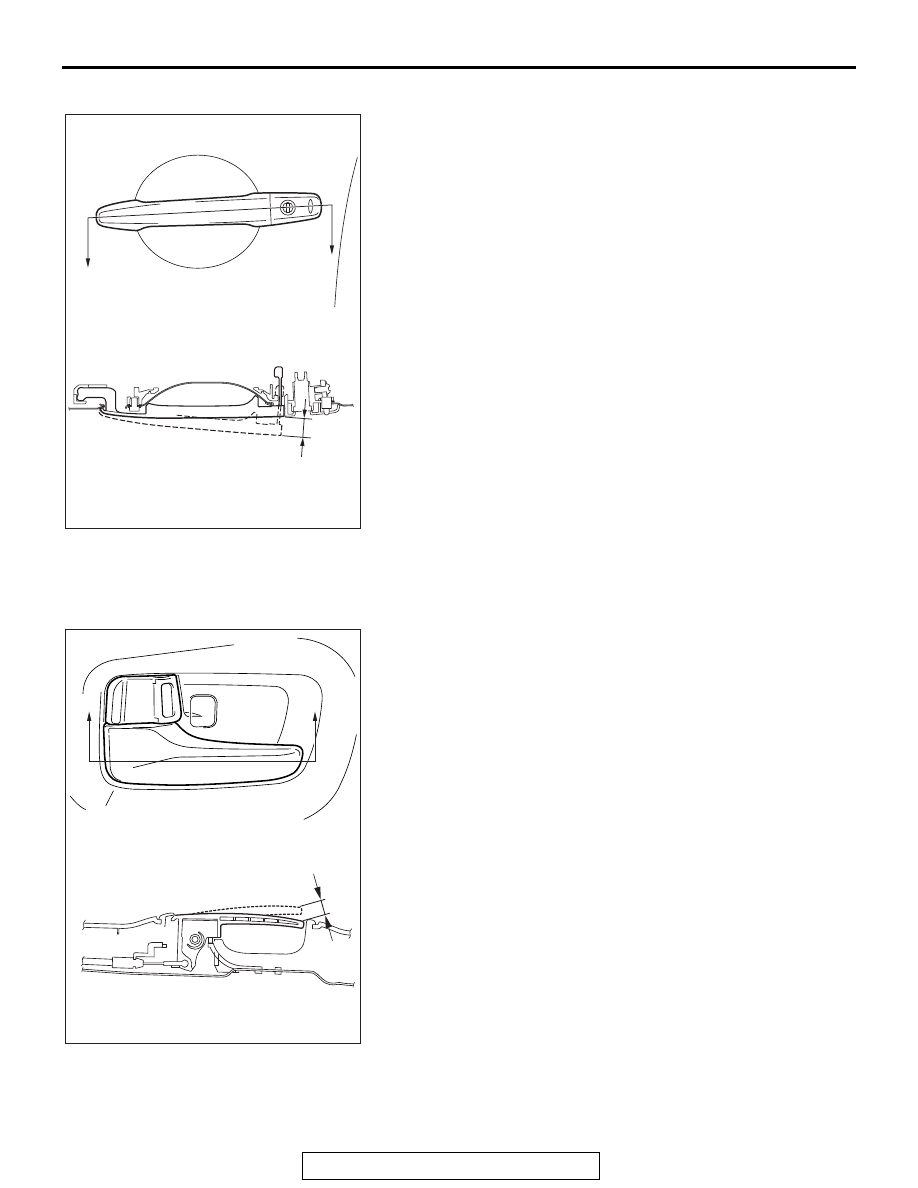

DOOR OUTSIDE HANDLE PLAY CHECK

M1423001600653

1. Check that the door inside handle assembly play meets the

standard value.

Standard value (B): 0.1

− 5.2 mm (0.004 − 0.2 inch) [Tar-

get value: 2.5 mm (0.1 inch)]

2. Check the door outside handle assembly and door latch

assembly, and replace them if they are out of the standard
value.

DOOR INSIDE HANDLE CHECK

M1423001500719

DOOR INSIDE HANDLE KNOB PLAY CHECK

1. Check that the door inside handle knob play meets the

standard value.

Standard value (B):
Front driver’s side: 10.0

− 23.7 mm (0.39 − 0.93 inch)

[Target value: 17.0 mm (0.67 inch)]
Except Front driver’s side: 5.0

− 18.7 mm (0.2 − 0.74

inch) [Target value: 12.0 mm (0.47 inch)]

2. Check the door inside handle and door latch assembly, and

replace them if they are out of the standard value.

AC605582

Section A – A

AC605583

Section A – A
