Mitsubishi Outlander GS45X. Manual - part 1082
DOOR
TSB Revision
BODY
42A-131
INSPECTION PROCEDURE 5: Door Hard to Open
DIAGNOSIS
STEP 1. Adjust the latch and striker engagement.
Q: Is the latch and striker engagement correct?
YES :
Go to Step 2.
NO :
Adjust the latch and striker (Refer to
). Then go to Step 4.
STEP 2. Check for lock cable and lock rod
damage.
Q: Are the lock cable and the lock rod damaged?
YES :
Repair or replace the lock cable and the
lock rod, then go to Step 4.
NO :
Go to Step 3.
STEP 3. Check the door handle flexibility
(amount of the door handle movement required
to open a door).
Q: Is the door handle flexibility good?
YES :
Go to Step 4.
NO :
Check the door outside handle and inside
handle (Refer to
and
). Then go to Step 4.
STEP 4. Retest the system.
Q: Does the door open normally?
YES :
The procedure is complete.
NO :
Return to Step 1.
INSPECTION PROCEDURE 6: Door does not Open or Close Completely
DIAGNOSIS
STEP 1. Check the door hinge position.
Q: Is the door hinge correct?
YES :
Go to Step 2.
NO :
Adjust the door hinge (Refer to
Then go to Step 4.
STEP 2. Check the door for damage.
Q: Is the door in good condition?
YES :
Go to Step 3.
NO :
Repair or replace the door, then go to Step
4.
STEP 3. Check lubrication.
Q: Are the door check and door hinge sufficiently
lubricated?
YES :
Go to Step 4.
NO :
Apply grease, then go to Step 4.
STEP 4. Retest the system.
Q: Does the door open and close normally?
YES :
The procedure is complete.
NO :
Return to Step 1.
INSPECTION PROCEDURE 7: Uneven Gap Between Body
.
DIAGNOSIS
Adjust the door fit (Refer to
). Then check
that the gap has been improved.

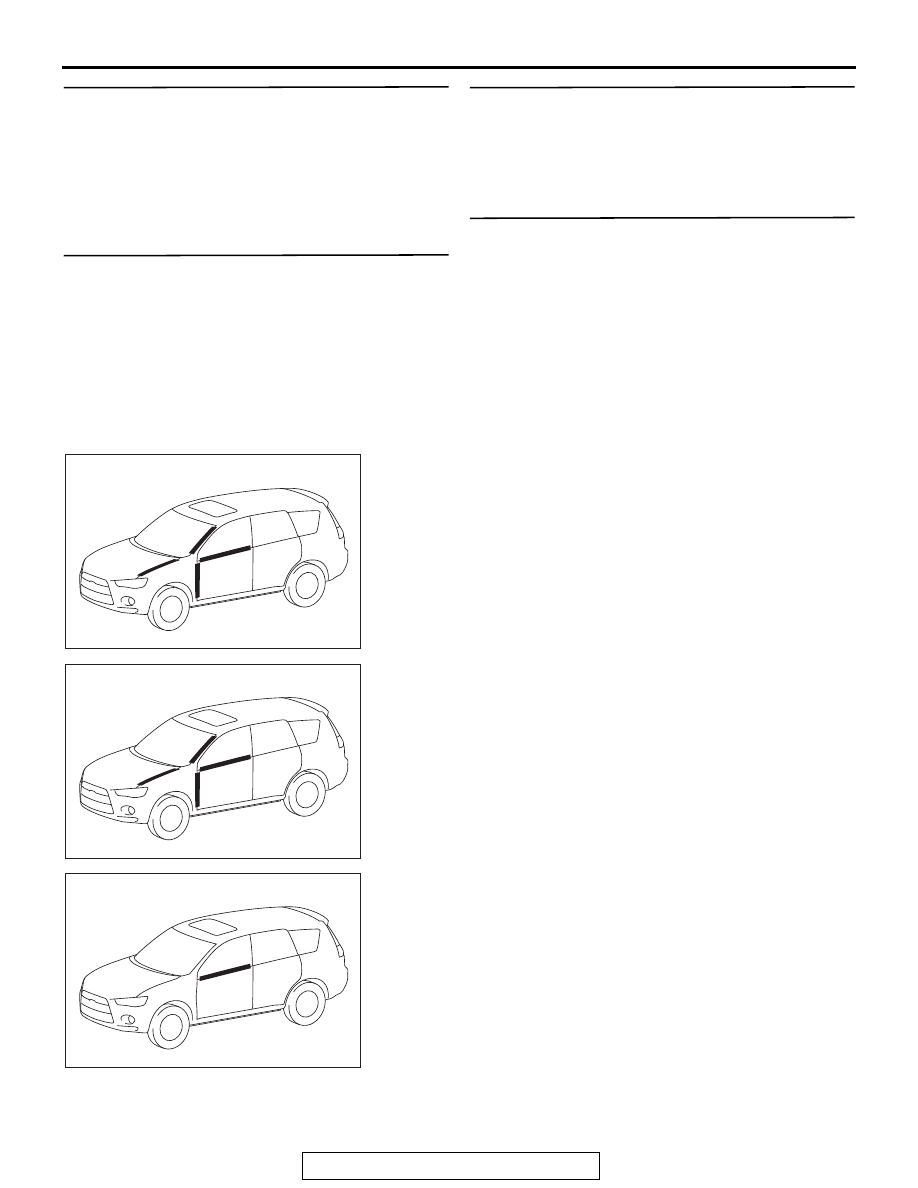

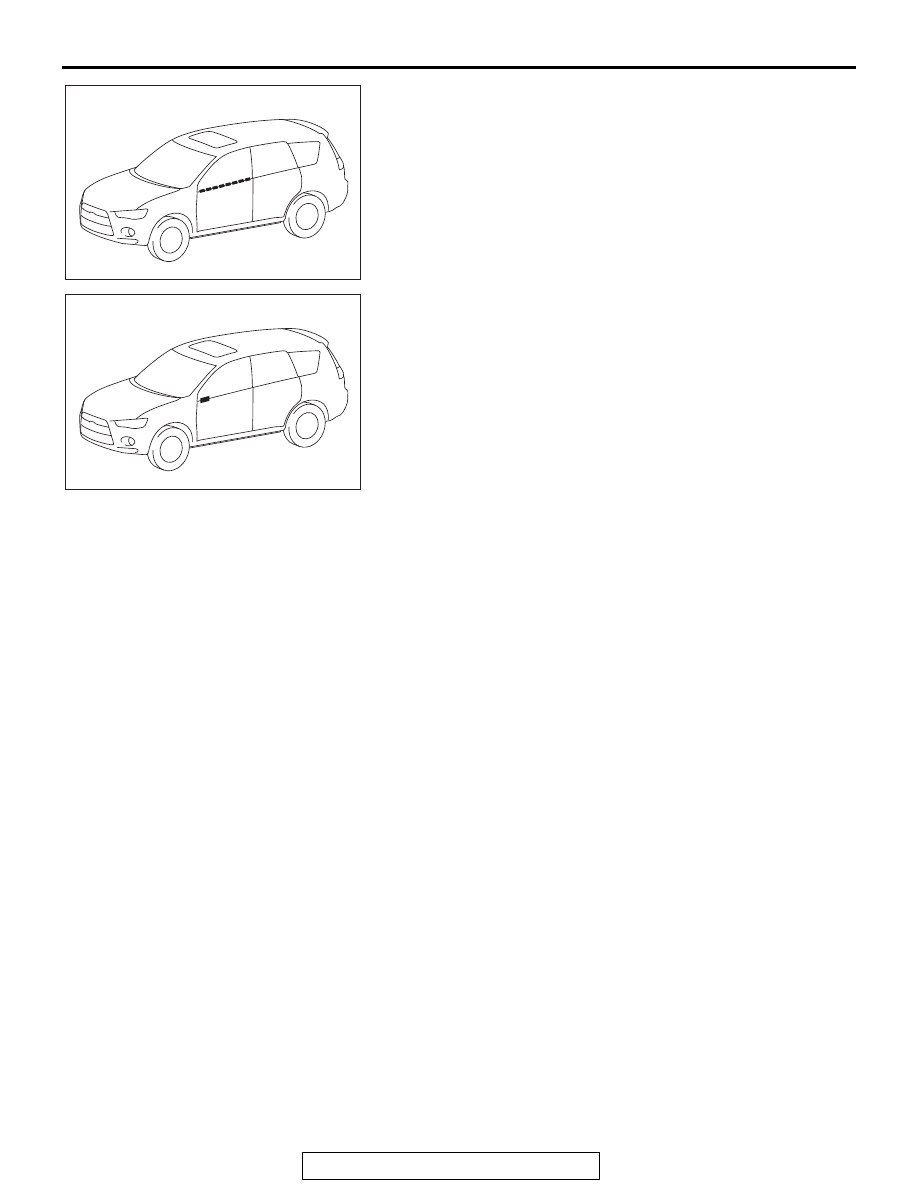

INSPECTION PROCEDURE 8: Wind Noise Around Door
DIAGNOSIS
STEP 1. Check the door opening weatherstrips
for holding condition.
Q: Are the door opening weatherstrips holding firmly?
YES :
Go to Step 2.
NO :
.Then
go to Step 5.
