STEP 17. Check ETACS-ECU connector C-311 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-311 in good condition?

YES : Go to Step 18.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the rear power window sub switch

(LH) is operated, the rear power window (LH) should
raise and lower normally.

STEP 18. Check the wiring harness between ETACS-ECU
connector C-311 (terminal 12) and rear power window sub
switch (LH) connector E-25 (terminal 6).

• Check the power supply line for open circuit and short cir-

cuit.

NOTE: Also check intermediate connectors D-21. If intermedi-
ate connector D-21 is damaged, repair or replace the connector
as described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between ETACS-ECU connector

C-311 (terminal 12) and rear power window sub switch
(LH) connector E-25 (terminal 6) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

STEP 19. Check the ground circuit to the rear power
window sub switch (LH). Measure the resistance at rear
power window sub switch (LH) connector E-25.
(1) Disconnect rear power window sub switch (LH) connector

E-25 and measure the resistance available at the wiring
harness side of the connector.

(2) Measure the resistance value between terminal 5 and

ground, and also between terminal 8 and ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 21.
NO :  Go to Step 20.

AC702473AK

Connector E-25

(harness side)

DOOR

TSB Revision

BODY

42A-112

STEP 20. Check the wiring harness between power
window main switch connector E-19 (terminals 18, 19) and
rear power window sub switch (LH) connector E-25
(terminals 5, 8).

• Check the power supply lines for open circuit and short cir-

cuit.

NOTE: Also check intermediate connectors C-32, C-126 and
D-21. If intermediate connector C-32, C-126 or D-21 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window main

switch connector E-19 (terminals 18, 19) and rear power
window sub switch (LH) connector E-25 (terminals 5, 8)
in good condition?
YES : Replace the power window main switch. When the

rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

STEP 21. Check the wiring harness between rear power
window sub switch (LH) connector E-25 (terminals 4, 7)
and rear power window motor (LH) connector E-26
(terminals 4, 1).

• Check the power supply line for open circuit and short cir-

cuit.

Q: Is the wiring harness between rear power window sub

switch (LH) connector E-25 (terminals 4, 7) and rear
power window motor (LH) connector E-26 (terminals 4,
1) in good condition?
YES : Replace the power window main switch. When the

rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (LH) is operated, the
rear power window (LH) should raise and lower
normally.

DOOR

TSB Revision

BODY

42A-113

STEP 22. Check rear power window sub switch (RH)
connector E-11 and rear power window motor (RH)
connector E-12 for loose, corroded or damaged terminals,
or terminals pushed back in the connector.
Q: Are rear power window sub switch (RH) connector E-11

and rear power window motor (RH) connector E-12 in
good condition?
YES : Go to Step 23.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the rear power window sub switch

(RH) is operated, the rear power window (RH) should
raise and lower normally.

STEP 23. Check the rear power window sub switch (RH) for
continuity.
(1) Remove the rear power window sub switch (RH). Refer to

GROUP 42A, Door, Door Glass and Regulator

P.42A-148

.

(2) Check continuity when the rear power window sub switch

(RH) is operated to "UP" or "DOWN" position.

Q: Is the rear power window sub switch (RH) normal?

YES : Go to Step 24.
NO :  Replace the rear power window sub switch (RH).

When the rear power window sub switch (RH) is
operated, the rear power window (RH) should raise
and lower normally.

Switch
position

Tester
connection

Specified
condition

UP

4

− 5, 6 − 7

Continuity
exists (2

Ω or

less)

OFF

4

− 5, 7 − 8

DOWN

4

− 6, 7 − 8

AC703138AB

8

3

4 5

1

2

6 7

<Rear door>

DOOR

TSB Revision

BODY

42A-114

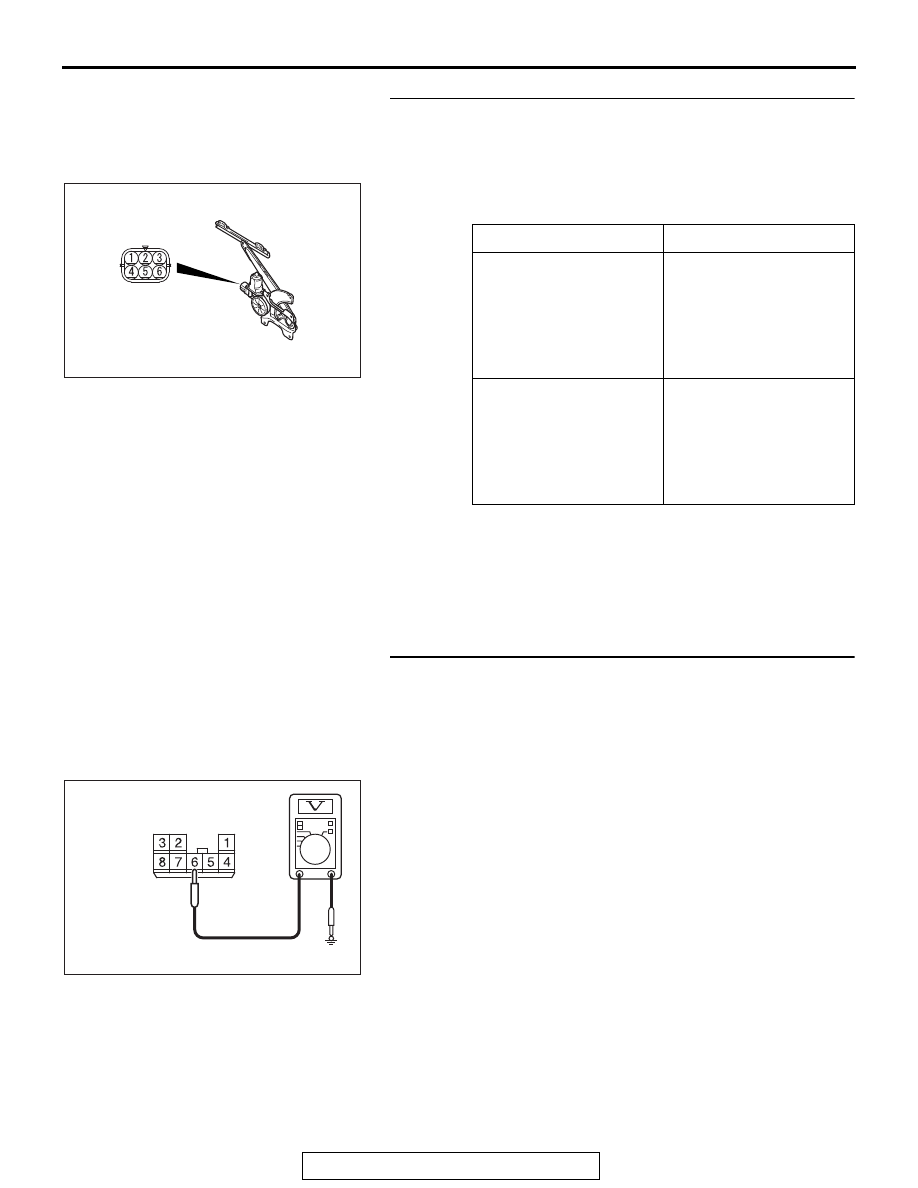

STEP 24. Check the rear power window motor (RH).
(1) Remove the rear power window regulator assembly (RH).

Refer to GROUP 42A, Door, Door Glass and Regulator

P.42A-148

.

(2) Connect a battery to the motor terminal, and check that the

motor runs freely.

Q: Is the rear power window motor (RH) normal?

YES : Go to Step 25.
NO :  Replace the rear power window motor (RH). When

the rear power window sub switch (RH) is operated,
the rear power window (RH) should raise and lower
normally.

STEP 25. Check the battery power supply circuit to the rear
power window sub switch (RH). Measure the voltage at
rear power window sub switch (RH) connector E-11.
(1) Disconnect rear power window sub switch (RH) connector

E-11 and measure the voltage available at the wiring
harness side of the connector.

(2) Measure the voltage between terminal 6 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 28.
NO :  Go to Step 26.

Battery connection

Slider position

• Connect terminal 1 to

the negative battery
terminal

• Connect terminal 4 to

the positive battery
terminal

UP

• Connect terminal 4 to

the negative battery
terminal

• Connect terminal 1 to

the positive battery
terminal

DOWN

AC703136AB

AC702474

Connector E-11

AH

(harness side)
