DOOR

TSB Revision

BODY

42A-103

AC703135

BLACK

BLACK

BLACK

POWER WINDOW MAIN SWITCH

REAR

(LH)

REAR

(RH)

LOCK

SWITCH

REAR

POWER

WINDOW

SUB SWITCH

(RH)

REAR

POWER

WINDOW

MOTOR (RH)

REAR

POWER

WINDOW

SUB SWITCH

(LH)

REAR

POWER

WINDOW

MOTOR (LH)

AC

ETACS-ECU

POWER
WINDOW
RELAY

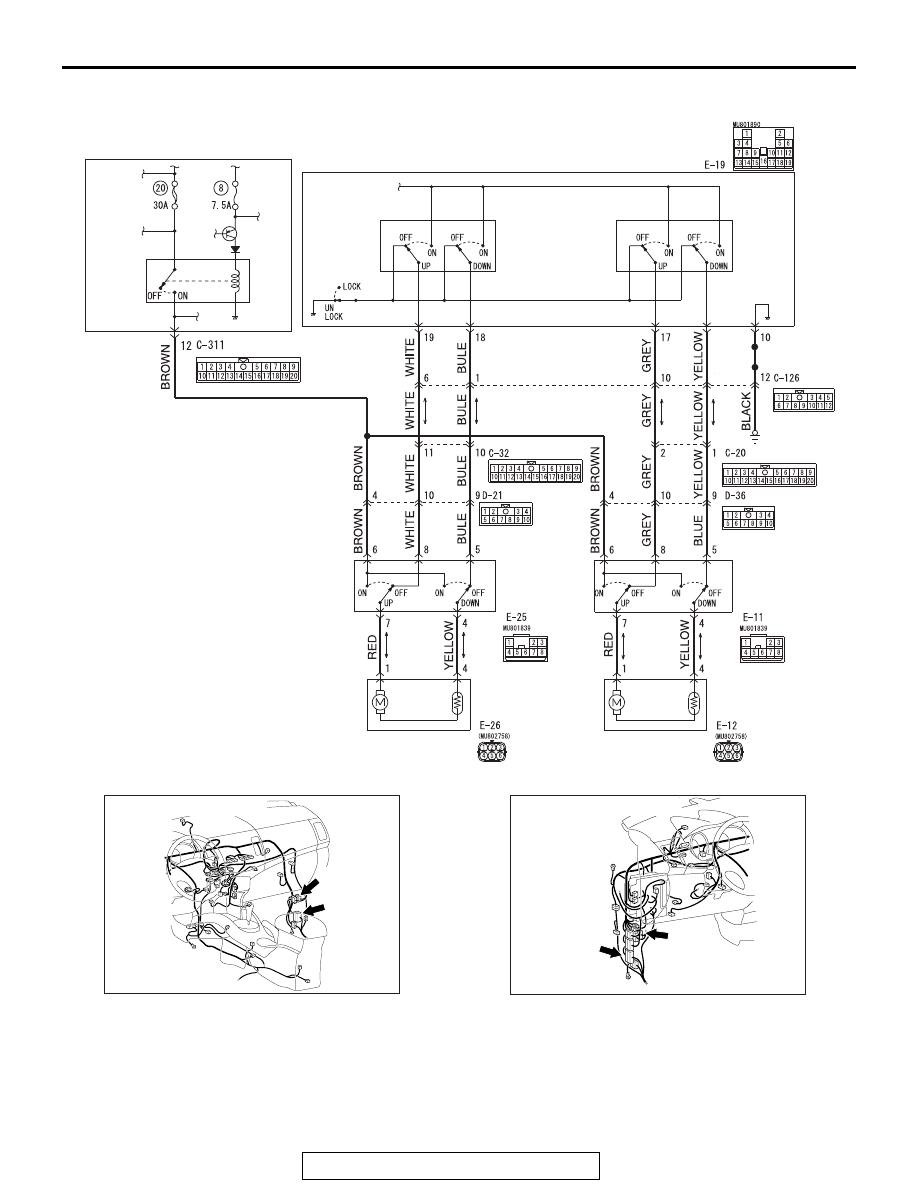

Power Window (Rear) Circuit

15

11

AC701496

C-112

AK

C-20

Connectors: C-20, C-112

AC701918 AF

C-32

C-126

Connectors: C-32, C-126

DOOR

TSB Revision

BODY

42A-104

.

CIRCUIT OPERATION

Power window motors raise or lower the door win-
dows when the front passenger's or rear passenger's
sub switch is moved to "UP" or "DOWN" position.

.

TECHNICAL DESCRIPTION (COMMENT)

A power window sub switch or power window motor
may be defective. Or, the power window lock switch
(incorporated in the power window main switch in the
driver’s door) may remain pressed to the "LOCK"
position.

.

TROUBLESHOOTING HINTS

• The power window main switch may be defective

• The front power window sub switch may be

defective

• The rear power window sub switches may be

defective

• The front power window motor (RH) may be

defective

• The rear power window motors may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSTIC PROCEDURE

STEP 1. Check the power window lock switch.
Q: Is the power window lock switch in the "UNLOCK"

position?
YES : Go to Step 2.
NO :  Operate the power window lock switch to the

"UNLOCK" position. When the power window sub
switch is operated, the power windows should raise
and lower normally.

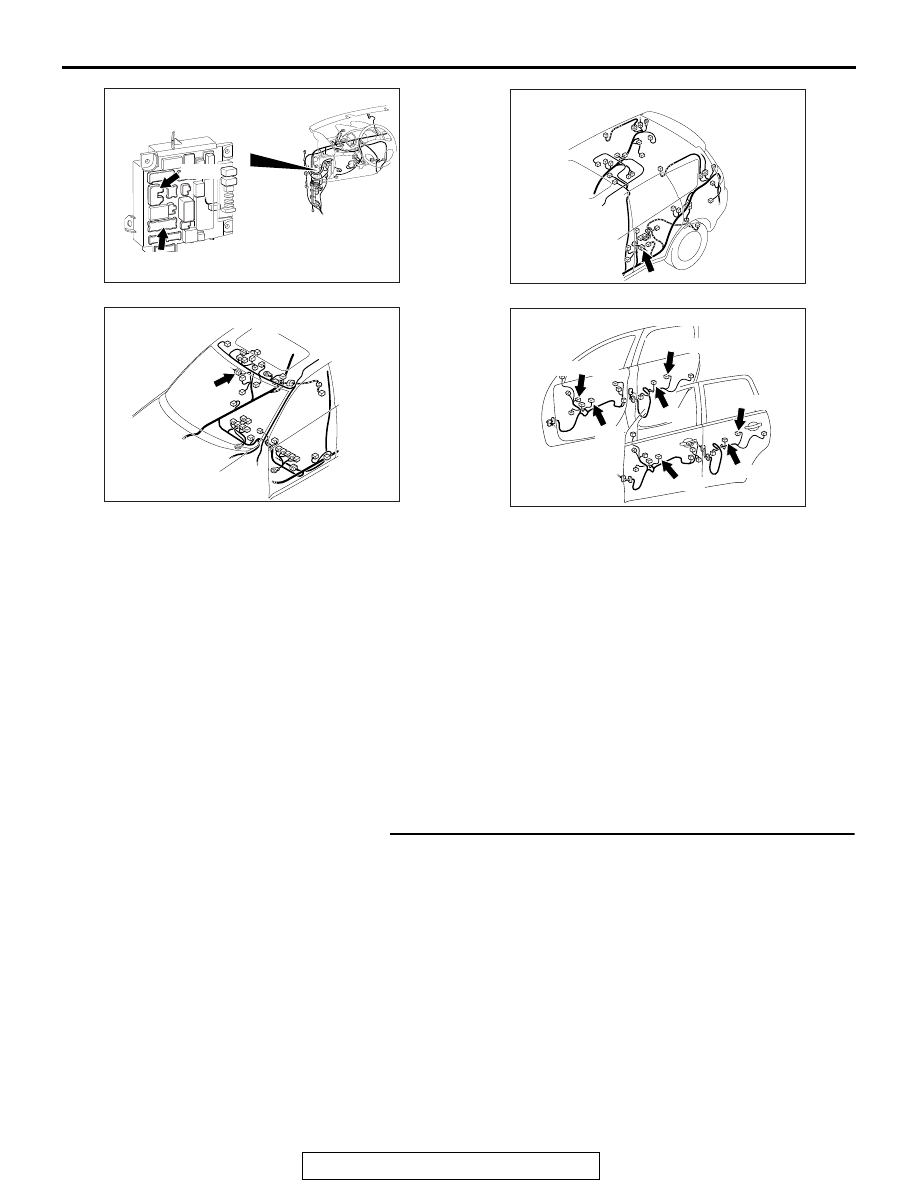

ACA01378

AS

C-315

Connectors: C-311, C-315

ETACS-ECU

C-311

AC901080AH

Connector: D-21

AC901079AT

Connector: D-36

AC702763AF

E-19

E-06

E-11

E-03 (GR)

E-12 (GR)

E-25

E-26 (GR)

Connectors: E-03, E-06, E-11, E-12, E-19,
E-25, E-26

DOOR

TSB Revision

BODY

42A-105

STEP 2. Check power window main switch connector E-19
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is power window main switch connector E-19 in good

condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the front power window sub switch

(RH) is operated, the front power window (RH) should
raise and lower normally.

STEP 3. Check which door window does not move.
Q: Which door window does not move?

Front passenger's door : Go to Step 4.
Rear left door : Go to Step 13.
Rear right door : Go to Step 22.

STEP 4. Check front power window sub switch connector
E-06 and front power window motor (RH) connector E-03
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are front power window sub switch connector E-06 and

front power window motor (RH) connector E-03 in good
condition?
YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. When the front power window sub switch

(RH) is operated, the front power window (RH) should
raise and lower normally.

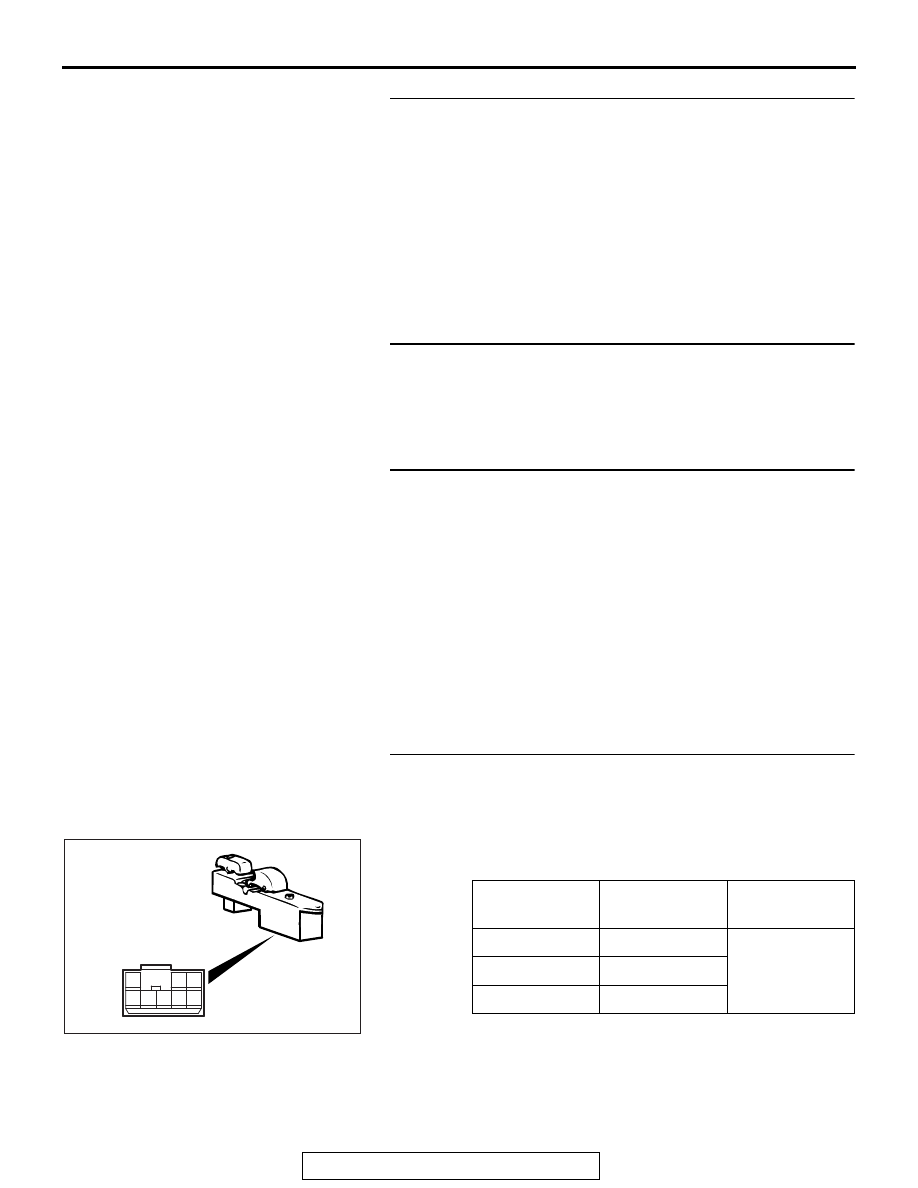

STEP 5. Check the front power window sub switch for
continuity.
(1) Remove the front power window sub switch. Refer to

GROUP 42A, Door, Door Glass and Regulator

P.42A-148

.

(2) Check continuity when the front power window sub switch is

operated to "UP" or "DOWN" position.

Q: Is the front power window sub switch normal?

YES : Go to Step 6.
NO :  Replace the front power window sub switch. When

the front power window sub switch is operated, the
front power window should raise and lower normally.

Switch
position

Tester
connection

Specified
condition

UP

4

− 5, 6 − 7

Continuity
exists (2

Ω or

less)

OFF

4

− 5, 7 − 8

DOWN

4

− 6, 7 − 8

AC703137AB

8

3

4 5

1

2

6 7

<Front door>

DOOR

TSB Revision

BODY

42A-106

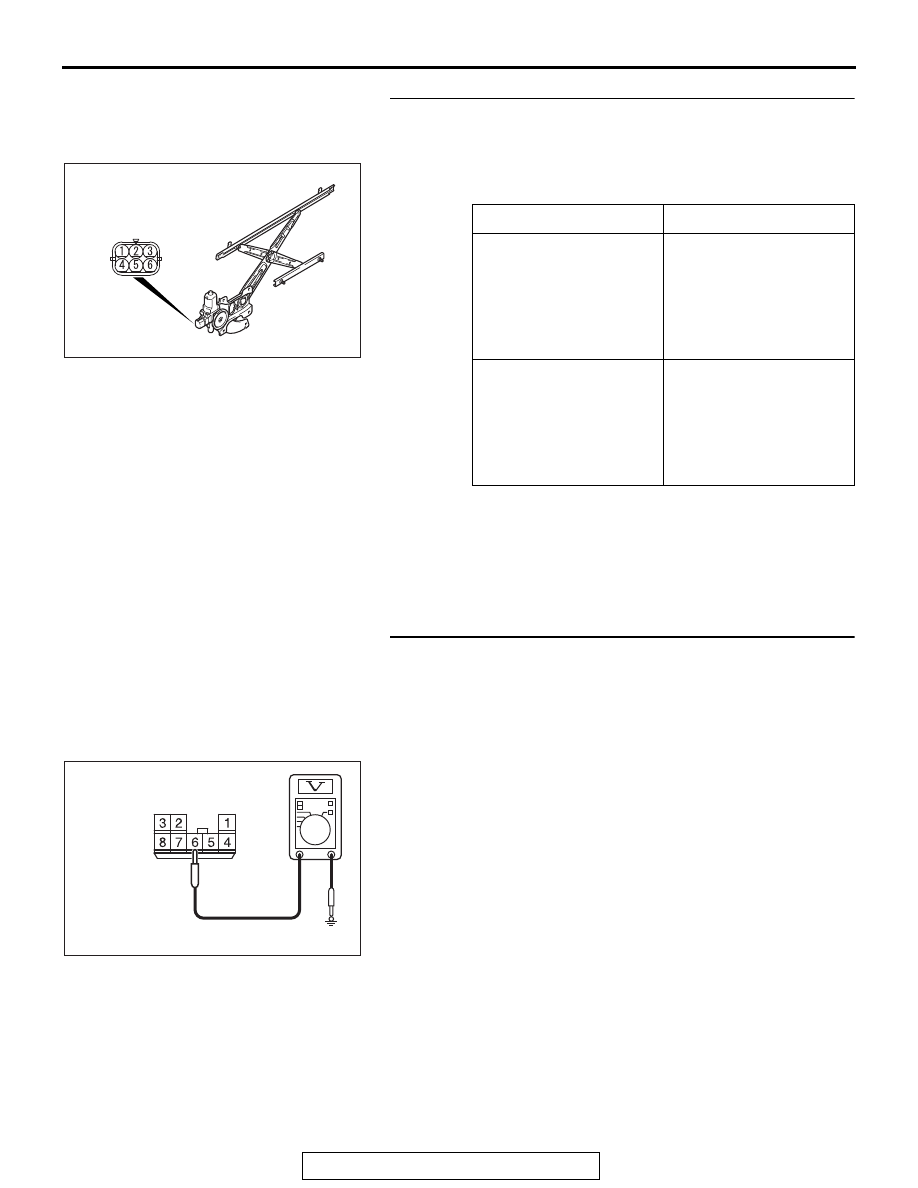

STEP 6. Check the front power window motor (RH).
(1) Remove the front power regulator assembly (RH). Refer to

GROUP 42A, Door, Door Glass and Regulator

P.42A-148

.

(2) Connect a battery to the motor terminal, and check that the

motor runs freely.

Q: Is the front power window motor (RH) normal?

YES : Go to Step 7.
NO :  Replace the front power assembly (RH). When the

front power window sub switch (RH) is operated, the
front power window (RH) should raise and lower
normally.

STEP 7. Check the battery power supply circuit to the front
power window sub switch. Measure the voltage at front
power window sub switch connector E-06.
(1) Disconnect front power window sub switch connector E-06

and measure the voltage available at the wiring harness
side of the connector.

(2) Measure the voltage between terminal 6 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 10.
NO :  Go to Step 8.

Battery connection

Slider position

• Connect terminal 1 to

the negative battery
terminal

• Connect terminal 4 to

the positive battery
terminal

UP

• Connect terminal 4 to

the negative battery
terminal

• Connect terminal 1 to

the positive battery
terminal

DOWN

AC703139AB

AC702474

Connector E-06

AG

(harness side)
