SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-37

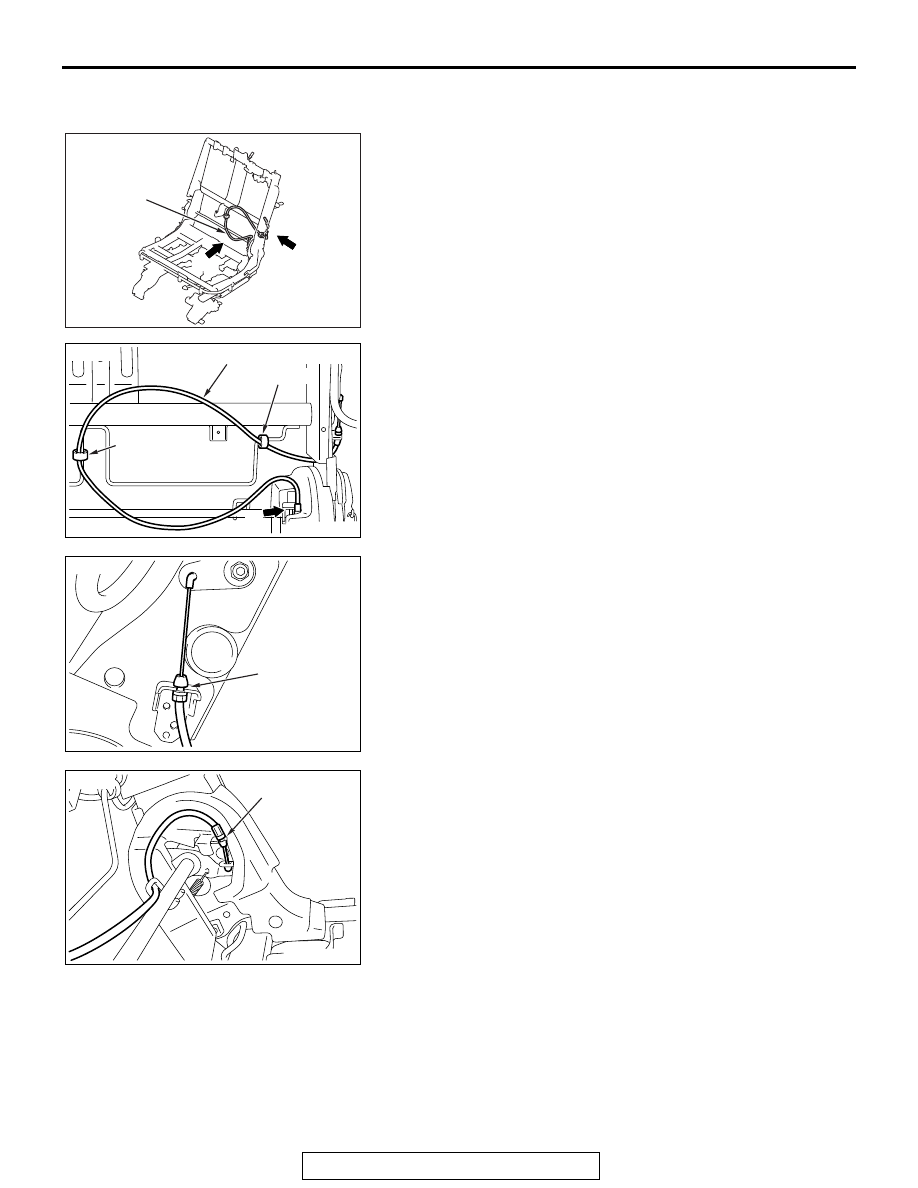

>>F<< SEATBACK LOCK RELEASE CABLE
INSTALLATION

Install the cable as shown in view A. Fit the second recess of
the clamp in view B to the bracket. When installing the cable,
make sure that the cable is not bitten by the moving area.

AC613395

Seat back lock
release cable

AB

A

B

AC613386

C

Clamp

Seatback lock release cable

AB

View A

Clamp

AC613385

AB

Fit to the recess
of the clamp.

View B

AC613394

Clamp installation

AB

View C

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-38

INSPECTION

M1522002400054

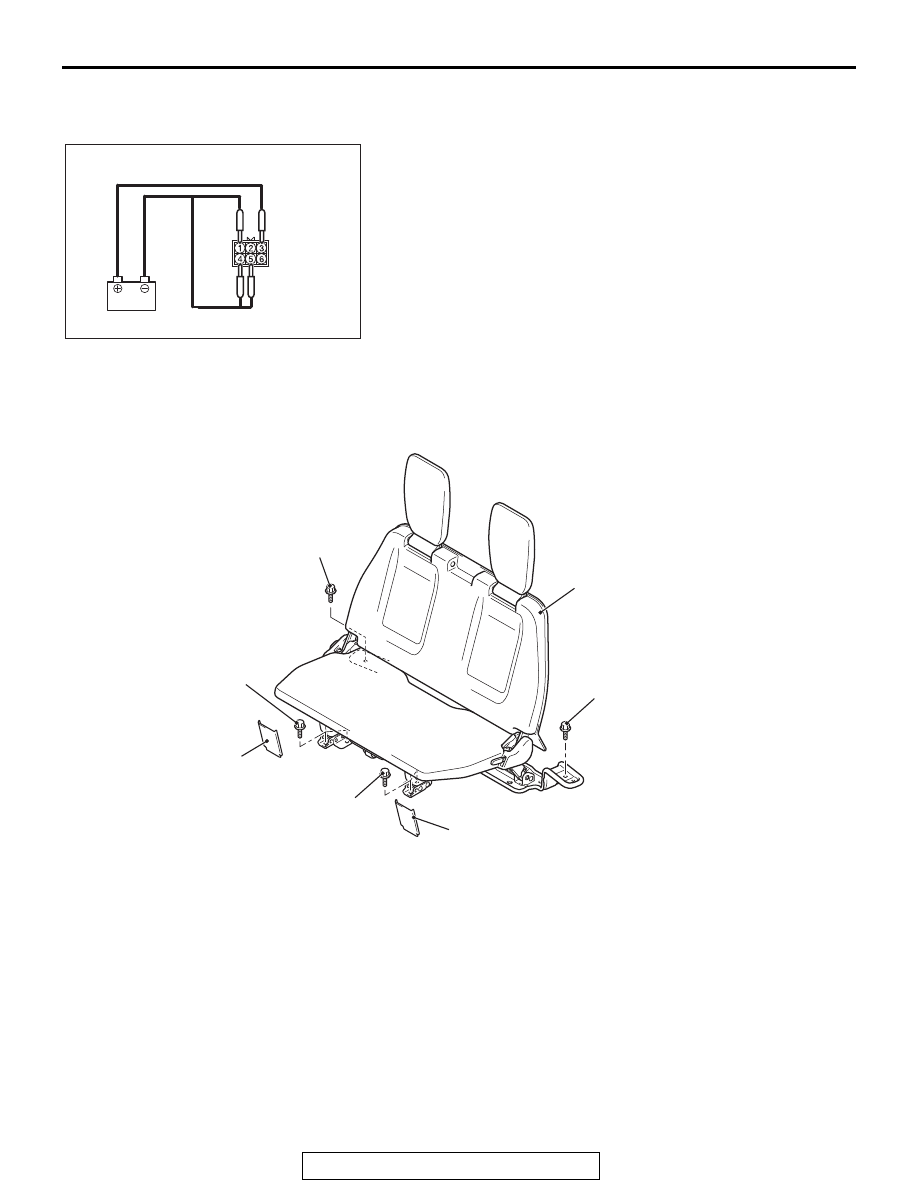

AUTO-FOLDING SEAT INSPECTION

Connect the + terminal of the battery to the auto-folding seat
connector terminal No.3 and the

− terminal to terminals Nos. 1,

4, and 5 and check that the motor works.

THIRD SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522002800278

AC507235

ACA02309

1

2

43 ± 8 N·m
32 ± 5 ft-lb

AB

1

43 ± 8 N·m
32 ± 5 ft-lb

43 ± 8 N·m
32 ± 5 ft-lb

43 ± 8 N·m
32 ± 5 ft-lb

Removal steps

1.

Anchor cover

2.

Third seat assembly

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-39

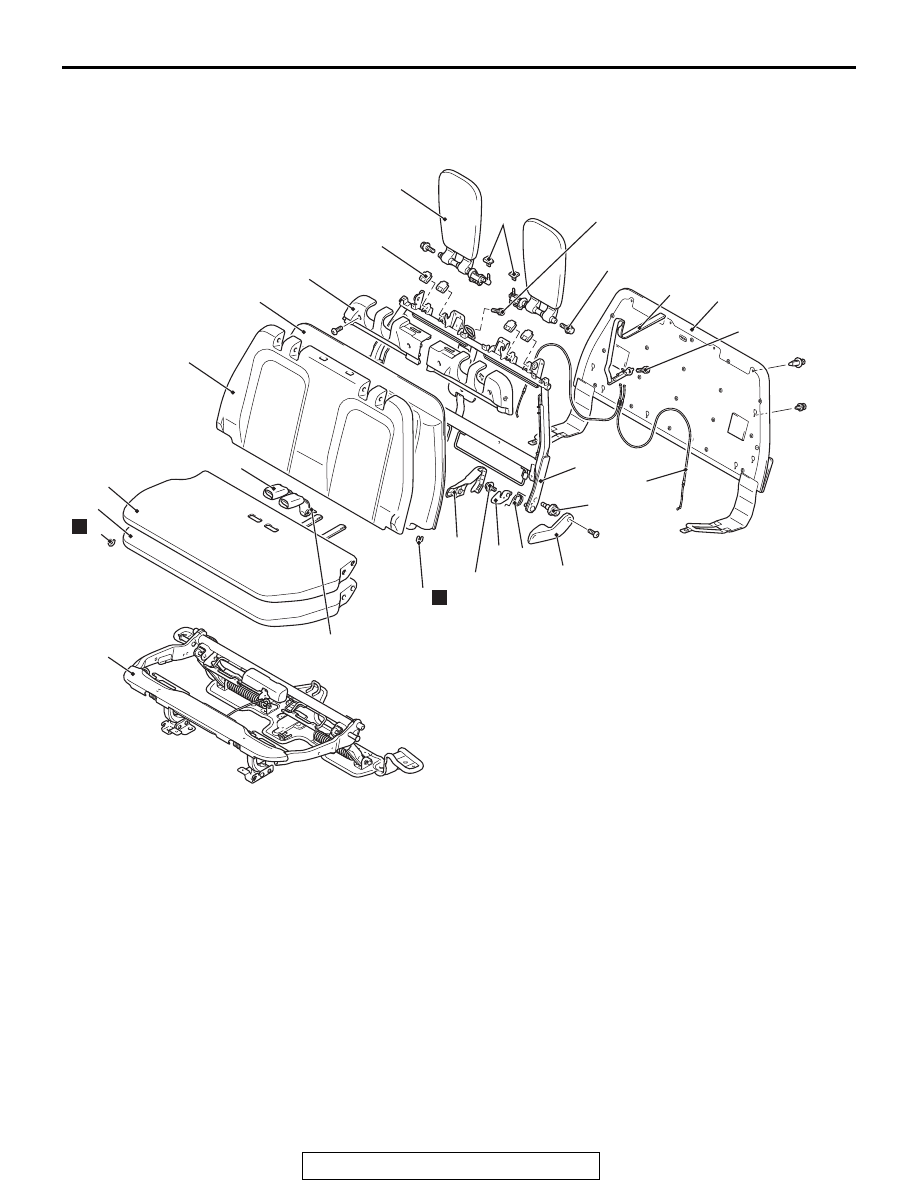

DISASSEMBLY AND ASSEMBLY

M1522003000457

ACA02310AB

1

2

10

5

4

6

7

18 19

8

9

11

12

13

14

15

16

17

20

3

13 ± 2 N·m
9 ± 2 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

4.0 ± 2.0 N·m
36 ± 17 in-lb

75 ± 19 N·m
55 ± 14 ft-lb

13 ± 2 N·m
9 ± 2 ft-lb

13 ± 2 N·m
9 ± 2 ft-lb

N

N

Disassembly steps

1.

Third seat hinge cover outer

2.

Hog ring

3.

Third seat belt inner

4.

Third seat cushion cover

5.

Third seat cushion pad

6.

Seat cushion frame assembly

7.

Third seat hinge cover inner

8.

Third seatback board

9.

Hog ring

10. Third seatback cover
11. Third seatback pad

12. Third seat folding knob
13. Third seat headrestraint hinge

cover

14. Headrestraint assembly
15. Third seat stopper
16. Third seat wire
17. Third seat band
18. Third seat folding lever
19. Third seat spring
20. Seatback frame assembly

Disassembly steps (Continued)

SEAT BELT

TSB Revision

INTERIOR

52A-40

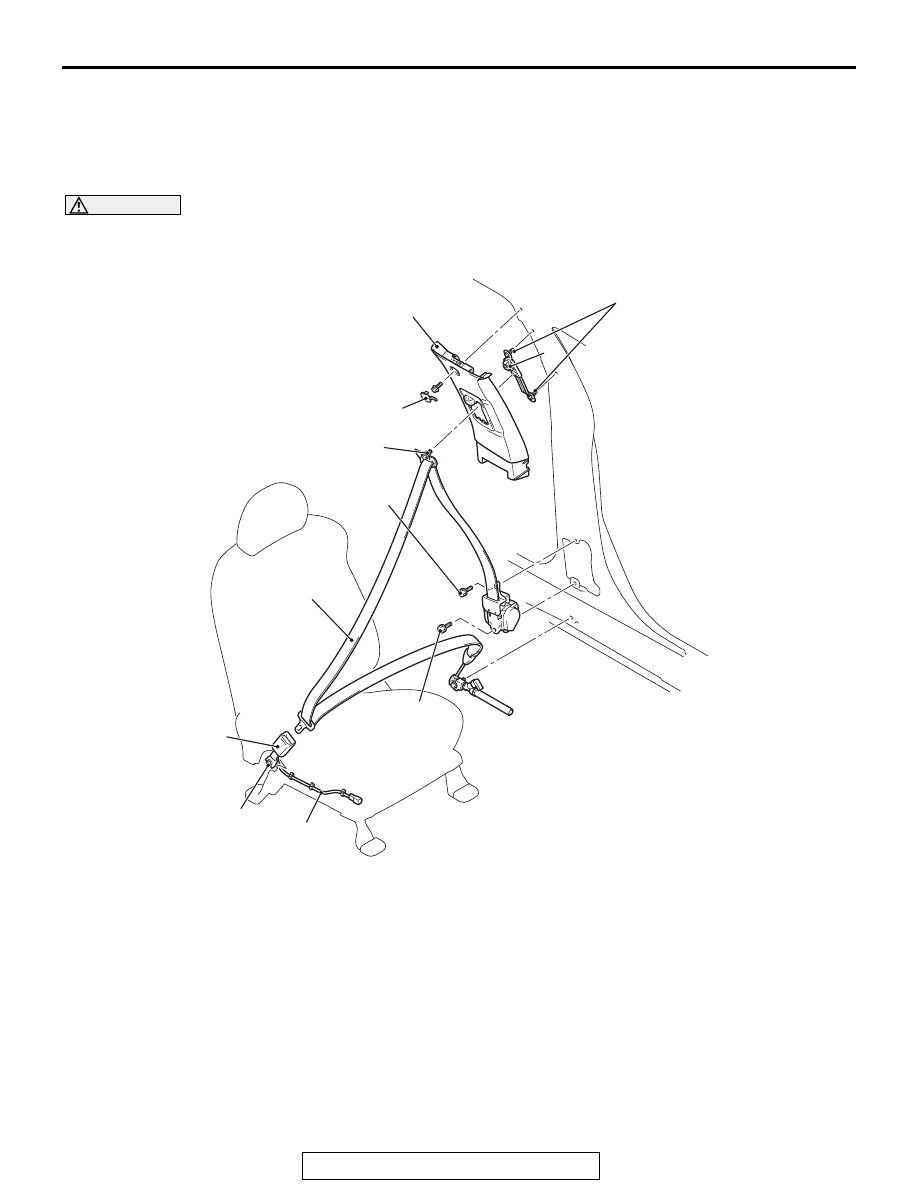

SEAT BELT

FRONT SEAT BELT

REMOVAL AND INSTALLATION

M1523001301306

CAUTION

For the removal of the seat belt with pre-tensioner, refer to GROUP 52B

− Service Precautions (refer

to

P.52B-25

) and Seat Belt with Pre-tensioner (refer to

P.52B-457

 ).

INSPECTION

M1523004400774

.

AC701334

1

2

3

4

5

6

43 ± 8 N·m
32 ± 5 ft-lb

AD

5.0 ± 1.0 N·m
44 ± 9 in-lb

43 ± 8 N·m
32 ± 5 ft-lb

43 ± 8 N·m
32 ± 5 ft-lb

43 ± 8 N·m
32 ± 5 ft-lb

Outer seat belt removal steps

•

Front scuff plate, scuff plate rear,
center pillar trim lower (Refer to

P.52A-10

.)

1.

Center pillar trim upper cap

2.

Center pillar trim upper (Refer to

P.52A-10

.)

3.

Outer seat belt

4.

Adjuster seat belt anchor
Inner seat belt removal steps

5.

Seat belt switch connector

6.

Inner seat belt

Outer seat belt removal steps
