SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-33

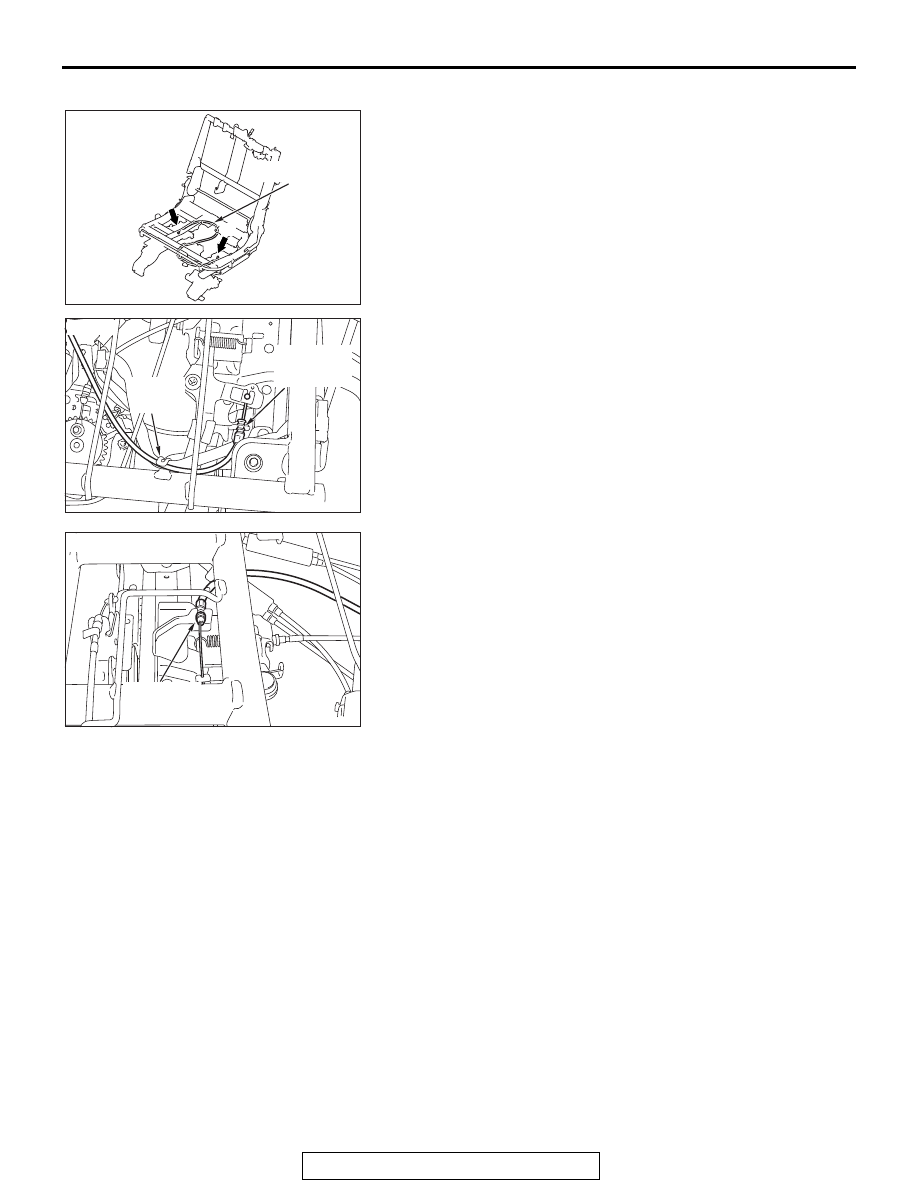

>>B<< SEAT SLIDE CABLE INSTALLATION

Fit the second recess of the clamp in view A and view B to the
bracket. When installing the cable, make sure that the cable is
not bitten by the moving area.

.

AC613404

A

B

Seat slide cable

AB

AC613410AB

Install the
cable to
the frame.

Fit the second
recess of the
clamp.

View A

AC609926AB

Fit the second
recess of the clamp.

View B

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-34

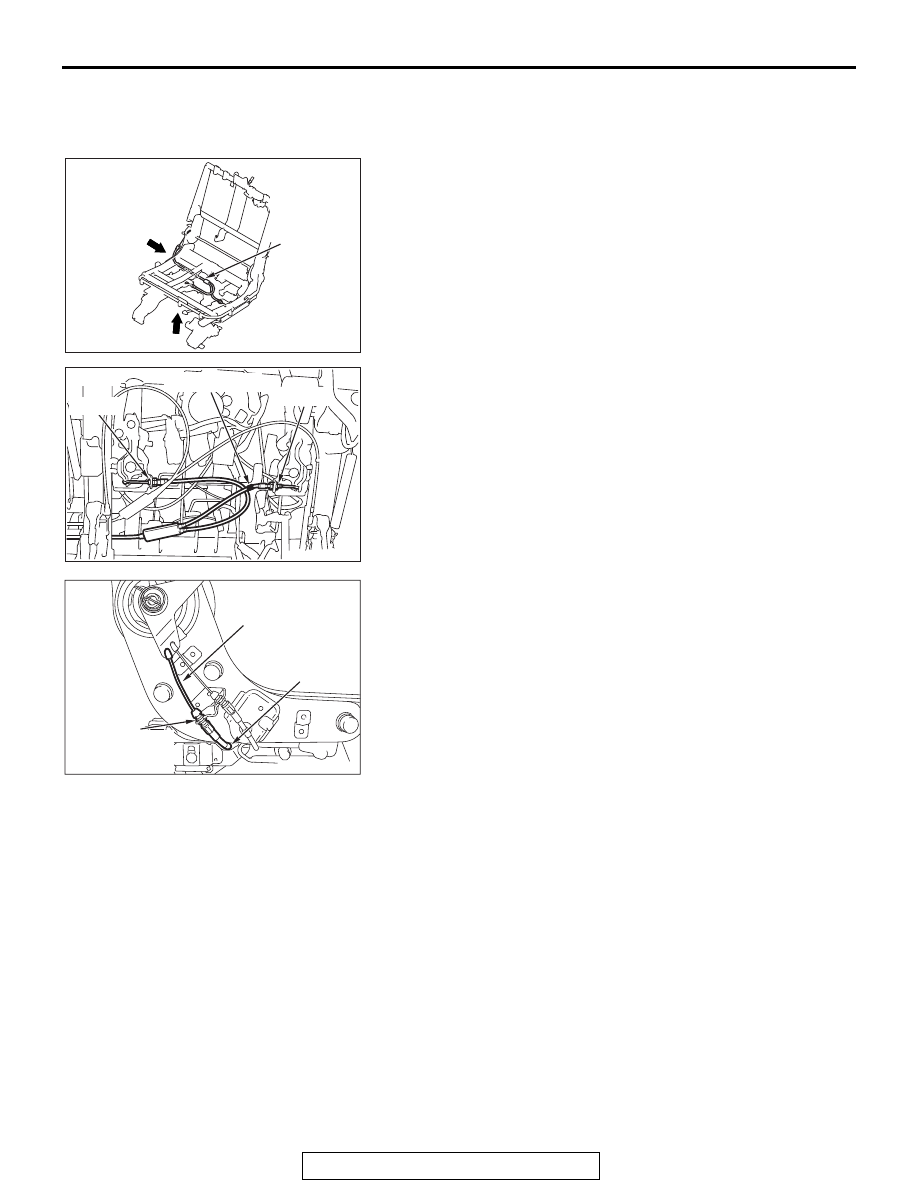

>>C<< SLIDE LOCK RELEASE CABLE FOR
AUTOMATIC TUMBLE MECHANISM
INSTALLATION

1. When installing the cable in view A, protrude the screws to

the position marked during the removal. Then, tumble the
seatback and check that the slide locks on the right and left
side are fully released. When installing the cable, install the
cable with the green marking to the left rail.

2. Fit the second recess of the clamp (yellow) shown in view B

to the bracket. Pass the cable between the brackets when
installing it. Make sure that the cable is not bitten by the
moving area.

.

AC613405

A

AB

B

Slide lock
release cable
for automatic
tumble
mechanism

AC610887AB

Green marking

Marking

View A

Marking

AC609944

Slide lock release cable
for automatic tumble
mechanism

Fit the second recess
of the clamp (yellow)
to the bracket.

Pass the cable
between the brackets.

AB

View B

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-35

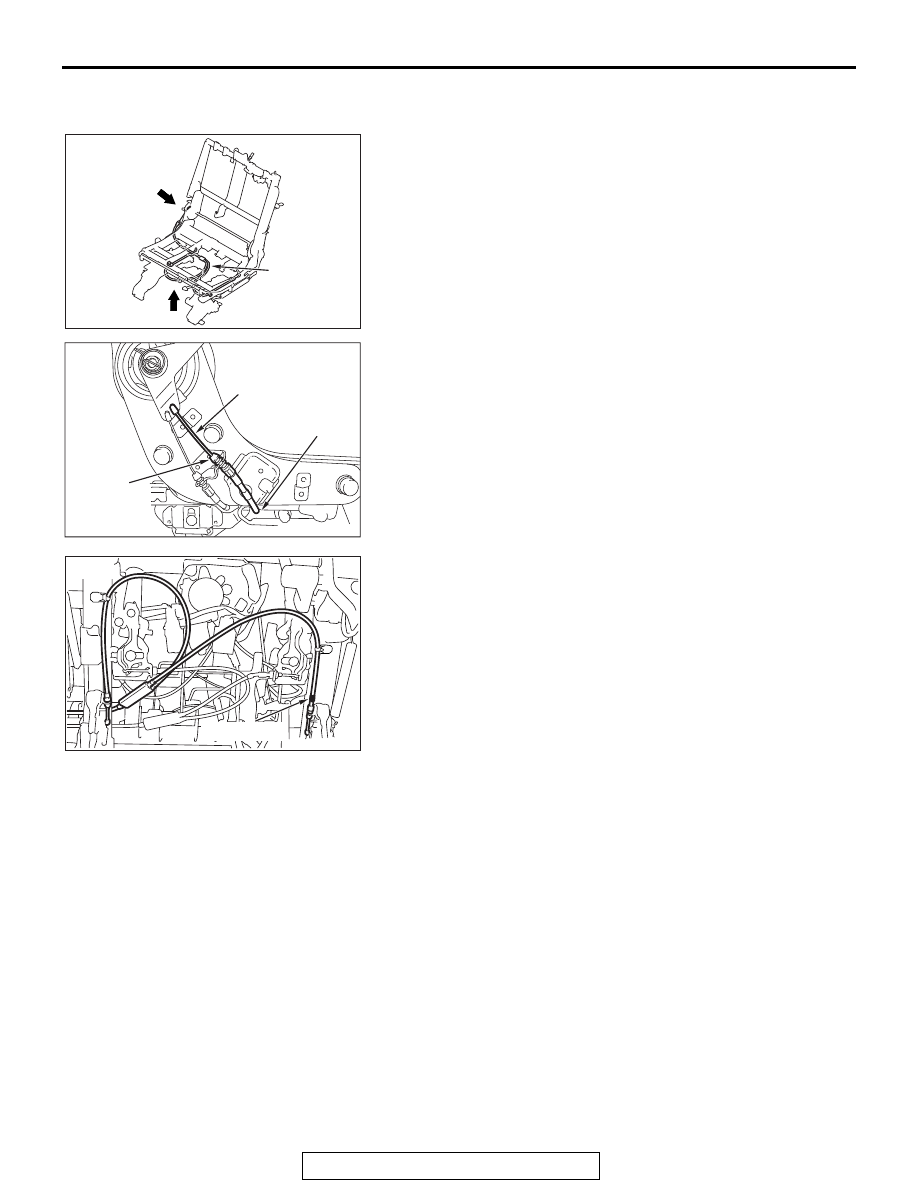

>>D<< SEAT RAIL REAR END LATCH RELEASE
CABLE INSTALLATION

Fit the second recess of the clamp in view A to the bracket.
When installing the cable, make sure that the cable is not bitten
by the moving area. When installing the cable in view B, install
the cable with the red marking to the left rail.

.

AC613406

Seat rail
rear end latch
release cable

A

AB

B

AC609943

Seat rail rear end latch
release cable

Fit the
second
recess of
the clamp
(yellow green)
to the bracket.

Pass the cable
between the brackets.

AB

View A

AC610888

Red marking

AB

View B

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-36

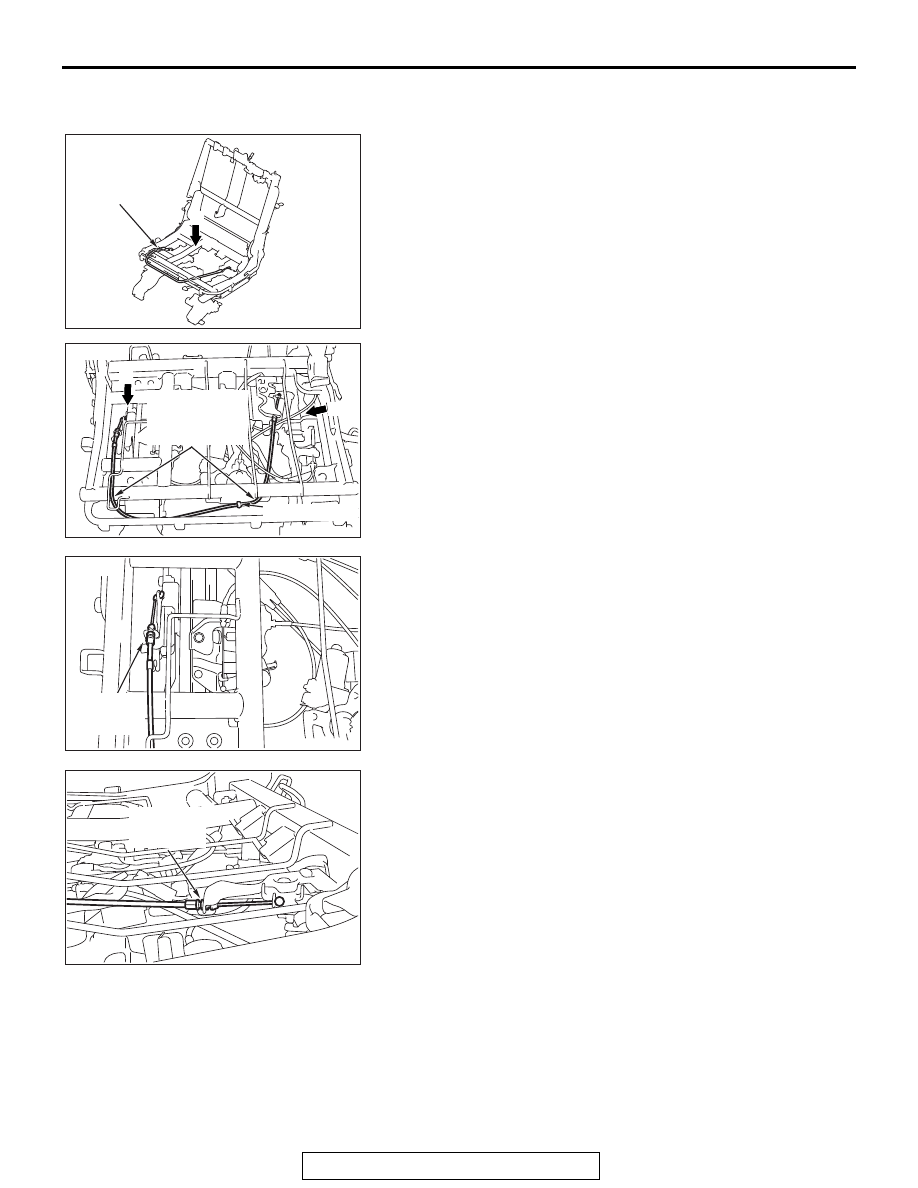

>>E<< TUMBLE LOCK RELEASE CABLE
INSTALLATION

Install the cable as shown in view A. Fit the second recess of
the clamp in view A and view B to the bracket. When installing
the cable, make sure that the cable is not bitten by the moving
area.

.

AC613399

Tumble lock
release cable

AB

A

AC609948AB

B

C

Pass the cable
between the
bracket and the
frame.

View A

Fix with a clip.

AC609947

Fit the second
recess of the
clamp.

AB

View B

AC609945

Fit the second
recess of
the clamp

AB

View C
