SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-29

DISASSEMBLY SERVICE POINT

.

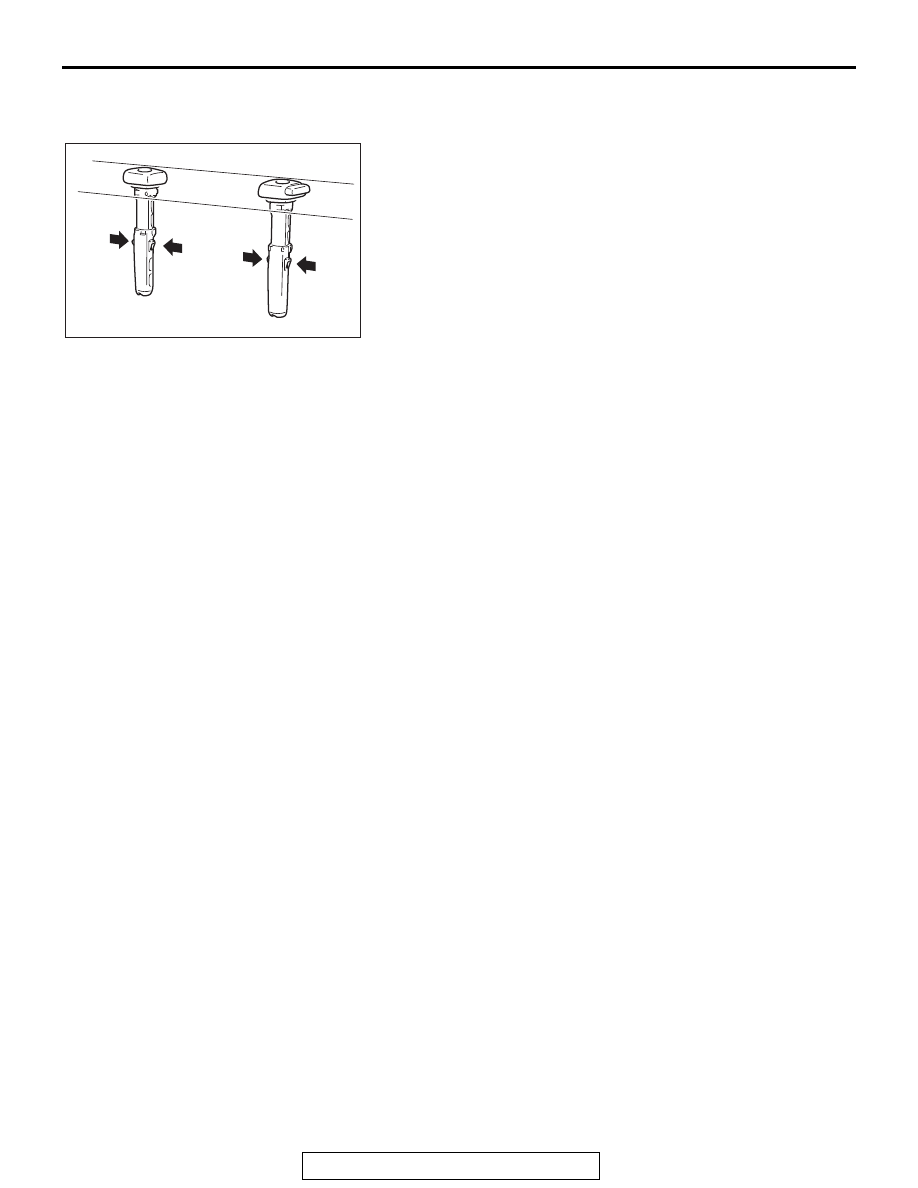

<<A>> HEADRESTRAINT GUIDE REMOVAL

Remove while pressing the claws on the both sides.

AC205342

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-30

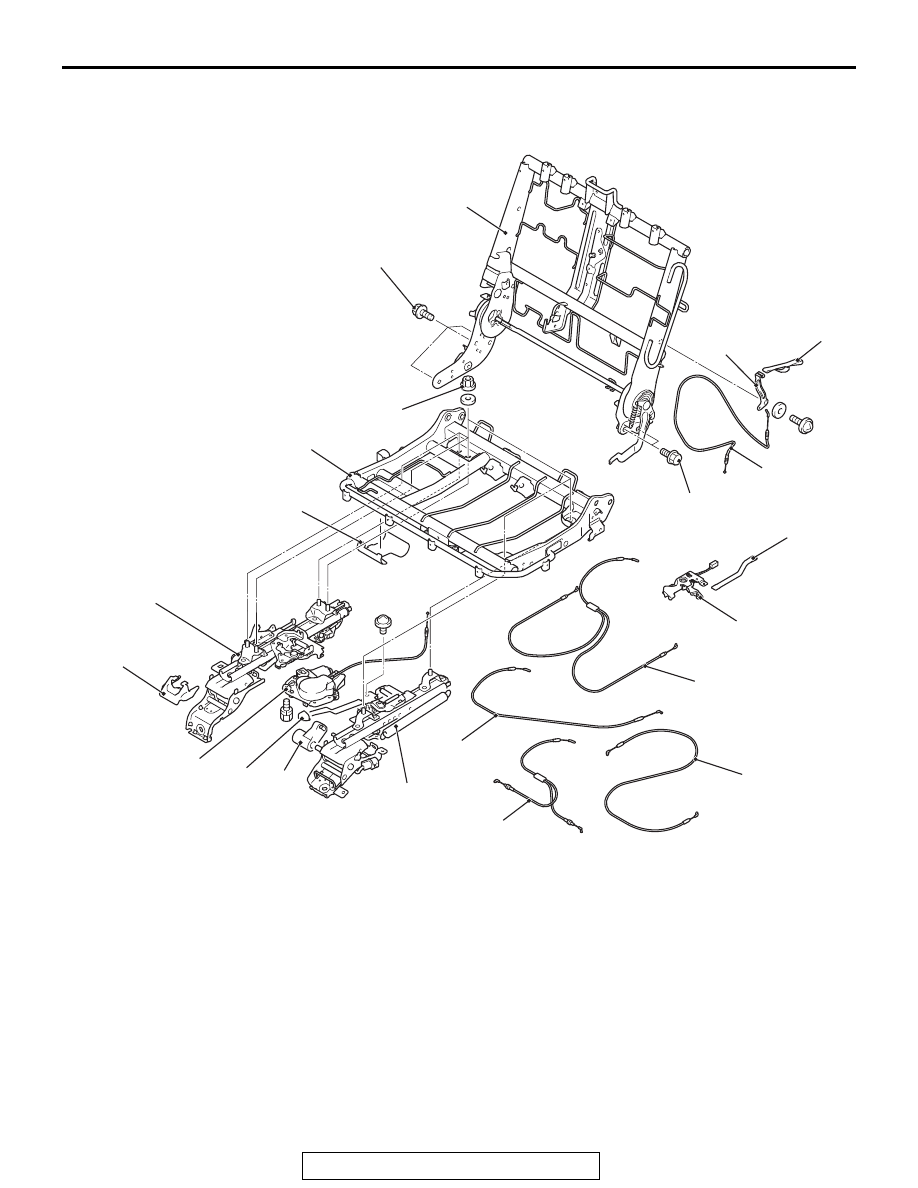

<SEAT FRAME ASSEMBLY>

AC700041

1

2

3

6

7

8

9

4

5

10

12

14

13

11

12

15

23 ± 6 N·m
17 ± 4 ft-lb

AB

82 ± 12 N·m
61 ± 8 ft-lb

82 ± 12 N·m
61 ± 8 ft-lb

16

17

Disassembly

>>

F

<<

1.

Seatback lock release
cable

2.

Second seat folding
lever

3.

Second seat back strap

4.

Second seat cushion
strap

5.

Second seat tumble
lever<Vehicles with
second seat tumble
lever>

>>

E

<<

6.

Tumble lock release
cable

>>

D

<<

7.

Seat rail rear end latch
release cable

<<

A

>>

>>

C

<<

8.

Slide lock release cable
for automatic tumble
mechanism

9.

Second seat slide
adjuster lever

>>

B

<<

10. Seat slide cable

>>

A

<<

11. Rear power seat motor
12. Second seat folding

adjuster

13. Second seat slide rail

cover

Disassembly

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-31

DISASSEMBLY SERVICE POINT

.

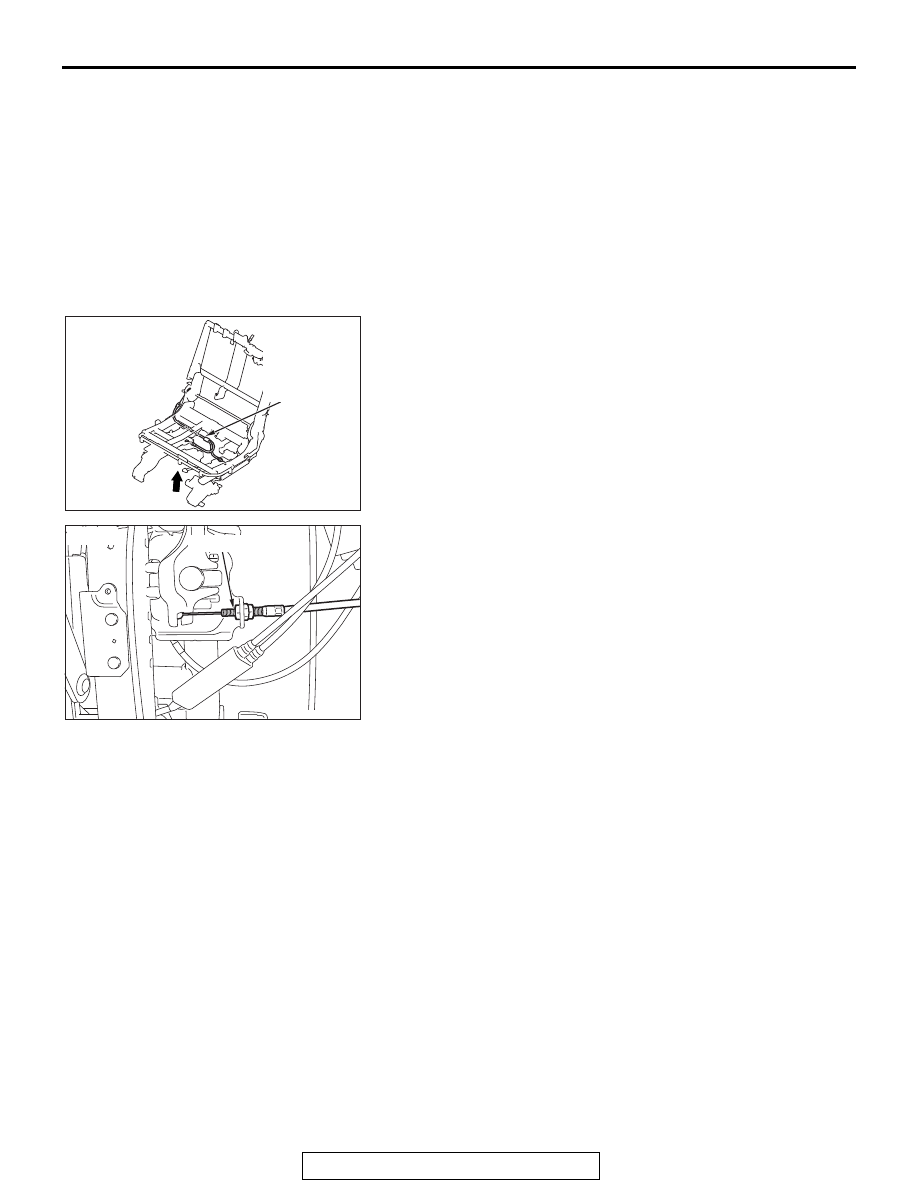

<<A>> REMOVAL OF SLIDE LOCK RELEASE
CABLE FOR AUTOMATIC TUMBLE MECHANISM

Put a mark in the position shown in view A to record the protru-
sion of the screw.

14. Second seat stay

damper

15. Second seat rink cover
16. Second seat cushion

frame

17. Second seat back frame

Disassembly

AC613401

A

AB

Slide lock
release cable
for automatic
tumble
mechanism

AC609927AC

View A

Marking

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-32

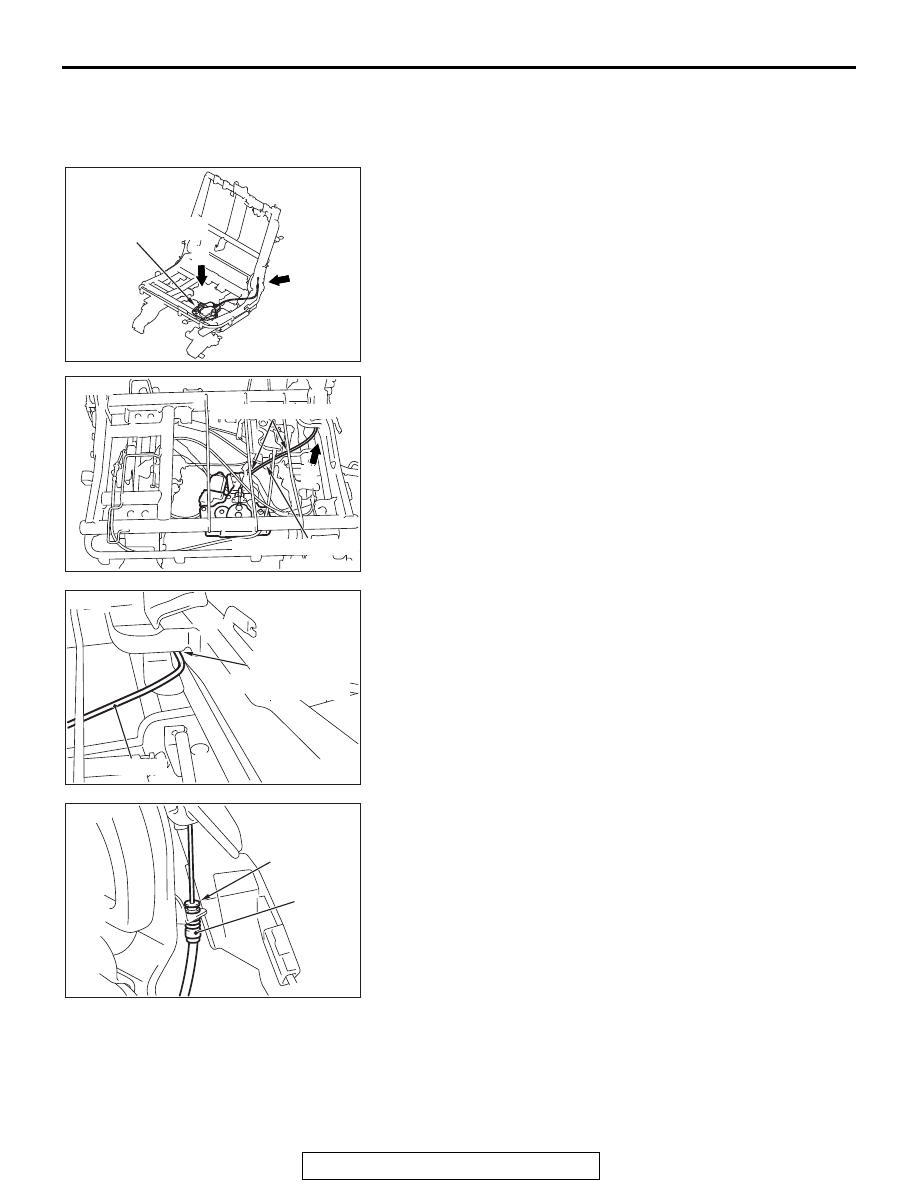

REASSEMBLY SERVICE POINTS

.

>>A<< REAR POWER SEAT MOTOR INSTALLA-
TION

1. When installing the rear power seat motor, install the cable

as shown in view A.

2. Pass the cable between the frame and the seat rail as

shown in view B.

3. Fit the tip of the cable to the second recess of the clamp as

shown in view C.

.

AC613403AB

C

A

Rear power seat motor

AC610149

B

AB

View A

Pass over the plate.

Pass under the frame.

AC610151

AB

Pass the cable
between the
frame and the
seat rail.

Cable

View B

AC609946AB

Fit to the
second recess.

Clamp

View C
