SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-21

DISASSEMBLY SERVICE POINTS

.

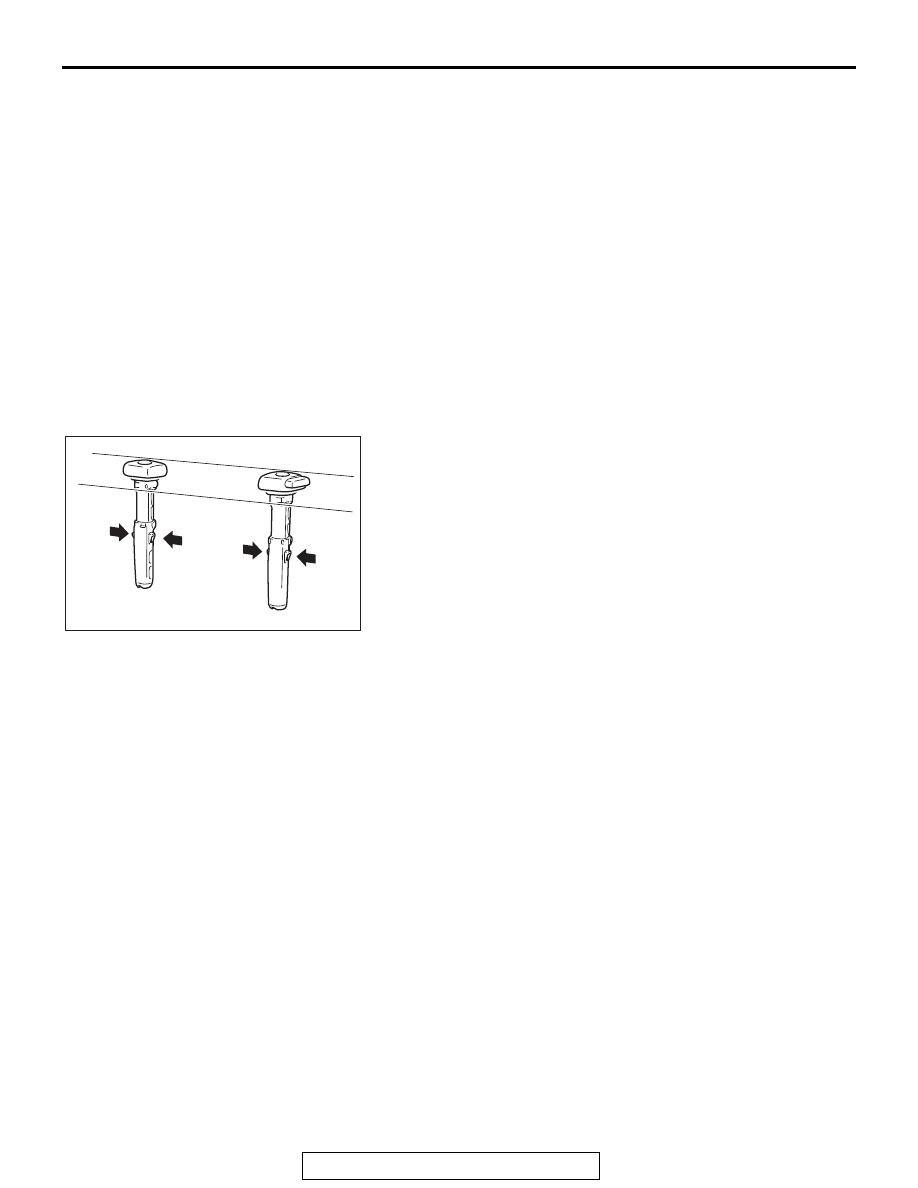

<<A>> HEADREST GUIDE REMOVAL

Peel of the front seatback cover and pad to access the head-
restraint guides. Pull off the guides upwards while pushing the
tabs (arrows) as shown.

.

<<B>> SEAT CUSHION FRAME ASSEMBLY
REMOVAL

For the vehicles with side air bag, do not remove the side air
bag module from the frame.

5.

Inner seat belt

6.

Heated seat switch cover <vehicle
with heated seat>

7.

Heated seat switch <vehicle with
heated seat>

8.

Seat back assembly

<<

A

>>

9.

Headrest guide

10. Seat back cover
11. Seat back pad
12. Hinge cover inner
13. Seat cushion cover
14. Seat cushion pad
15. Seat slide adjuster lever

<<

B

>>

16. Seat cushion frame assembly

Disassembly steps (Continued)

AC205342

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-22

INSPECTION

M1522001600442

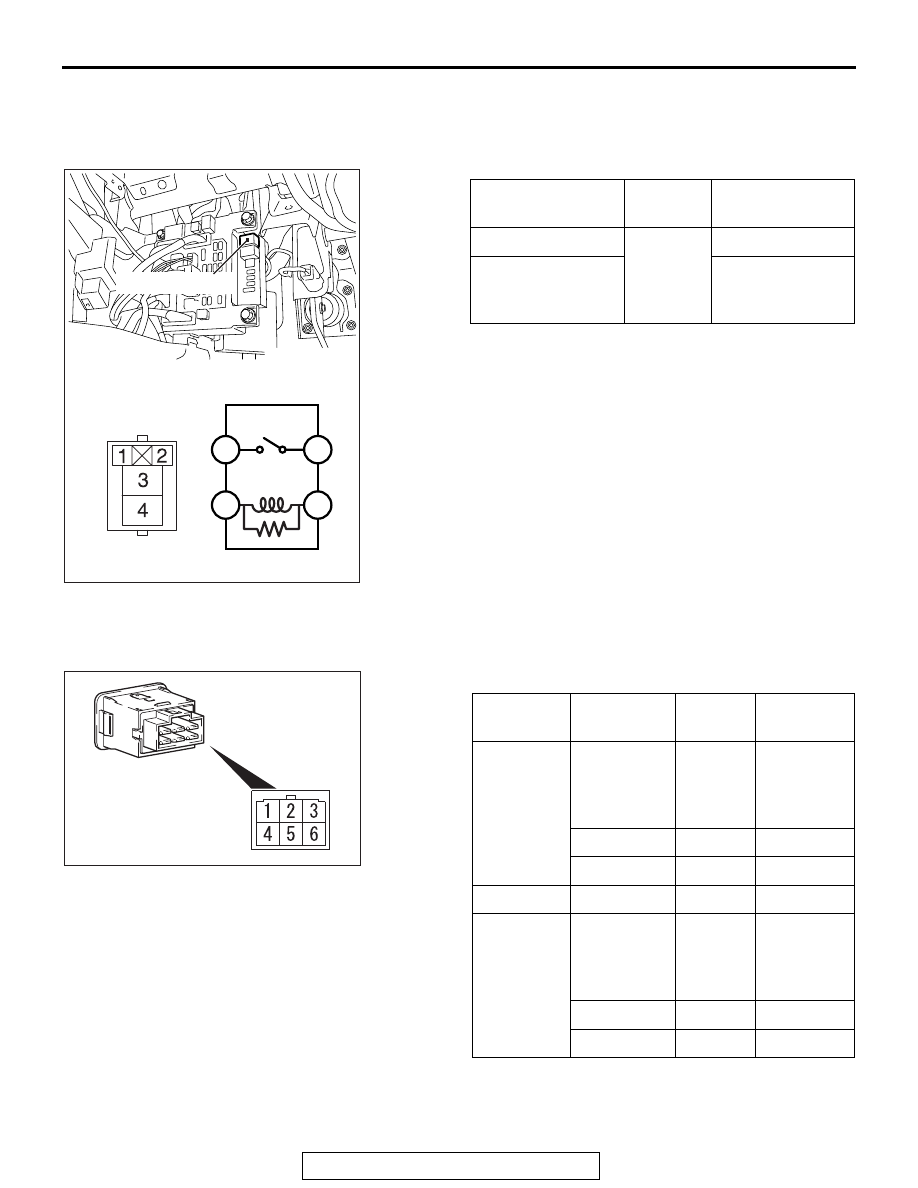

INSPECTION OF THE HEATED SEAT RELAY FOR
CONTINUITY

INSPECTION OF THE HEATED SEAT SWITCH
FOR CONTINUITY

Inspect the heated seat switch for continuity.

Battery voltage

Terminal
number

Normal value

At no energization

3

− 4

No continuity

At energization
[terminal 2 (+)

−

terminal 1 (

−)]

Continuity exists
(2

Ω or less).

AC803281

1

2

3

4

AB

Heated seat relay

Switch
position

Terminal
number

Normal
value

Note

HI

1

− 2

Continuit
y exists
(2

Ω or

less).

2(+)

− 6(-)

Indicator

3

− 4

Illumination

OFF

3

− 4

Illumination

LOW

2

− 5

Continuit
y exists
(2

Ω or

less).

2(+)

− 6(-)

Indicator

3

− 4

Illumination

AC803282AB

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-23

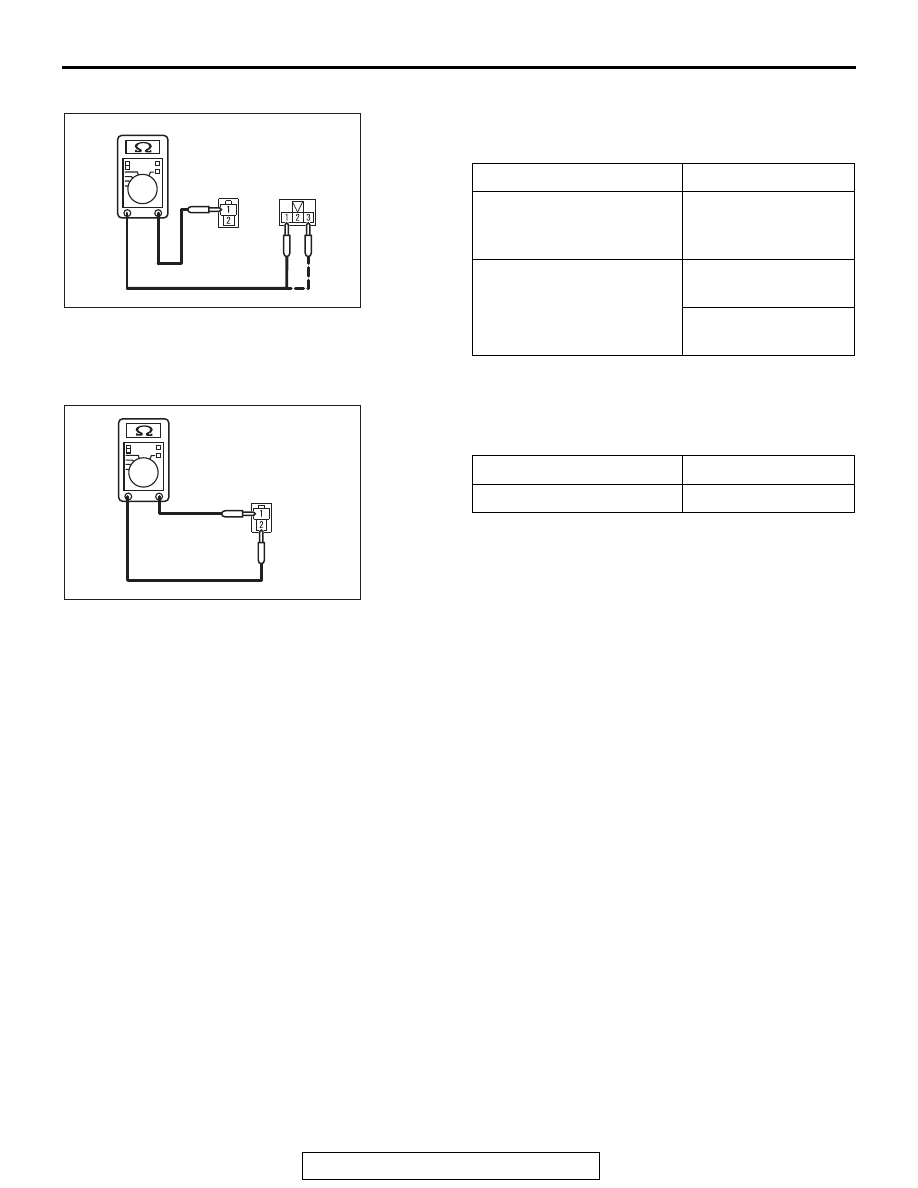

SEAT CUSHION HEATER INSPECTION

Measure the resistance between the terminals.

Standard value: At room temperature 20

°C (68 °F)

SEAT BACK HEATER INSPECTION

Measure the resistance between the terminals.

Standard value: At room temperature 20

°C (68 °F)

Terminal number

Standard value

Seat cushion heater
(Terminal No.1)

− Seatback

heater (Terminal No.1)

0.198 to 0.242

Ω

Seat cushion heater
(Terminal No.3)

− Seatback

heater (Terminal No.1)

4.13 to 5.03

Ω

<Thermostat: ON>

3.93 to 4.79

Ω

<Thermostat: OFF>

AC803284AC

Seat cushion
heater

Seatback
heater

Terminal number

Standard value

1

− 2

4.79 to 5.85

Ω

AC803277AB

SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-24

SECOND SEAT ASSEMBLY

SECOND SEAT ADJUSTMENT

M1522005400031

.

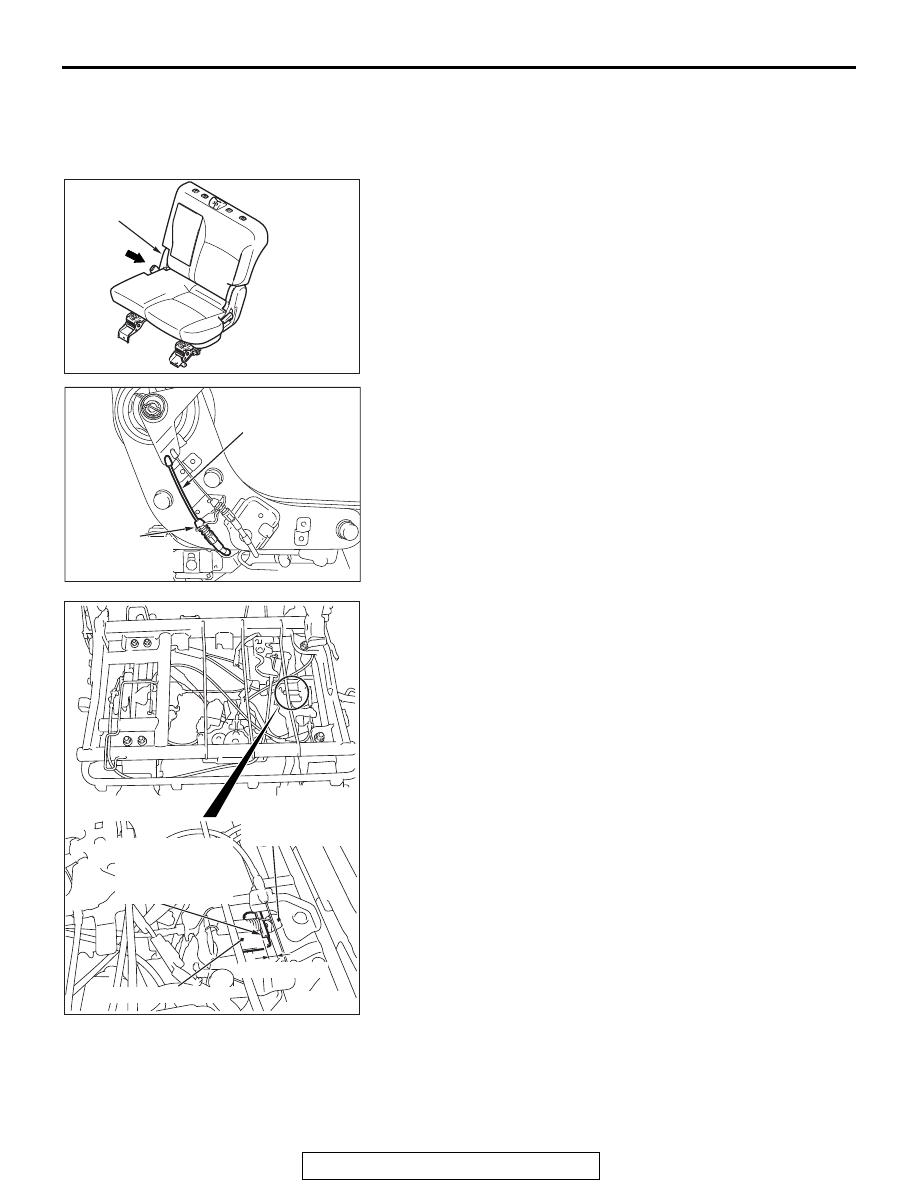

1. Check that the automatic tumble mechanism works.
2. If the slide lock release is late, remove the reclining adjuster

cover, and move the clamp position of the slide lock release
cable for the automatic tumble mechanism on the side of the
seat from the second recess to the first recess to adjust the
slide lock release timing.

3. Check again that the automatic tumble mechanism works. If

the slide lock timing is still late after the adjustment, replace
the slide lock release cable for the automatic tumble
mechanism.

4. If the slide lock timing is still late after the slide lock release

cable for the automatic tumble mechanism is replaced,
replace the seat.

5. If the automatic tumble mechanism is normal, lock the

sliding and turn up the seat cushion pad. Then, check that
the clearance between the slide lock claw and the second
seat folding adjuster is approximately 3 mm(0.1in).

AC611163AB

Reclining
adjuster cover

A

AC611188

Slide lock release cable
for automatic tumble
mechanism

Change the
installation
position of
the clamp (yellow)
to the first recess.

AB

View A

AC611007

AC610995
AC611189 AB

Second seat
folding adjuster

Claw on slide lock

Clearance between
the second seat
folding adjuster
and the claw.

Approx. 3mm
