Mitsubishi Outlander GS45X. Manual - part 1023





HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-119

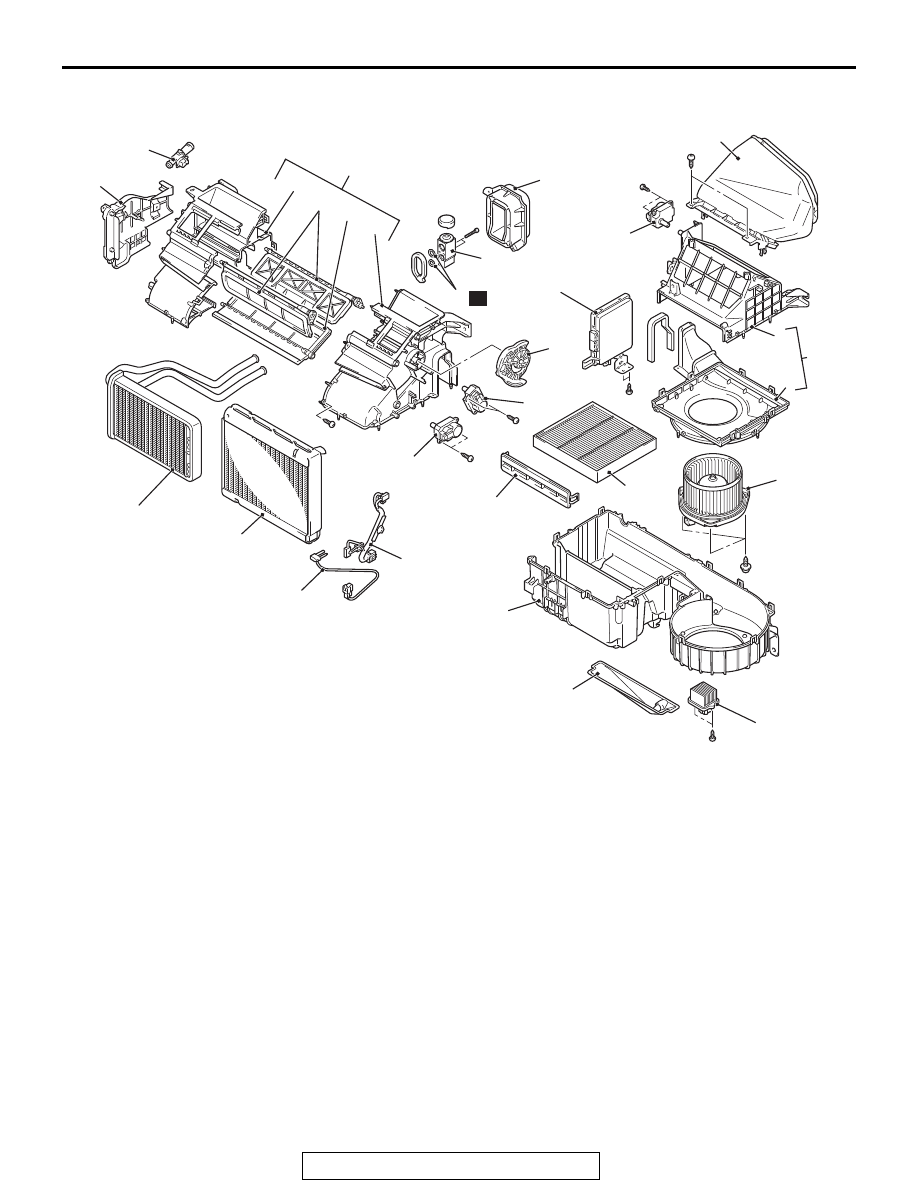

DISASSEMBLY AND ASSEMBLY

M1551005401294

AC702755 AB

1

2

3

4

5

6

8

7

N

9

10

11

28

26

28

27

12

13

14

15

17

18

16

19

20

21

22

23

25

24

Disassembly steps

1.

Air intake duct

2.

Clean air filter cover

3.

Clean air filter

4.

Blower motor

5.

Power transistor

6.

Expansion valve cover

7.

Expansion valve

8.

O-ring

9.

Aspirator

10. Heater pipe cover
11. Heater core
12. Upper case assembly
13. Evaporator
14. Air thermo sensor
15. Wiring harness

16. Blower case assembly
17. Blower case, upper
18. Blower case, lower
19. A/C-ECU
20. Air mixing damper control motor
21. Mode selection damper control

motor

22. Outside/inside air selection damper

control motor

23. Mode selection damper lever
24. Insulator
25. Lower case
26. Air mix damper
27. Mode selection damper
28. Upper case

Disassembly steps (Continued)

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-120

INSPECTION

M1552014304361

AIR THERMO SENSOR CHECK

Check that the resistance shown in the graph is almost satis-
fied when measuring the resistance between the terminals
under two or more different temperature conditions.
NOTE: The temperature condition in checking should be within
the range shown.

AC609399

25

20

15

10

5

0

AB

10
(50)

30
(86)

Resistance

(k

Ω)

Temperature ºC (ºF)

  0
(32)

  40
(104)

-10
(14)

 20
(68)

MOTORS AND TRANSISTOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-121

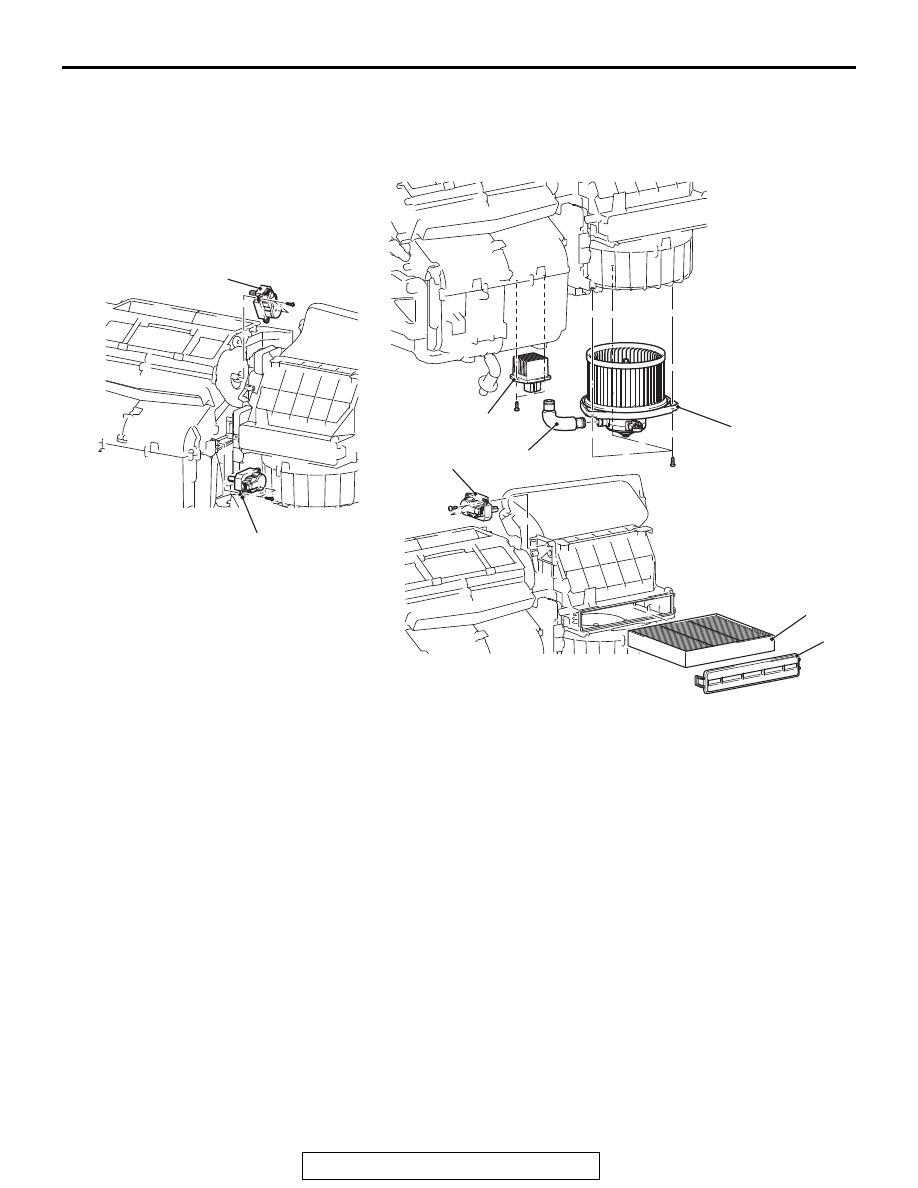

MOTORS AND TRANSISTOR

REMOVAL AND INSTALLATION

M1551006900125

AC708788AC

1

2

3

4

5

6

7

8

Power transistor removal steps

Bottom cover assembly (front
passenger's seat)(Refer to GROUP
52A

− Instrument panel assembly

P.52A-2

).

1.

Power transistor
Blower motor removal steps

Bottom cover assembly (front
passenger's seat)(Refer to GROUP
52A

− Instrument panel assembly

P.52A-2

).

2.

Hose

3.

Blower motor

Air mixing damper control motor,
mode selection damper control
motor and outside/inside air
selection damper control motor
removal steps

Glove box assembly (Refer to
GROUP 52A

− Instrument panel

assembly

P.52A-2

).

Rear heater duct A (Refer to

P.55A-135

).

A/C-ECU (Refer to

P.55A-124

).

<<

A

>>

4.

Air mixing damper control motor

<<

A

>>

5.

Mode selection damper control
motor

6.

Clean air filter cover

7.

Clean air filter

<<

A

>>

>>

A

<<

8.

Outside/inside air selection damper
control motor

MOTORS AND TRANSISTOR

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-122

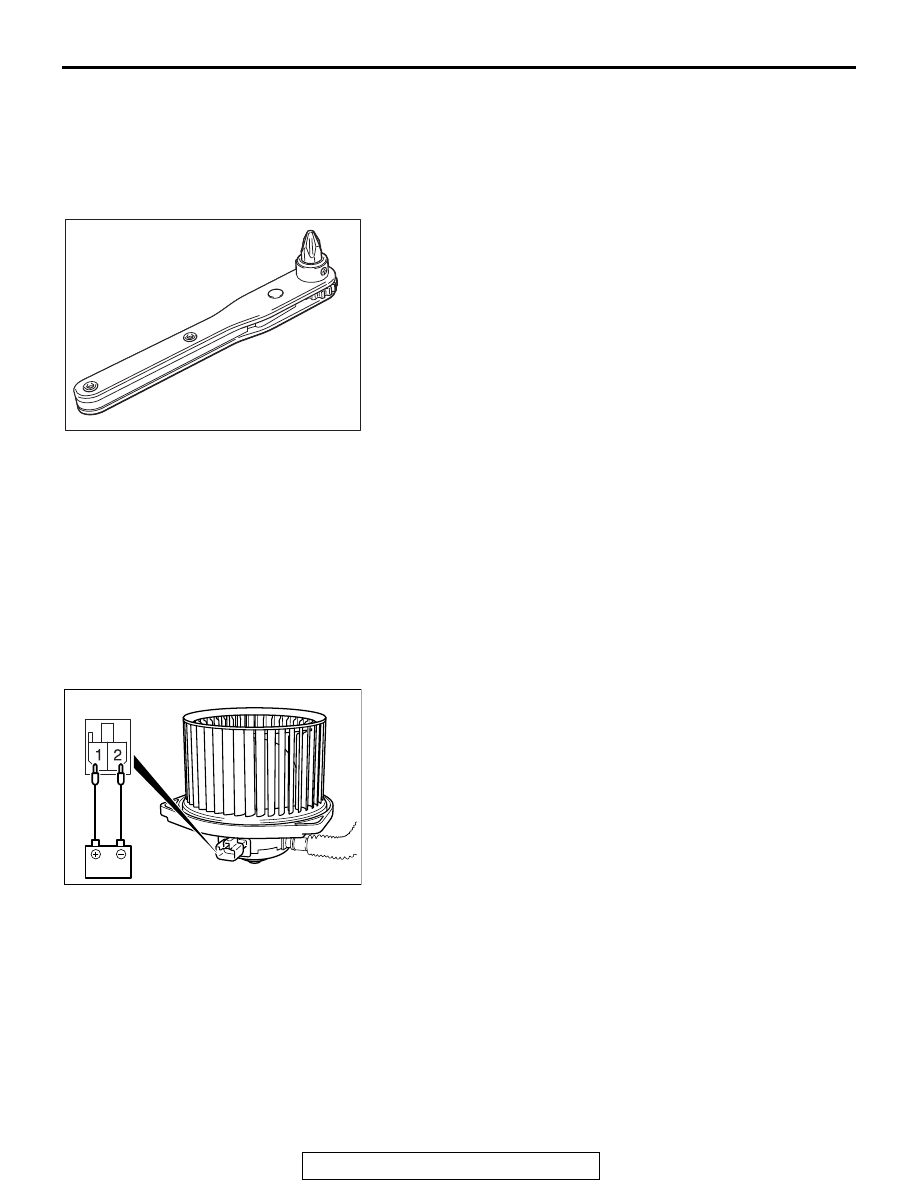

REMOVAL SERVICE POINT

.

<<A>> AIR MIXING DAMPER CONTROL MOTOR,
OUTSIDE/INSIDE AIR SELECTION DAMPER
MOTOR, MODE SELECTION DAMPER CONTROL
MOTOR REMOVAL

NOTE: A normal plate-type ratchet driver is recommended.

INSTALLATION SERVICE POINT

.

>>A<< OUTSIDE/INSIDE AIR SELECTION
DAMPER MOTOR INSTALLATION

Adjust the position of the outside/inside air selection damper
while supporting it from the lower side through the hole which
the clean air filter and the blower motor were removed.

INSPECTION

M1551006300770

BLOWER MOTOR CHECK

Check that the motor turns when applying battery power
between the connector terminals. Also check to see that there
is no abnormal sound emitted from the motor at this time.

AC100628 AB

AC702639
