ON-VEHICLE SERVICE

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-115

IDLE-UP OPERATION CHECK

M1552001601749

Before inspection and adjustment, set vehicle in the following

condition:

• Engine coolant temperature: 80 − 90 °C (176.0 − 194.0 °F)

• Lights, electric cooling fan and accessories: OFF

• Transaxle: Neutral ("N" or "P" position)

• Steering wheel: Straightforward

1. Check whether or not the idle speed is the standard value.

Refer to GROUP 11A, On-vehicle Service

− Idle Speed

Check

P.11A-15

. <2.4L>

Refer to GROUP 11C, On-vehicle Service

− Idle Speed

Check

P.11C-15

. <3.0L>

<2.4L>

650

± 100 r/min

<3.0L>

600

± 100 r/min

2. Turn on the A/C switch and the blower speed selection dial.

Engine idling speed should be within the standard value:

Standard value: 800

± 50 r/min

NOTE: The powertrain control module determines whether
the A/C load is low or high according to the output signal
from the A/C-ECU.
NOTE: It is not necessary to make an adjustment, because
the idling speed is automatically adjusted by the ISC sys-
tem. If, however, a deviation from the standard value occurs
for some reason, check the ISC system. (Refer to GROUP
11A, On-vehicle Service

 Idle Speed Check

P.11A-15



<2.4L> or GROUP 11C, On-vehicle Service

 Idle Speed

Check

P.11C-15

 <3.0L>)

REPLACE THE CLEAN AIR FILTER

M1552020100290

1. Remove the glove box (Refer to GROUP 52A

− Instrumental

Panel,

P.52A-2

).

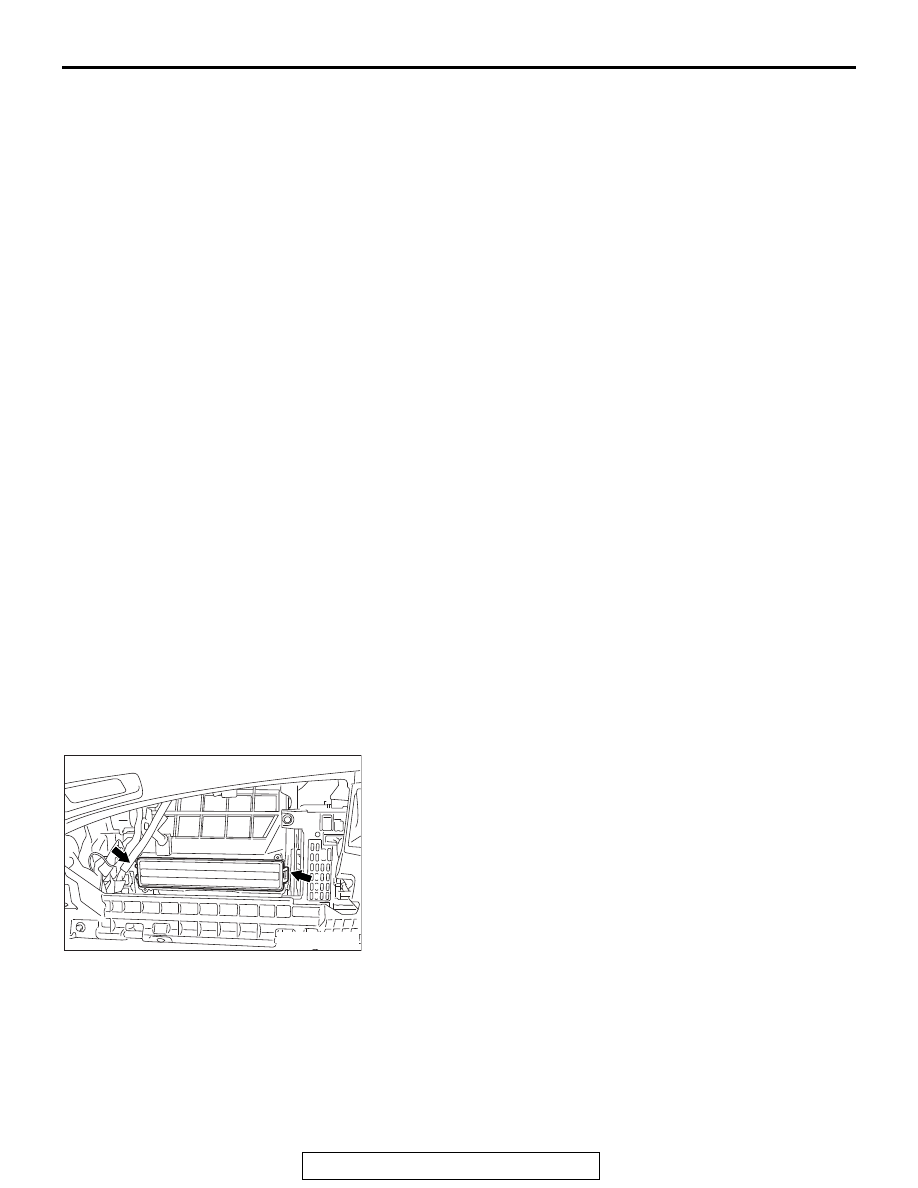

2. Loosen the two lugs as shown to replace the clean air filter.
3. Install the glove box.

AC702753AB

A/C CONTROL PANEL ASSEMBLY

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-116

A/C CONTROL PANEL ASSEMBLY

REMOVAL AND INSTALLATION

M1552001800063

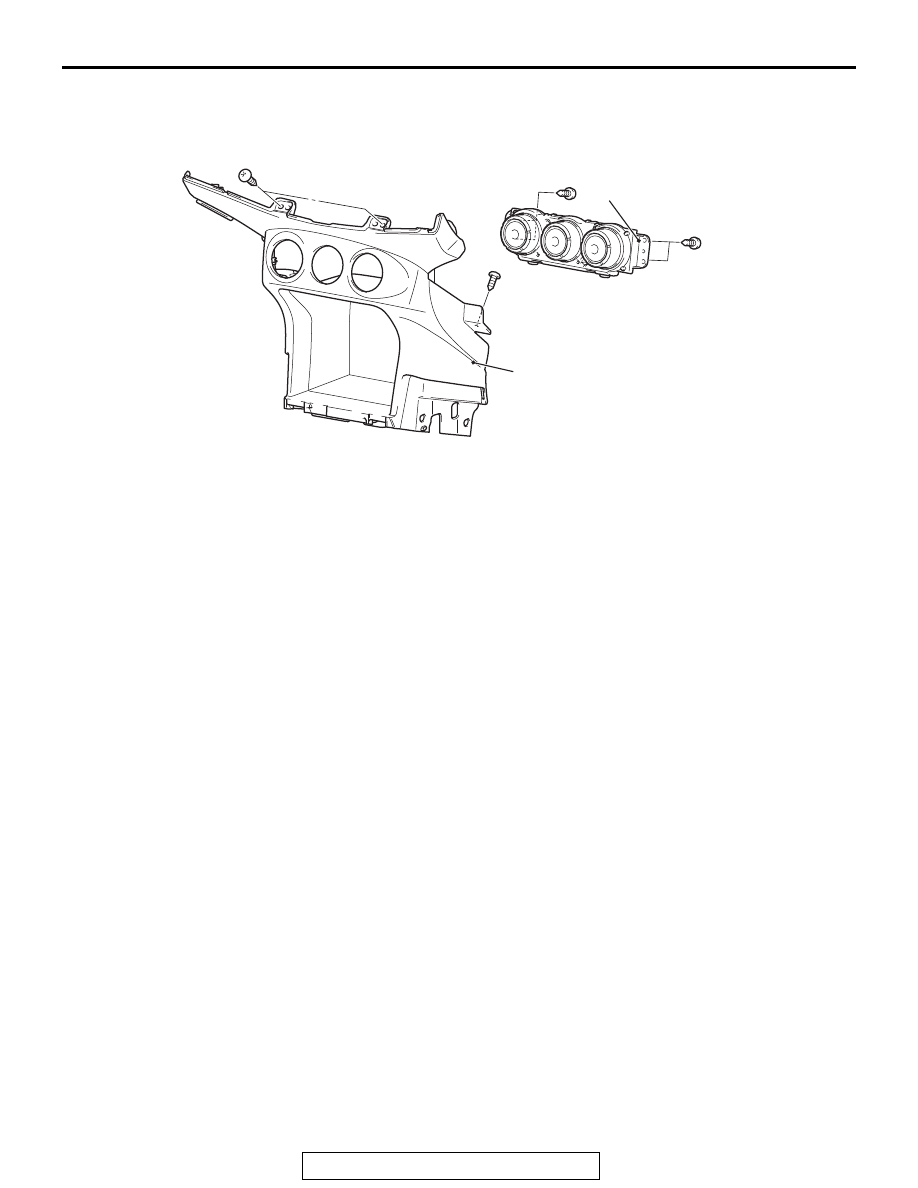

AC808932

2

1

AC

Removal steps

1.

Center lower panel (Refer to
GROUP 52A

− Instrument Panel

P.52A-2

)

2.

A/C control panel

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-117

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY

AND EVAPORATOR UNIT

HEATER UNIT AND FRONT DECK CROSSMEMBER ASSEMBLY REMOVAL AND
INSTALLATION

M1552021400067

Pre-removal operation
• Engine Coolant Draining (Refer to GROUP 14 − On-vehi-

cles service

P.14-26

.)

• Discharging refrigerant (Refer to

P.55A-108

)

• Front seat assembly removal (Refer to GROUP 52A −

Front seat assembly

P.52A-17

).

• Rear heater duct removal (Refer to

P.55A-135

).

• Instrument panel assembly removal (Refer to GROUP

52A

− Instrumental Pane

P.52A-2

).

Post-installation Operation
• Instrument panel assembly installation (Refer to GROUP

52A

− Instrumental Panel

P.52A-2

).

• Rear heater duct installation (Refer to Duct,

P.55A-135

).

• Front seat assembly installation (Refer to GROUP 52A −

Front seat assembly

P.52A-17

).

• Engine Coolant Refilling (Refer to On-vehicles service

P.14-26

).

• Charging refrigerant (Refer to

P.55A-108

)

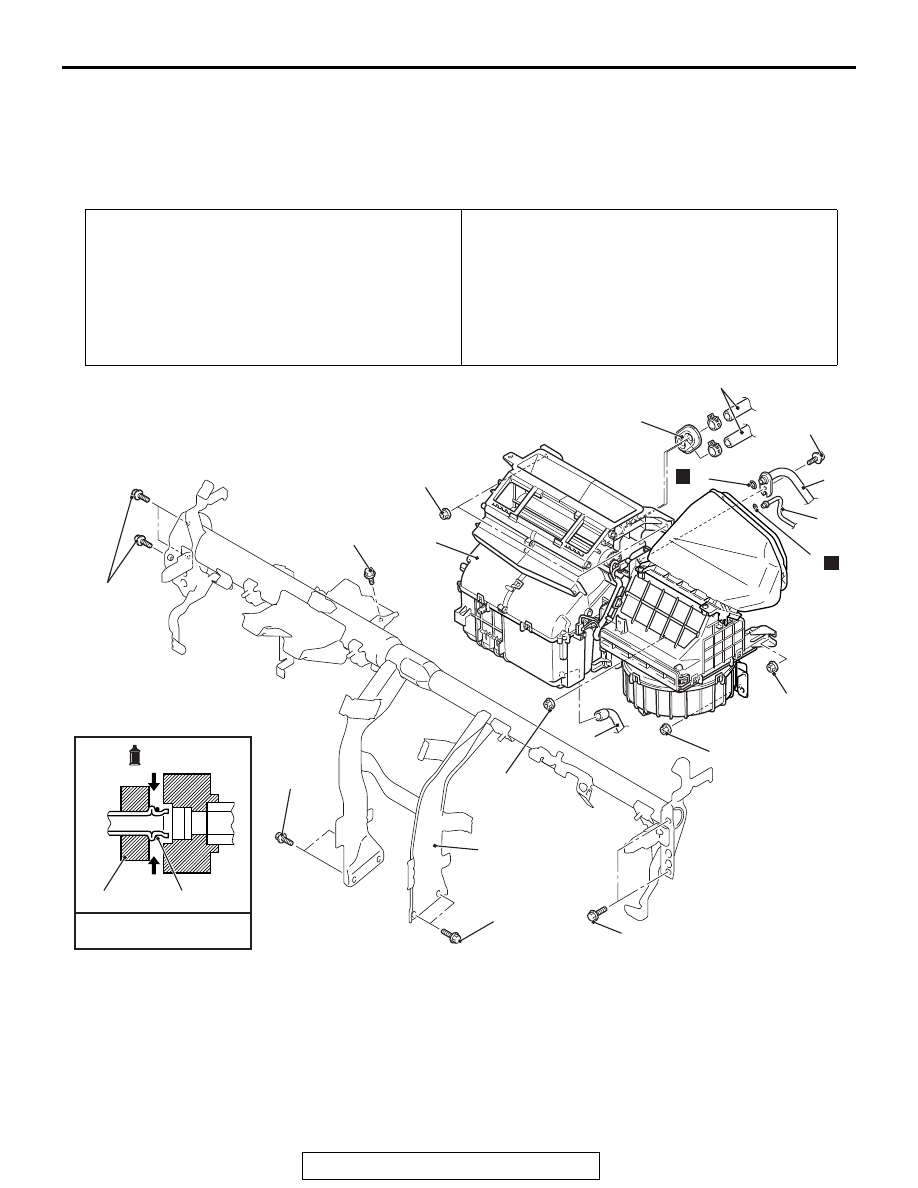

AC702754

1

6

5

AC

2, 3

4

7

-Pipe coupling

A/C compressor oil:
SUN PAG 56 or S10X

4

3

2

N

4.9 ± 0.9 N·m
43 ± 8 in-lb

4

N

8

11 ± 4 N·m
98 ± 35 in-lb

11 ± 4 N·m
98 ± 35 in-lb

11 ± 4 N·m
98 ± 35 in-lb

11 ± 4 N·m
98 ± 35 in-lb

20 ± 5 N·m
15 ± 3 ft-lb

23 ± 6 N·m
17 ± 4 ft-lb

18 ± 7 N·m
13 ± 5 ft-lb

18 ± 7 N·m
13 ± 5 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

Removal steps

<<A>>

Wiring harness and clamps

1.

Heater hose

Heat protector

<<B>>

2.

Suction pipe

<<B>>

3.

Liquid pipe B

4.

O-ring

5.

Drain hose

6.

Front deck crossmember

7.

Heater unit assembly

Removal steps (Continued)

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-118

REMOVAL SERVICE POINTS

.

<<A>> CONNECTOR DISCONNECTION

Disconnect the following connectors to remove the front deck
crossmember.

.

<<B>> SUCTION FLEXIBLE HOSE / LIQUID PIPE
B DISCONNECTION

CAUTION

Use the plug which is not breathable because A/C com-
pressor oil or receiver have high hygroscopicity.
Plug the removed nipple of the pipe, hose and expansion valve
to prevent the entry of dust and dirt.

Connector
number

Connector name

C-32

Instrument panel wiring harness
and floor wiring harness
connection

C-33

Instrument panel wiring harness
and front wiring harness
connection

C-34

Instrument panel wiring harness
and front wiring harness
connection

C-35

Instrument panel wiring harness
and front wiring harness
connection

C-36

Instrument panel wiring harness
and roof wiring harness
connection

C-20

Instrument panel wiring harness
and floor wiring harness
connection

C-22

Instrument panel wiring harness
and floor wiring harness
connection

C-112

Instrument panel wiring harness
and front door (RH) wiring
harness connection

C-113

Instrument panel wiring harness
and front door (RH) wiring
harness connection

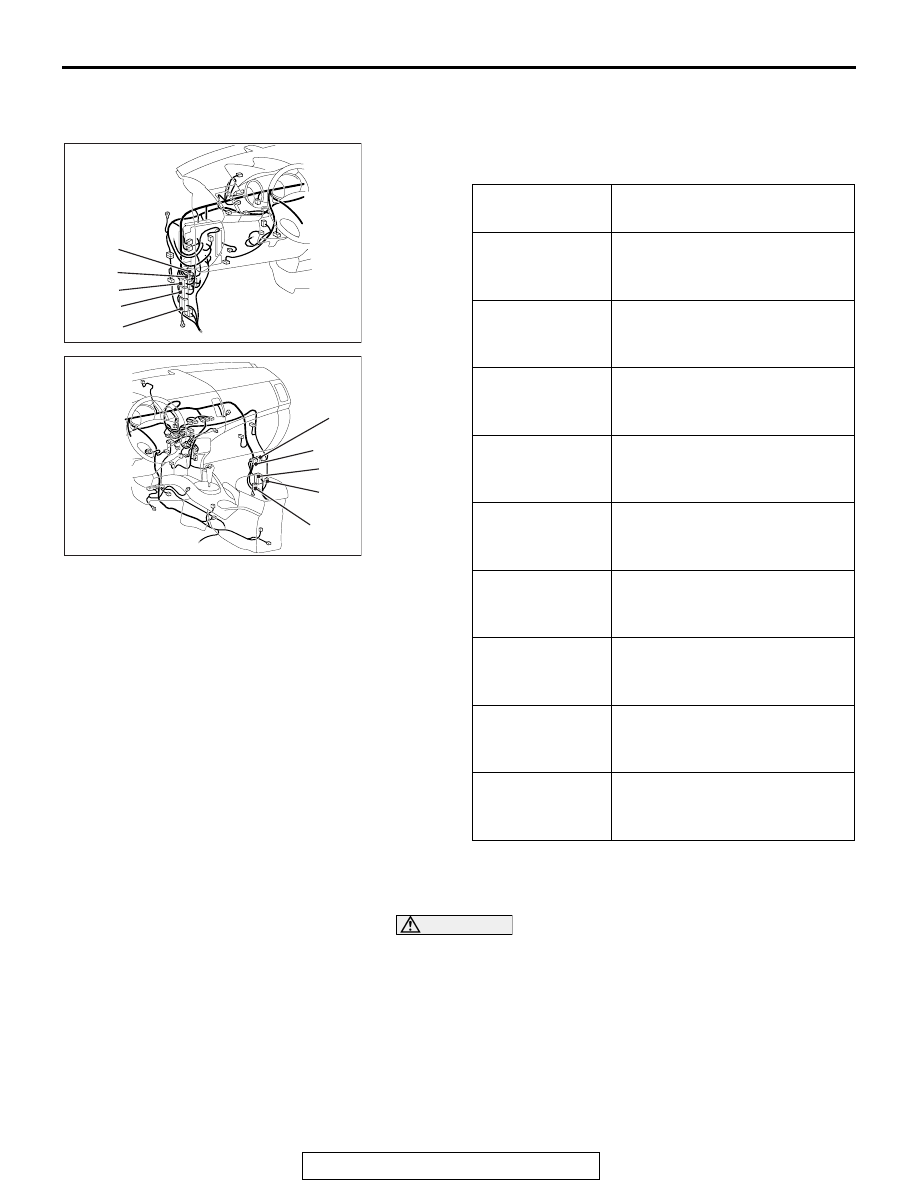

AC702145AL

C-35

C-34

C-33

C-36

C-32

AC702208 AP

C-22

C-21

C-20

C-113

C-112
