Mitsubishi Outlander GS45X. Manual - part 19





COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-73

STEP 4. Check the wiring harness between combination
meter connector C-03 (terminal 1) and the fusible link (36).

• Check the power supply line (battery supply) for open circuit

and short circuit.

NOTE: Also check ETACS-ECU connectors C-307 and C-317
for loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If ETACS-ECU connector C-307 or
C-317 is damaged, repair or replace the damaged compo-
nent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector C-03 (terminal 1) and the fusible link (36) in
good condition?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to Cope with Intermittent

Malfunction

P.00-15

).

NO :  Repair the wiring harness.

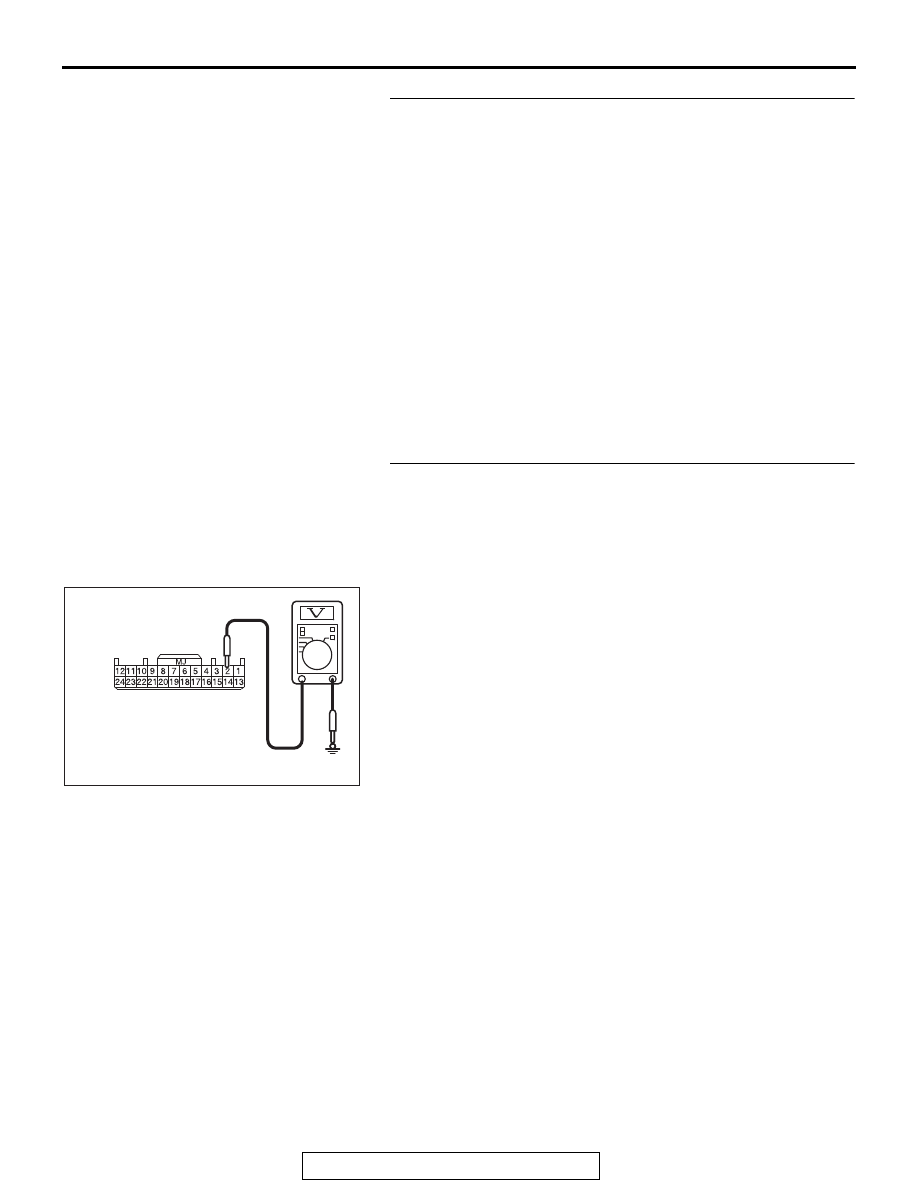

STEP 5. Check the battery power supply circuit to the
combination meter. Measure the voltage at combination
meter connector C-03.
(1) Disconnect the connector, and measure at the wiring

harness side.

(2) Turn the ignition switch to the ON position.
(3) Measure the voltage between terminals 2 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 8.
NO :  Go to Step 6.

AC702831AC

Harness side: C-03

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-74

STEP 6. Using scan tool MB991958, check data list.
Check the input signal from the ignition switch (IG1) in the
ETACS-ECU.
(1) Turn the ignition switch to the "ON" position.
(2) Check the ETACS data list.

• Turn the ignition switch to the "ON" position.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Does the scan tool MB991958 display the item "IG

voltage" is normal condition?
YES : Go to Step 7.
NO  :  Troubleshoot the ETACS-ECU. Refer to Inspection

Procedure 2 "The ignition switch (IG1) signal is not
received

P.54A-788

."

STEP 7. Check the wiring harness between combination
meter connector C-03 (terminal 2) and the fusible link (34).

• Check the power supply line (battery supply) for open circuit

and short circuit.

NOTE: Also check ETACS-ECU connectors C-309 and C-317
for loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If ETACS-ECU connector C-309 or
C-317 is damaged, repair or replace the damaged compo-
nent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector C-03 (terminal 2) and the fusible link (34) in
good condition?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Repair the wiring harness.

Item No.

Item name

Normal
condition

Item 254

IG voltage

Approximately 12
volts (battery
positive voltage)

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-75

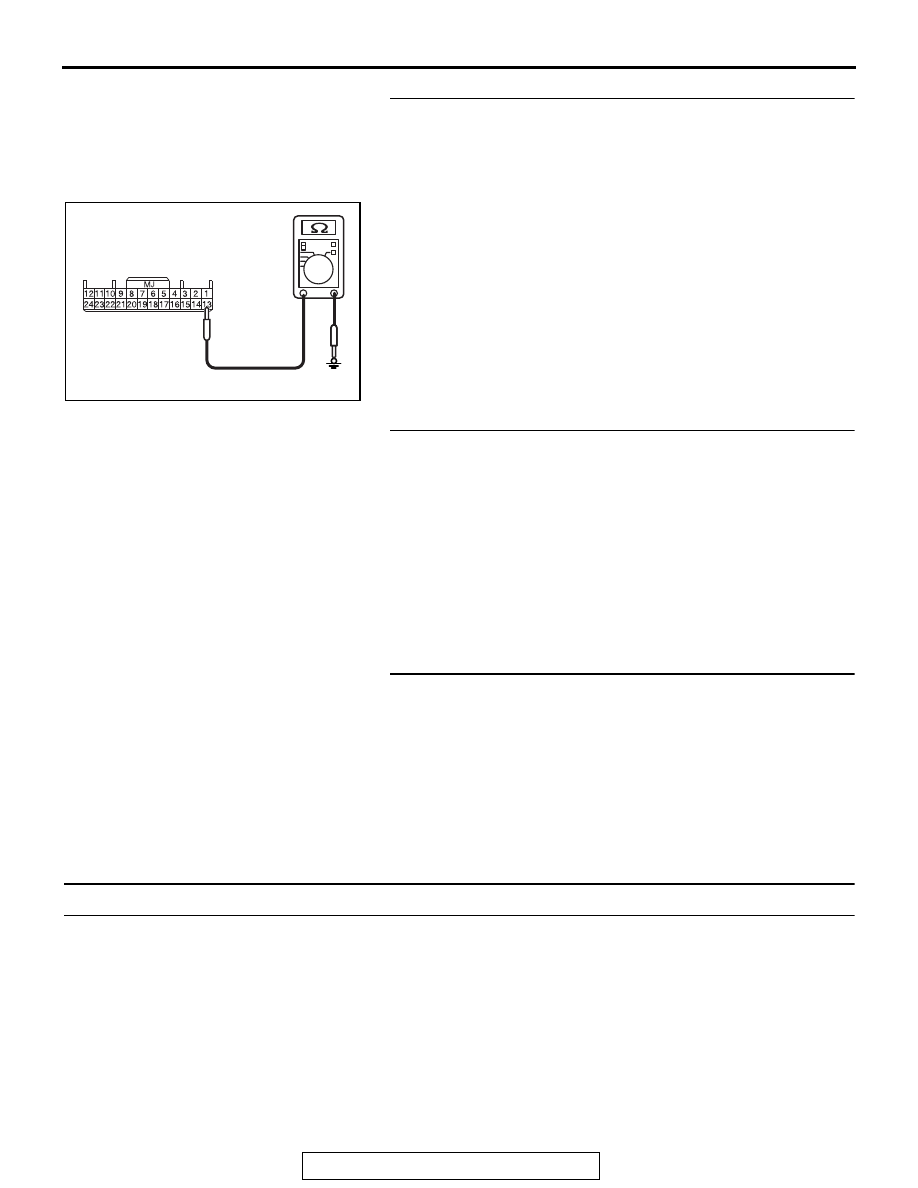

STEP 8. Check the ground circuit to the combination
meter. Test at combination meter connector C-03.
(1) Disconnect combination meter connector C-03 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 13 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 10.
NO :  Go to Step 9.

STEP 9. Check the wiring harness between combination
meter connector C-03 (terminal 13) and ground.

• Check the ground wire for open circuit.

Q: Is the wiring harness between combination meter

connector C-03 (terminal 13) and ground in good
condition?
YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Repair the wiring harness.

STEP 10. Retest the system.
Check that the combination meter works normally.
Q: Is the check result satisfactory?

YES : The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

NO :  Replace the combination meter.

Inspection Procedure 2: The speedometer does not work (the other meters work).

.

TECHNICAL DESCRIPTION (COMMENT)

If only the speedometer does not operate, the
ABS-ECU <Vehicles without ASC> or ASC-ECU
<Vehicles with ASC> and combination meter may
have a problem.

.

TROUBLESHOOTING HINTS

• The ABS-ECU may be defective <Vehicles with-

out ASC>

• The ASC-ECU may be defective <Vehicles with

ASC>

• The combination meter may be defective

AC702818AD

Harness side: C-03

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-76

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-31

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.
Q: Is the DTC set?

YES : Troubleshoot the combination meter (Refer to

P.54A-34

).

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the ABS-ECU
<Vehicles without ASC> or ASC-ECU <Vehicles with ASC>
diagnostic trouble code.
Check if diagnostic trouble code is set to the ABS-ECU or
ASC-ECU.
Q: Is the DTC set?

YES : Troubleshoot the ABS or ASC (Refer to GROUP 35B,

Diagnosis

P.35B-15

 <ABS> or GROUP 35C,

Diagnosis

P.35C-18

 <ASC>).

NO :  Go to Step 4.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB
