COMBINATION METER
TSB Revision
CHASSIS ELECTRICAL
54A-65

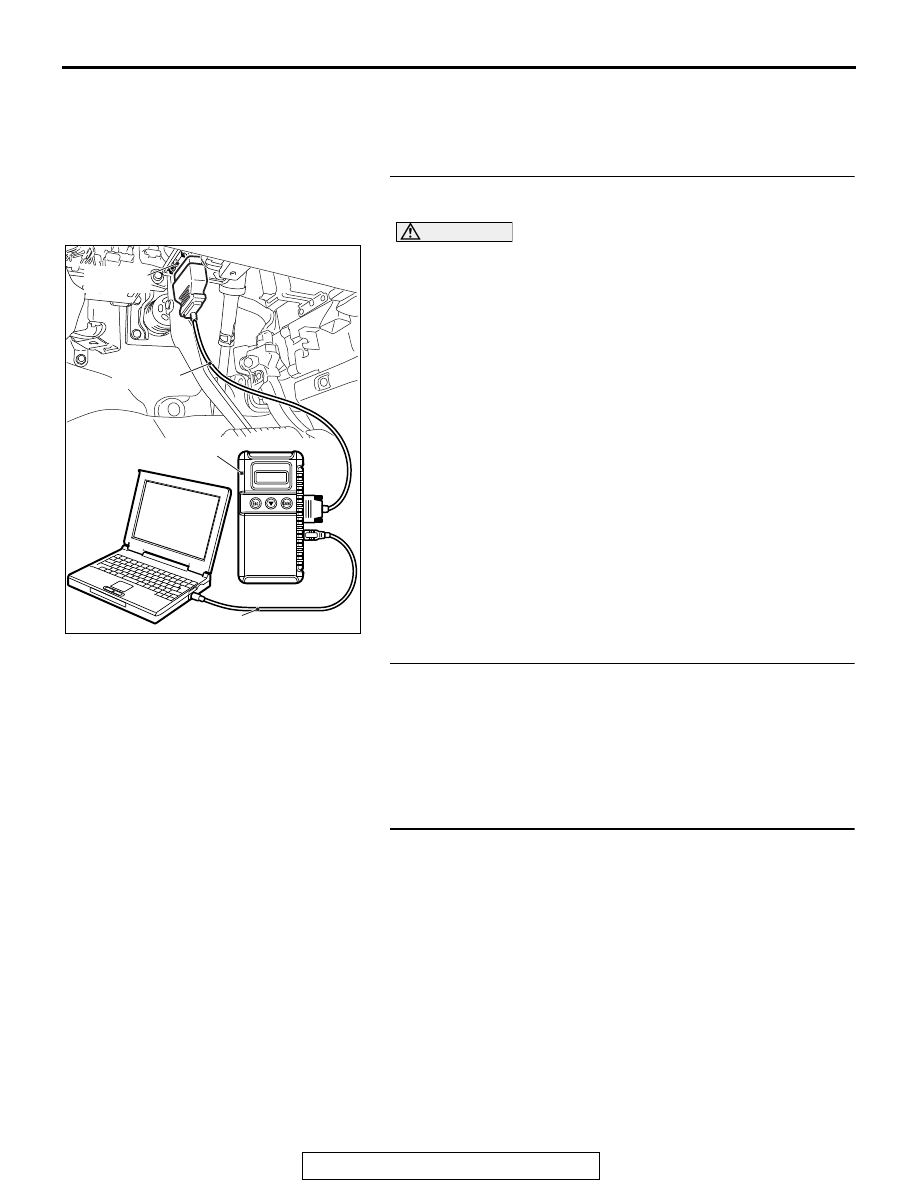

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the combination meter.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.
(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?
YES : Replace the radio and CD player or CD changer.
NO : The trouble can be an intermittent malfunction such
as a poor connection or open circuit in the CAN bus
lines between the radio and CD player or CD changer
and the combination meter (Refer to GROUP 00, How
to Cope with Intermittent Malfunction
P.00-15
).

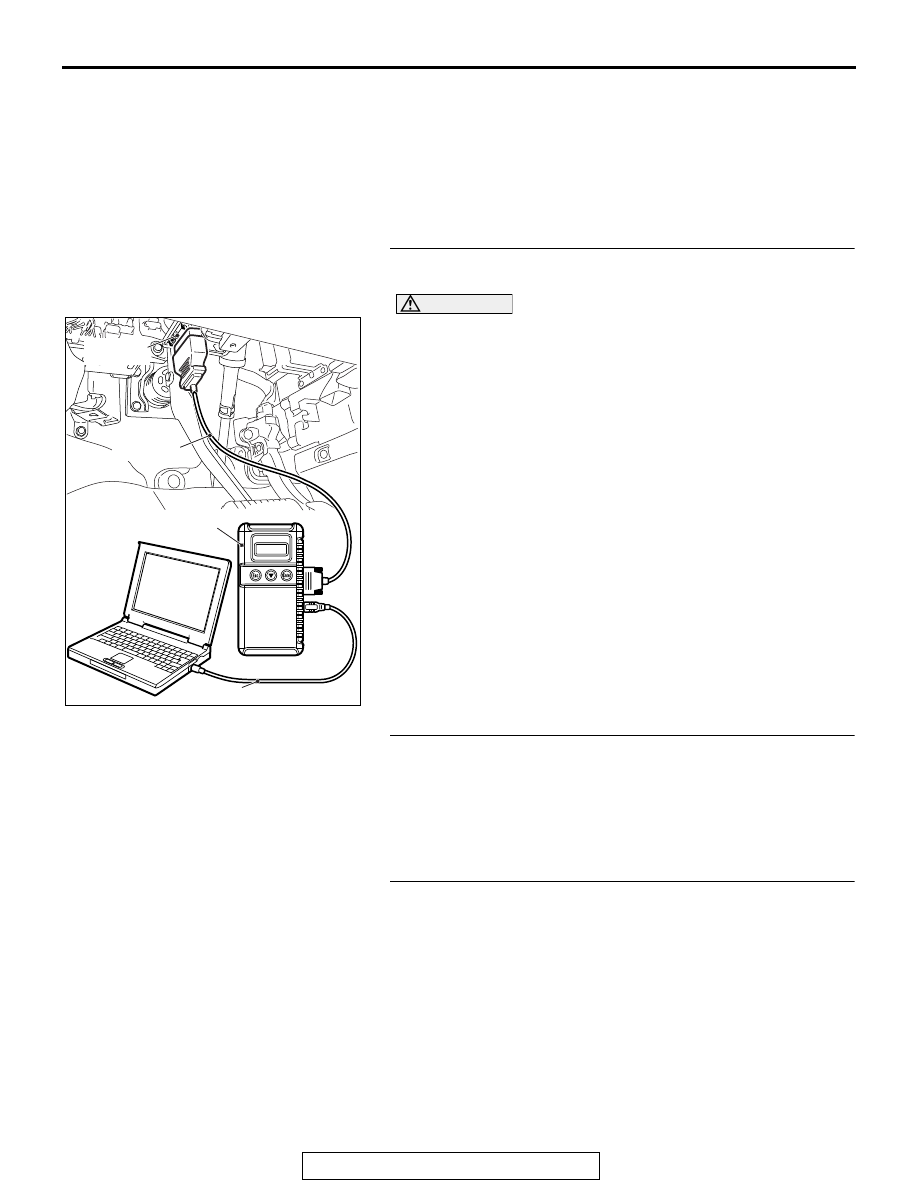

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the combination meter.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.
(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?
YES : Replace the combination meter.
NO : The trouble can be an intermittent malfunction such
as a poor connection or open circuit in the CAN bus
lines between the radio and CD player or CD changer
and the combination meter (Refer to GROUP 00, How
to Cope with Intermittent Malfunction
P.00-15
).
DTC U0245: Audio visual navigation unit CAN timeout
CAUTION
• If DTC U0245 is set, be sure to diagnose the
CAN bus line.
• When replacing the ECU, always check that
the communication circuit is normal.
.
DIAGNOSTIC FUNCTION
When the signals from audio visual navigation unit
cannot be received, the combination meter sets DTC
U0245.
.
JUDGMENT CRITERIA
With the ignition switch in the ON position, system
voltage between 10
− 16 volts (data from
ETACS-ECU), power supply fuse (IOD fuse) is OK,
or odometer value is 80.5 km (50 miles) or more, and
the communications with audio visual navigation unit
cannot be established for 2,500 ms or more, the
combination meter determines that a problem has
occurred.
.
TROUBLESHOOTING HINTS
• The CAN bus line may be defective.
• The combination meter may be defective.
• The audio visual navigation unit may be defec-
tive.
