Mitsubishi Outlander GS45X. Manual - part 18





COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-69

TROUBLE SYMPTOM CHART

M1540200800249

CAUTION

• During troubleshooting, a DTC code associated with other system may be set when the ignition

switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTC
code(s). If DTC code(s) are set, erase them all.

• When the combination meter is required to be replaced as a result of the troubleshooting, the cur-

rent driving distance and number of elapsed days to be used for service reminder function must
be entered into the meter after the replacement. Therefore, read "Integrated mileage for reminder,"
"Integrated days for reminder," "Mileage until Extra reminder," "Months until Extra reminder," and
"Current Schedule" from the meter before the replacement using the special function of scan tool
MB991958, and note them. For the operation method of scan tool MB991958, refer to

P.54A-110

. If

"Integrated mileage for reminder" or "Integrated days for reminder" cannot be read by the scan
tool MB991958, follow the method described below.

a. For the driving distance for check warning, use the driving distance displayed on the multi

information display.

b. For the elapsed days for check warning, calculate the number of elapsed days from the deliv-

ery date to the customer (service remainder function start date) and current date.

Trouble symptom

Inspection
Procedure
No.

Reference
page

Power supply circuit check.

1

P.54A-70

The speedometer does not work (the other meters work).

2

P.54A-75

The tachometer does not work (the other meters work).

3

P.54A-77

Tone alarm does not sound normally.

4

P.54A-79

The combination meter light does not illuminate normally or the multi information
display is not displayed normally.

5

P.54A-82

The multi information display screen cannot be changed with the operation of
the meter information switch.

6

P.54A-86

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-70

SYMPTOM PROCEDURES

Inspection Procedure 1: Power supply circuit check.

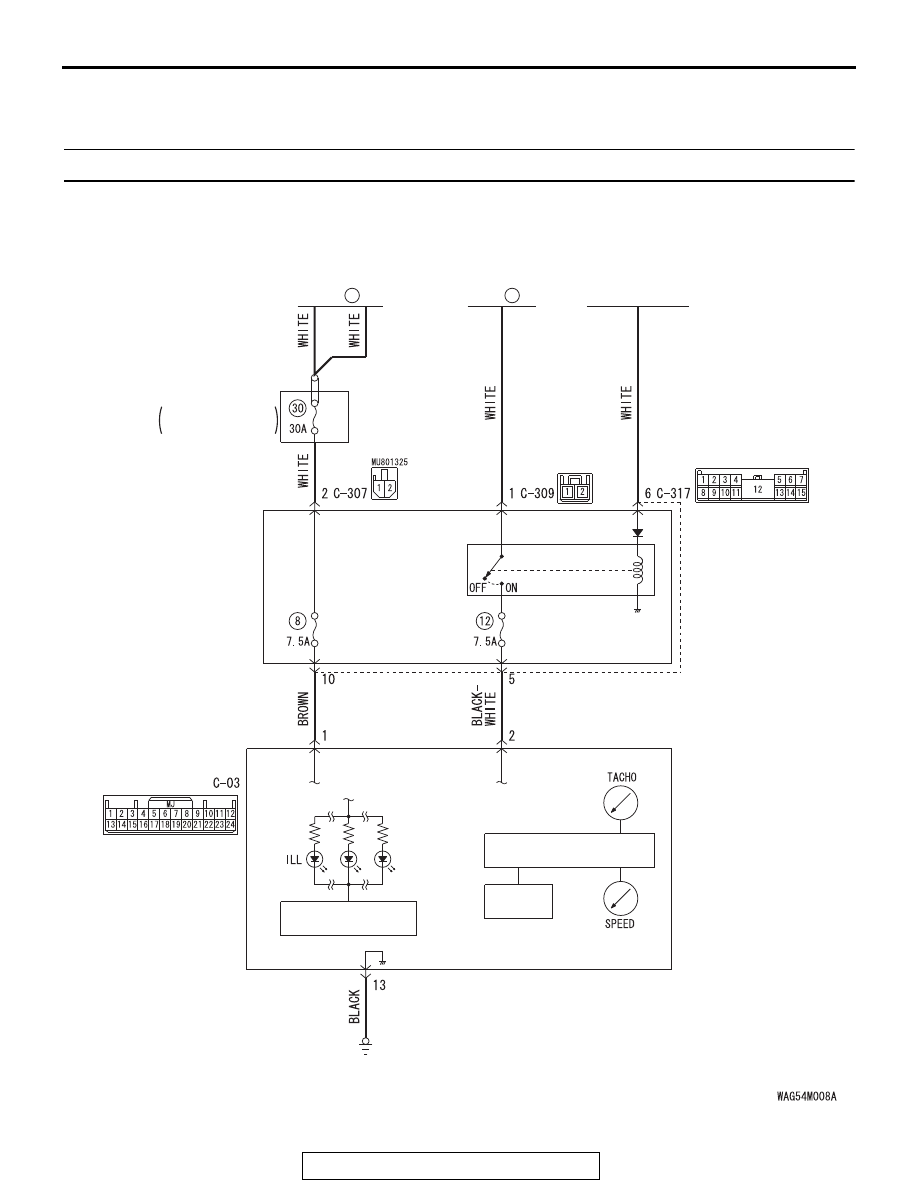

Combination Meter Power Supply Circuit

FUSIBLE
LINK

36

FUSIBLE
LINK

34

IGNITION
SWITCH (IG1)

IG1
RELAY

LED DRIVE
CIRCUIT

COMBINATION
METER

ETACS-
ECU

CPU

LCD

ENGINE
COMPARTMENT

RELAY BOX

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-71

.

TECHNICAL DESCRIPTION (COMMENT)

If the odometer and trip meter are not displayed or all
the meter needles do not move, power supply to the
combination meter, or the combination meter itself
may have a problem.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The combination meter may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB992006: Extra Fine Probe

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

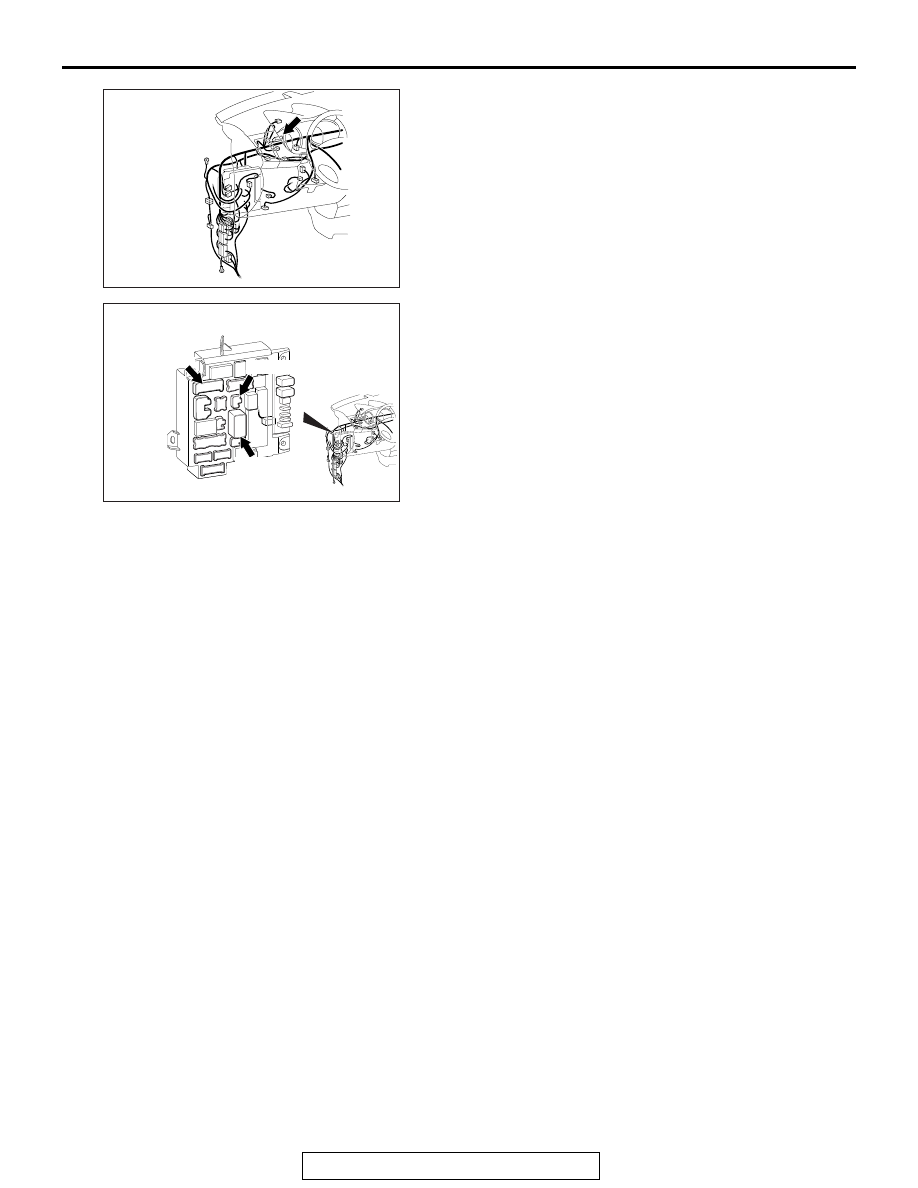

AC702815 AD

Connector: C-03

ACA02655AU

Connectors: C-307, C-309, C-317

C-307 (B)

C-309 (B)

C-317

COMBINATION METER

TSB Revision

CHASSIS ELECTRICAL

54A-72

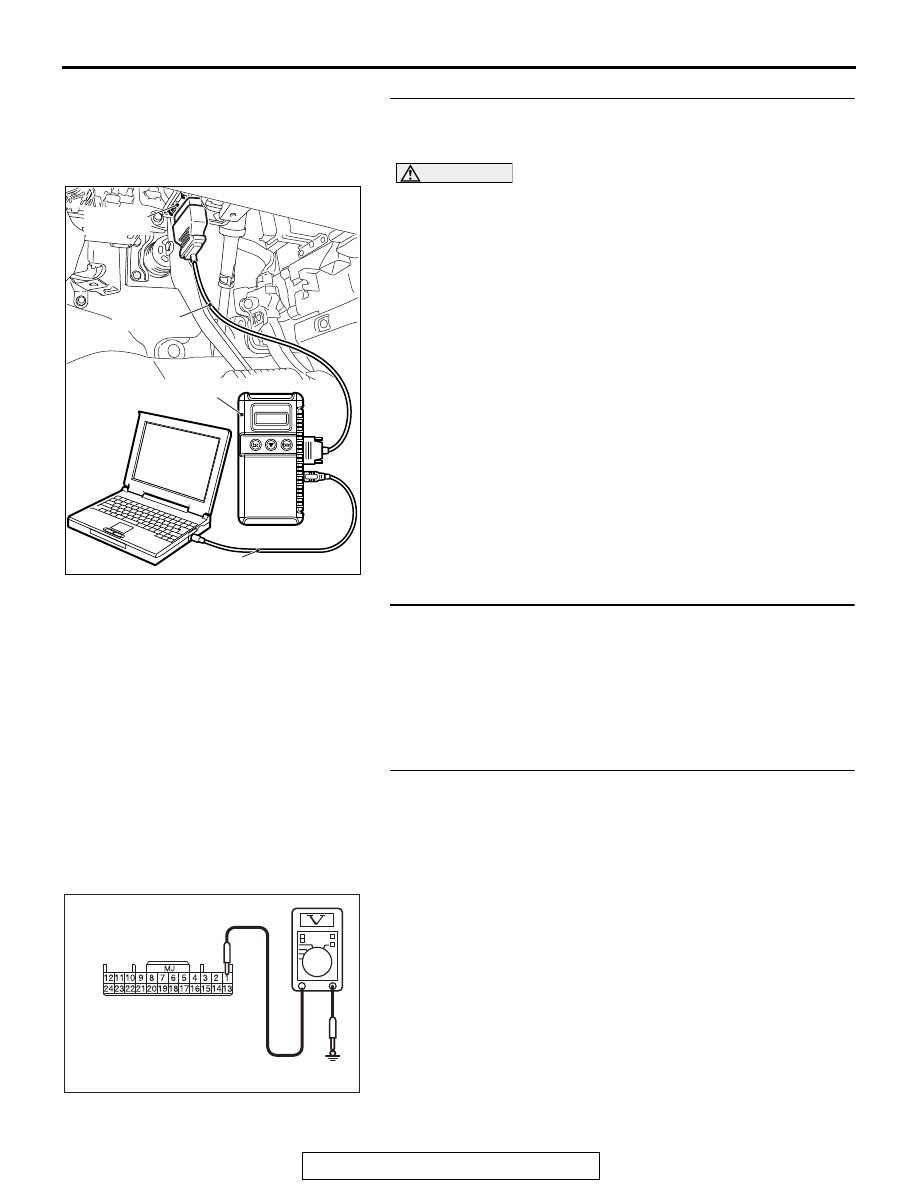

STEP 1. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
Check if DTC is set to the combination meter.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-31

."

(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Troubleshoot the combination meter. (Refer to

P.54A-34

.)

NO :  Go to Step 2.

STEP 2. Check combination meter connector C-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is combination meter connector C-03 in good

condition?
YES :
Go to Step 3.
NO :  Repair the defective connector.

STEP 3. Check the battery power supply circuit to the
combination meter. Measure the voltage at combination
meter connector C-03.
(1) Disconnect the connector, and measure at the wiring

harness side.

(2) Turn the ignition switch to the LOCK (OFF) position.
(3) Measure the voltage between terminals 1 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES :
Go to Step 5.
NO :  Go to Step 4.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

AC702831CP

Harness side: C-03
