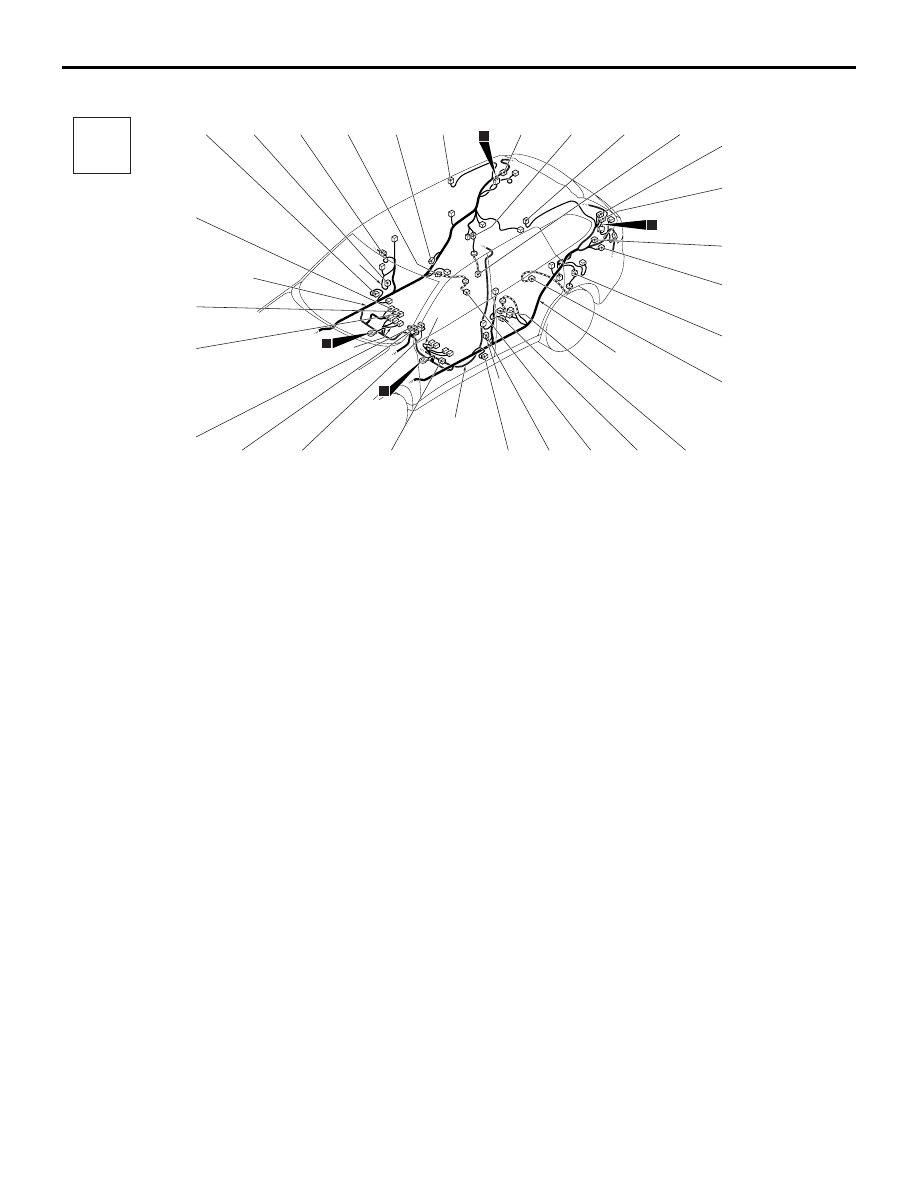

FLOOR

CONFIGURATION DIAGRAMS

80-12

FLOOR (CONTINUED)

ACB04398

Connector
symbol

-101
thru
-129

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

D-101

Floor wiring
harness

Rear display
wiring harness

Floor wiring
harness

D-102

D-103

D-106

D-107

D-104
D-105

D-109

D-110

D-108

D-111

D-112

D-113

D-114

D-115

D-116

D-117

D-118

D-119

D-120

D-121

D-122

D-123

D-124

D-125

D-126

D-127

D-128

D-129

D-101 (2-Y)

Side impact sensor (RH)

D-102 (2-B)

Seat belt pre-tensioner (RH)

D-103 (10)

Floor wiring harness and rear door
wiring harness (RH) combination

D-104 (2)

Jumper connector <2WD>

D-105 (2)

Floor wiring harness and fuel wiring
harness combination <4WD>

D-106 (2-B)

Curtain air bag module (squib) (RH)

D-107 (5)

Floor wiring harness and tailgate
wiring harness (RH) combination
<Vehicles with rear view camera>

D-108 (3)

Floor wiring harness and rear height
sensor sub wiring harness
combination <Vehicles with headlamp
automatic levelling system>

D-109 (2-B)

Curtain air bag module (squib) (LH)

D-110 (3-B)

Rear height sensor <Vehicles with
headlamp automatic levelling system>

D-111 (14)

Floor wiring harness and tailgate
wiring harness (LH) combination

D-112 (15-L)

Floor wiring harness and tailgate
wiring harness (LH) combination
<Vehicles with electric tailgate>

D-113 (4)

Sub woofer

D-114 (10)

Spare connector (for switch box)

D-115 (2)

Floor wiring harness and electronic
control coupling solenoid sub wiring
harness combination <4WD>

D-116 (2)

Electronic control coupling solenoid
<4WD>

D-117 (5-GR)

Fuel pump and gauge unit (main)

D-118 (10)

Floor wiring harness and rear door
wiring harness (LH) combination

D-119 (2)

Fuel gauge unit (sub) <4WD>

D-120 (2-B)

Seat belt pre-tensioner (LH)

D-121 (2-Y)

Side impact sensor (LH)

D-122 (22)

Instrument panel wiring harness and
rear display wiring harness
combination

D-123 (1-B)

Parking brake switch

D-124 (12-B)

J/C (7)

D-125 (12-B)

J/C (7)

D-126 (14)

Audio amplifier

D-127 (18)

Audio amplifier

D-128 (14)

Audio amplifier

D-129 (4)

J/C (8)

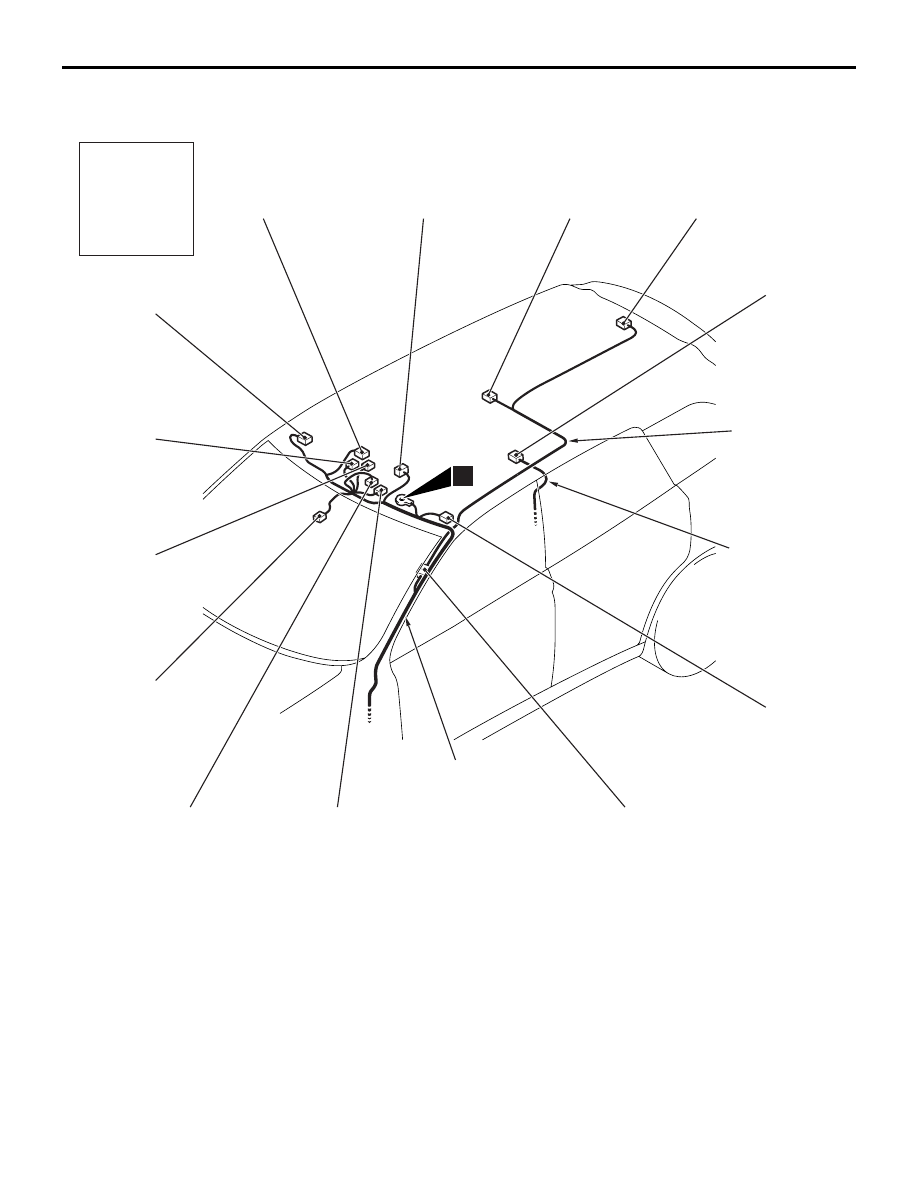

ROOF

CONFIGURATION DIAGRAMS

80-13

ROOF

M1801003600411

ACC00137

Connector
symbol

E-01

E-02

E-04

E-05

Roof sub
wiring harness

Rear display
wiring harness

Roof wiring
harness

E-15

E-07

E-08

E-09

E-10

E-11

E-12

E-13

E-14

E-01

(3)

No connection

E-02

(10-GR) Sunroof motor assembly

E-04

(3)

Rear room lamp

E-05

(3)

Luggage compartment lamp

E-07

(2)

Vanity mirror lamp (LH)

E-08

(5)

Roof wiring harness and roof sub
wiring harness combination

E-09

(2)

Downlight

E-10

(3)

Microphone unit

E-11

(4)

Lighting control sensor <Vehicles with
auto lamp and rain sensitive auto
wiper>

E-12

(6-B)

Sunroof switch

E-13

(3)

Front room lamp

E-14

(2)

Vanity mirror lamp (RH)

E-15

(4)

Spare connector (for rear monitor)

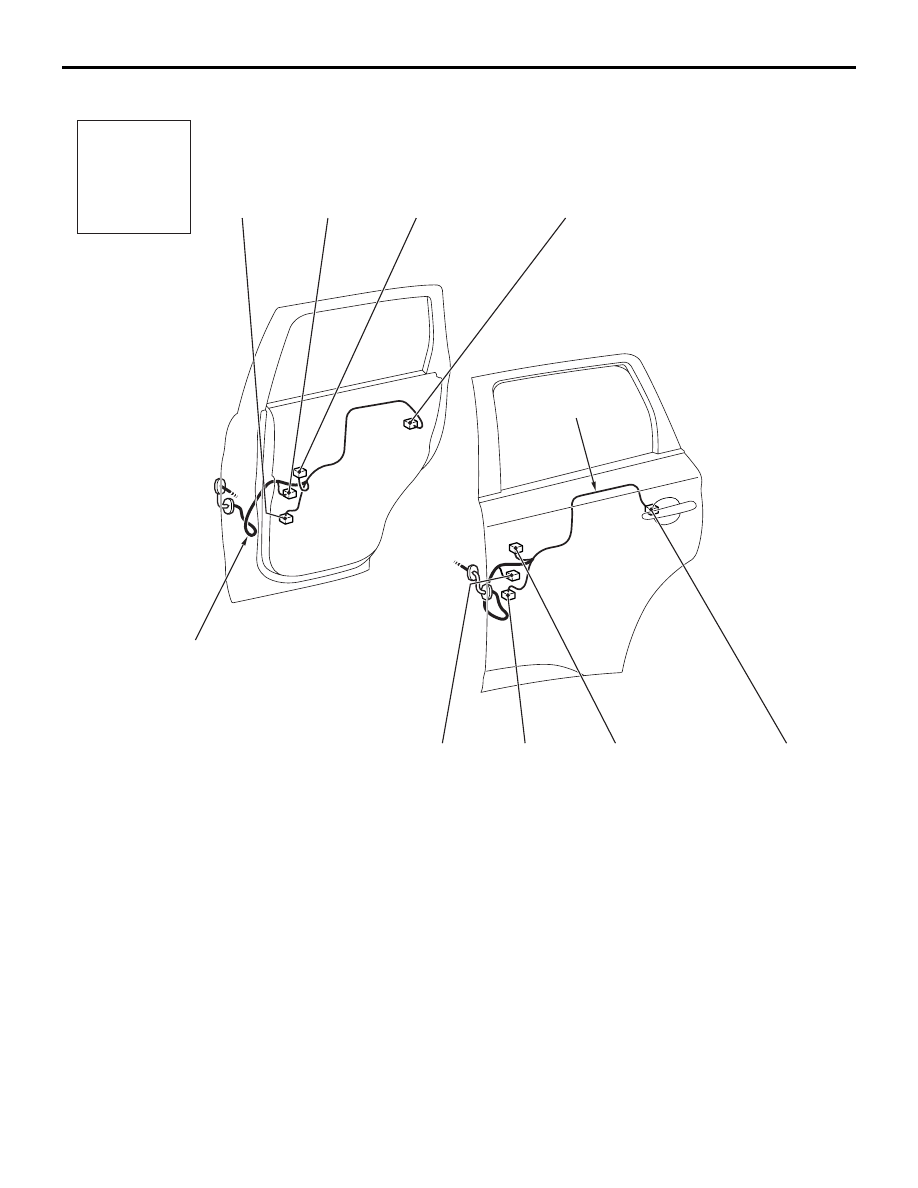

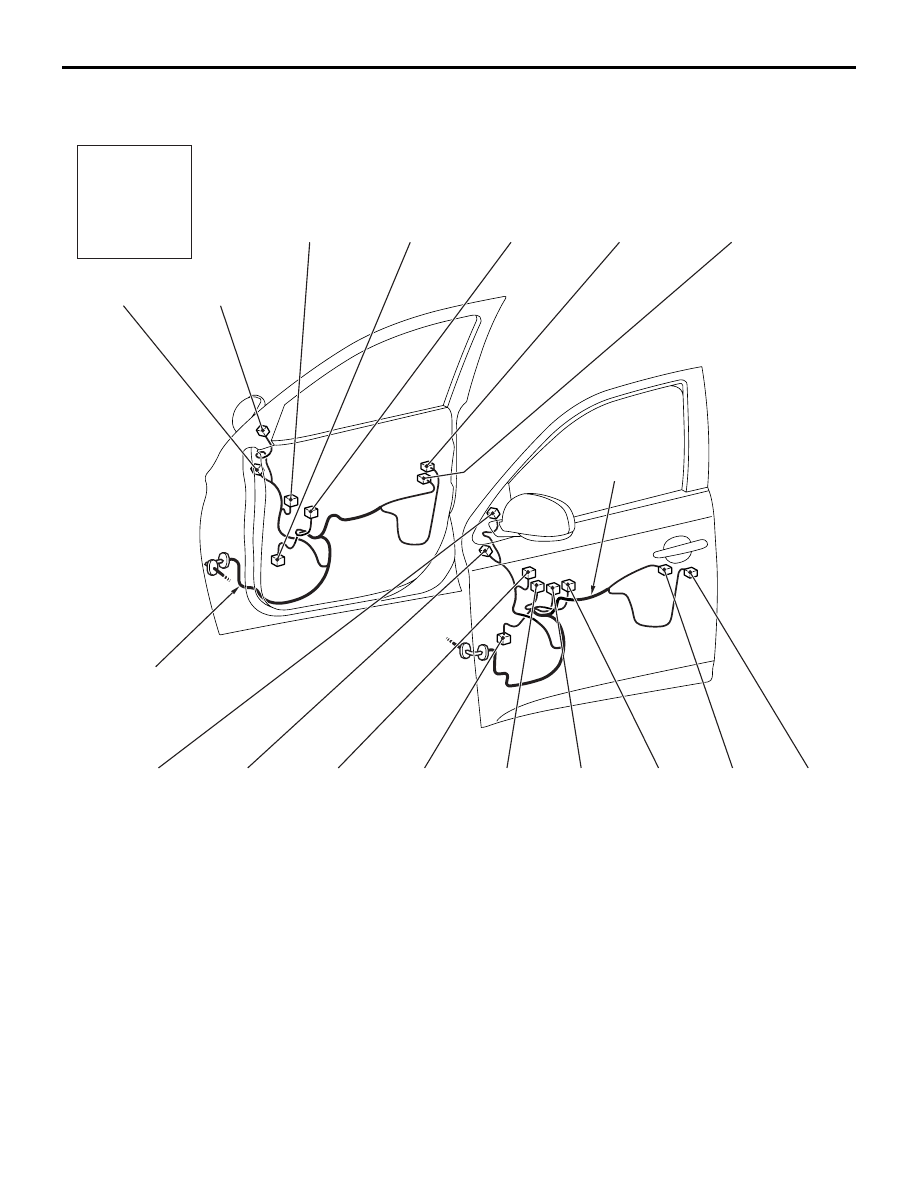

DOOR

CONFIGURATION DIAGRAMS

80-14

DOOR

M1801001403733

ACB04400

Connector
symbol

-01
thru
-16

F-01

F-02

F-03

F-04

F-05

F-06

F-07

F-08

F-09

F-10

F-11

F-12

F-13

F-14

F-15

F-16

Front door

Front door
wiring harness (LH)

Front door
wiring harness (RH)

F-01

(16)

Door mirror assembly (RH)

F-02

(2-B)

Tweeter (RH)

F-03

(2-B)

Front power window motor (RH)

F-04

(2)

Front door speaker (RH)

F-05

(8)

Front power window sub switch

F-06

(2-GR)

Lock/unlock switch (RH) <Vehicles
with KOS>

F-07

(10)

Front door lock actuator (RH)

F-08

(2-B)

Tweeter (LH)

F-09

(16)

Door mirror assembly (LH)

F-10

(6-B)

Front power window motor (LH)

F-11

(2)

Front door speaker (LH)

F-12

(11-L)

Remote controlled mirror switch

F-13

(4)

Power window main switch

F-14

(16)

Power window main switch

F-15

(10)

Front door lock actuator (LH)

F-16

(2-GR)

Lock/unlock switch (LH) <Vehicles
with KOS>

DOOR

CONFIGURATION DIAGRAMS

80-15

DOOR (CONTINUED)

ACB04401

Connector
symbol

-101
thru
-108

Rear door

Rear door
wiring harness (LH)

Rear door
wiring harness (RH)

F-101

F-102

F-103

F-104

F-105

F-106

F-107

F-108

F-101

(2)

Rear door speaker (RH)

F-102

(6-GR)

Rear power window motor (RH)

F-103

(8)

Rear power window sub switch (RH)

F-104

(10)

Rear door lock actuator (RH)

F-105

(6-GR)

Rear power window motor (LH)

F-106

(2)

Rear door speaker (LH)

F-107

(8)

Rear power window sub switch (LH)

F-108

(10)

Rear door lock actuator (LH)
