TAILGATE

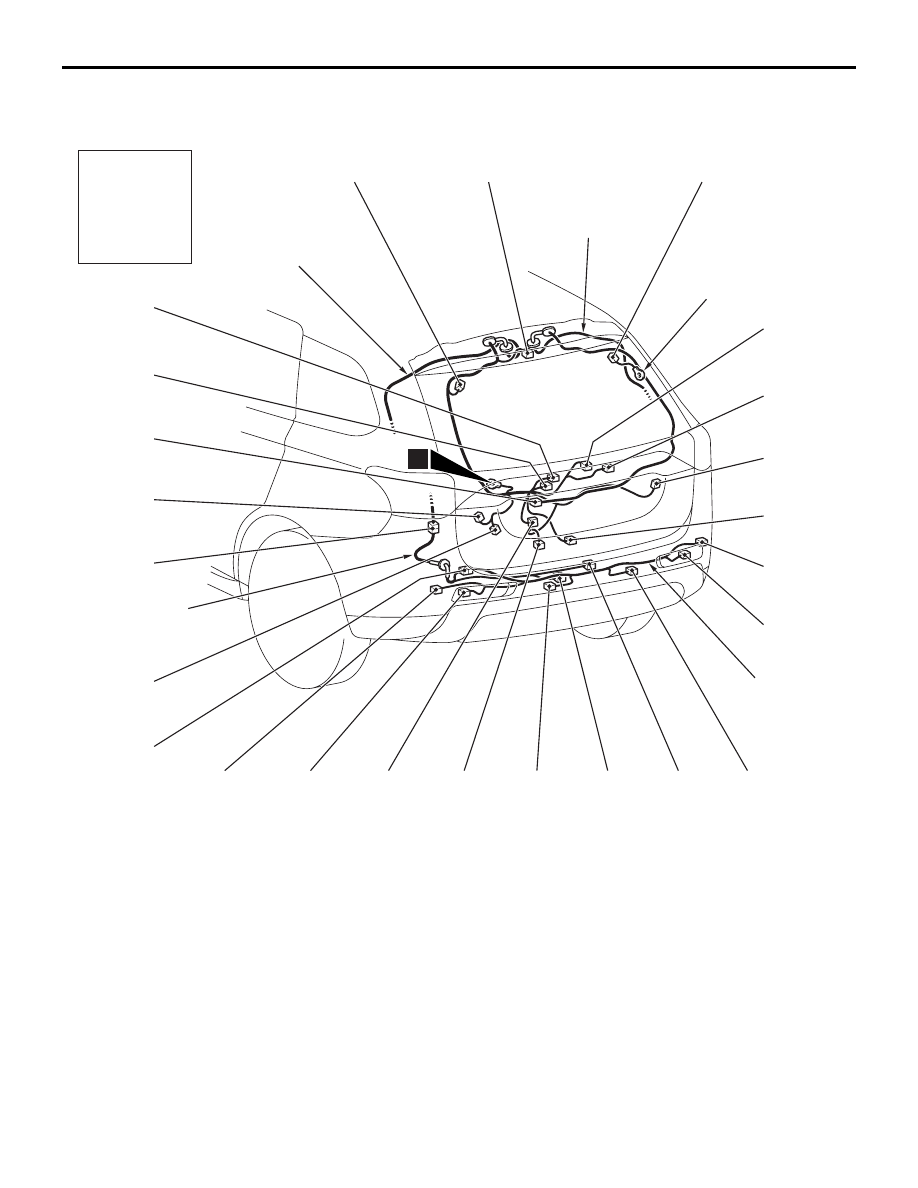

CONFIGURATION DIAGRAMS
80-16

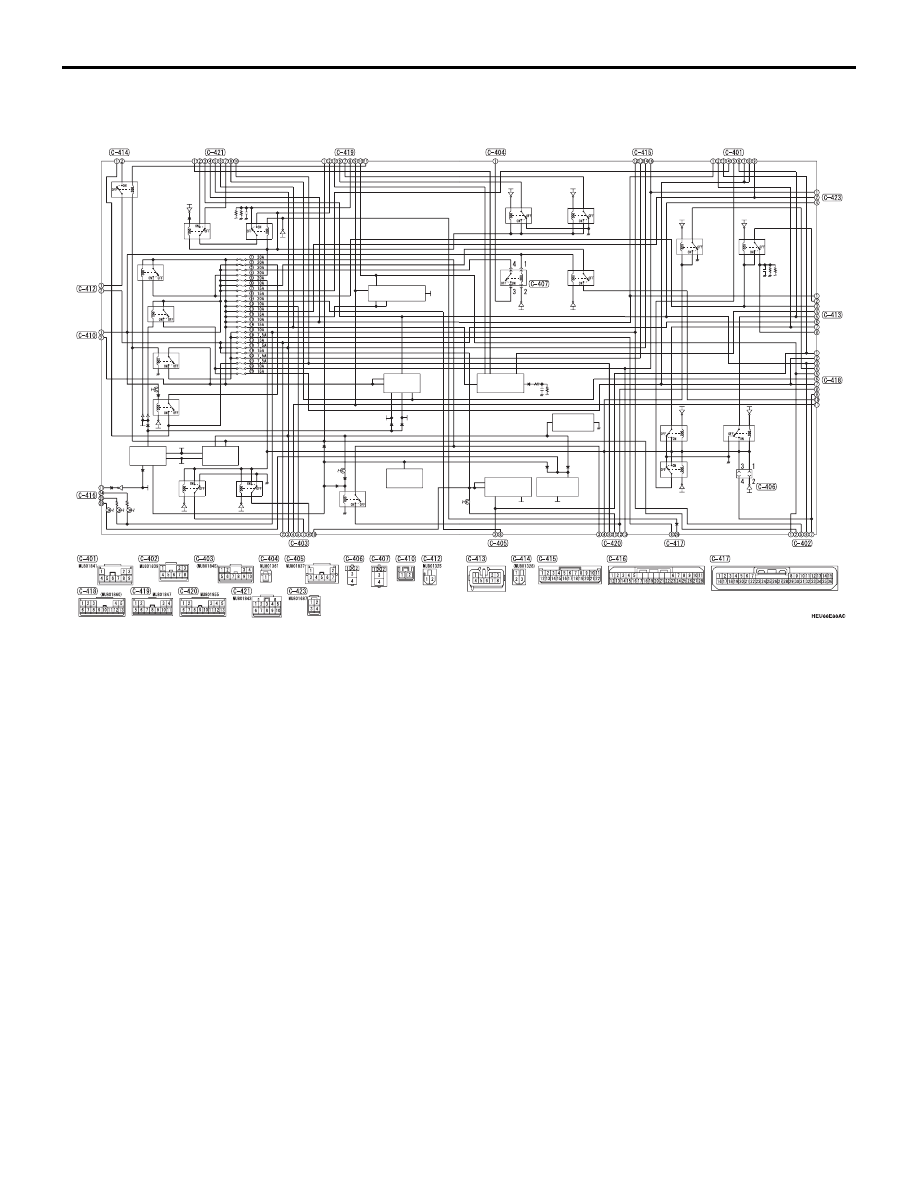

TAILGATE
M1801001901709
ACB04402
Connector
symbol
G
AB
Tailgate wiring
harness (LH)
Tailgate wiring
harness (RH)
Defogger
earth
Rear bumper
wiring harness
Rear end
wiring harness
G-01
G-02
G-03
G-04
G-05
G-06
G-07
G-08
G-09
G-10
G-11
G-12
G-13
G-14
G-15
G-16
G-17
G-18
G-19
G-20
G-21
G-22
G-23
G-24
8
G-01
(1-B)
Rear window defogger (+)
G-02
(2)
High-mounted stop lamp
G-03
(1-B)
Rear window defogger (
−)
G-04
(4)
Rear wiper motor
G-05
(2-B)
Licence plate lamp (RH)
G-06
(2)
Tailgate sensor (RH)
G-07
(3)
Tailgate lock actuator <Vehicles
without electric tailgate>
G-08
(2-B)
Rear corner sensor (RH) <Vehicles
with reversing sensor system>
G-09
(2-B)
Back-up lamp
G-10
(2-B)
Back sensor (RH) <Vehicles with
reversing sensor system>
G-11
(2-B)
Outside transmission antenna
assembly (Tailgate) <Vehicles with
KOS>
G-12
(2-GR)
Outer buzzer <Vehicles with KOS>
G-13
(2-B)
Back sensor (LH) <Vehicles with
reversing sensor system>
G-14
(4)
Electric tailgate close switch
G-15
(10)
Tailgate latch <Vehicles with electric
tailgate>
G-16
(2-GR)
Rear fog lamp
G-17
(2-B)
Rear corner sensor (LH) <Vehicles
with reversing sensor system>
G-18
(13-GR) Rear end wiring harness and rear
bumper wiring harness combination
G-19
(2-GR)
Electric tailgate buzzer
G-20
(18)
Floor wiring harness and rear end
wiring harness combination
G-21
(2)
Tailgate sensor (LH)
G-22
(6)
Rear view camera
G-23
(3)
Tailgate lock release handle
G-24
(2-B)
Licence plate lamp (LH)
