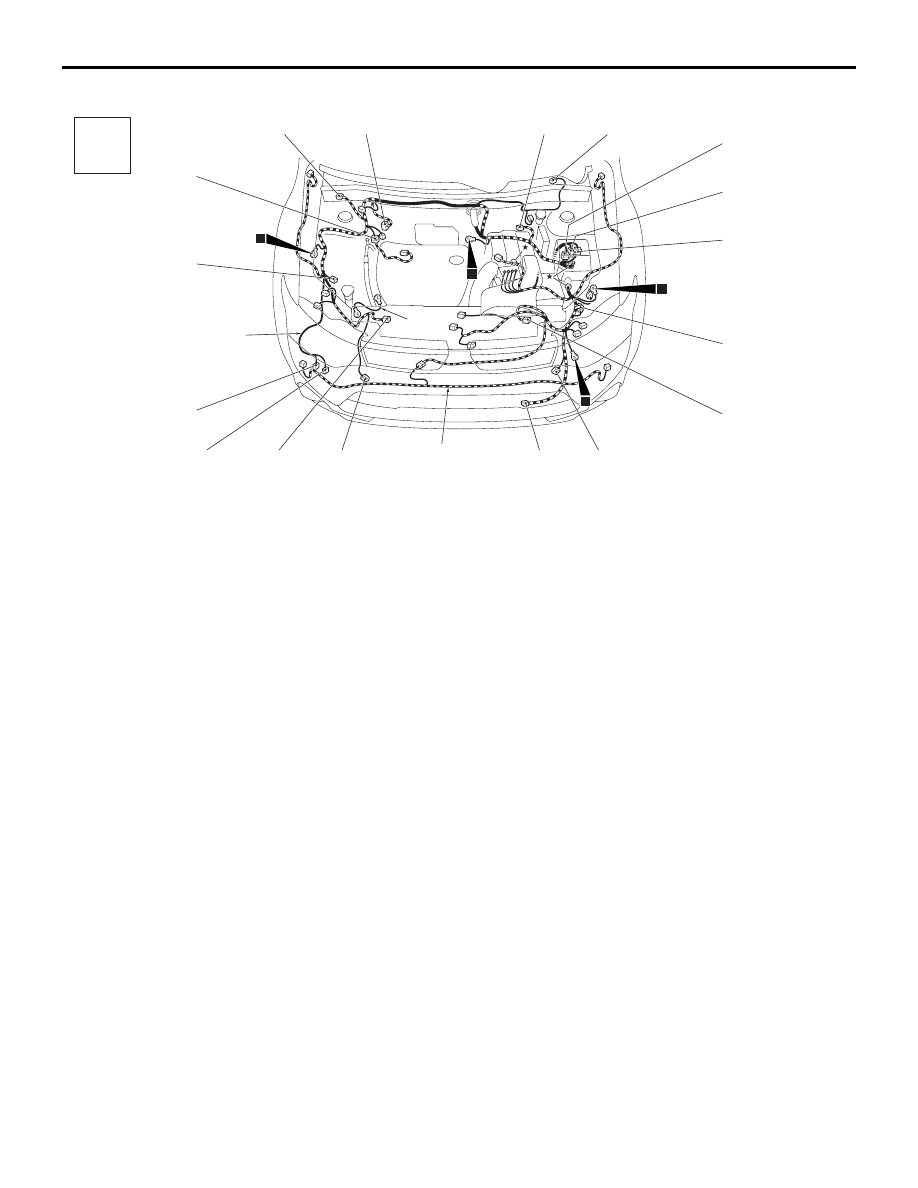

ENGINE COMPARTMENT

CONFIGURATION DIAGRAMS

80-4

ENGINE COMPARTMENT (CONTINUED)

ACC00136

AC

A-101

A-102
A-103

A-104

A-105

A-106

A-107

A-108

A-109

A-110

A-111

A-112

A-113

A-114

A-115

A-116

A-117

A-118

Earth
cable

Front wiring
harness

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

Fog lamp
wiring harness

15

3

1

13

Connector
symbol

-101
thru
-118

A

A-101 (2-B)

Wiper deicer

A-102 (26-B)

ABS-ECU

A-103 (26-B)

ASC-ECU

A-104 (2-B)

Front wheel speed sensor (LH)

A-105 (5-GR)

Windshield wiper motor

A-106 (14-L)

Front wiring harness and control
wiring harness combination
(integrated in relay box)

A-107 (22)

Front wiring harness and control
wiring harness combination
(integrated in relay box)

A-108 (18-GR) Front wiring harness and control

wiring harness combination
(integrated in relay box)

A-109 (4-B)

Spare connector (for trailer harness)

A-110 (2-Y)

Front impact sensor (LH)

A-111 (1-B)

Horn (LO)

A-112 (2-B)

Ambient temperature sensor

A-113 (1-B)

Horn (HI)

A-114 (2-Y)

Front impact sensor (RH)

A-115 (2-GR)

Headlamp washer motor

A-116 (2-B)

Washer motor

A-117 (3-B)

A/C pressure sensor

A-118 (3-GR)

Front wiring harness and front height
sensor sub wiring harness
combination <Vehicles with headlamp
automatic levelling system>

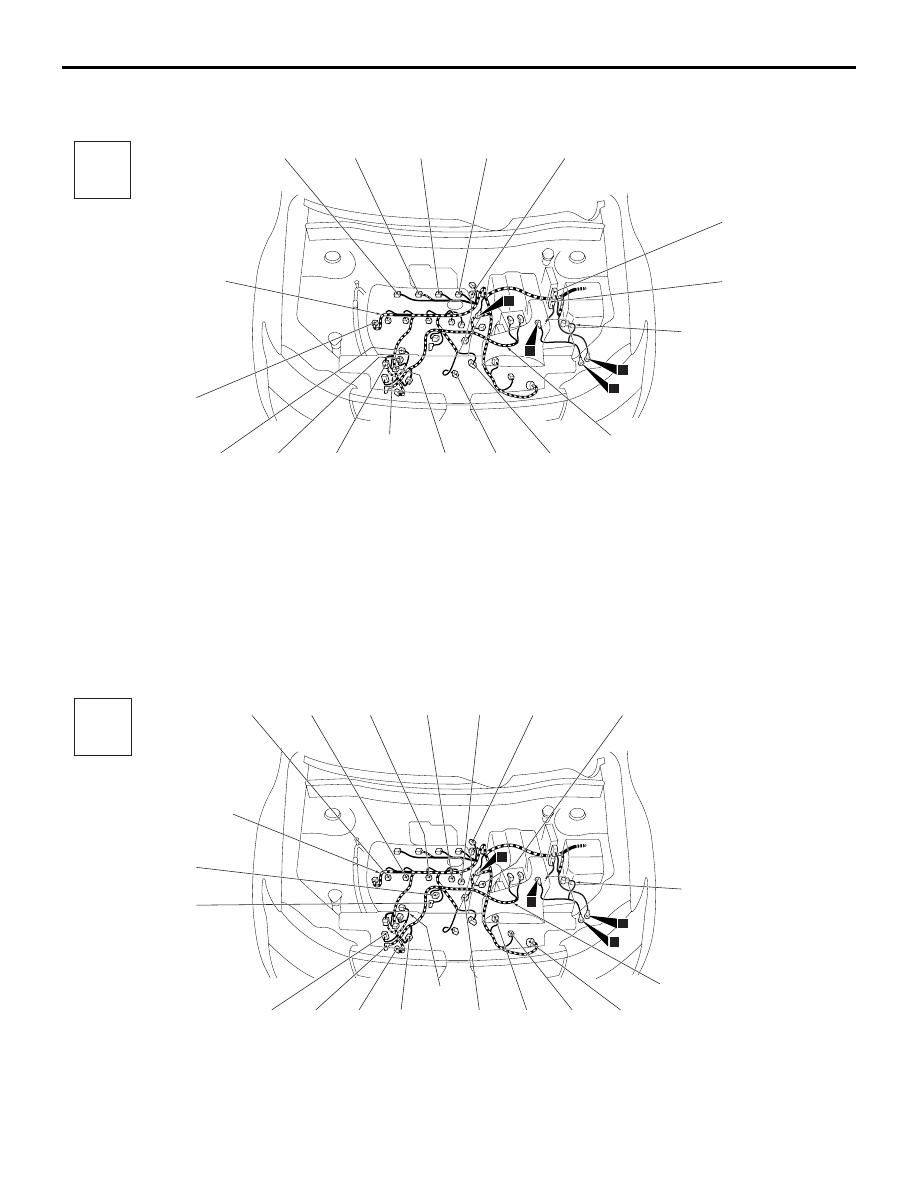

ENGINE AND TRANSMISSION

CONFIGURATION DIAGRAMS

80-5

ENGINE AND TRANSMISSION

M1801000404959

ACB04394

AB

Connector
symbol

-01
thru
-14

B

10

11

12

14

B-01

B-02

B-03

B-04

B-05

B-06

B-07

Battery (-)
wiring harness

Battery (+)
wiring harness

B-08

B-09

B-10

B-11

B-12

B-13

B-14

Control wiring
harness

Engine sub
wiring harness

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-01

(3-B)

No.1 ignition coil

B-02

(3-B)

No.2 ignition coil

B-03

(3-B)

No.3 ignition coil

B-04

(3-B)

No.4 ignition coil

B-05

(2-B)

Engine coolant temperature sensor

B-06

(64-GR) Engine-ECU

B-07

(48-GR) Engine-ECU

B-08

(6-B)

Electronic-controlled throttle valve

B-09

(2-B)

Purge control solenoid valve

B-10

(3-B)

Manifold absolute pressure sensor

B-11

(3-B)

Control wiring harness and engine sub
wiring harness combination

B-12

(1-L)

Engine oil pressure switch

B-13

(2-B)

Detonation sensor

B-14

(2)

Inlet oil feeder control valve

ENGINE AND TRANSMISSION (CONTINUED)

ACB04394

AC

Connector
symbol

-101
thru
-117

B

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

B-101

10

11

12

14

Battery (-)
wiring harness

Battery (+)
wiring harness

Control wiring
harness

Engine sub
wiring harness

B-102

B-103

B-104

B-105

B-106

B-107

B-108

B-109

B-110

B-111

B-112

B-113

B-114

B-115

B-116

B-117

B-101 (2-GR)

No.1 injector

B-102 (2-GR)

No.2 injector

B-103 (2-GR)

No.3 injector

B-104 (2-GR)

No.4 injector

B-105 (3-GR)

Inlet camshaft position sensor

B-106 (4-B)

Oxygen sensor (front)

B-107 (3-B)

Secondary pulley speed sensor

B-108 (22-B)

CVT assembly

B-109 (3-B)

Primary pulley speed sensor

B-110 (10-B)

Inhibitor switch

B-111 (3-GR)

Crank angle sensor

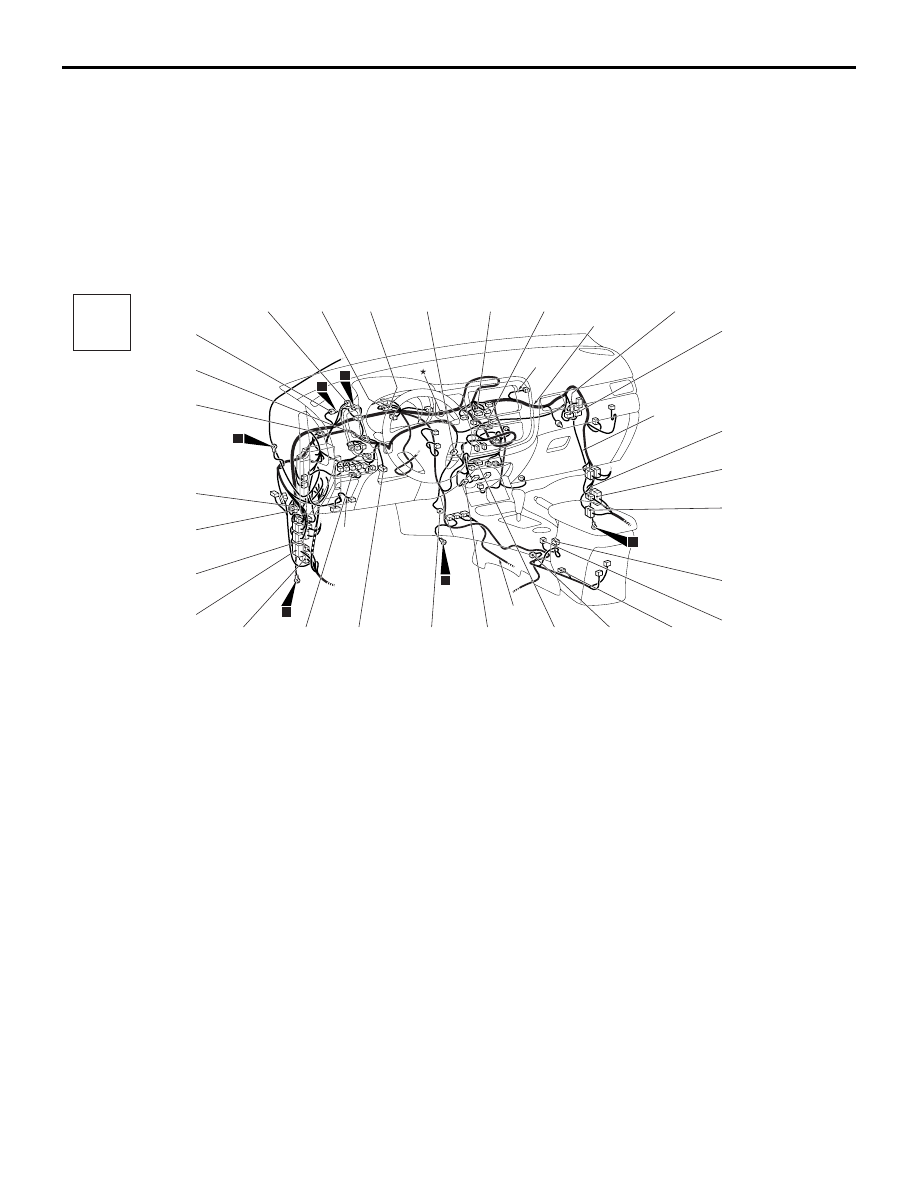

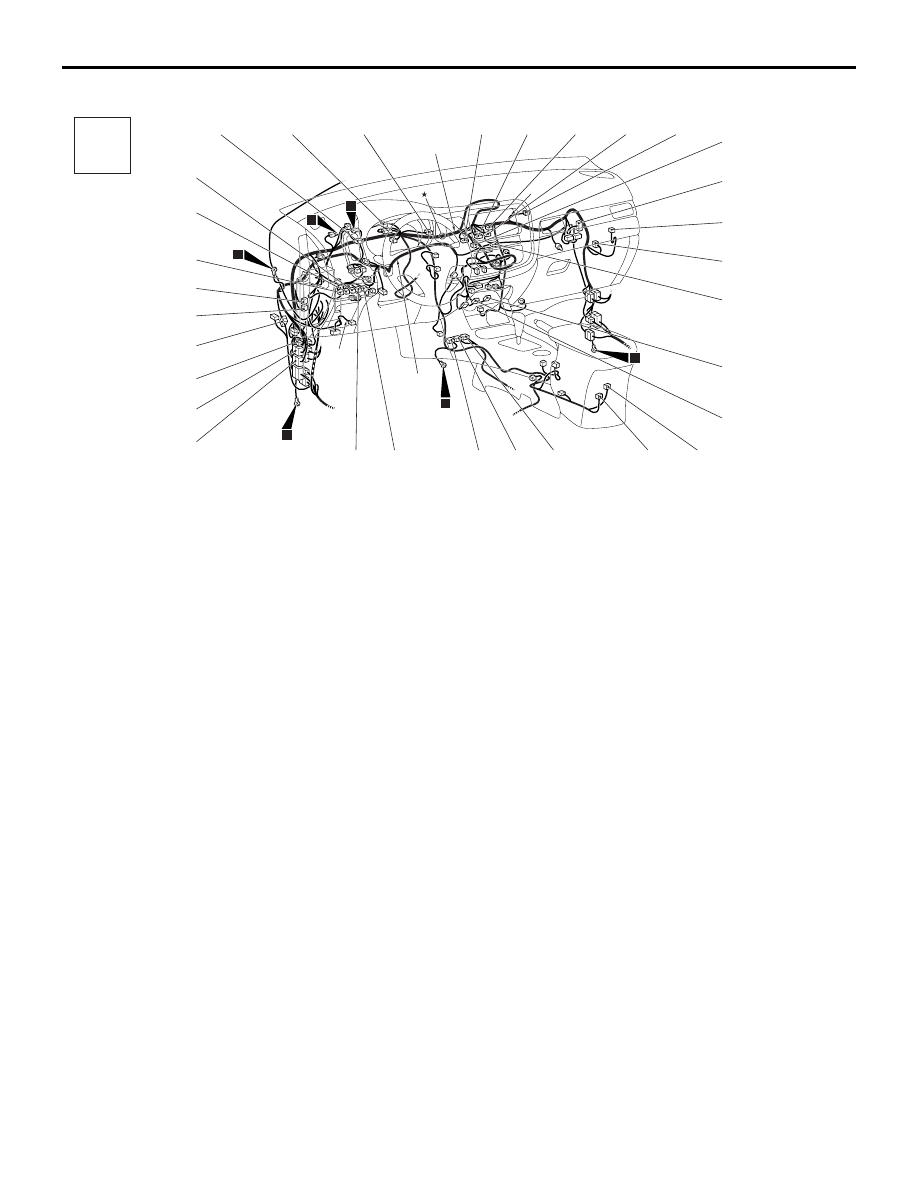

INSTRUMENT PANEL

CONFIGURATION DIAGRAMS

80-6

INSTRUMENT PANEL

M1801000702567

ACB04395

Connector
symbol

-01
thru
-30

C

2

4

16

17

18

19

AB

Y

Y

Instrument panel
wiring harness

Floor wiring
harness

Front wiring
harness

C-01

C-02

C-03

C-04

C-05

C-06

C-07
C-08

C-09

C-10

C-11

C-12

C-13

C-14

C-15

C-16

C-17
C-18

C-19

C-20

C-21

C-22

C-23

C-24

C-25

C-26

C-27

C-28

C-29

C-30

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

C-01

(22-B)

J/C (5)

C-02

(22-L)

J/C (1)

C-03

(22-L)

J/C (1)

C-04

(24)

Corner sensor/back sensor-ECU
<Vehicles with reversing sensor
system>

C-05

(12-L)

J/C (4)

C-06

(22)

Hazard indicator assembly

C-07

(24)

Receiver antenna module <Vehicles
without KOS>

C-08

(24)

KOS-ECU

C-09

(16)

KOS-ECU

C-10

(4)

Front wiring harness and floor wiring
harness combination

C-11

(18)

Instrument panel wiring harness and
floor wiring harness combination

C-12

(22-L)

Instrument panel wiring harness and
floor wiring harness combination

C-13

(9)

Heated seat switch

C-14

(10)

4WD switch

C-15

(5)

Inside transmission antenna assembly
(front) <Vehicles with KOS>

C-16

(10)

Selector lever assembly

C-17

(28)

USB box

C-18

(28)

Hands free-ECU

C-19

(2)

Cigarette lighter

C-20

(4-B)

Oxygen sensor (rear)

C-21

(6-B)

Accelerator pedal position sensor

C-22

(4)

Stop lamp switch

C-23

(22-L)

Instrument panel wiring harness and
floor wiring harness combination

C-24

(18)

Instrument panel wiring harness and
floor wiring harness combination

C-25

(10)

Instrument panel wiring harness and
floor wiring harness combination

C-26

(22-GR) J/C (CAN-LO)

C-27

(22-GR) J/C (CAN-HI)

C-28

(13-GR) J/C (6)

C-29

(22-GR) J/C (CAN1)

C-30

(11)

Earth J/C (Dash)

B-112 (1-B)

Control wiring harness and battery (+)
wiring harness combination

B-113 (1-B)

A/C compressor assembly

B-114 (1)

Alternator

B-115 (4-GR)

Alternator

B-116 (1)

Starter

B-117 (1-B)

Starter

INSTRUMENT PANEL

CONFIGURATION DIAGRAMS

80-7

INSTRUMENT PANEL (CONTINUED)

ACB04395

Connector
symbol

-101
thru
-136

C

AC

Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow

2

4

16

17

18

19

Front wiring
harness

Y

Instrument panel
wiring harness

C-101

C-102

C-103

C-105
C-106

C-104
C-135

C-107
C-108

C-109
C-110
C-136

C-111

C-112

C-113

C-114

C-115

C-116

C-117

C-118

C-119

C-120

C-121

C-122

C-123

C-124

C-125

C-126

C-127

C-128

C-129

C-130

C-131

C-132

C-133

C-134

Y

C-101 (24)

Combination meter

C-102 (13-GR) J/C (3)
C-103 (5)

No connection

C-104 (16-GR) Multivision display
C-105 (18)

Radio and CD player

C-106 (18)

Multivision display

C-107 (8-GR)

Radio and CD player

C-108 (8-GR)

Multivision display

C-109 (20)

Radio and CD player

C-110 (20)

Multivision display

C-111 (2-B)

Passenger's (front) air bag module
(squib)

C-112 (1)

Radio antenna

C-113 (32)

OSS-ECU <Vehicles with KOS>

C-114 (2)

Passenger's air bag cut off switch

C-115 (14)

No connection

C-116 (14-G)

CAN box unit <Vehicles with MMCS>

C-117 (2)

Key slot <Vehicles with KOS>

C-118 (2)

Electric tailgate main switch

C-119 (6-B)

Video adapter <Vehicles with rear
display>

C-120 (2)

Accessory socket

C-121 (15-Y)

SRS-ECU

C-122 (15-Y)

SRS-ECU

C-123 (30-Y)

SRS-ECU

C-124 (14-L)

Electric tailgate switch

C-125 (8)

No connection

C-126 (25)

Instrument panel wiring harness and
front wiring harness combination

C-127 (18-GR) Instrument panel wiring harness and

front wiring harness combination

C-128 (2)

Instrument panel wiring harness and
front wiring harness combination

C-129 (20)

Front wiring harness and floor wiring
harness combination

C-130 (22)

CVT-ECU

C-131 (26)

CVT-ECU

C-132 (8-B)

No connection

C-133 (5-B)

No connection

C-134 (14-GR) Sonar switch <Vehicles with reversing

sensor system>

C-135 (16-GR) Spare connector (for navigation)
C-136 (20)

Spare connector (for audio)
