COMPRESSOR ASSEMBLY

HEATER, AIR CONDITIONER AND VENTILATION

55-52

DISASSEMBLY AND REASSEMBLY

M1552004603539

AC808733

3

10

5

4

6

7

8

9

2

1

AC

16 ± 1 N·m

N

2.0 ± 0.2 N·m

5.9 ± 0.6 N·m

Refrigerant temperature
switch sealant: KE-347W

11

9.8 ± 2.0 N·m

Refrigerant temperature switch

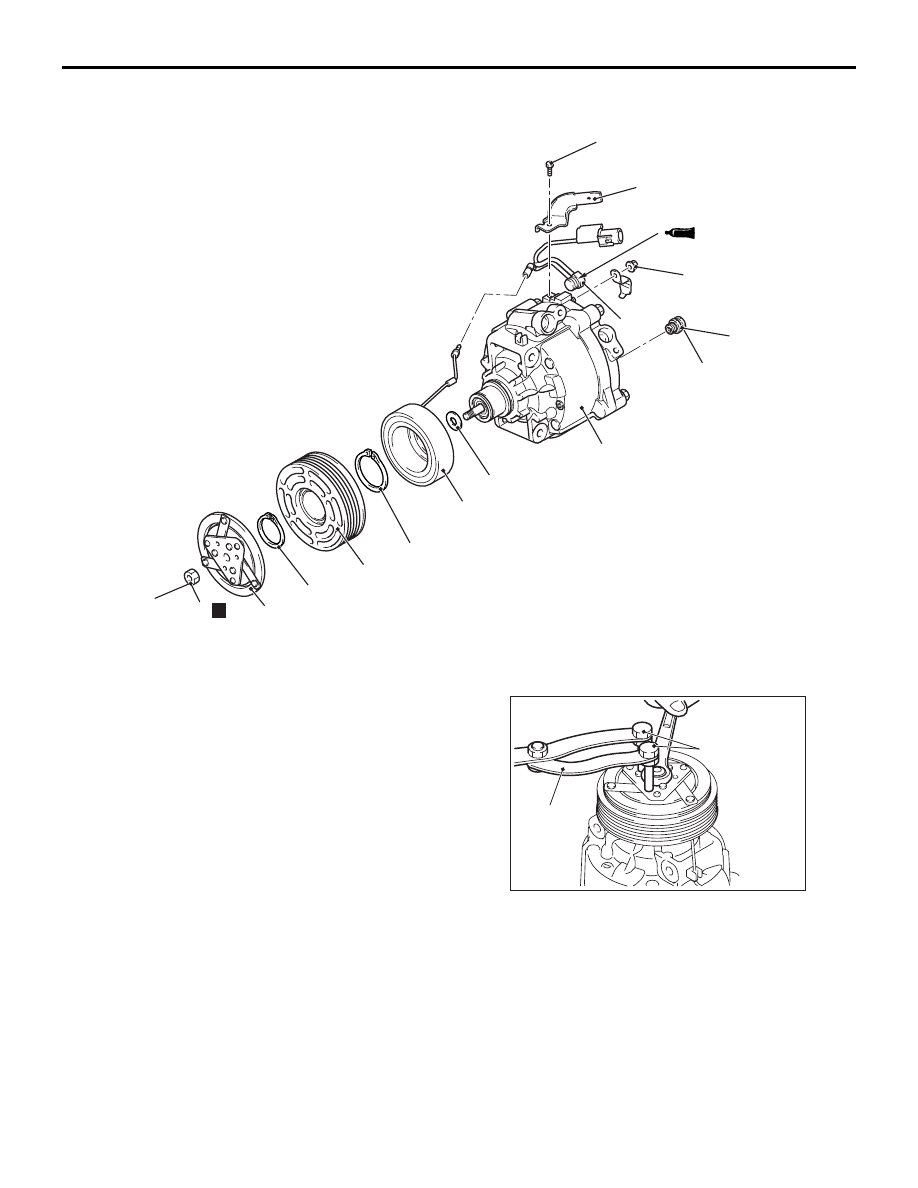

disassembly steps

1.

Bracket

2.

Refrigerant temperature switch
A/C compressor clutch
disassembly steps

>>

F

<<

•

Air gap adjustment

<<

A

>>

>>

E

<<

3.

Self-locking nut

4.

Armature

5.

Shim

>>

D

<<

6.

Snap ring

<<

B

>>

>>

C

<<

7.

Rotor

8.

Snap ring

>>

B

<<

9.

A/C compressor coil

10. A/C compressor

>>

A

<<

11. A/C compressor high pressure

relief valve

DISASSEMBLY SERVICE POINTS

<<A>> SELF-LOCKING NUT REMOVAL

AC709546AC

MB991386

MB991367

Use the special tools below to remove the self-lock-
ing nut.

<<B>> ROTOR REMOVAL

AC903375

MB992623

AB

Rotor

Threaded
shaft

MB990810

MD999566

COMPRESSOR ASSEMBLY

HEATER, AIR CONDITIONER AND VENTILATION

55-53

CAUTION

• Be sure to use the guide (MB992623) when

the side bearing puller (MB990810) is used to
prevent the damage of A/C compressor.

• If the threaded shaft of side bearing puller

(MB990810) is turned than necessary, the
rotor may be distorted. Therefore, turn the
threaded shaft lightly only by hand without
using any tools.

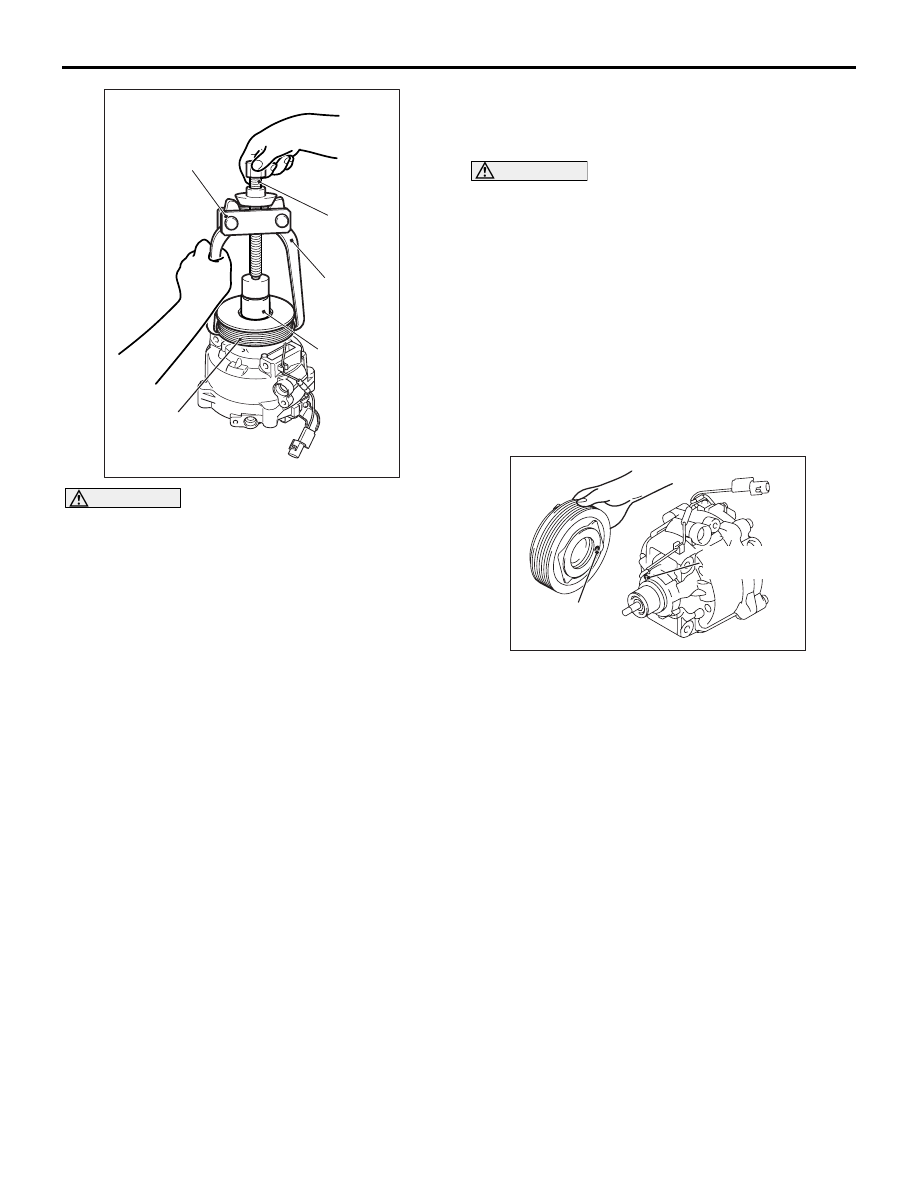

Rotor can be removed by hand, but if it is difficult to
remove it, use the guide (MB992623) and the side
bearing puller (MB990810) as shown.

REASSEMBLY SERVICE POINTS

>>A<< A/C COMPRESSOR HIGH PRES-
SURE RELIEF VALVE INSTALLATION

CAUTION

Be careful not to damage the O-ring when install-
ing the high-pressure relief valve. Apply the
specified refrigerating machine oil the high-pres-
sure relief valve mounting hole before installa-
tion

Check that O-ring is installed to the high-pressure
relief and use the adjust torque wrench to install the
high-pressure relief valve to the main body of the
compressor.

>>B<< A/C COMPRESSOR COIL
ATTACHMENT

AC709545AF

A/C compressor
coil projection

Compressor
unit pin hole

Line up the pin hole on the compressor unit with the
A/C compressor coil projection and attach.

COMPRESSOR ASSEMBLY

HEATER, AIR CONDITIONER AND VENTILATION

55-54

>>C<< ROTOR INSTALLATION

CAUTION

If the outer wheel side of rotor is pushed, an
abnormal noise can be generated because the
inside of rotor is damaged, therefore, always
push the inner wheel side.

AC902976

A/C compressor coil

MB992623

Rotor

MB992624

AC

AC902977

MB992623

MB992624

Rotor

A/C compressor
coil

AB

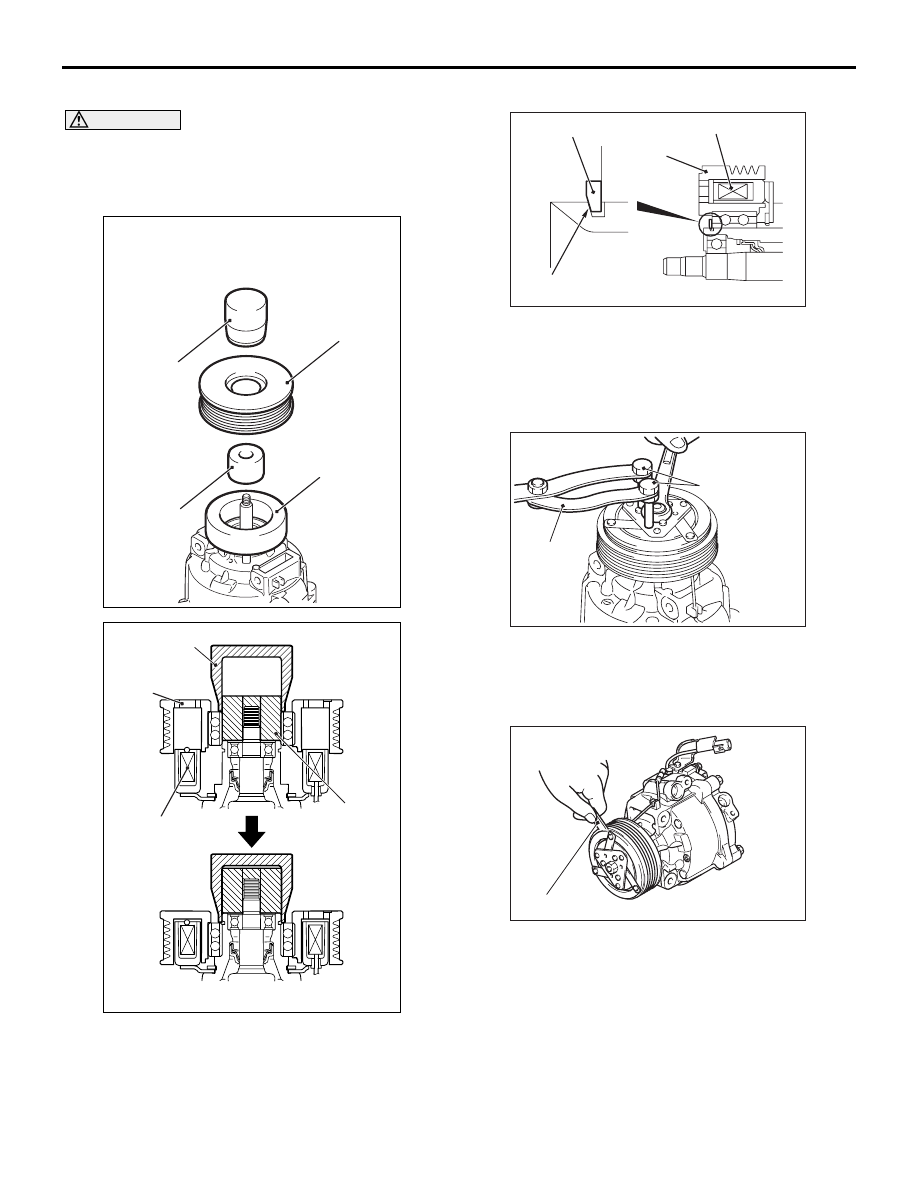

Install the rotor while pushing the inner wheel side
slowly using the pusher (MB992624) and guide
(MB992623).

NOTE: Insert the rotor in a direction perpendicular to
the A/C compressor.

>>D<< SNAP RING INSTALLATION

AC209126AD

Snap ring

Rotor

A/C compressor coil

Tapered part

Using snap ring pliers, fit the snap ring so that the
snap ring’s tapered part is on the outside.

>>E<< SELF-LOCKING NUT
INSTALLATION

AC709546AC

MB991386

MB991367

Using a special tool, as when removing the nut,
secure the armature and tighten the self-locking nut.

>>F<< AIR GAP ADJUSTMENT

AC707121

Thickness gauge

AE

Check whether or not the air gap of the clutch is
within the standard value.

Standard value:

 0.25

− 0.45 mm

NOTE: If there is a deviation of the air gap from the
standard value, make the necessary adjustment by
adjusting the number of shims.

INSPECTION

M1552004701239

COMPRESSOR ASSEMBLY

HEATER, AIR CONDITIONER AND VENTILATION

55-55

REFRIGERANT TEMPERATURE SWITCH

CAUTION

Do not heat than necessary.

AC102063 AB

Thermometer

Engine oil

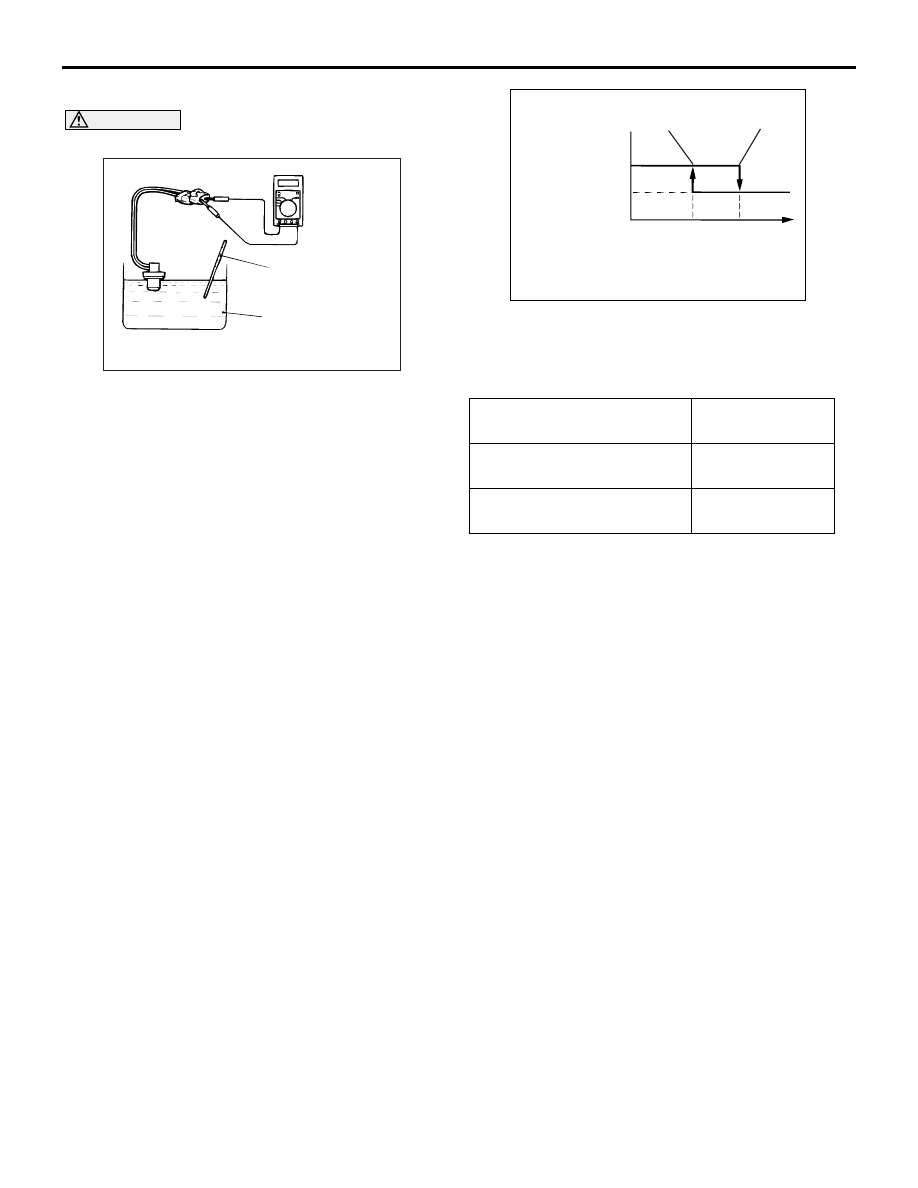

1. Immerse the refrigerant temperature sensor probe

into engine oil to heat the sensor probe.

AC100810

Less than 2

No continuity

120˚C

135˚C

AZ

Oil temperature

2. If the oil temperature reaches the standard value,

there should be continuity between the switch
terminals.

Standard value:

Switch status

Operating
temperature

°C

Being turned off (No
continuity)

135

Being turned on { Continuity
exists (2

Ω or less)}

120

NOTE: When the oil temperature is 135

°

C or

more and there is no continuity, the switch will not
be turned on {Continuity exists (2

Ω

 or less)} until

the temperature reduces to 120

°

C or less.
