Mitsubishi Outlander (2013+). Manual - part 689





MB992006

REAR VIEW CAMERA

CHASSIS ELECTRICAL

54A-241

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1540902300238

Refer to GROUP 00

− Contents of troubleshooting .

TROUBLE SYMPTOM CHART

M1540900300533

Trouble symptom

Inspection
Procedure No.

Reference
page

Rear view camera image is not correctly
displayed

Vehicles with display
audio

1

P.54A-241

SYMPTOM PROCEDURES

Inspection Procedure 1: Rear view camera image is not correctly displayed <Vehicles with display
audio>.

CAUTION

Before replacing the rear view camera or radio
and CD player, ensure that the power supply cir-
cuit, the earth circuit, and the communication cir-
cuit are normal (Check that the voltage is 10 V or
more).

COMMENTS ON TROUBLE SYMPTOM

When the screen of rear view camera is not shown
even if the selector lever is "R" (Reverse) position,
the rear view camera, the radio and CD player, the
wiring harness, connectors, inhibitor switch may be
defective.

PROBABLE CAUSES

• Damaged harness wires and connectors

• Malfunction of the rear view camera

• Malfunction of the radio and CD player

• Malfunction of the inhibitor switch

• Malfunction of CAN bus line

DIAGNOSIS PROCEDURE

STEP 1. Check the radio and CD player
operation.
Check if the radio and CD player normally and the
sound is output.

Q: Is the check result normal?

YES :

Go to Step 2

NO :

Troubleshoot the radio and CD player.
(Refer to

P.54A-228

.)

STEP 2. Confirmation in display audio service
mode.
(1) Display the "Vehicle Signal Check" screen (Refer

to

P.54A-211

).

(2) Move the selector lever to the "R" (reverse)

position.

(3) Check that "Shift Position R" is "ON."

Q: Is the check result normal?

YES :

Go to Step 5

NO :

Go to Step 3

STEP 3. M.U.T.-III CAN bus diagnostics
Use the M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

REAR VIEW CAMERA

CHASSIS ELECTRICAL

54A-242

YES :

Go to Step 4

NO :

Repair the CAN bus line (Refer to GROUP
54C

− Troubleshooting ).

STEP 4. Check of short to power supply, short to
earth, and open circuit in BLP1 line between
ETACS-ECU connector and inhibitor switch
connector

Q: Is the check result normal?

YES :

Go to Step 7

NO :

Repair the connector(s) or wiring harness.

STEP 5. Confirmation in display audio service
mode.
(1) Display the "External Device Connection Check"

screen (Refer to

P.54A-211

).

(2) Check that "Rear Camera" is "OK."

Q: Is the check result normal?

YES :

Go to Step 7

NO :

Go to Step 6

STEP 6. Check of short to power supply, short to
earth, and open circuit in CACC, CDET, CGND,
CMP+, CMP- line between radio and CD player
connector and rear view camera connector

Q: Is the check result normal?

YES :

Go to Step 7

NO :

Repair the connector(s) or wiring harness.

STEP 7. Trouble symptom recheck.
Check that the display of rear view camera is shown
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunctions ).

NO :

Replace the rear view camera temporarily
and go to Step 8.

STEP 8. Trouble symptom recheck.
Check that the display of rear view camera is shown
normally.

Q: Is the check result normal?

YES :

Replace the rear view camera.

NO :

Replace the radio and CD player.

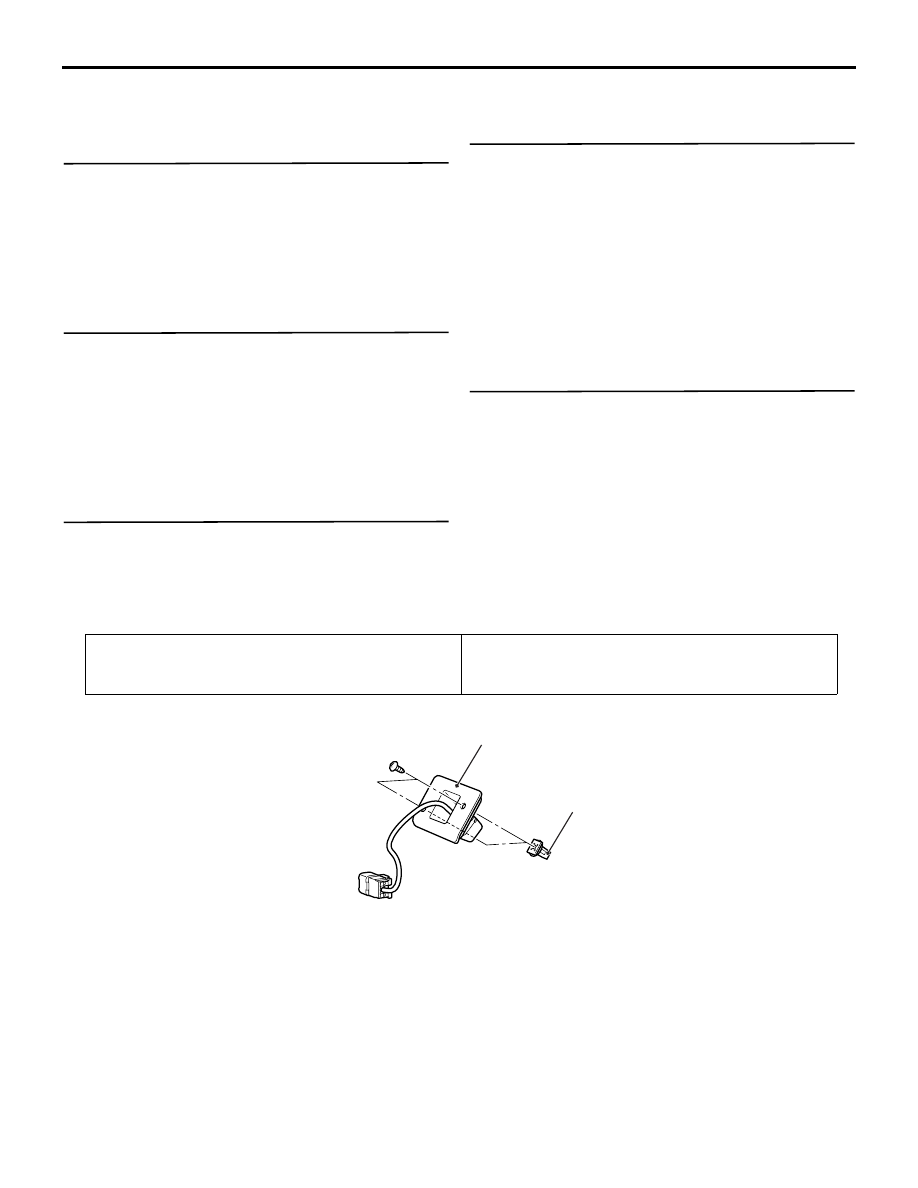

REAR VIEW CAMERA

REMOVAL AND INSTALLATION

M1540901800166

Pre-removal Operation
• Tailgate Trim Removal (Refer to GROUP 52A − Tailgate

Trim ).

Post-installation Operation
• Tailgate Trim Installation (Refer to GROUP 52A − Tailgate

Trim ).

ACB05391AB

1

2

Removal steps

1.

Rear view camera

2.

Grommet

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

CHASSIS ELECTRICAL

54A-243

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

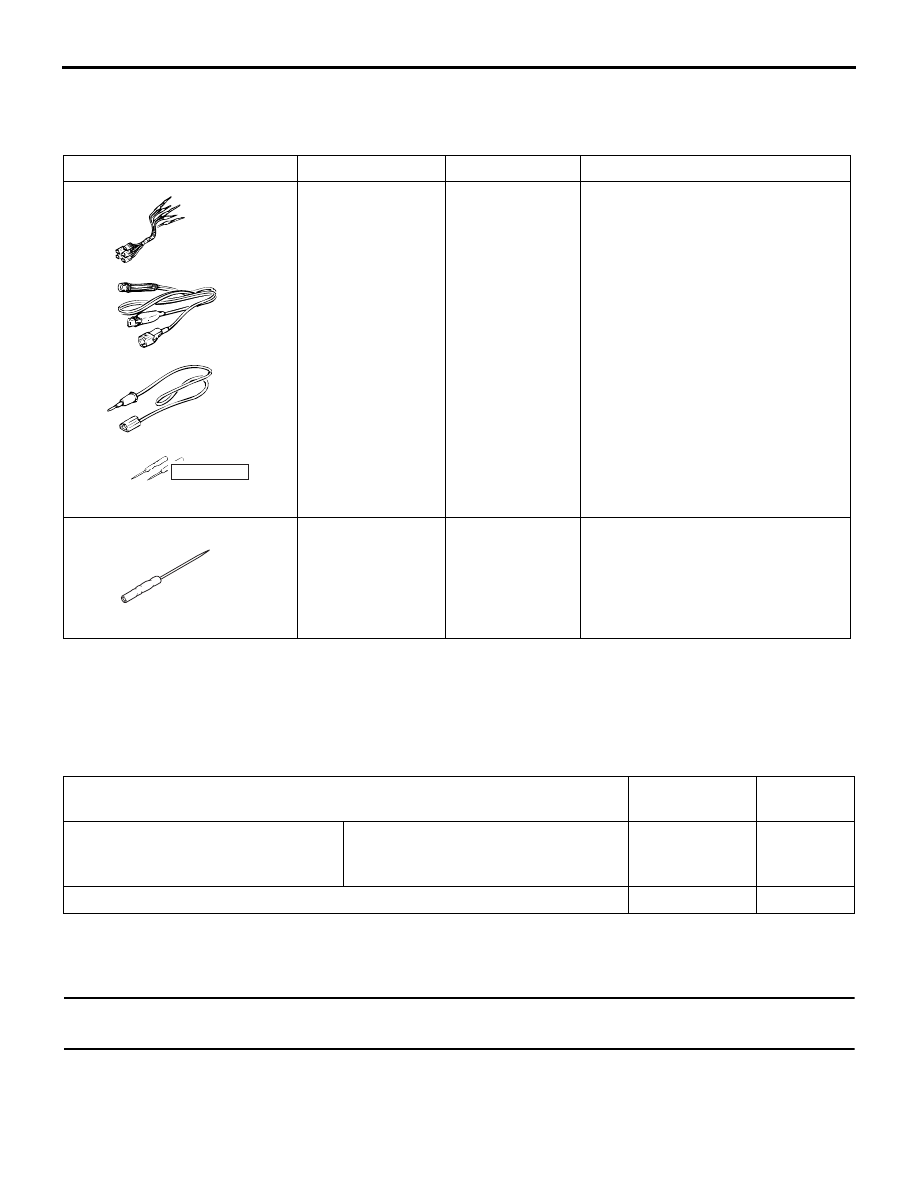

SPECIAL TOOLS

M1544000600759

Tool

Number

Name

Use

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a: MB991219
b: MB991220
c: MB991221
d: MB991222

Harness set

a: Test harness
b: LED harness
c: LED harness

adapter

d: Probe

Making voltage and resistance
measurements during
troubleshooting

a: Connect pin contact pressure

inspection

b: Power circuit inspection
c: Power circuit inspection
d: Commercial tester connection

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1544004800540

Refer to GROUP 00

− Contents of troubleshooting .

TROUBLE SYMPTOM CHART

M1544004902770

Trouble symptom

Inspection
Procedure No.

Reference
page

Steering wheel remote control switch
(audio remote control switch) does
not function.

<vehicles with radio and CD player>

1

P.54A-243

Steering wheel remote control switch illumination does not come on.

2

P.54A-244

SYMPTOM PROCEDURES

Inspection Procedure 1: Steering wheel remote control switch (audio remote control switch) does not
function. <Vehicles with radio and CD player>

TECHNICAL DESCRIPTION (COMMENT)

The power supply circuit to the steering wheel
remote control switch (audio remote control switch),
the steering wheel remote control switch, the radio

and CD player, or the clock spring may be defective.

STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

CHASSIS ELECTRICAL

54A-244

TROUBLESHOOTING HINTS

• Malfunction of steering wheel remote control

switch

• Malfunction of radio and CD player

• Malfunction of the clock spring

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the steering wheel remote control
switch.
Check the steering wheel remote control switch
(Refer to

P.54A-245

).

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the steering wheel remote control
switch.

STEP 2. Check the clock spring.
Check whether the clock spring is in good condition.
Refer to GROUP 52B

− Air bag module and clock

spring .

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the clock spring.

STEP 3. Check of short to power supply, short to
earth, and open circuit in REM+, REM- line
between radio and CD player connector and
steering wheel remote control switch connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector(s) or wiring harness.

STEP 4. Retest the system
Check whether you can operate the radio and CD
player by using the steering wheel remote control
switch.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the radio and CD player.

Inspection Procedure 2: Steering wheel remote control switch illumination does not come on.

TECHNICAL DESCRIPTION (COMMENT)

The power supply circuit to the steering wheel
remote control switch, the steering wheel remote
control switch, the combination meter, or the clock
spring may be defective.

PROBABLE CAUSES

• Malfunction of steering wheel remote control

switch

• Malfunction of combination meter

• Malfunction of the clock spring

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the steering wheel remote control
switch.
Check the steering wheel remote control switch
(Refer to

P.54A-245

).

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the steering wheel remote control
switch.

STEP 2. Resistance measurement at steering
wheel remote control switch connector (earth
terminal)
(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Measure the resistance between the steering

wheel remote control switch connector (earth
terminal) and body earth.

OK: Continuity exists (2

 or less)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

STEP 3. Check of open circuit in earth line
between steering wheel remote control switch
connector and the body earth

Q: Is the check result normal?

YES :

Intermittent malfunction is suspected (Refer

to GROUP 00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Repair the connector(s) or wiring harness.
