STEERING WHEEL AUDIO REMOTE CONTROL SWITCH

CHASSIS ELECTRICAL

54A-245

STEP 4. Check the clock spring.
Check whether the clock spring is in good condition.
Refer to GROUP 52B

− Air bag module and clock

spring .

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the clock spring.

STEP 5. Check of short to power supply, short to
earth, and open circuit in ILL+ line between
combination meter connector and steering wheel
remote control switch connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the connector(s) or wiring harness.

STEP 6. Retest the system
Check whether the illumination of the steering wheel
remote control switch comes on normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the combination meter.

STEERING WHEEL AUDIO REMOTE
CONTROL SWITCH

REMOVAL AND INSTALLATION

M1544015600302

For the steering wheel remote control switch removal
and installation procedures, refer to GROUP 37

−

Steering .

STEERING WHEEL AUDIO REMOTE
CONTROL SWITCH CHECK

M1544015700406

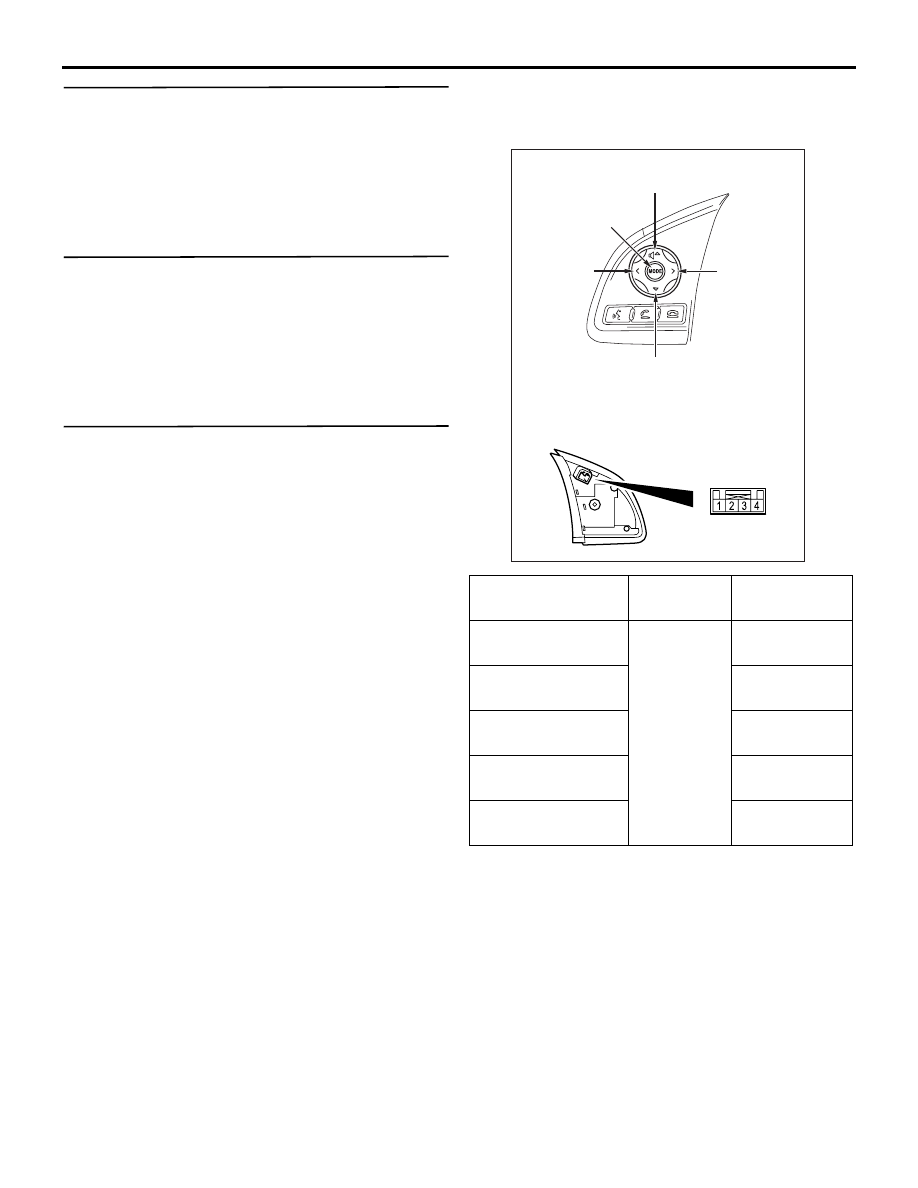

ACB06026AB

"MODE" switch

"CH UP"
switch

"CH DOWN"
switch

"VOL UP"
switch

"VOL DOWN"
switch

Switch Position

Tester
Connection

Resistance

"MODE" switch
pushed

− 2

Approximately
270

"CH UP" switch
pushed

Approximately
740

"CH DOWN" switch
pushed

Approximately
1.3 k

"VOL UP" switch
pushed

Approximately
2.1 k

"VOL DOWN"
switch pushed

Approximately
3.1 k

ILLUMINATION CHECK

Apply the battery voltage to the connector terminal
No. 3, earth the terminal No. 4, and then check that
the illumination lights up.

USB

CHASSIS ELECTRICAL

54A-246

USB

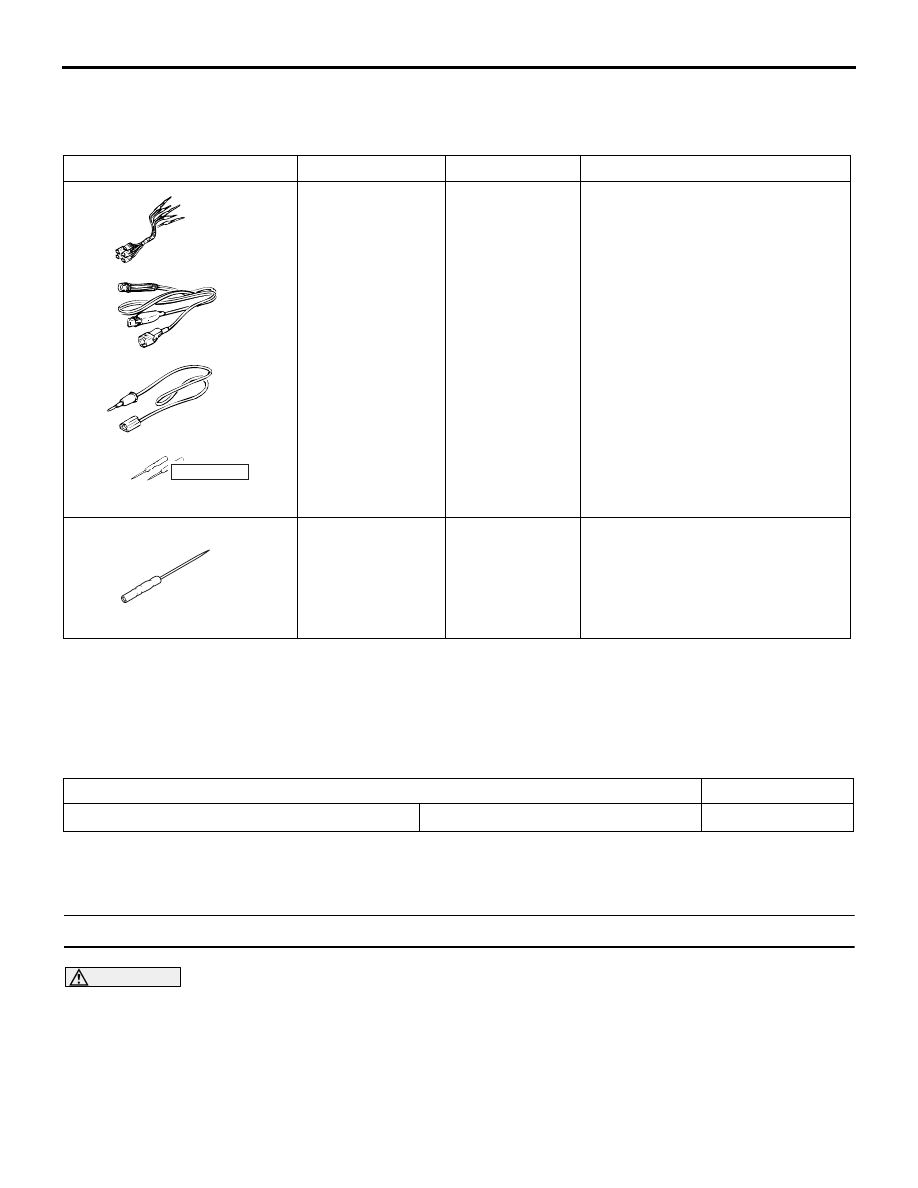

SPECIAL TOOLS

M1549100300017

Tool

Number

Name

Use

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check

harness

b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally sourced

tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M1549100400014

Refer to GROUP 00

− Contents of troubleshooting .

TROUBLE SYMPTOM CHART

M1549100500260

Trouble symptom

Reference page

The USB adapter data cannot be replayed.

<Vehicles without display audio>

P.54A-246

SYMPTOM PROCEDURES

The USB adapter data cannot be replayed. <Vehicles without display audio>

CAUTION

Whenever the radio and CD player is replaced,
ensure that the input signal circuit is normal.
Check that the USB memory device or iPod

® is

also normal.

COMMENTS ON TROUBLE SYMPTOM

If the sound replay is impossible with the USB/iPod

®

mode, the USB cable or radio and CD player may be

defective.

NOTE: Before troubleshooting, check that the music
file (the customer tried to replay) can be replayed.

PROBABLE CAUSES

• The radio and CD player may be defective.

• The USB cable may be defective.

• Damaged harness wires and connectors

USB

CHASSIS ELECTRICAL

54A-247

DIAGNOSIS PROCEDURE

STEP 1. Check if the error message is displayed
on the radio and CD player.
(Refer to

P.54A-210

.)

Q: Is the error message displayed on the monitor?

YES  :

Refer to error massage (refer to

P.54A-210

), take necessary steps. If the

USB memory/iPod

® is still not be played,

go to Step 2.

NO :

Go to Step 2

STEP 2. Check the USB adapter.
Check if the USB adapter works normally. (Refer to

P.54A-249

.)

Q: Is the check result normal?

YES :

Go to Step 3

NO :

Replace the USB adapter.

STEP 3. Check the USB cable.
Check that the USB cable is connected to the radio
and CD player normally. Or check the USB cable for
damage such as bend.

Q: Is the check result normal?

YES :

Go to Step 4

NO :

Replace or repair the USB cable.

STEP 4. Retest the system
Check whether an audio file, which is stored in the
USB memory/iPod

®, can be played.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Replace the radio and CD player.

USB

CHASSIS ELECTRICAL

54A-248

USB

REMOVAL AND INSTALLATION

M1549101300344

Pre-removal Operation
• Radio and CD Player Removal (Refer to

P.54A-233

<Vehicles without MMCS>.

• Multivision Display Removal (Refer to

P.54A-238

) <Vehi-

cles with MMCS>.

• Centre Lower Box Assembly and Centre Lower Panel

Assembly Removal (Refer to GROUP 52A

− Instrument

Panel Assembly ).

• Selector Lever Assembly Removal (Refer to GROUP 23A

− Transmission Control ).

• Floor Console Trim Plate Bracket Removal (Refer to

GROUP 52A

− Front Floor Console Assembly ).

Post-installation Operation
• Floor Console Trim Plate Bracket Installation (Refer to

GROUP 52A

−Front Floor Console Assembly ).

• Selector Lever Assembly Installation (Refer to GROUP

23A

− Transmission Control ).

• Centre Lower Box Assembly and Centre Lower Panel

Assembly Installation (Refer to GROUP 52A

− Instrument

Panel Assembly ).

• Radio and CD Player Installation (Refer to

P.54A-233

<Vehicles without MMCS>.

• Multivision Display Installation (Refer to

P.54A-238

<Vehicles with MMCS>.

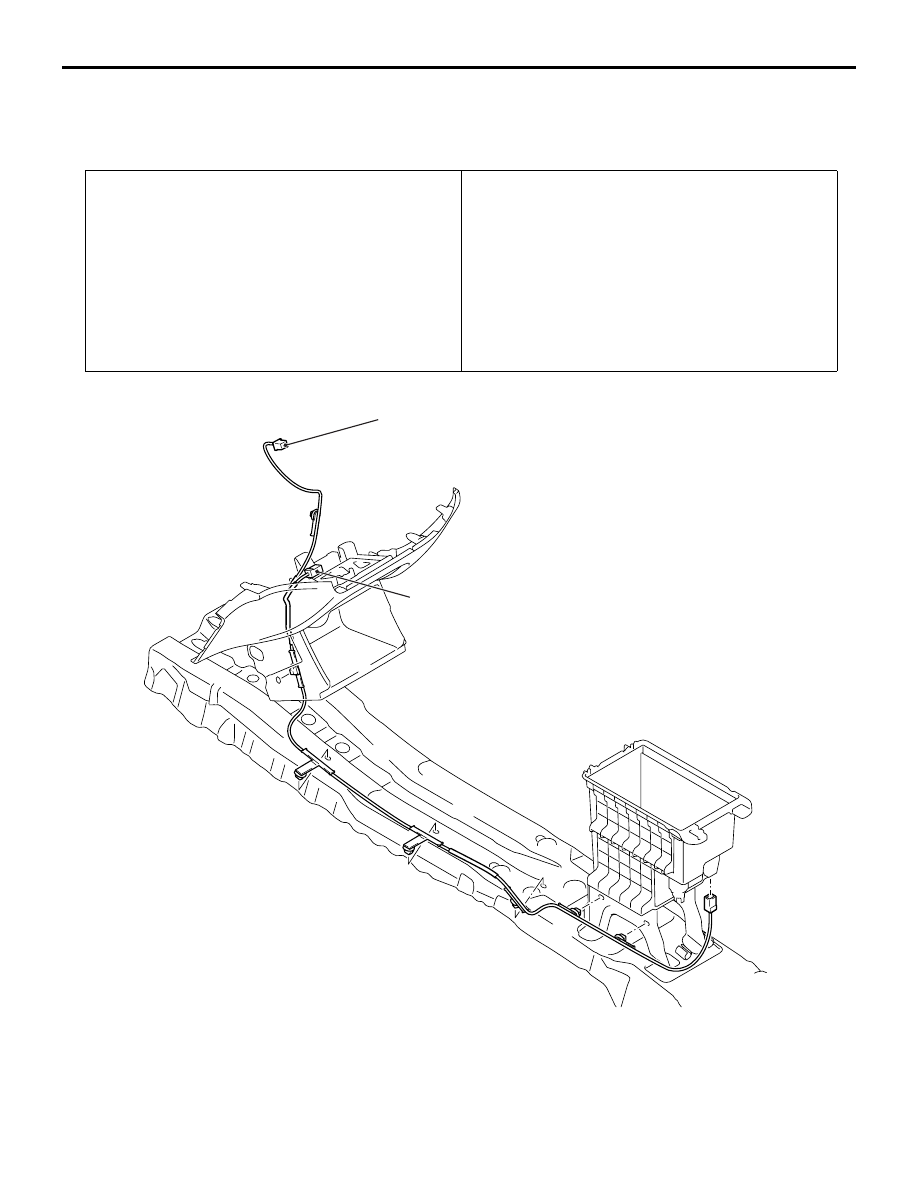

ACB05454

AB

USB cable

<Vehicles without hands-free interface system>

USB cable

<Vehicles with hands-free interface system>
