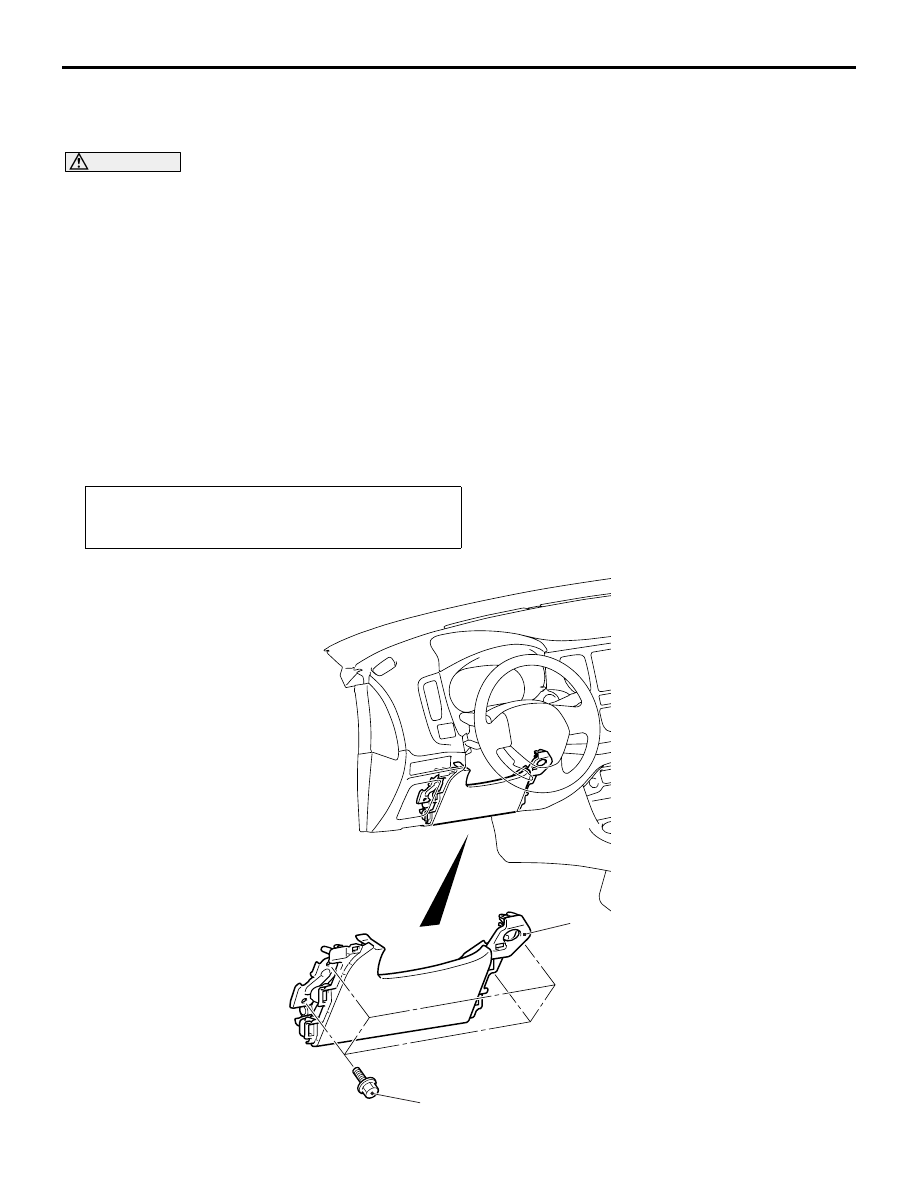

KNEE AIR BAG MODULE

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-139

KNEE AIR BAG MODULE

REMOVAL AND INSTALLATION

M1524044000319

CAUTION

• Disconnect the negative () battery terminal and wait for 60 seconds or more before starting work.

Insulate the disconnected (

) terminal by wrapping the tape (Refer to the item 5 of Service Precau-

tions

P.52B-7

).

• Never attempt to disassemble or repair the air bag module. If faulty, replace it with new one(s).
• Handle the air bag module with sufficient caution, and do not drop the module or allow contact

with water, oil, or others. If denting, cracking, or deformation is discovered, replace it with new
one(s).

• Store the air bag module on a flat surface. Also, do not put anything on it.
• Do not store the air bag modules in a place more than 93°C.
• After the knee air bag deployment, replace the knee air bag module with a new part.
• Put on gloves and safety glasses when handling deployed air bags.
• When discarding the air bag module, make sure to deploy the air bag before the disposal (Refer to

P.52B-152

)

Pre-removal operation
• Turn the ignition switch to the LOCK (OFF) position.

• Disconnect the negative (−) battery terminal.

ACB05623

1

AB

5.0 ± 1.0 N·m

Removal steps

Side lower panel assembly (LH),
Centre lower panel assembly
(Refer to GROUP 52A, Instrument
Panel Assembly ).

<<A>>

1.

Knee air bag module
Installation steps

>>A<<

Pre-installation inspection

>>B<<

1.

Knee air bag module

Side lower panel assembly (LH),
Centre lower panel assembly
(Refer to GROUP 52A, Instrument
Panel Assembly ).

>>C<<

Post-installation inspection

KNEE AIR BAG MODULE

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-140

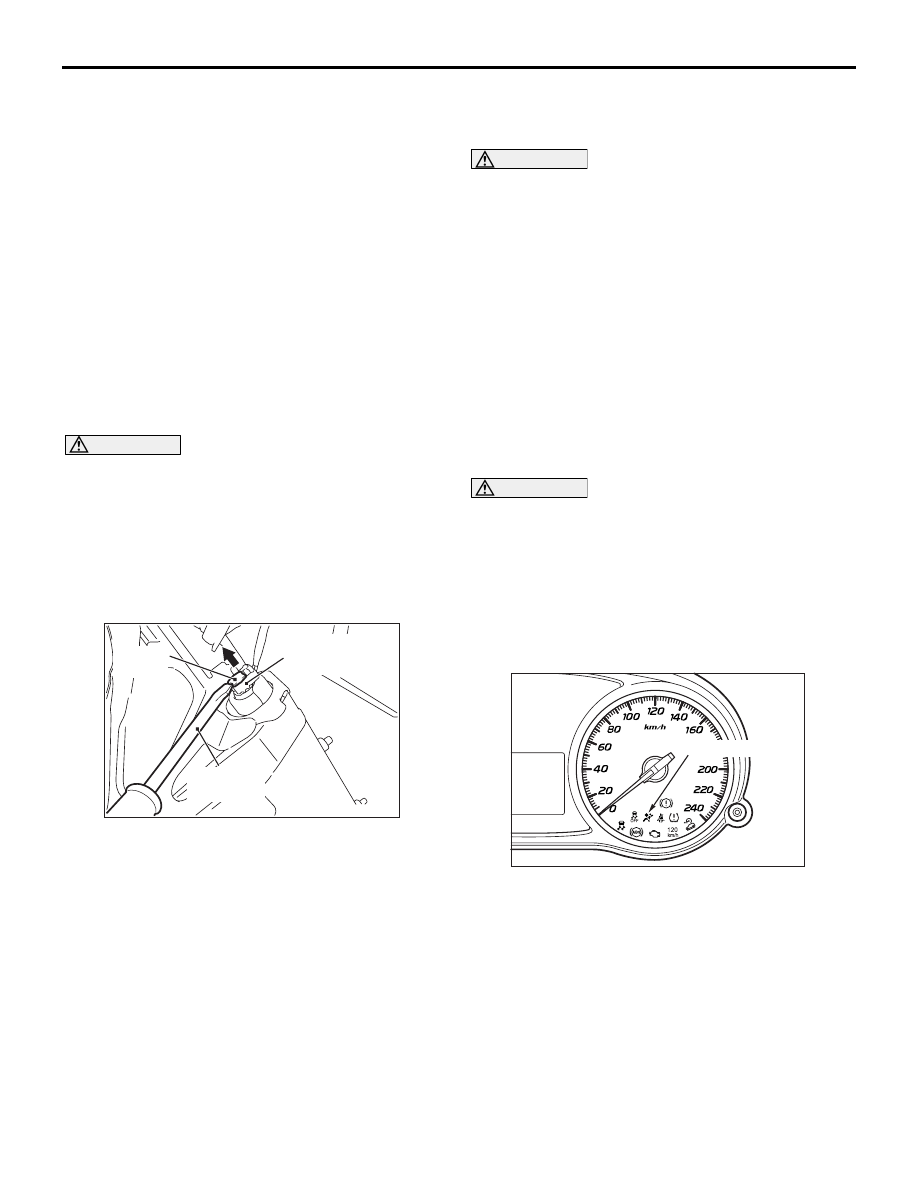

REMOVAL SERVICE POINTS

<<A>> KNEE AIR BAG MODULE
REMOVAL

CAUTION

• Never use an electric tester to diagnose the

air bag module circuit. Never attempt to dis-
assemble the air bag module.

• The removed air bag module should be stored

in a clean, dry place.

• When discarding the air bag module, discard

after deploying the air bag as specified in the
service procedure (Refer to

P.52B-152

).

AC609126

Harness
side connector

Flat-tipped
screwdriver

Locking
button

AJ

Use the flat-tipped screwdriver to pull out the locking
button of wiring harness side connector, and release
the lock.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

1. Before the installation, check the air bag module

(Refer to

P.52B-146

).

NOTE: Even when installing a new air bag mod-
ule, perform an inspection before the installation.

2. Connect the negative (

−) battery terminal.

CAUTION

Be sure to turn the ignition key to the LOCK
(OFF) position when connecting or disconnect-
ing M.U.T.-III.

3. Connect M.U.T.-III to the diagnosis connector (16

pin).

4. Turn the ignition switch to the ON position.

5. Read the diagnosis code, and check that

everything is normal except the air bag module
open circuit.

6. Turn the ignition switch to the LOCK (OFF)

position.

>>B<< KNEE AIR BAG MODULE
INSTALLATION

CAUTION

• Take care not to contort the knee air bag when

installing it.

• Connect the connector to the inflator thor-

oughly.

>>C<< POST-INSTALLATION
INSPECTION

1. Turn the ignition switch to the "ON" position.

ACC00038AB

SRS warning lamp

2. Check that the SRS warning lamp is illuminated

for 6 to 8 seconds, and extinguished afterward.

3. If the lamp does not extinguish, perform the

troubleshooting (Refer to

P.52B-13

).

KNEE AIR BAG MODULE

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-141

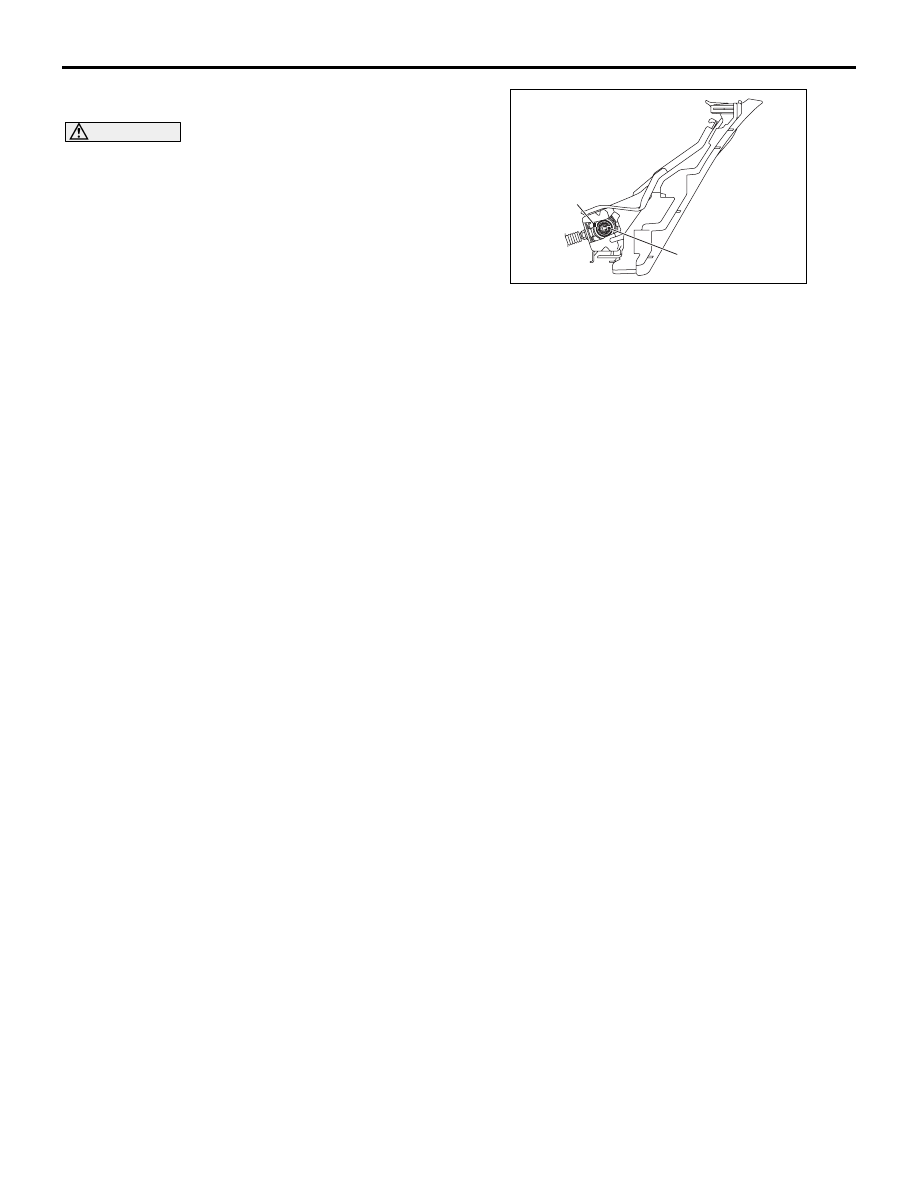

 INSPECTION

M1524044100123

CAUTION

• Never measure the knee air bag module cir-

cuit resistance even with the specified tester.
Measuring the circuit resistance with a tester
causes accidental air bag deployment due to
current that flows or static, resulting in seri-
ous personal injury.

• When replacing the parts, discard the old

parts after deploying the air bag according to
the specified procedure (Refer to

P.52B-152

).

• There must be no abnormality to the knee air

bag deployment section of headlining.

If any malfunction is found in the following inspec-
tions, replace with a new knee air bag module.

ACB05538AB

Squib connectors

Inflator

1. Crack, dent or deformation to inflator surface

2. Torn air bag

3. Damaged connector, deformation of terminal, and

harness binding

SIDE-AIRBAG MODULE(S)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-142

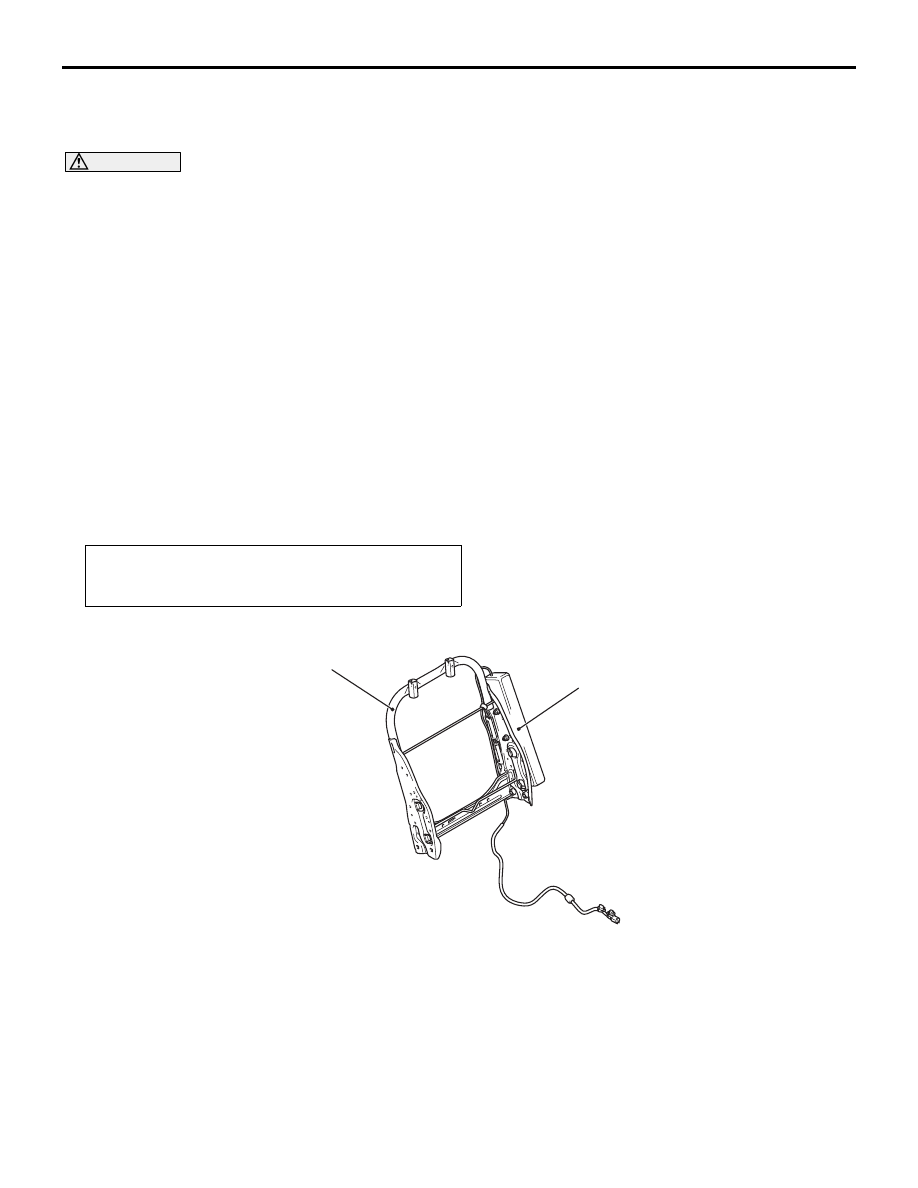

SIDE-AIRBAG MODULE(S)

REMOVAL AND INSTALLATION

M1524036500740

CAUTION

• Disconnect the negative auxiliary battery terminal and wait for 60 seconds or more before starting

work. Insulate the disconnected (

) terminal by wrapping the tape (Refer to the item 5 of Service

Precautions

P.52B-7

).

• Never attempt to disassemble or repair the air bag module. If faulty, replace it with new one(s).
• Handle the front seatback frame (with side-airbag module) with sufficient caution, and do not drop

the assembly or allow contact with water, oil, or others. If denting, cracking, or deformation is dis-
covered, replace it with new one(s).

• Store the front seatback frame (with side-airbag module) on a flat surface. Also, do not put any-

thing on it.

• Do not store the front seatback frame (with side-airbag module) in a place where the temperature

exceeds 93

°C.

• After the side-airbag deployment, replace the front seatback frame (with side-airbag module) with

the new one.

• Put on gloves and safety glasses when handling deployed air bags.
• When discarding the air bag module, make sure to deploy the air bag before the disposal (Refer to

P.52B-152

).

Pre-removal operation
• Electric motor switch to the "ON" position.

• Disconnect the negative auxiliary battery terminal.

ACA03093

1

AB

Side-airbag module

Removal step

Front seat assembly (Refer to
GROUP 52A

− Front Seat

Assembly )

<<

A

>>

1.

Front seatback frame (with
side-airbag module) (Refer to
GROUP 52A

− Front Seat

Assembly )

Installation step

>>

A

<<

Pre-installation inspection

1.

Front seatback frame (with
side-airbag module) (Refer to
GROUP 52A

− Front Seat

Assembly )

Front seat assembly (Refer to
GROUP 52A

− Front Seat

Assembly )

>>

B

<<

Post-installation inspection
