Mitsubishi Outlander (2013+). Manual - part 623





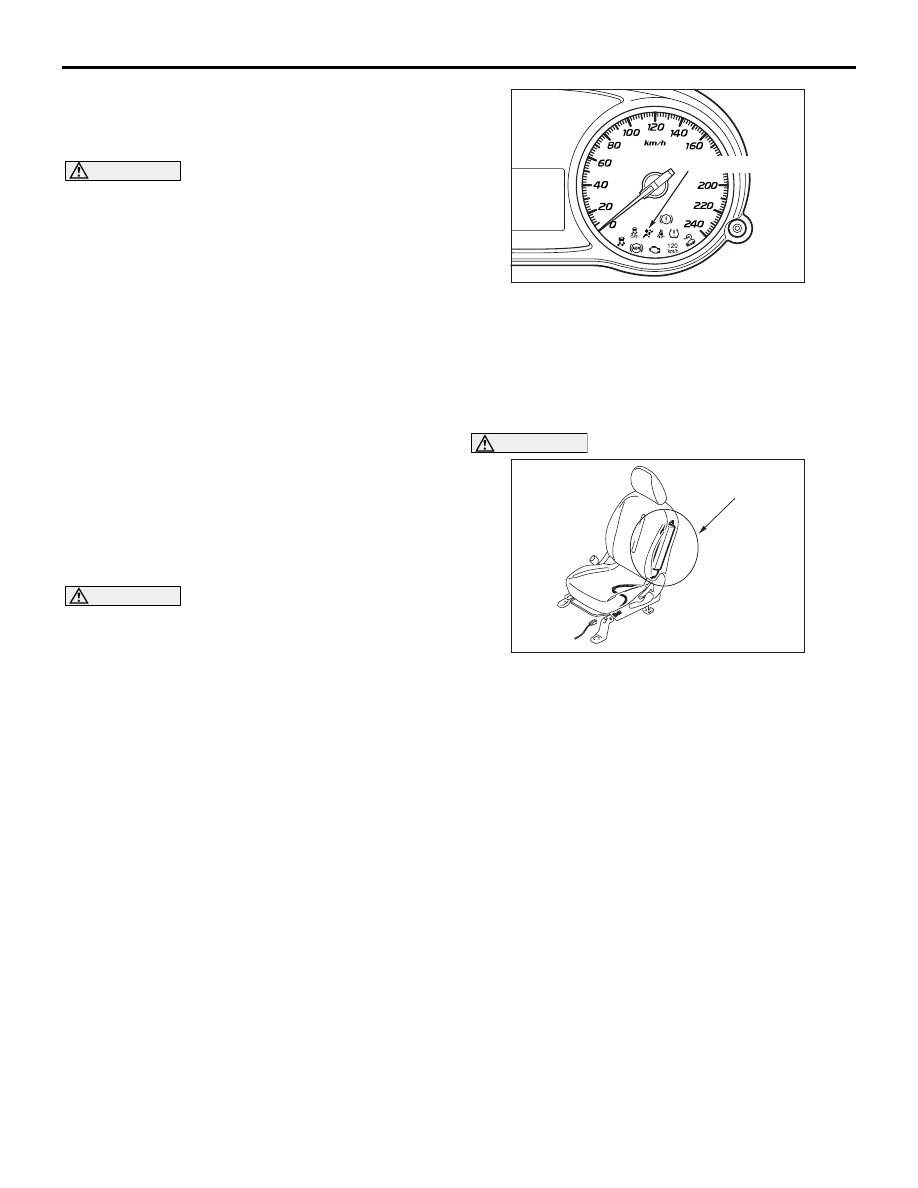

SIDE-AIRBAG MODULE(S)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-143

REMOVAL SERVICE POINT

<<A>> FRONT SEATBACK FRAME (WITH
SIDE-AIRBAG MODULE) REMOVAL

CAUTION

• When replacing the side-airbag module,

replace the front seatback frame.

• Never use an electric tester to diagnose the

air bag module circuit. Never attempt to dis-
assemble the air bag module.

• Store the removed front seatback frame in a

clean and dry place.

• When discarding the air bag module, discard

after deploying the air bag as specified in the
service procedure (Refer to

P.52B-152

).

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

1. Before the installation, check the air bag module

(Refer to

P.52B-143

).

NOTE: Even when installing a new front seatback
frame (with side-airbag module), perform an
inspection before the installation.

2. Connect the negative auxiliary battery terminal.

CAUTION

Be sure to turn the ignition key to the LOCK
(OFF) position when connecting or disconnect-
ing M.U.T.-III.

3. Connect M.U.T.-III to the diagnosis connector (16

pin).

4. Turn the ignition switch to the ON position.

5. Read the diagnosis code, and check that

everything is normal except the air bag module
open circuit.

6. Electric motor switch to the "ON" position.

>>B<< POST-INSTALLATION
INSPECTION

1. Turn the ignition switch to the "ON" position.

ACC00038AB

SRS warning lamp

2. Check that the SRS warning lamp is illuminated

for 6 to 8 seconds, and extinguished afterward.

3. If the lamp does not extinguish, perform the

troubleshooting (Refer to

P.52B-13

).

INSPECTION

M1524036600220

ACA02965AB

Side-airbag module
deployment section

CAUTION

• Never measure the side-airbag module

(squib) circuit resistance even with the speci-
fied tester. Measuring the circuit resistance
with a tester causes accidental air bag
deployment due to current that flows or static,
resulting in serious personal injury.

• When replacing the parts, discard the old

parts after deploying the air bag according to
the specified procedure (Refer to

P.52B-152

).

If any malfunction is found in the following inspec-
tions, replace the front seatback pad and frame
assembly with the new one. Discard the removed
front seatback pad and frame assembly after deploy-
ing the air bag according to the specified procedure
(Refer to

P.52B-152

).

1. Dent or deformation to side-airbag module

deployment part

2. Check the harness and connector for damage

and the terminal for deformation.

CURTAIN AIR BAG MODULE(S)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-144

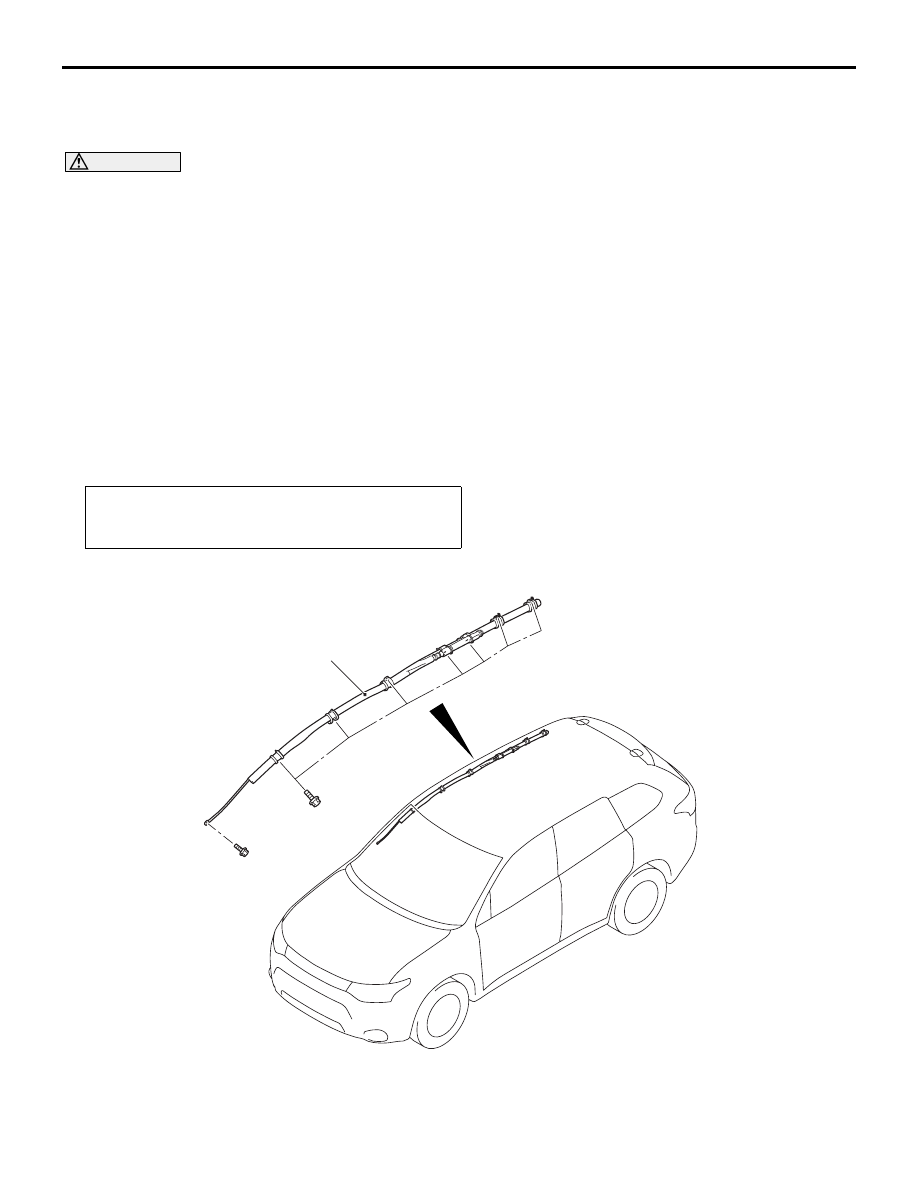

CURTAIN AIR BAG MODULE(S)

REMOVAL AND INSTALLATION

M1524013500727

CAUTION

• Disconnect the negative () battery terminal and wait for 60 seconds or more before starting work.

Insulate the disconnected (

) terminal by wrapping the tape (Refer to the item 5 of Service Precau-

tions

P.52B-7

).

• Never attempt to disassemble or repair the air bag module. If faulty, replace it with new one(s).
• Handle the air bag module with sufficient caution, and do not drop the module or allow contact

with water, oil, or others. If denting, cracking, or deformation is discovered, replace it with new
one(s).

• Store the air bag module on a flat surface. Also, do not put anything on it.
• Do not store the air bag modules in a place more than 93°C.
• After the curtain air bag deployment, replace the curtain air bag module with a new part.
• Put on gloves and safety glasses when handling deployed air bags.
• When discarding the air bag module, make sure to deploy the air bag before the disposal (Refer to

P.52B-152

)

Pre-removal operation
• Turn the ignition switch to the LOCK (OFF) position.

• Disconnect the negative (−) battery terminal.

ACB05422AB

1

Removal steps

Headlining (Refer to GROUP 52A

−

Headlining ).

<<

A

>>

1.

Curtain air bag module connector
Installation steps

>>

A

<<

Pre-installation inspection

>>

B

<<

1.

Curtain air bag module

Headlining (Refer to GROUP 52A

−

Headlining ).

>>

C

<<

Post-installation inspection

CURTAIN AIR BAG MODULE(S)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-145

NOTE: The figure shows the right curtain air bag
module.

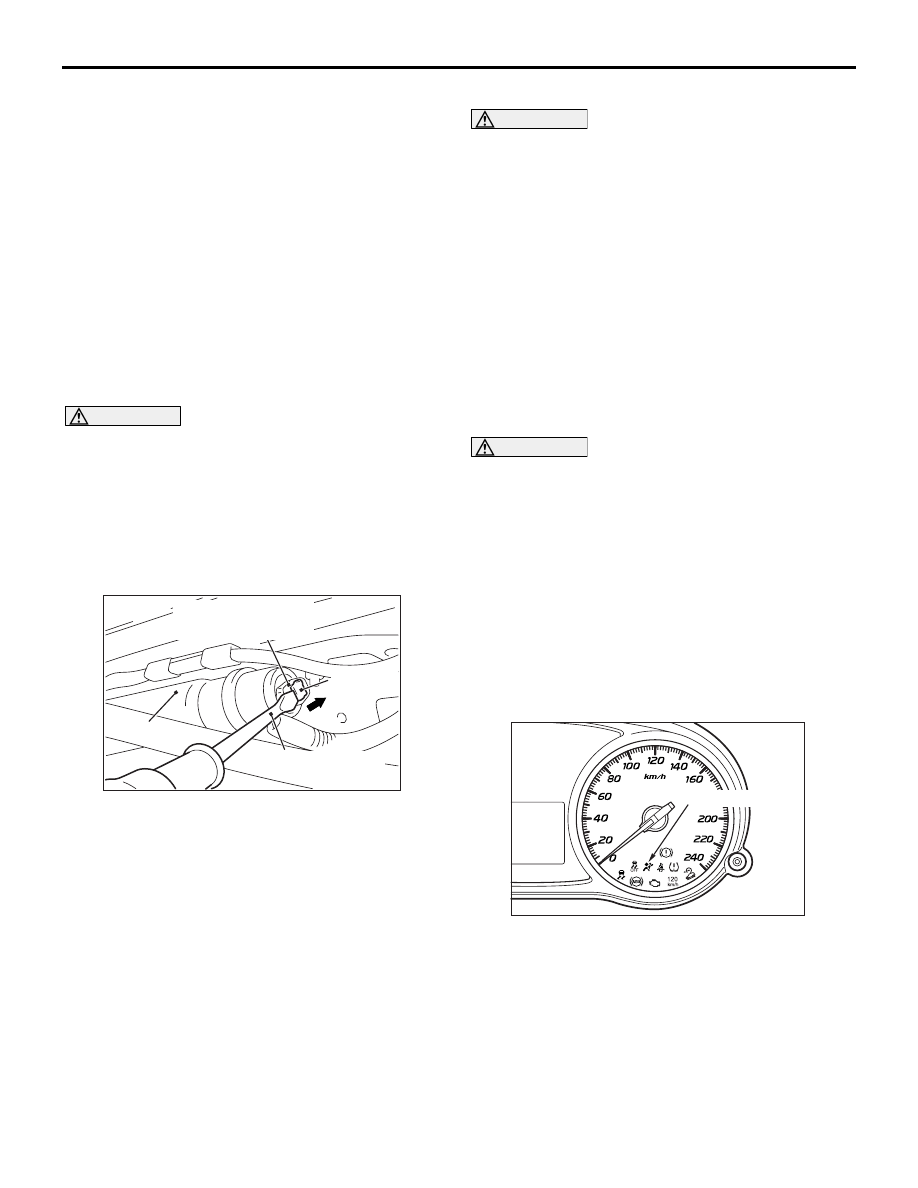

REMOVAL SERVICE POINT

<<A>> CURTAIN AIR BAG MODULE
REMOVAL

CAUTION

• Never use an electric tester to diagnose the

air bag module circuit. Never attempt to dis-
assemble the air bag module.

• The removed air bag module should be stored

in a clean, dry place.

• When discarding the air bag module, discard

after deploying the air bag as specified in the
service procedure (Refer to

P.52B-152

).

AC506711AB

Locking
button

Flat-tipped screwdriver

Inflator

Curtain air bag wiring
harness connector

Use the flat-tipped screwdriver to pull out the locking
button of wiring harness side connector, and release
the lock.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

1. Before the installation, check the air bag module

(Refer to

P.52B-146

).

NOTE: Even when installing a new air bag mod-
ule, perform an inspection before the installation.

2. Connect the negative battery terminal.

CAUTION

Be sure to turn the ignition key to the LOCK
(OFF) position when connecting or disconnect-
ing M.U.T.-III.

3. Connect M.U.T.-III to the diagnosis connector (16

pin).

4. Turn the ignition switch to the ON position.

5. Read the diagnosis code, and check that

everything is normal except the air bag module
open circuit.

6. Turn the ignition switch to the LOCK (OFF)

position.

>>B<< CURTAIN AIR BAG MODULE
INSTALLATION

CAUTION

• Take care not to contort the curtain air bag

when installing it.

• Do not trap the air bag with the peripheral

parts.

• Do not trap the strap with the front pillar trim

clip or others.

• Connect the connector to the inflator thor-

oughly.

>>C<< POST-INSTALLATION
INSPECTION

1. Turn the ignition switch to the "ON" position.

ACC00038AB

SRS warning lamp

2. Check that the SRS warning lamp is illuminated

for 6 to 8 seconds, and extinguished afterward.

3. If the lamp does not extinguish, perform the

troubleshooting (Refer to

P.52B-13

).

CURTAIN AIR BAG MODULE(S)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-146

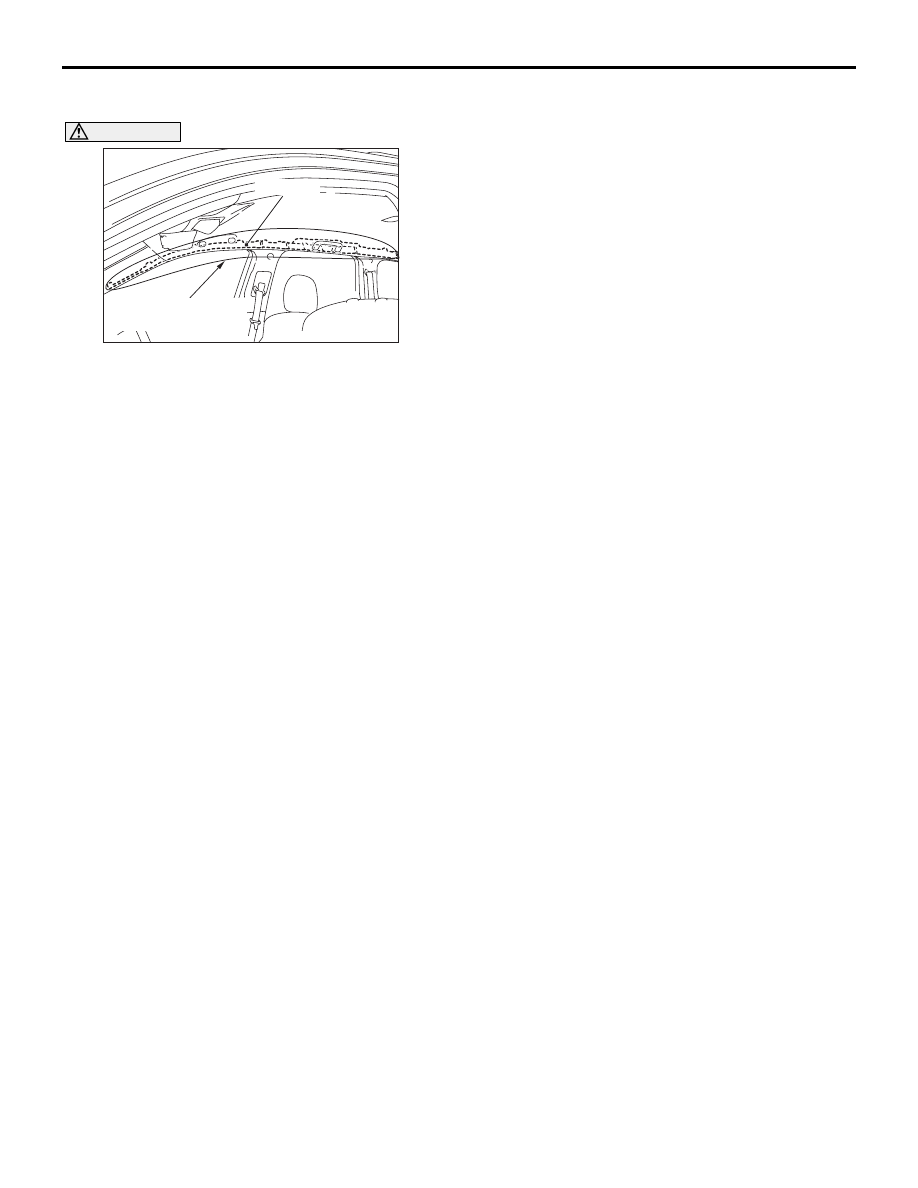

INSPECTION

M1524013600337

AC506894AB

Curtain air bag module
deployment section

Inflator

CAUTION

• Never measure the curtain air bag module cir-

cuit resistance even with the specified tester.
Measuring the circuit resistance with a tester
causes accidental air bag deployment due to
current that flows or static, resulting in seri-
ous personal injury.

• When replacing the parts, discard the old

parts after deploying the air bag according to
the specified procedure (Refer to

P.52B-152

).

• There must be no abnormality to the curtain

air bag deployment section of headlining.

If any malfunction is found in the following inspec-
tions, replace with a new curtain air bag module.

1. Crack, dent or deformation to inflator surface
2. Torn air bag
3. Damaged connector, deformation of terminal,

and harness binding
