SEAT BELT

INTERIOR

52A-28

SEAT BELT

FRONT SEAT BELT

REMOVAL AND INSTALLATION

M1523001301577

CAUTION

SRS: Before removing and installing the seat belts with pre-tensioner, refer to GROUP 52B

− SRS

Service Precautions and Seat Belt with Pre-tensioner .

For removal and installation, refer to GROUP 52B,
Seat belt with pre-tensioner .

INSPECTION

M1523004400837

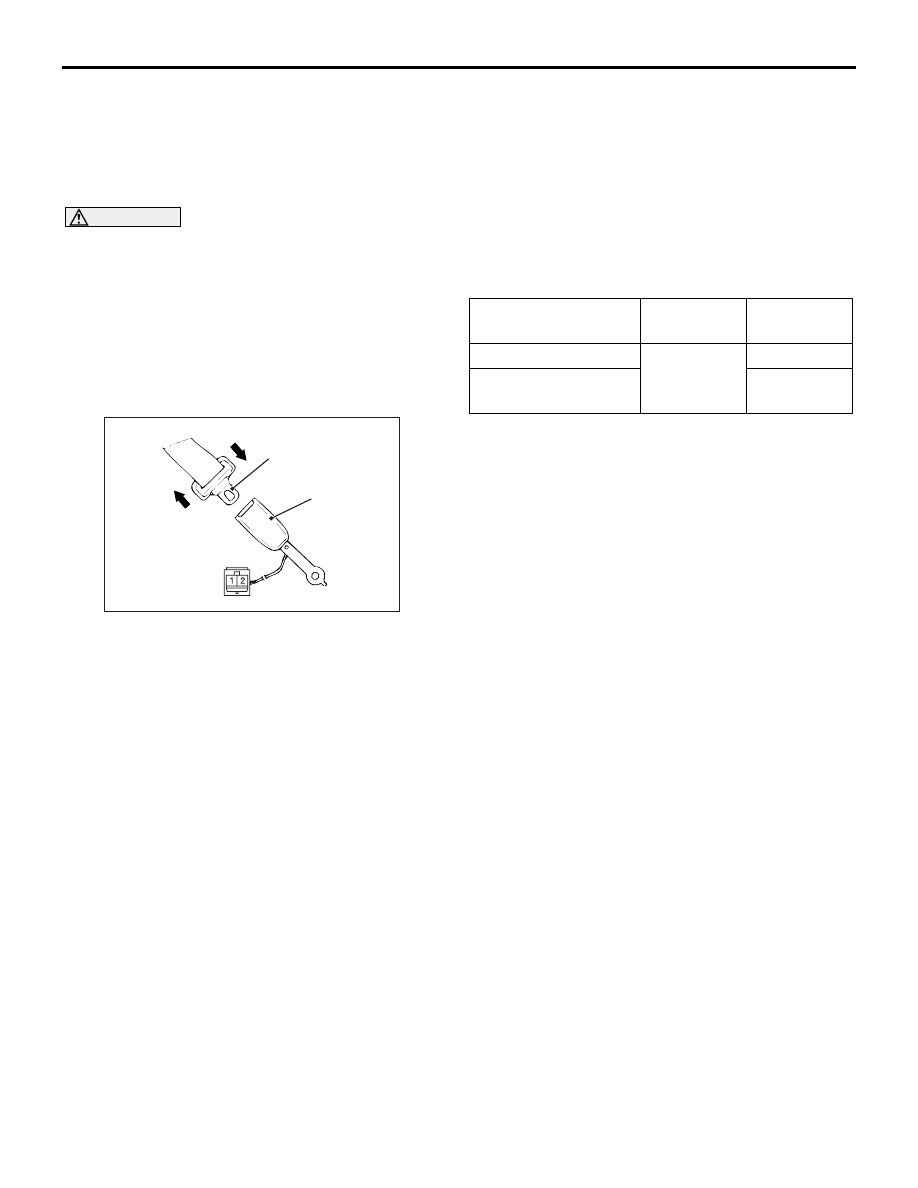

INSPECTION OF SEAT BELT SWITCH
FOR CONTINUITY

AC507206AB

Tongue

Buckle

If there is no continuity, replace the inner seat belt.

Item

Terminal
number

Normal
conditions

Seat belt is used

− 2

No continuity

Seat belt is not used

Continuity
exists

SEAT BELT

INTERIOR

52A-29

REAR SEAT BELT

REMOVAL AND INSTALLATION

M1523001601329

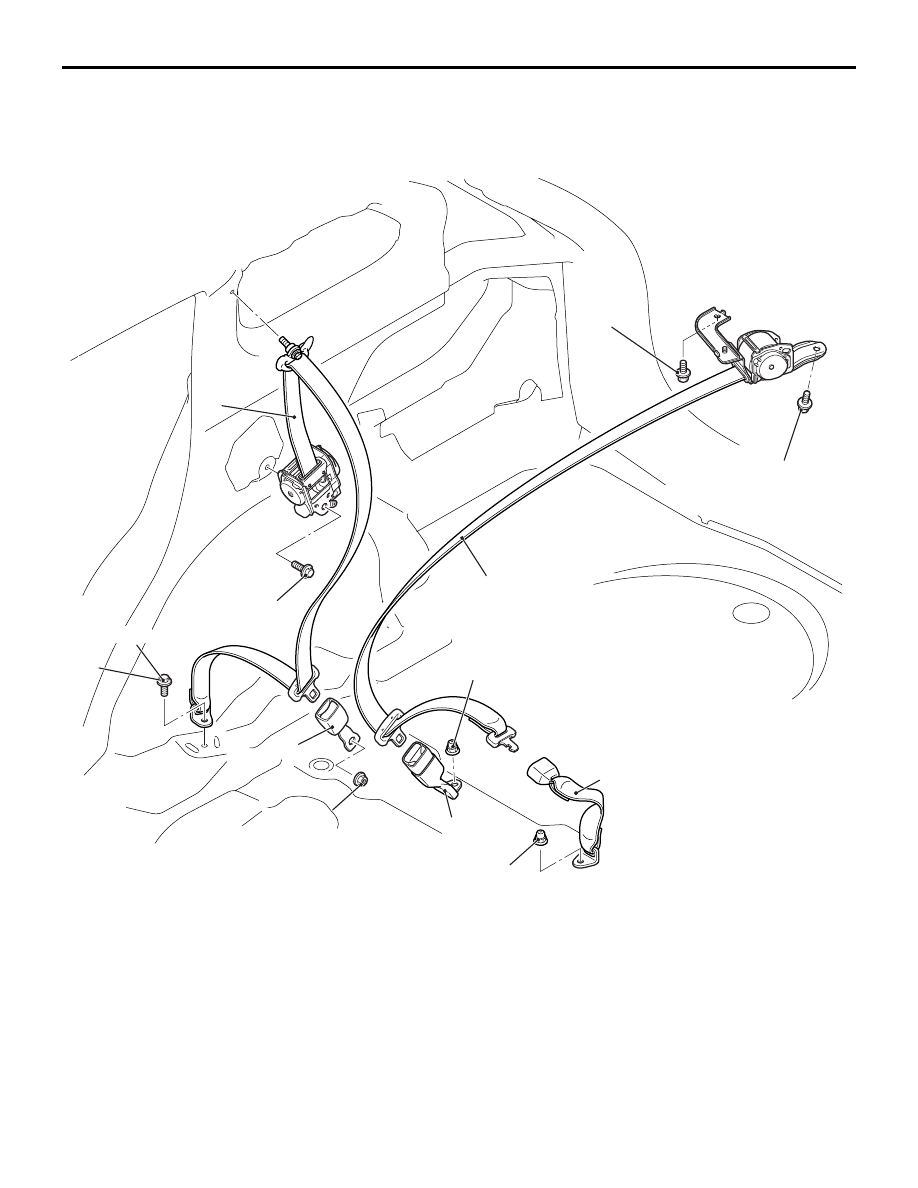

ACB05995

42 ± 8 N·m

12 ± 5 N·m

42 ± 8 N·m

40 ±10 N·m

Second seat belt removal steps

Seat belt side lower anchor bolt

•

Rear scuff plate, rear scuff plate
front, quarter trim lower, quarter
trim upper (Refer to ).

Seat belt side

•

Seat cushion assembly (LH)

•

Headlining (Refer to ).

Seat belt centre

Inner seat belt side

Inner seat belt centre

•

Seat cushion assembly

Inner seat belt centre (LH side)

Second seat belt removal steps
