SEAT ASSEMBLY

INTERIOR

52A-24

SEAT BACK HEATER INSPECTION

ACC00493AB

Seat back
heater

Measure the resistance between the terminals.

Standard value (interior temperature: 20

°C):

Terminal number

Standard value

Seatback heater (terminal
No.1)

− Seatback heater

(terminal No.2)

4.90 to 5.98

Ω

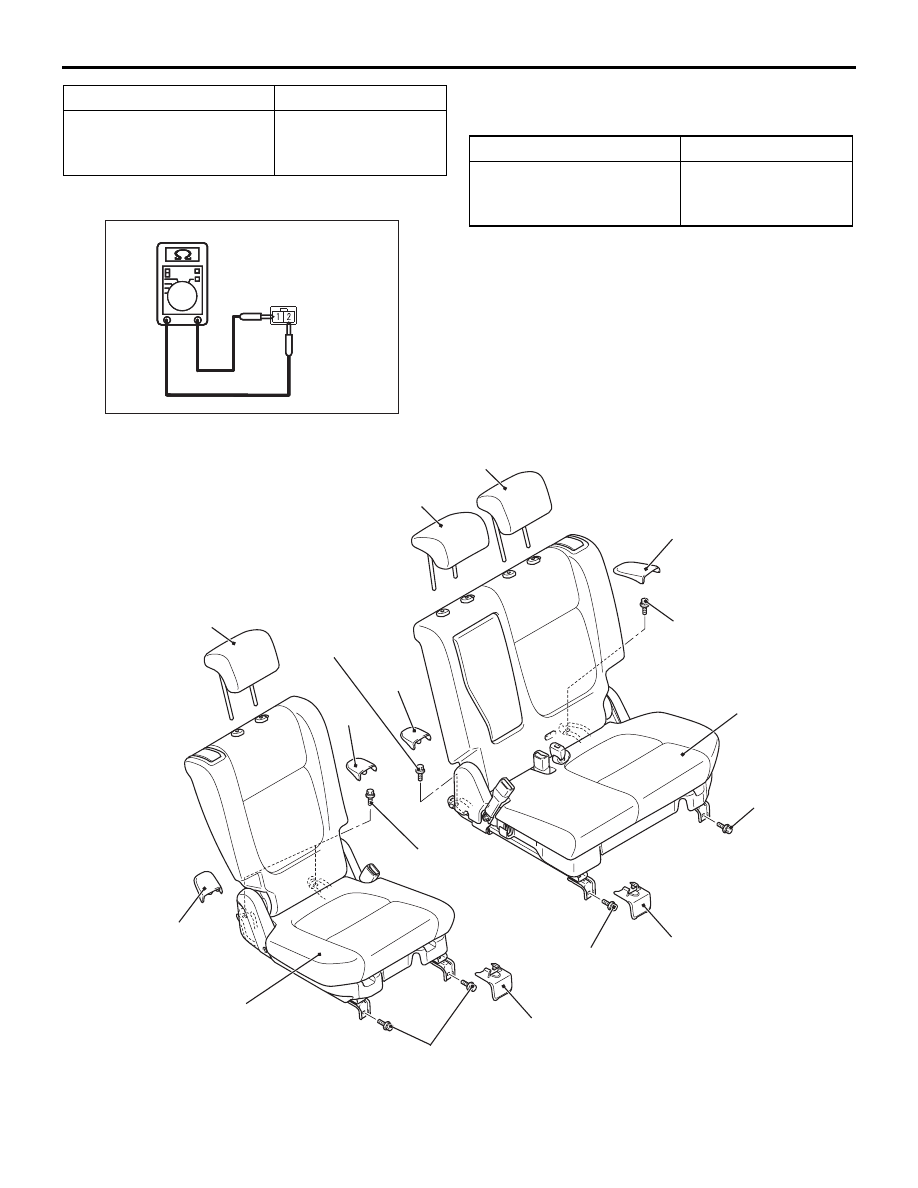

SECOND SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522002300392

ACC00463 AB

1

43 ± 8 N·m

1

2

3

4

5

43 ± 8 N·m

43 ± 8 N·m

43 ± 8 N·m

43 ± 8 N·m

6

3

2

75 ± 19 N·m

1

6

1.

Headrestraint

Seat cushion heater
(terminal No.1)

− Seatback

heater (terminal No.1)

4.61 to 5.63

Ω

Terminal number

Standard value

Removal steps

•

Rear scuff plate front (Refer to ).

•

Rear scuff plate (Refer to ).

SEAT ASSEMBLY

INTERIOR

52A-25

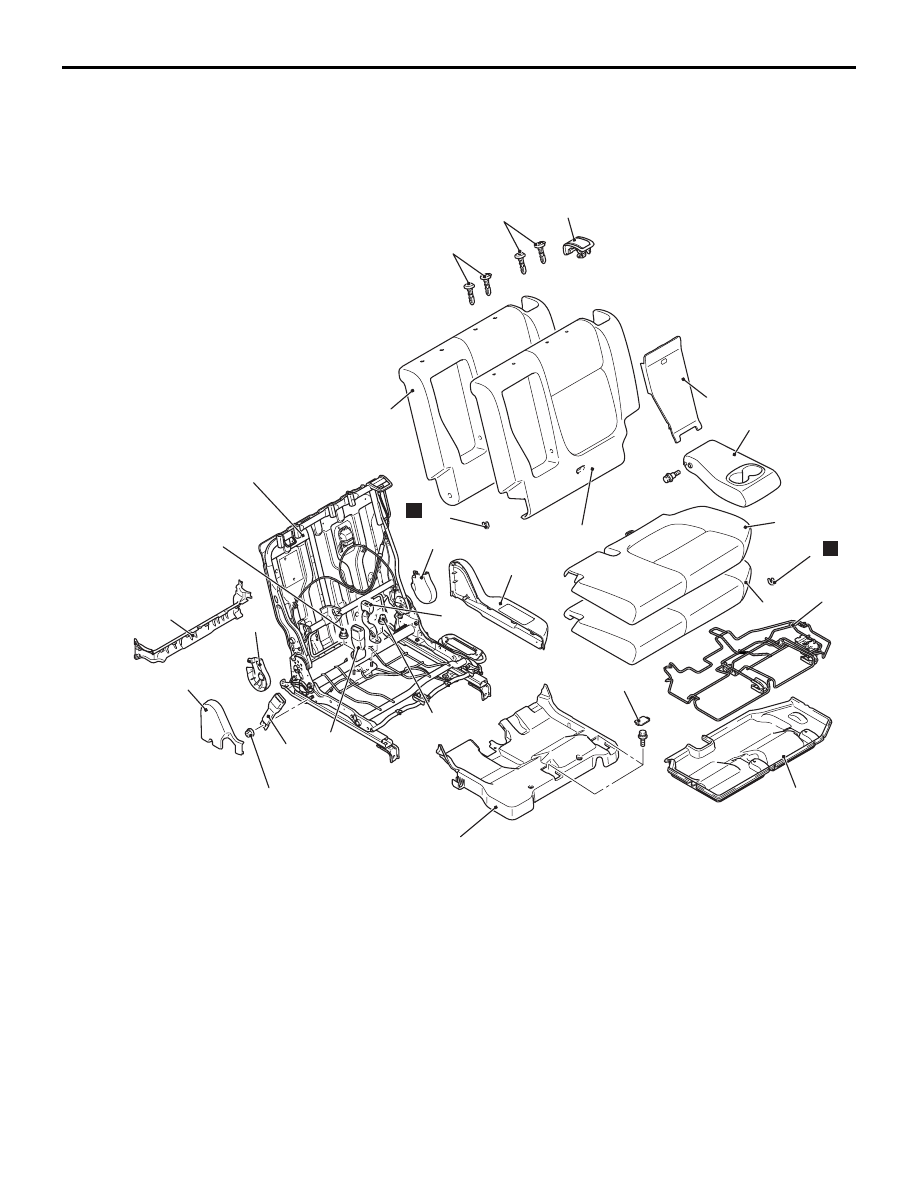

DISASSEMBLY AND REASSEMBLY

M1522002500493

<SECOND SEAT (LH)>

ACB05992

2

3

4

8

15

13

14

7

23

16

AB

10

20

18

9

6

11

15

17

19

5

21

22

40 ± 10 N·m

40 ± 10 N·m

40 ± 10 N·m

N

N

1

12

Disassembly steps

1.

Hog ring

2.

Seat cushion pad cover

3.

Seat cushion pad

4.

Seat cushion bottom cover

5.

Seat cushion frame assembly

6.

Second seat latch cover

7.

Seat cushion under cover

8.

Reclining adjuster outer cover

9.

Reclining adjuster inner cover

10. Reclining adjuster lever cover
11. Reclining adjuster inner cover
12. Hog ring

<<

B

>>

13. Armrest
14. Seatback armrest board

<<

A

>>

15. Headrestraint guide
16. Folding lever cover

<<

C

>>

17. Seatback cover
18. Seatback pad
19. Second seat rear cover
20. Centre seat belt inner
21. Seat belt inner
22. Centre seat belt inner (LH)
23. Seat frame assembly

2.

Front anchor cover inner

3.

Rear anchor cover outer

4.

Rear anchor cover inner

5.

Rear anchor cover inner

6.

Second seat assembly

Removal steps (Continued)

Disassembly steps

SEAT ASSEMBLY

INTERIOR

52A-26

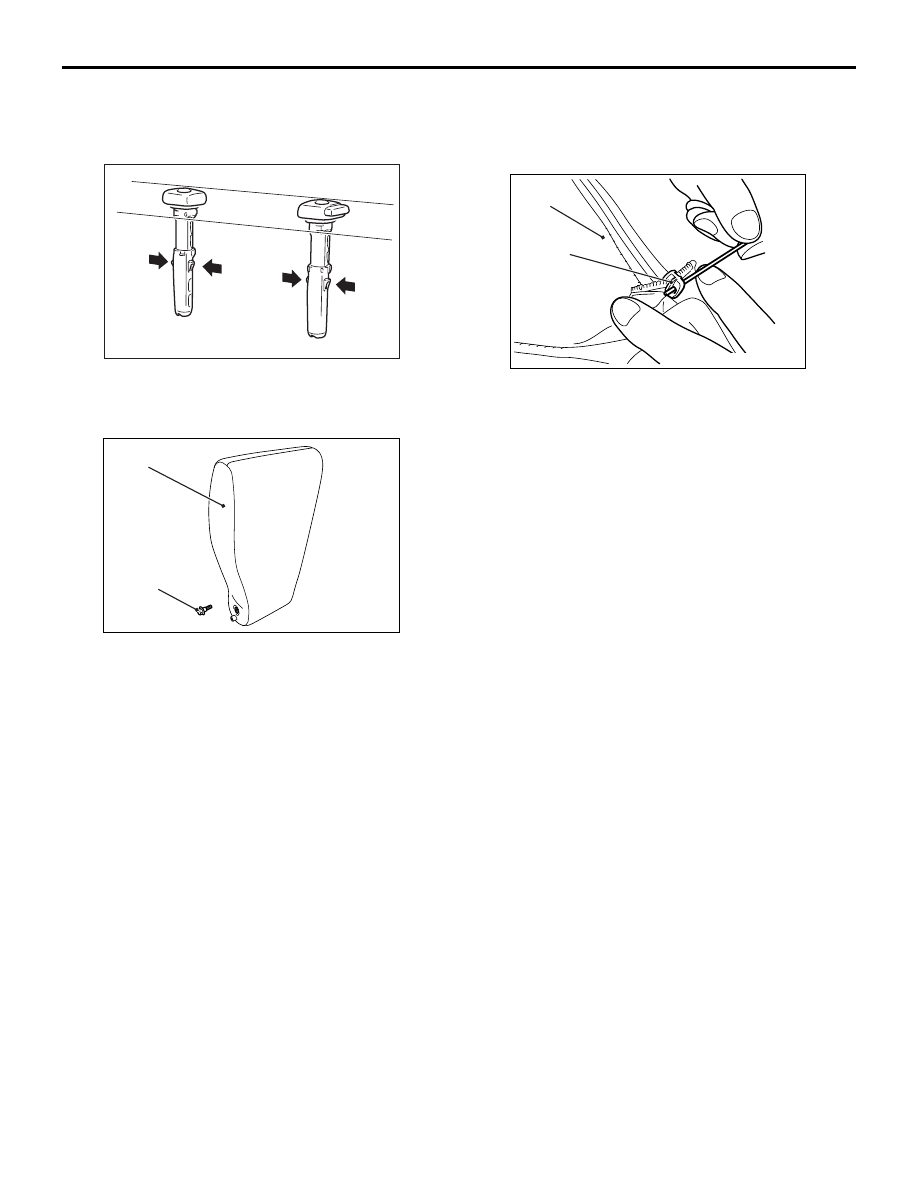

DISASSEMBLY SERVICE POINT

<<A>> HEADRESTRAINT GUIDE
REMOVAL

AC205342

Remove while pressing the claws on the both sides.

<<B>> ARMREST REMOVAL

ACB05999

Armrest

AB

Bolt

Remove the bolts (right and left) to remove the arm-
rest.

<<C>>SEATBACK COVER REMOVAL

ACC00098

Zipper

AB

Seatback

cover

To remove the seatback cover, unlock the zipper by
inserting a wire through the slider to open it.

SEAT ASSEMBLY

INTERIOR

52A-27

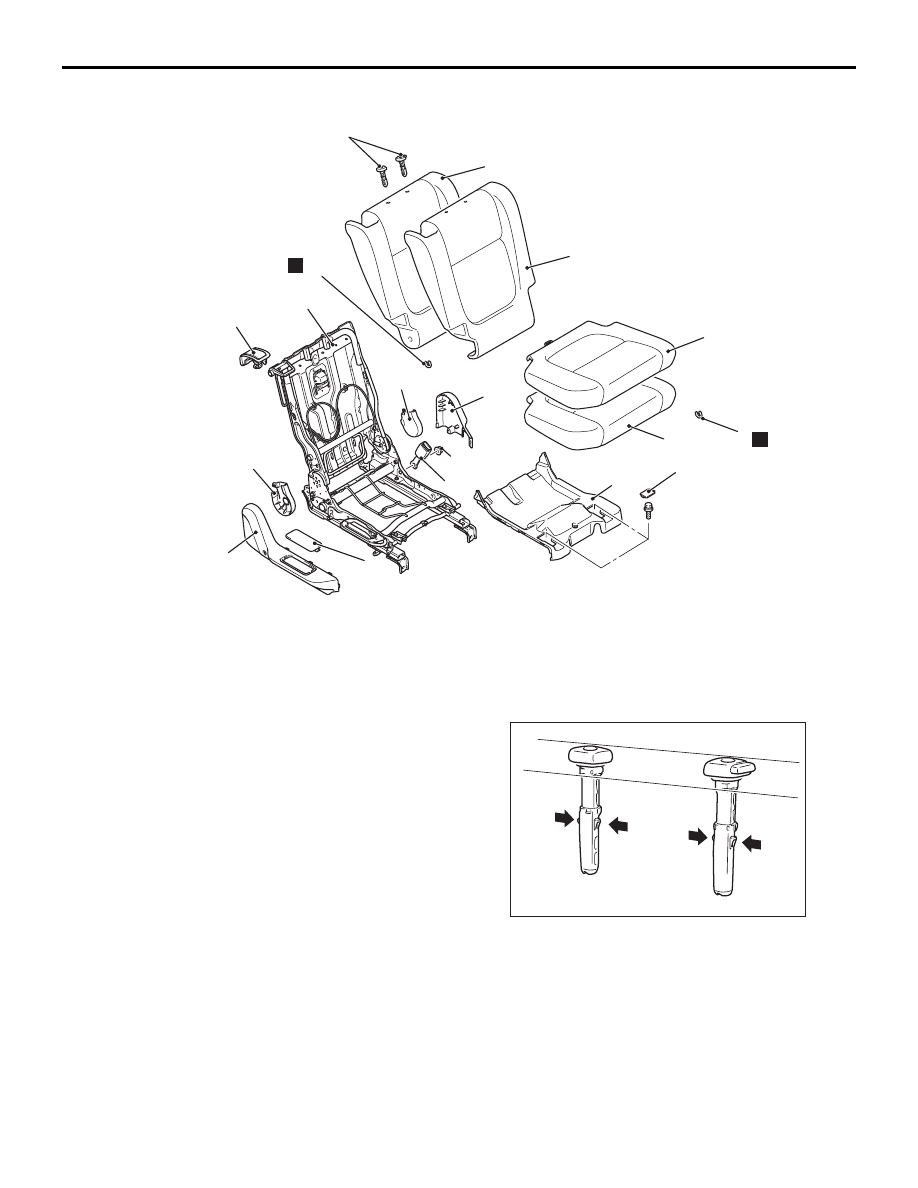

<SECOND SEAT (RH)>

ACB05993

4

5

6

8

12

3

9

2

40 ± 10 N·m

15

13

AB

11

16

17

10

7

N

14

N

1

Disassembly steps

1.

Hog ring

2.

Cushion pad cover

3.

Cushion pad

4.

Second seat latch cover

5.

Seat cushion under cover

6.

Reclining adjuster lever cover

7.

Reclining adjuster lever cover

8.

Reclining adjuster inner cover

9.

Reclining adjuster cover

10. Seat belt inner
11. Reclining adjuster inner cover
12. Folding lever cover

<<

A

>>

13. Headrestraint guide
14. Hog ring
15. Seatback cover
16. Seatback pad
17. Seat frame assembly

DISASSEMBLY SERVICE POINT

<<A>> HEADRESTRAINT GUIDE
REMOVAL

AC205342

Remove while pressing the claws on the both sides.
