HEADLINING

INTERIOR

52A-16

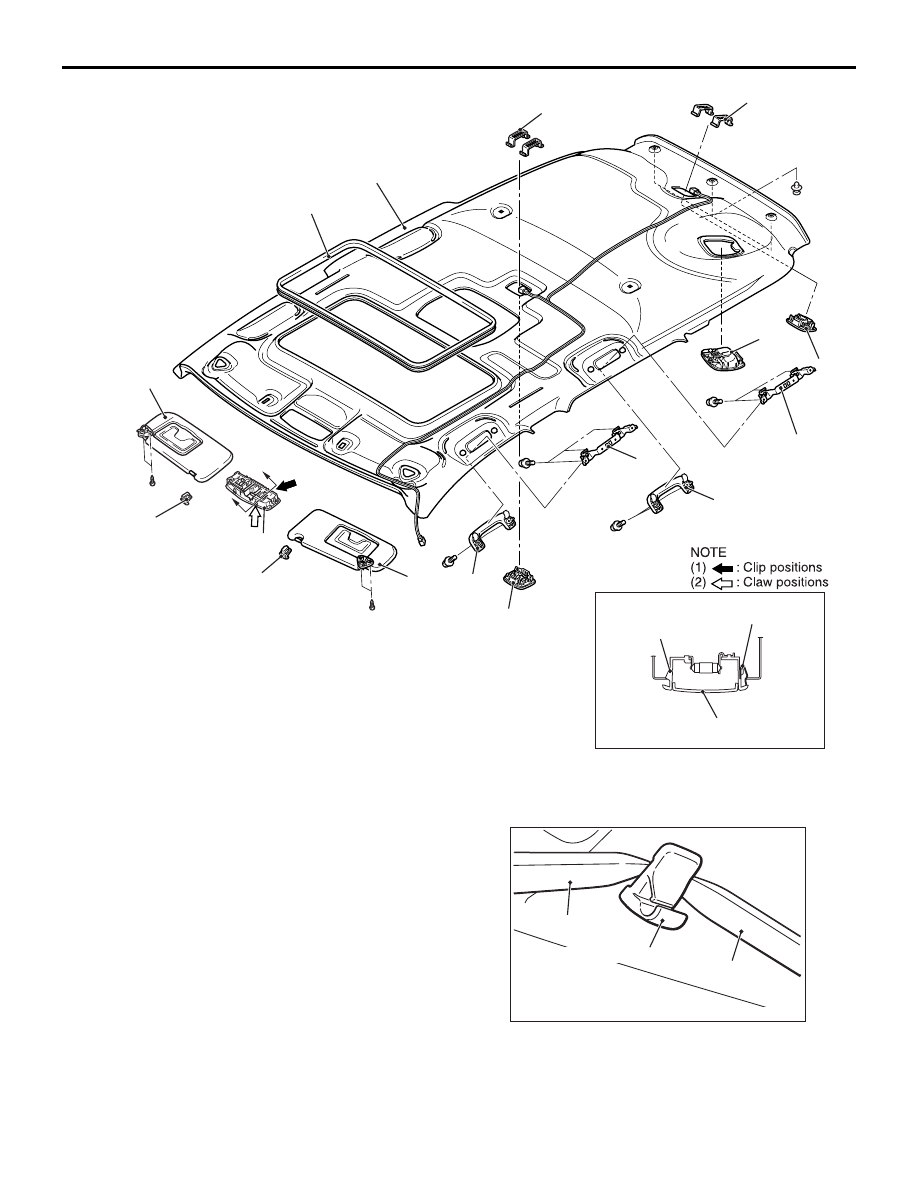

HEADLINING

REMOVAL AND INSTALLATION

M1521001402032

CAUTION

For the removal of the headlining, refer to GROUP 52B

− Service Precautions (Refer to ) and Curtain

Air Bag Module (Refer to ).

Pre-removal and Post-installation Operation
• Removal and Installation of Front Pillar Trim, Rear scuff

plate, Front scuff plate, Cowl side Trim, Upper centre Pil-
lar Trim, Lower centre Pillar Trim, Front door opening
Trim, Rear door opening Trim, Quarter trim Lower, Quar-
ter trim Upper, Rear end Trim, Rear Pillar Trim (Refer to ).

• Removal and Installation of Rear Seatbelt Outer Assem-

bly (RH or LH) (Refer to ).

• Removal and Installation of Front door Assembly (RH)

(Refer to GROUP 42A-door Assembly ).

• Removal and Installation of Instrument panel assembly

(Refer to ).

• Removal and Installation of Front Seat Assembly (Refer

to ).

• Removal and Installation of Parking brake lever assembly

(Refer to GROUP 37-Parking brake assembly ).

• Removal and Installation of Centre flame assembly (Refer

to GROUP 55A-Heater unit and blower assembly ).

ACB05041

11

1

3

3

4

4

2

8

AB

6

A

1

12

8

9

7

Section A – A

2

Clip

Claw

A

5

10

Removal steps

1.

Assist grip

•

Front room lamp connector

•

Sunroof switch connector <Vehicles
with sunroof>

2.

Front room lamp assembly

3.

Sunvisor

<<

A

>>

4.

Sunvisor holder

5.

Rear Seatbelt Outer cover

6.

Sunroof lid inner weather strip rear
<Vehicles with sunroof>

<<

B

>>

7.

Headlining

8.

Assist grip bracket

9.

Rear room lamp bracket

10. Rear room lamp assembly
11. Cargo room lamp bracket
12. Cargo room lamp assembly

HEADLINING

INTERIOR

52A-17

REMOVAL SERVICE POINTS

<<A>> SUNVISOR HOLDER REMOVAL

AC005512

MB990784

MB990784

AC

Sunvisor holder

Insert the special tools ornament remover
(MB990784) into the sunvisor holder from its left and
right sides to disengage the claws on the sunvisor
holder sides.

INSIDE REAR VIEW MIRROR

INTERIOR

52A-18

<<B>> HEADLINING ASSEMBLY
REMOVAL

AC600751AC

Clip

Headlining

Vinyl cord

1. To remove the clip, insert a vinyl cord into a

clearance between the clip and the headlining,
and pass it around the clip. Then, pull out the clip
downwards while pulling the vinyl cord.

ACB05043 AB

Headlining

2. Take out the headlining assembly through the

front passenger's door opening.

INSIDE REAR VIEW MIRROR

ADHESIVE

M1521000500193

Application

Brand name

Inside rear view mirror

Inside rear view mirror adhesive kit MU-150Kit
[MZ100425]

NOTE: The symbol in parentheses indicates a part
number.

REMOVAL AND INSTALLATION

M1521002600839

REMOVAL SERVICE POINT

<<A>> INSIDE REAR VIEW MIRROR
REMOVAL

1.

AC209066AB

Claw A

1

3

2

Claw B

Cover

Disengage the claw A and lower the cover toward

arrow 1 direction.

2. Push the claw B toward arrow 2 direction to

unlock, and pull out the mirror toward arrow 3
direction.

SEAT ASSEMBLY

INTERIOR

52A-19

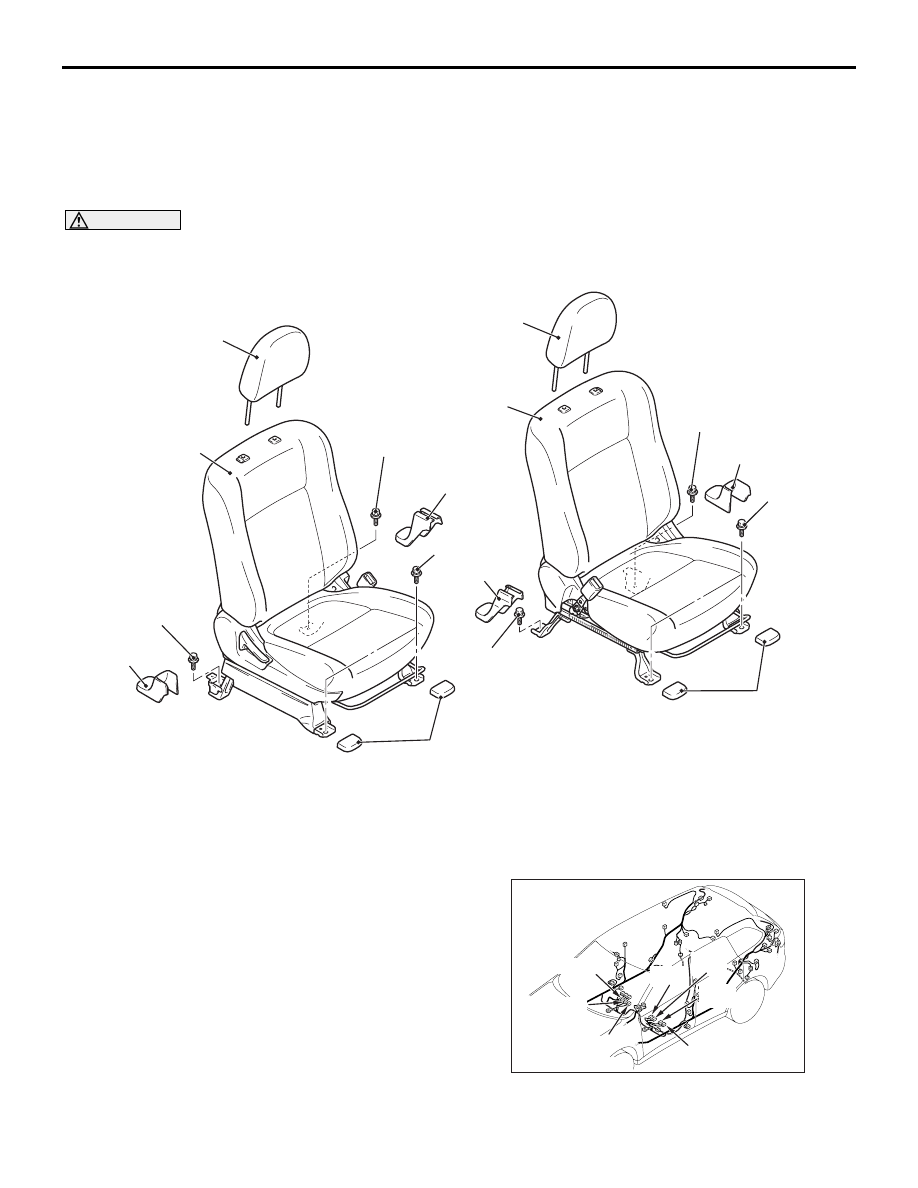

SEAT ASSEMBLY

FRONT SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001302180

CAUTION

Before removing the front seat assembly, refer to GROUP 52B, Service Precautions  and Side Airbag
Module (s) .

ACB05055

1

1

4

3

3

3

2

2

3

4

43 ± 8 N·m

AB

43 ± 8 N·m

43 ± 8 N·m

43 ± 8 N·m

43 ± 8 N·m

43 ± 8 N·m

Removal steps

1.

Headrestraint

2.

Front seat anchor cover

3.

Rear seat anchor cover

<<

A

>>

•

Wiring harness connectors
connection

>>

A

<<

4.

Front seat assembly

REMOVAL SERVICE POINT

<<A>> WIRING HARNESS CONNECTOR
DISCONNECTION

ACC00466

AB

D-18

D-21

D-20

D-19

D-22

D-23

D-24

Disconnect the following wiring harness connectors:
