Connector
number

Connector name

D-18 (2)

Power seat connector <Vehicle with
power seat>

D-19 (4

−

black)

Heated seat connector (LH)
<Vehicle with heated seat>

D-20 (2

−

black)

Seat belt switch connector (Driver’s
side)

D-21 (2

−

yellow)

Side air bag module (squib)
connector (LH) <Vehicles with
side-airbag>

D-22 (2

−

yellow)

Side air bag module (squib)
connector (RH) <Vehicles with
side-airbag>

D-23 (2

−

natural)

Seat belt switch connector
(Passenger’s side)

D-24 (4

−

black)

Heated seat connector (RH)
<Vehicle with heated seat>

SEAT ASSEMBLY

INTERIOR

52A-20

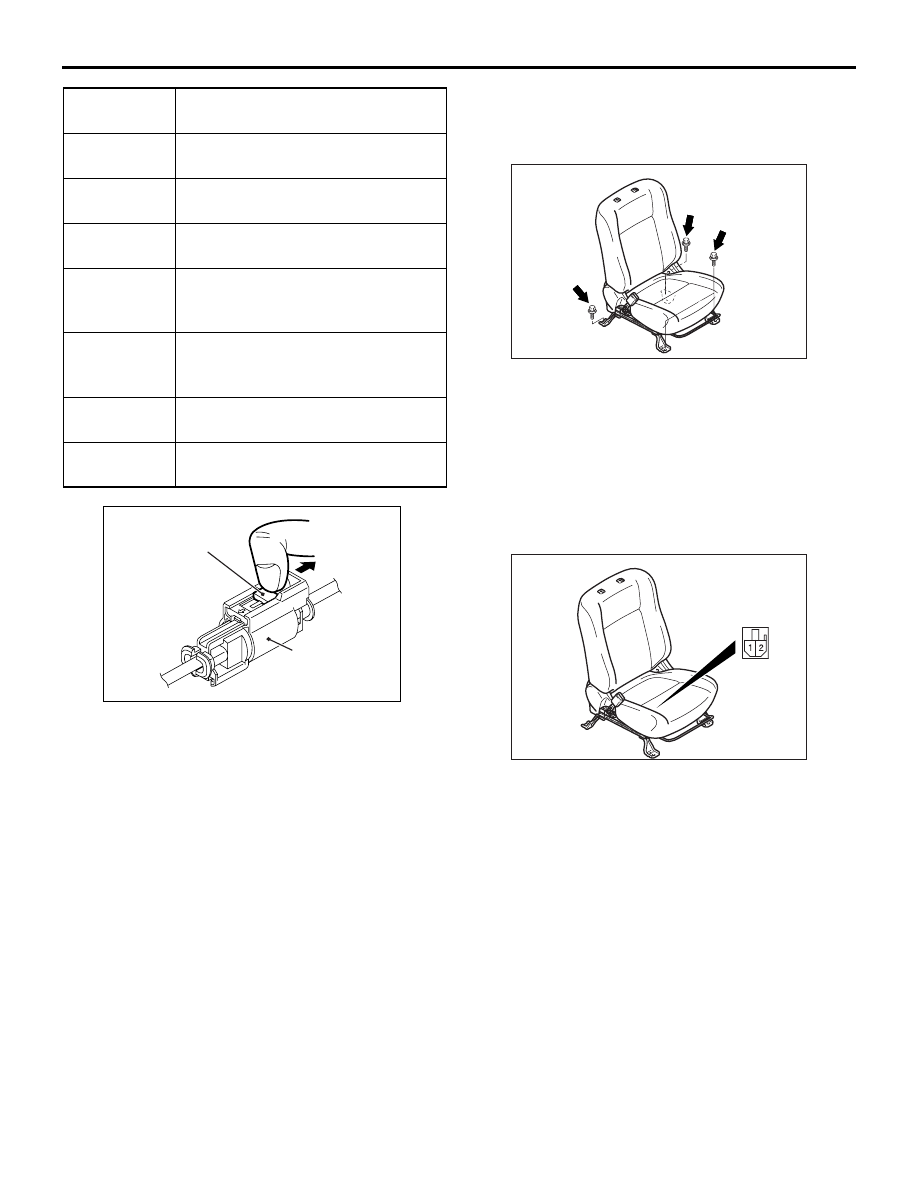

NOTE:

AC706606

AB

Locking button

Side-airbag module
connector

When disconnecting the side air bag module connec-
tors of D-21 and D-22, unlock the connector by slid-
ing the locking button to the direction of the arrow as
shown in the figure, and then disconnect the connec-
tor.

INSTALLATION SERVICE POINT

>>A<< FRONT SEAT ASSEMBLY INSTAL-
LATION

ACC00102 AB

1. Confirm that both the seat slides are locked, and

then temporarily tighten all the bolts shown in the
figure so that no load is applied to the front seat
cushion.

2. Tighten all the bolts to the specified torque.

Tightening torque: 43

± 8 N⋅m

INSPECTION

M1522001400619

ACC00101 AB

Connect the + terminal of the battery to the power
seat connector terminal No.2 and the

− terminal to

terminal No.1, and check that the power seat works
normally.

SEAT ASSEMBLY

INTERIOR

52A-21

DISASSEMBLY AND REASSEMBLY

M1522001502184

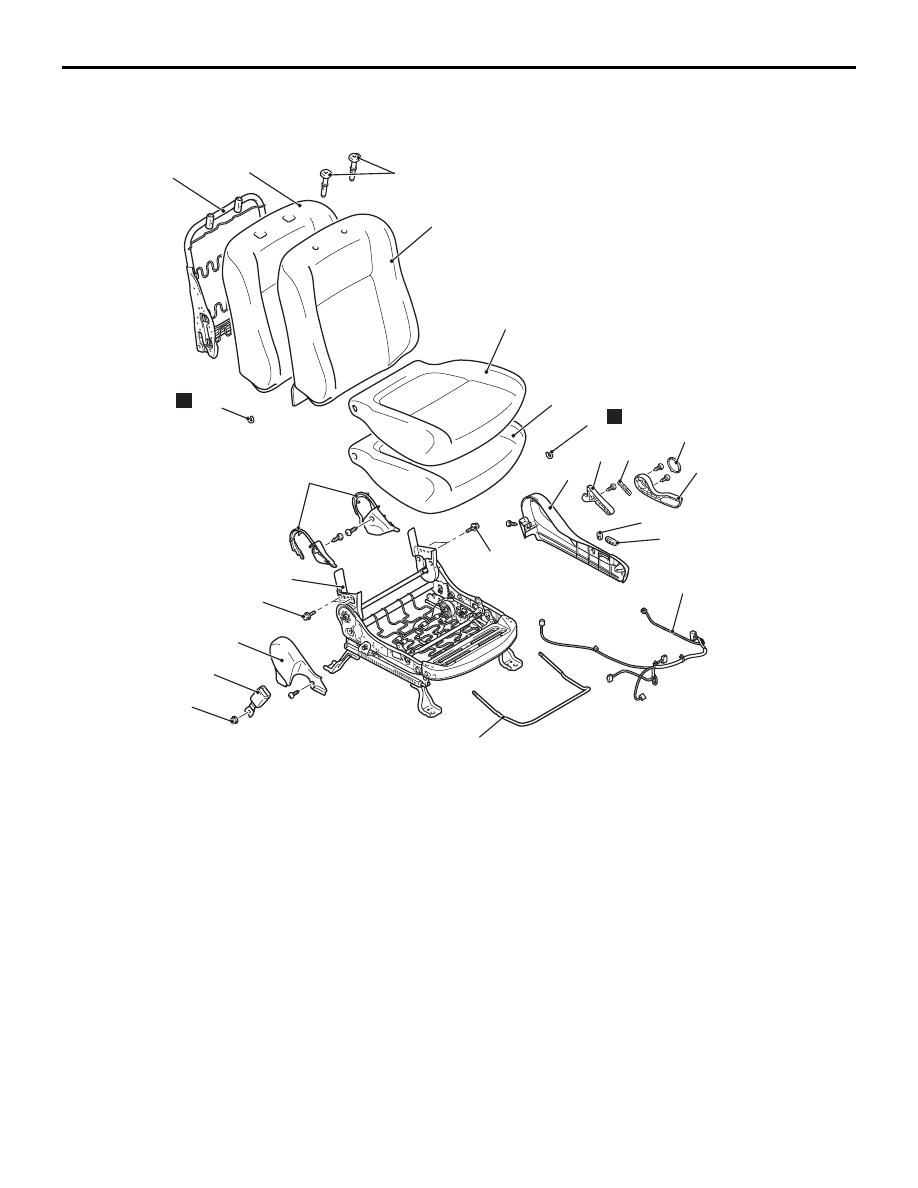

<DRIVER’S SEAT>

ACB05056

10

12

13

14

20

3

4

5

1

2

AB

15

17

18

21

19

41 ± 10 N·m

41 ± 10 N·m

41 ± 10 N·m

9

8

7

6

N

N

16

11

Disassembly steps

1.

Hinge cover

2.

Seat belt inner

3.

Side shield cover

4.

Reclining adjuster lever knob
<Vehicles with power seat>

5.

Slide adjuster lever knob
<Vehicles with power seat>

6.

Height adjuster lever cap
<Vehicles without power seat>

7.

Height adjuster lever <Vehicles
without power seat)>

8.

Reclining adjuster lever cap
<Vehicles without power seat>

9.

Reclining adjuster lever <Vehicles
without power seat>

<<

A

>>

10. Headrestraint guide
11. Hog ring
12. Seatback cover
13. Seatback pad
14. Hinge cover inner
15. Seatback frame assembly
16. Hog ring
17. Seat cushion cover
18. Seat cushion pad
19. Harness clamp <Vehicles with

power seat>

20. Slide adjuster lever knob

<Vehicles without power seat>

<<

B

>>

21. Seat cushion frame assembly

Disassembly steps (Continued)

SEAT ASSEMBLY

INTERIOR

52A-22

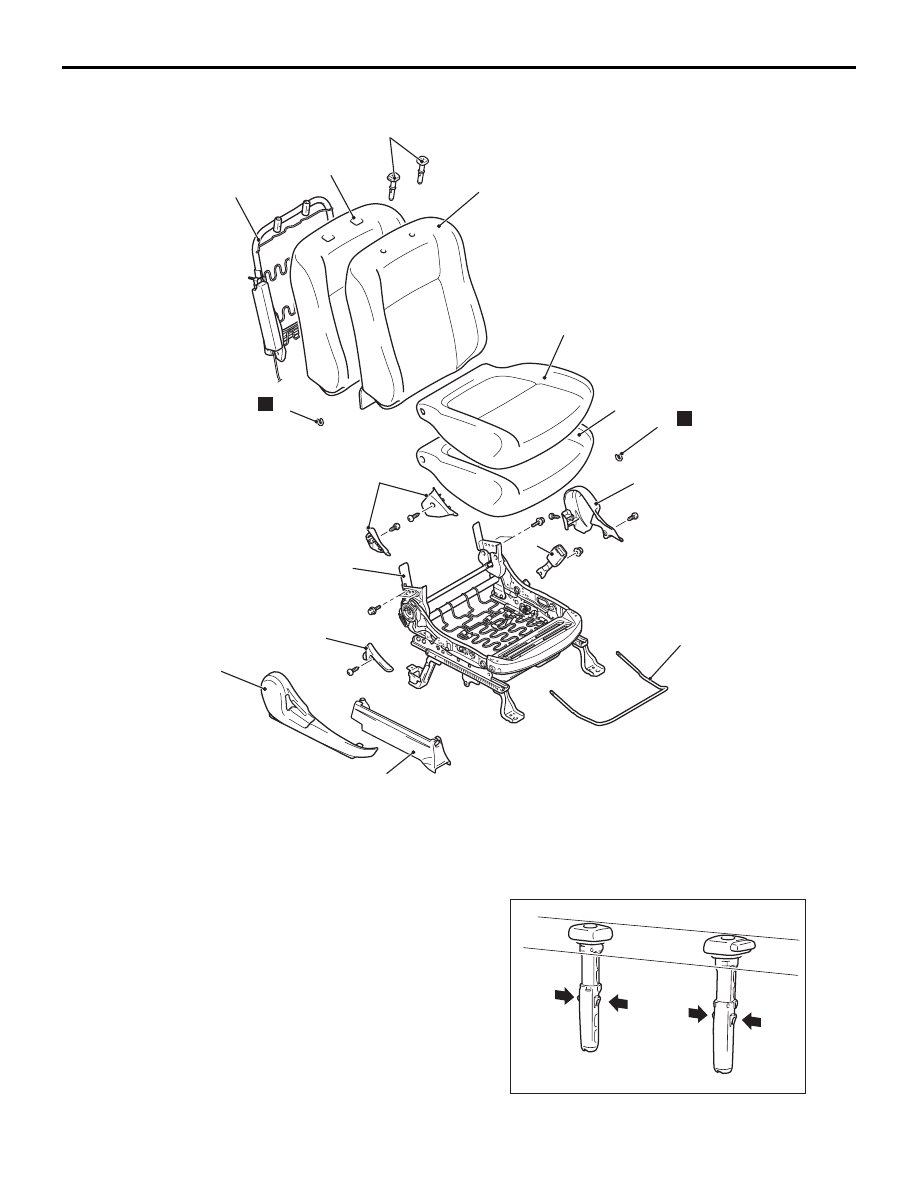

<PASSENGER’S SEAT>

ACB05990AB

6

8

9

10

3

4

5

14

1

2

11

13

16

15

N

N

12

7

Disassembly steps

1.

Side shield cover

2.

Reclining adjuster lever

3.

Slide adjuster side cover

4.

Hinge cover

5.

Seat belt inner

<<

A

>>

6.

Headrestraint guide

7.

Hog ring

8.

Seatback cover

9.

Seatback pad

10. Hinge cover inner
11. Seatback frame assembly
12. Hog ring
13. Seat cushion cover
14. Seat cushion pad
15. Seat slide adjuster lever

<<

B

>>

16. Seat cushion frame assembly

DISASSEMBLY SERVICE POINTS

<<A>> HEADRESTRAINT GUIDE
REMOVAL

AC205342

Remove the headrest guides while pushing the on
both sides inward.

SEAT ASSEMBLY

INTERIOR

52A-23

<<B>> SEAT BACK FRAME ASSEMBLY
REMOVAL

For the vehicles with side-airbag, do not remove the
side-airbag module from the frame.

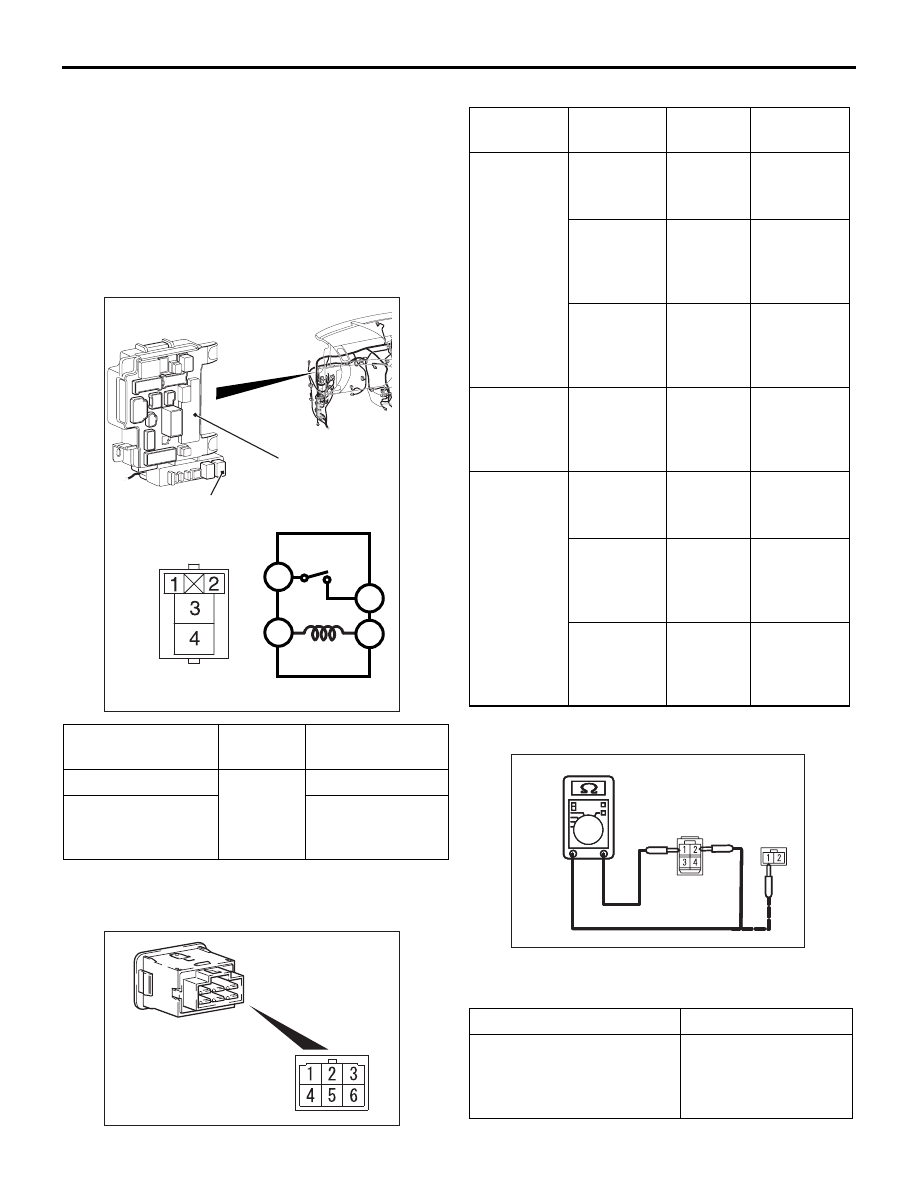

INSPECTION

M1522001600475

Inspection of the heated seat relay for
continuity

AC507232

Heated seat relay

ETACS-ECU

AB

3

1

4

2

Battery voltage

Terminal
number

Normal value

At no energisation

3

− 4

No continuity

At energisation
[terminal 2 (+)

−

terminal 1 (

−)]

Continuity exists
(2

Ω or less).

INSPECTION OF THE HEATED SEAT
SWITCH FOR CONTINUITY

AC700381AB

Inspect the heated seat switch for continuity.

Switch
position

Terminal
number

Normal
value

Note

HI

terminal 2

−

terminal 1

Continuity
exists (2
Ω or less).

terminal 2
(+)

−

terminal 6
(

−)

Indicator

terminal 3
(+)

−

terminal 4
(

−)

Illumination

OFF

terminal 3
(+)

−

terminal 4
(

−)

Illumination

LOW

terminal 2

−

terminal 5

Continuity
exists (2
Ω or less).

terminal 2
(+)

−

terminal 6
(

−)

Indicator

terminal 3
(+)

−

terminal 4
(

−)

Illumination

SEAT CUSHION HEATER INSPECTION

ACC00492AB

Seat cushion
heater

Seat back
heater

Measure the resistance between the terminals.

Standard value (interior temperature: 20

°C):

Terminal number

Standard value

Seat cushion heater
(terminal No.1)

− Seat

cushion heater (terminal
No.2)

4.32 to 5.28

Ω
