TAILGATE GARNISH

EXTERIOR

51-11

Specified Adhesive: 3M-DP-8010 or equiva-
lent

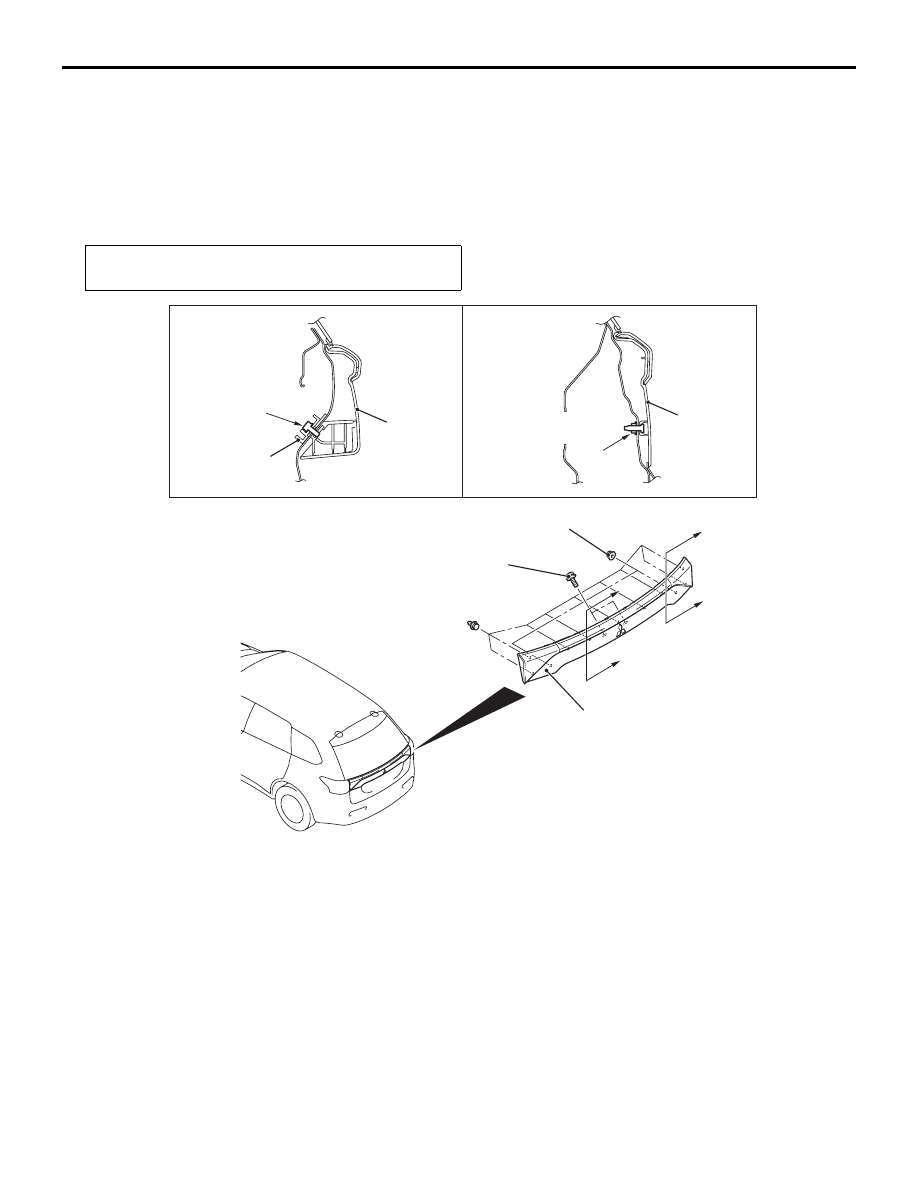

TAILGATE GARNISH

REMOVAL AND INSTALLATION

M1511025000075

Post-installation operation
• Rear wiper motor bracket (Refer to

P.51-54

)

ACC00119

Section A – A

Section B – B

Bolt

1

1

AB

B

A

A

Nut

4.0 ± 2.0 N·m

5.0 ± 1.0 N·m

B

1

Tailgate lock
release handle

Removal step
•

• Tailgate lock release handle

<Vehicles without electric tailgate>
(GROUP 42A, Tailgate handle and
latch )

•

• Tailgate lock release handle

<Vehicles with electric tailgate>
(GROUP 42A, Tailgate handle and
latch )

1. Tailgate garnish

Removal step (Continued)

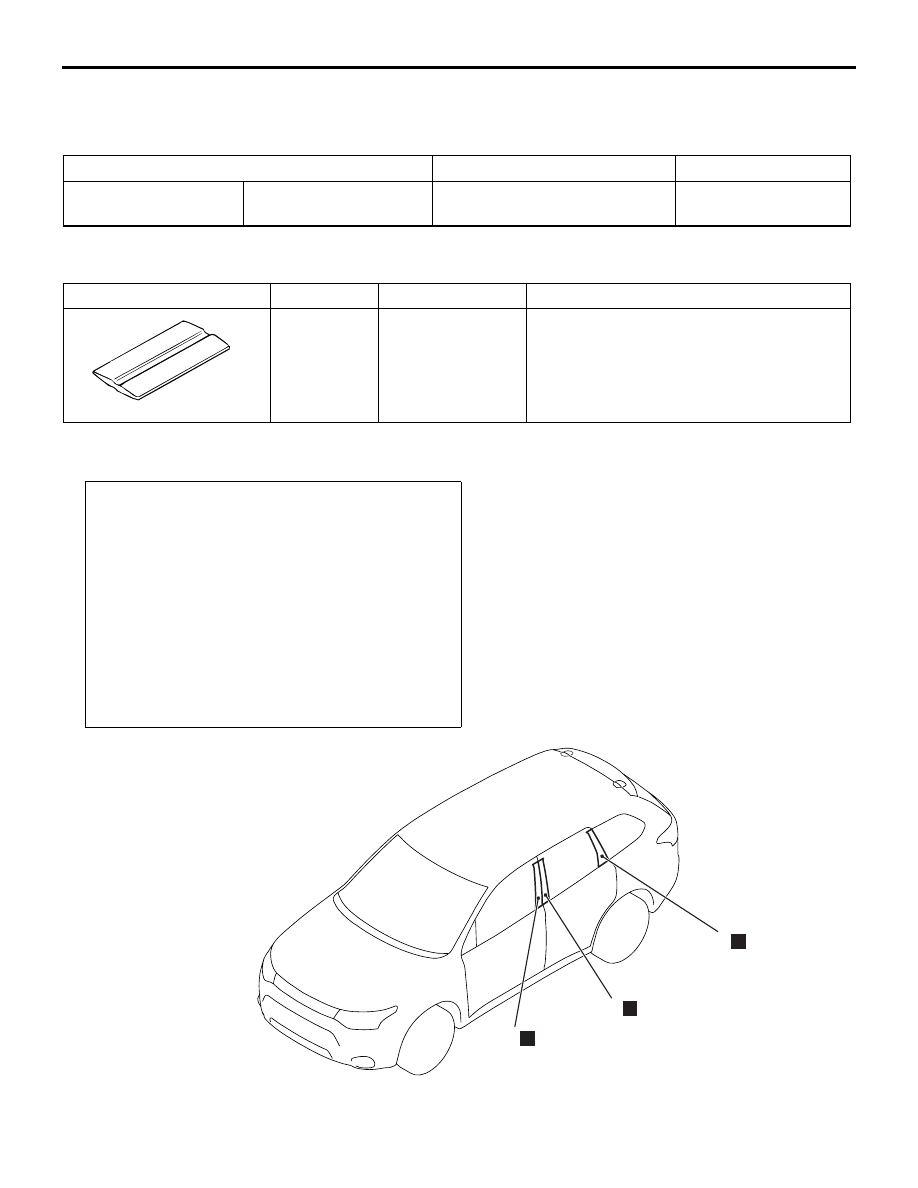

DOOR SASH TAPE

EXTERIOR

51-12

DOOR SASH TAPE

LUBRICANT

M1511000400258

Item

Specified lubricant

Quantity

Degrease agent

Grease and dirt removal
from parts surface

Parts cleaner (MZ100387 or
equivalent)

As required

SPECIAL TOOL

M1511000603262

Tool

Number

Name

Use

MB990528

MB990528

Stripe tape spatula Installation of door sash tape

REMOVAL AND INSTALLATION

M1511024101168

Pre-removal and post-installation operation
• Door Trim Assembly Removal and Installation (Refer to

GROUP 52A

− Door Trim, ).

• Door Beltline Weatherstrip Inner Removal and Installation

(Refer to GROUP 42A

− Window Glass Runchannel and

Door Opening Weatherstrip ).

• Door Opening Weatherstrip Outer Removal and Installa-

tion (Refer to GROUP 42A

− Window Glass Runchannel

and Door Opening Weatherstrip ).

• Door Window Glass Runchannel Removal and Installation

(Refer to GROUP 42A

− Window Glass Runchannel and

Door Opening Weatherstrip ).

• Door Beltline Moulding Removal and Installation (Refer to

GROUP 42A

− Window Glass Runchannel and Door

Opening Weatherstrip ).

ACB05480

1

2

3

N

N

N

AB

REMOVAL STEPS

<<

A

>>

>>

A

<<

1.

Front door sash tape, rear

<<

A

>>

>>A<<

2.

Rear door sash tape, front

<<

A

>>

>>

A

<<

3.

Rear door sash tape, rear

DOOR SASH TAPE

EXTERIOR

51-13

REMOVAL SERVICE POINT

<<A>> DOOR SASH TAPES REMOVAL

CAUTION

Pay attention to keep from getting burned by hot
door panel or tapes.

1. Use a hair drier to warm the tape.

2. Peel the tip of the tape with your finger, and then

peel off the tape in parallel with the application
surface.

DOOR SASH TAPE

EXTERIOR

51-14

INSTALLATION SERVICE POINT

>>A<< DOOR SASH TAPES INSTALLA-
TION

CAUTION

• The ambient temperature should be 20 to

30

°C. Ensure that the working area is clean.

Ideally, the tape application should be done at
ambient temperature of 25

°C.

• If ambient temperature is less than 15°C, heat

the tape and application surface to a tempera-
ture of 20 to 30

°C. Alternatively, allow it to

cool if it is 35

°C or more. The adhesive prop-

erty of the tape is deteriorated at low tempera-
ture, so the tape may come adrift easily.
Meanwhile, the tape will be softened exces-
sively at high temperature.

• When beginning to apply the tape, pay partic-

ular attention. If the end of the tape cannot be
applied to the specified position with an accu-
racy of less than 1 mm, it may cause the poor
appearance or adhesion.

•

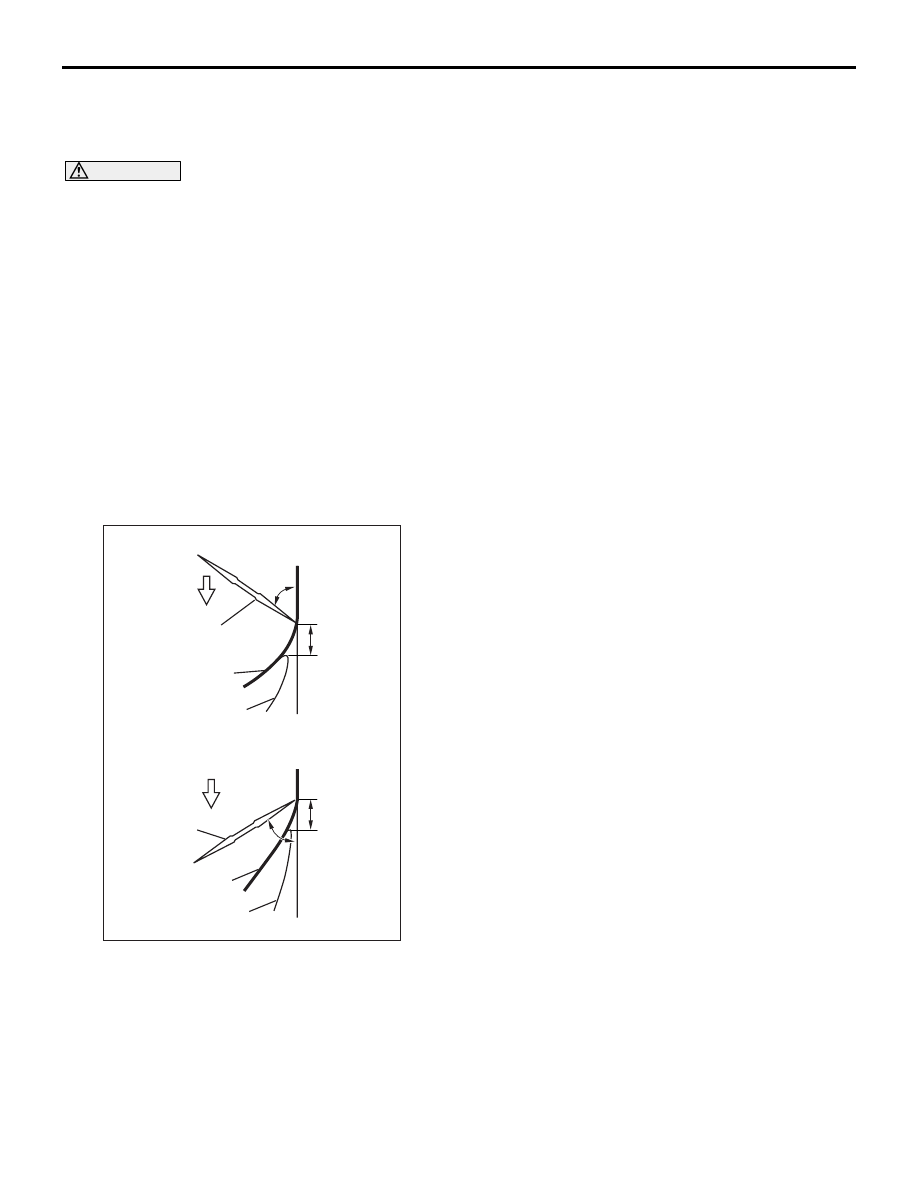

AC303428

AD

MB990528

Unit: mm

MB990528

40 to 50˚

30 to 45˚

10 to 20

10 to 20

Door sash tape

Backing paper

Door sash tape

Backing paper

<Pushing direction>

<Pulling direction>

3 to 7 cm/sec.

3 to 7 cm/sec.

Use the special tool MB990528 to apply the tape

with a steady pace and pressure. If you do not
apply the tape with a steady pace or pressure,
or abort the application, a shallow groove (lat-
eral groove called as "Shock line") may be
present on the tape surface. Meanwhile, if you
apply it too quickly, air bubbles may be
formed under the tape.

1. Wrap a soft cloth (synthetic fibre) around the tip of

the special tool.

2. Use Parts Cleaner (MZ100387 or equivalent) to

degrease the tape application surface.

3. Wipe away dirt from the tape.
