Mitsubishi Outlander (2013+). Manual - part 562

REAR BUMPER ASSEMBLY

EXTERIOR

51-7

REAR BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

M1511001902757

ACB05413

1

AB

2

5.0 ± 2.0 N·m

Removal steps

•

Rear combination lamp assembly
(Refer to GROUP 54A, Rear
combination lamp )

•

Splash shield rear (rear bumper side)
(Refer to GROUP 42A, Splash shield
)

•

Rear end wiring harness and rear
bumper wiring harness combination

1. Rear bumper assembly
2. Rear bumper face support bracket

Removal steps (Continued)

REAR BUMPER ASSEMBLY

EXTERIOR

51-8

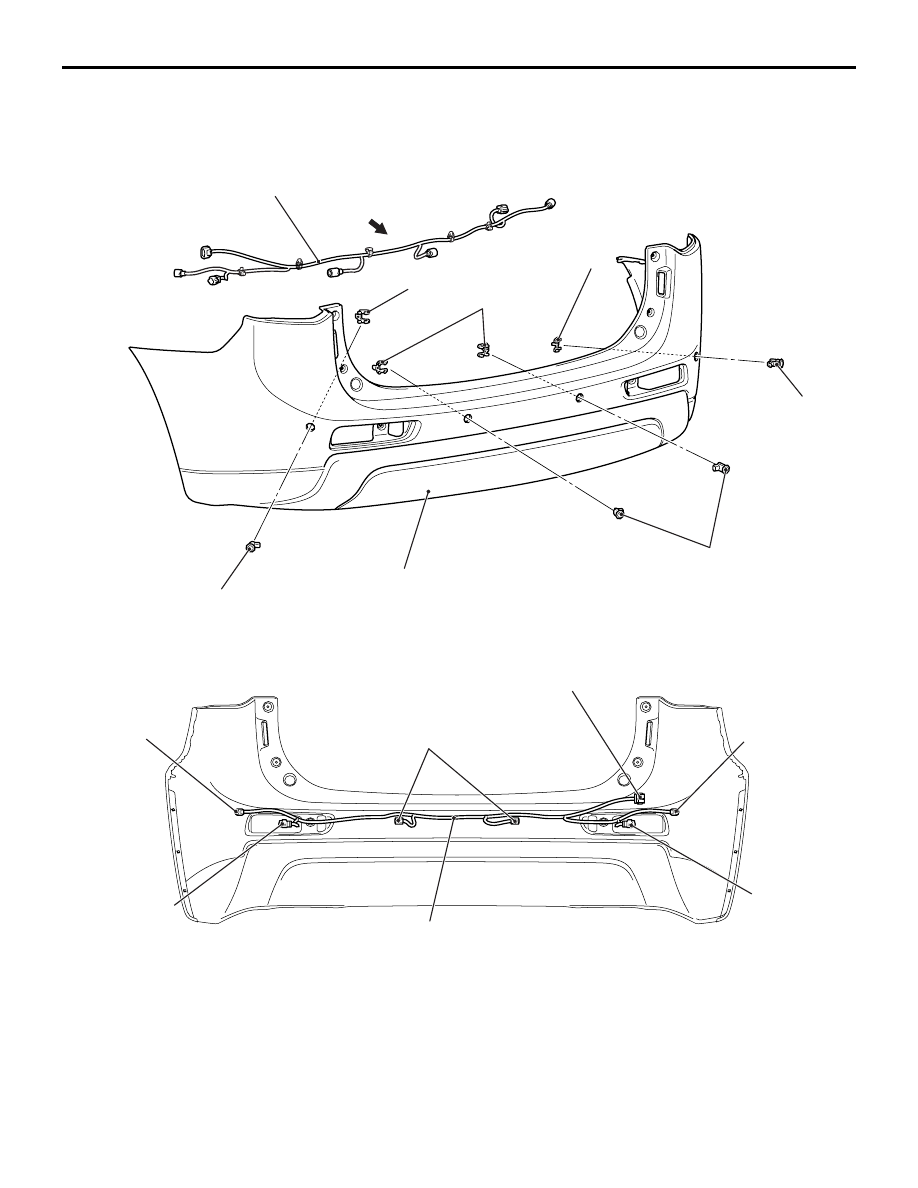

DISASSEMBLY AND REASSEMBLY

M1511002101074

ACB05414

2

AB

1

A

4

2

3

6

3

5

ACB05415 AB

Rear fog lamp
connector

Rear end wiring harness and
rear bumper wiring harness combination

Back-up lamp
connector

View A

1

Back sensor
connector

Rear corner
sensor connector

Rear corner
sensor connector

Removal steps
1. Rear bumper wiring harness
•

Damper  <Vehicles without electric
tailgate> (Refer to GROUP 42A, Tail
gate )

•

Damper  <Vehicles with electric
tailgate> (Refer to GROUP 42A, Tail
gate )

•

Back-up lamp assembly (Refer to
GROUP 54A, Back-up lamp )

•

Rear fog lamp assembly (Refer to
GROUP 54A, Rear fog lamp )

2

Clip

3

Rear corner sensor <Vehicles with
reversing sensor system>

4

Clip

5

Back sensor <Vehicles with reversing
sensor system>

6. Rear bumper face

Removal steps (Continued)

RADIATOR GRILLE

EXTERIOR

51-9

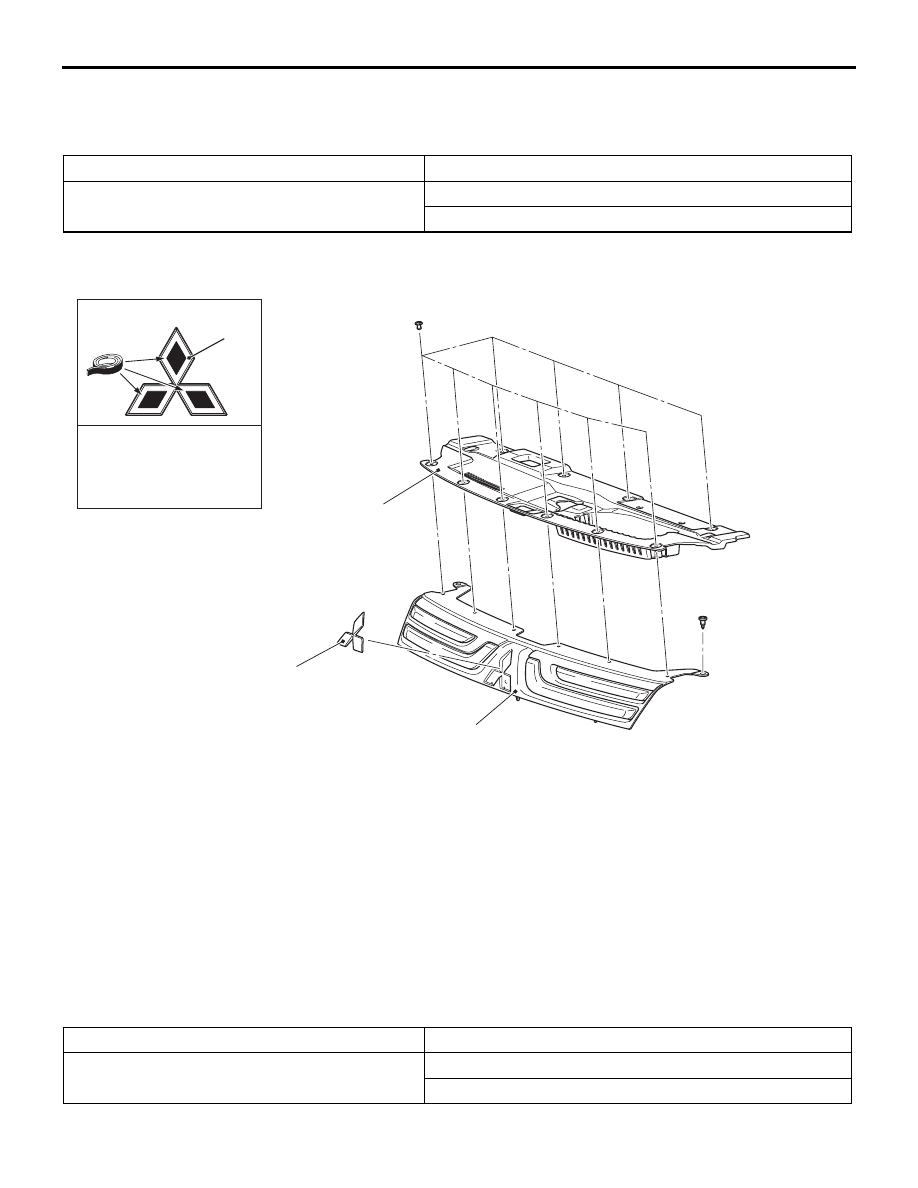

RADIATOR GRILLE

ADHESIVE

M1511000502808

Application

Specified adhesive

Front three-diamond mark

Double-sided tape: Generic products, 0.8 mm thickness

Specified primer: 3M K-500

REMOVAL AND INSTALLATION

M1511002901382

ACC00082

2

3

1

AB

3

Double-sided tape:
Generic products,
0.8 mm thickness

Specified primer:
3M K-500

When reusing "3"

Removal steps

•

Air cleaner intake duct (Refer to
GROUP 15, Air cleaner )

1.

Headlamp support upper panel
cover

2.

Radiator grille

3.

Front-three diamond mark

MOULDINGS

ADHESIVE

M1511000502842

Application

Specified adhesive

Roof drip moulding clip

Specified adhesive: 3M-DP-8010

Specified primer: 3M K-500

Removal steps (Continued)

MOULDINGS

EXTERIOR

51-10

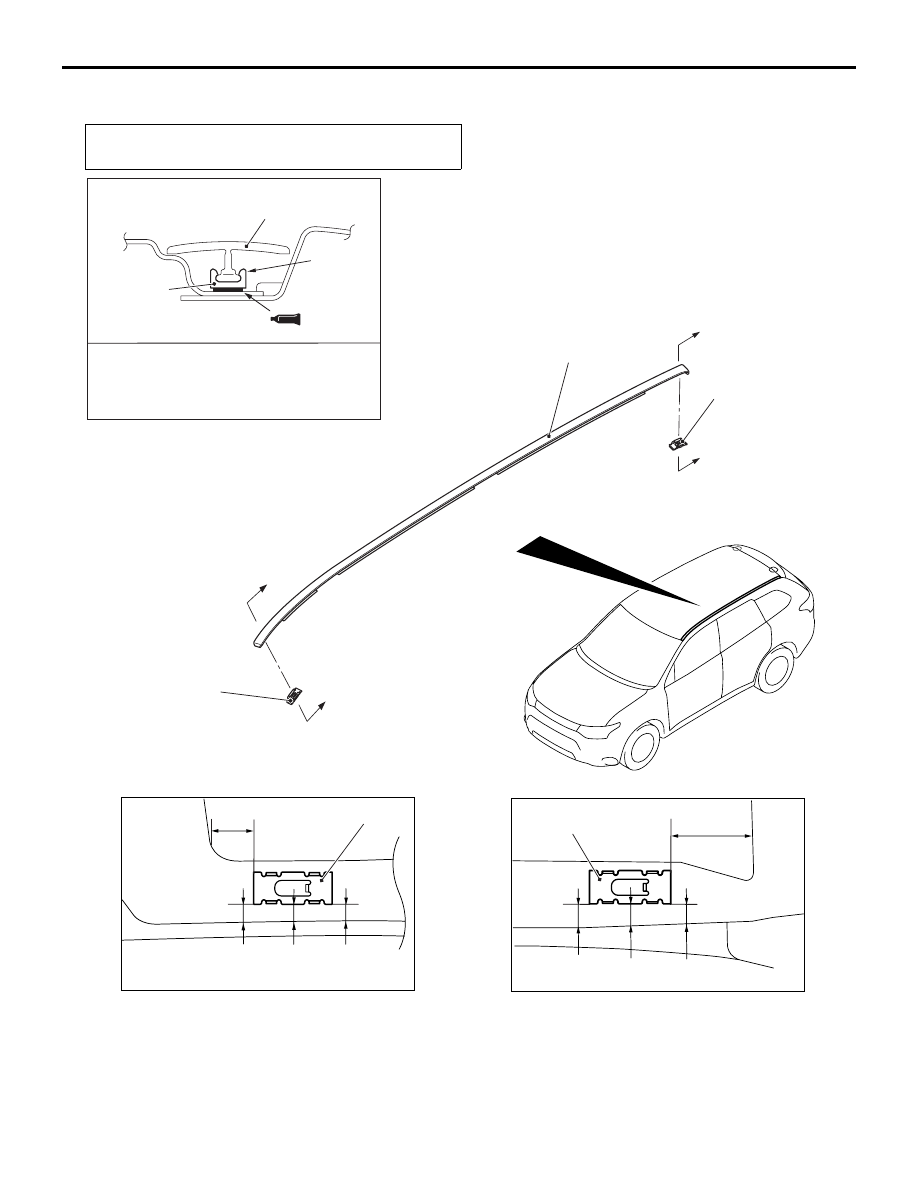

REMOVAL AND INSTALLATION

M1511004701908

Pre-removal and Post-installation Operation
• Roof Rail Removal and Installation (Refer to

P.51-20

)

ACC00084

Section A – A

Specified primer: 3M K-500

AB

2

1

A

A

Claw

2

A

A

1

3

Adhesive: 3M-DP-8010 or equivalent

ACC00502

22.3mm

5.5mm

6.1mm

6.3mm

13.4mm

5.2mm

4.2mm

4.3mm

AB

2

3

Roof drip moulding removal
steps

1.

Roof drip moulding assembly

>>

A

<<

2.

Roof drip moulding clip (FRONT)

>>

A

<<

3.

Roof drip moulding clip (REAR)

INSTALLATION SERVICE POINT

>>A<< ROOF DRIP MOULDING CLIP
INSTALLATION

Apply the specified sealant to the roof drip moulding
clip surface, and install the roof drip moulding clip.
