Mitsubishi Outlander (2013+). Manual - part 561





51-3

AUTOMATIC UNFOLDING FUNCTION OF THE
OUTSIDE REAR-VIEW MIRRORS. . . . . . .

51-75

CHECK THE IGNITION-LIKED FOLD AND
UNFOLDING FUNCTION OF THE OUTSIDE
REAR-VIEW MIRRORS . . . . . . . . . . . . . . .

51-75

DOOR MIRROR KEYLESS ENTRY FUNCTION OR
KOS-LINKED FOLDING AND UNFOLDING
FUNCTION CHECK  . . . . . . . . . . . . . . . . . .

51-75

CHECK OF DOOR MIRROR TIMER FUNCTION



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-76

CUSTOMISATION FUNCTION . . . . . . . . . .

51-76

OUTSIDE MIRROR . . . . . . . . . . . . . . . . . . .

51-76

REMOVAL AND INSTALLATION  . . . . . . . .

51-76

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

51-78

FRONT BUMPER ASSEMBLY

EXTERIOR

51-4

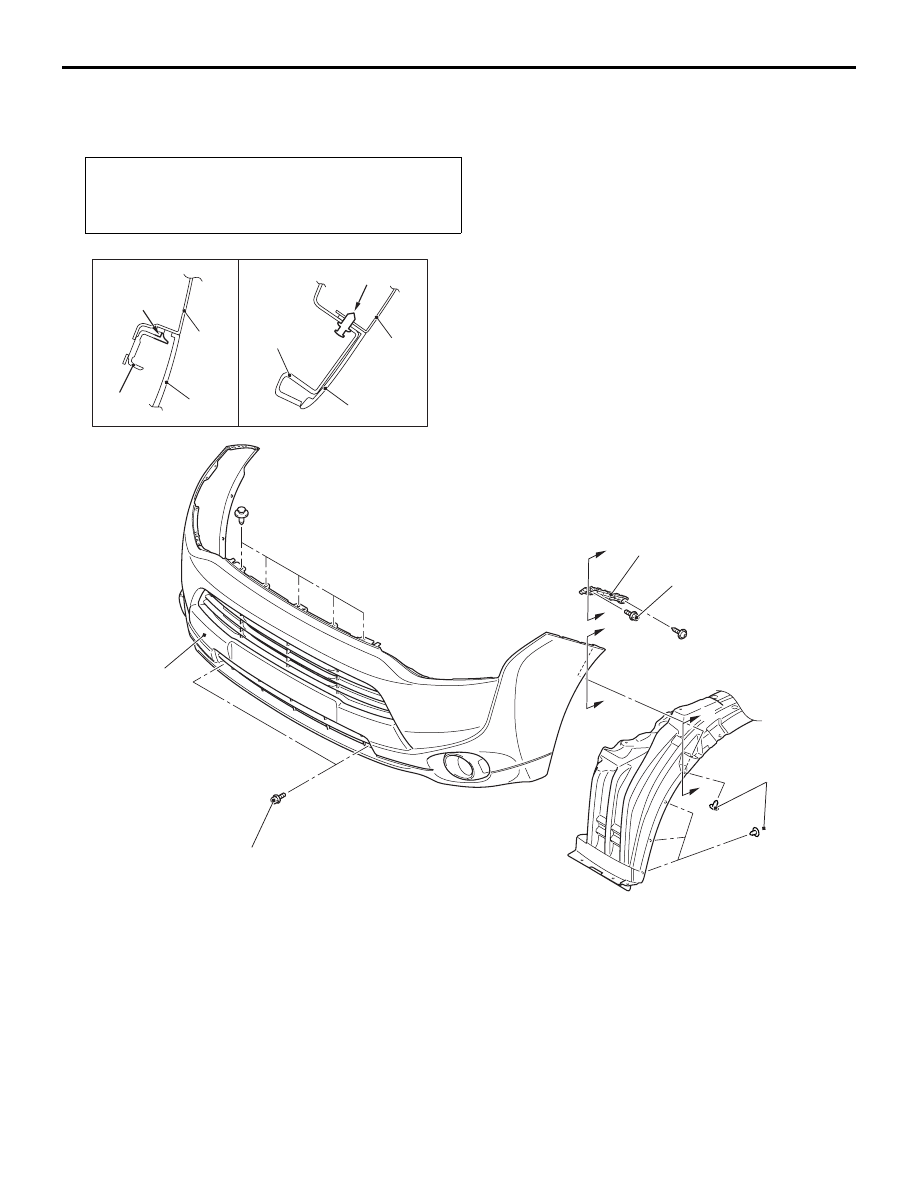

FRONT BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

M1511001402417

Pre-removal and post-installation operation
• Radiator grill removal and installation (Refer to

P.51-9

.)

• Engine room under cover front removal and installation

(Refer to

P.51-19

.)

ACC00451

2

AB

3

3

2

5.0 ± 2.0 N·m

B

B

A

A

Section A – A

Section B – B

Front splash
shield

Front
fender

Claw

Clip

2

Front
fender

1

4.5 ± 1.5 N·m

B

B

Removal steps

Headlamp washer draining
<Vehicles with headlamp washer>

Headlamp washer hose connection
<Vehicles with headlamp washer>

Front wiring harness and fog lamp
wiring harness combination
<Vehicles with fog lamp>

1.

Splash shield mounting clips

2.

Front bumper assembly

3.

Front bumper side bracket

Removal steps (Continued)

FRONT BUMPER ASSEMBLY

EXTERIOR

51-5

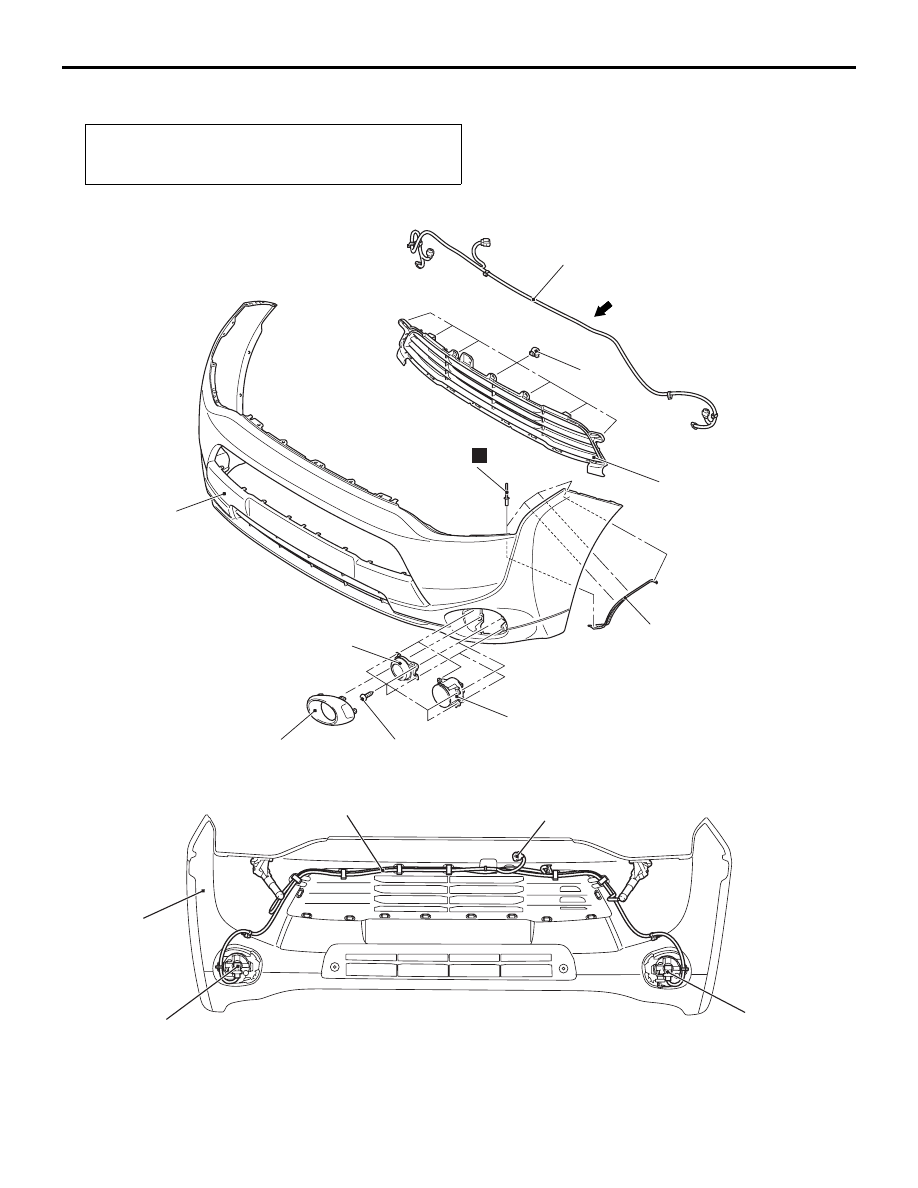

DISASSEMBLY AND REASSEMBLY

M1511001602637

Pre-removal and post-installation operation
• Headlamp washer removal and installation (Refer to

P.51-62

.)

ACC00452

6

5

7

9

1

2

AB

3

0.9 ± 0.1 N·m

4

N

8

A

ACC00453AB

Front fog lamp
connector

Front wiring harness and
fog lamp wiring harness combination

View A

1

Front fog lamp
connector

9

Disassembly steps

1. Front fog lamp wiring harness
2. Harness clamp
3. Radiator grille

<<

A

>> >>

A

<< 4. Rivet

5. Front bumper reinforcement

Disassembly steps (Continued)

FRONT BUMPER ASSEMBLY

EXTERIOR

51-6

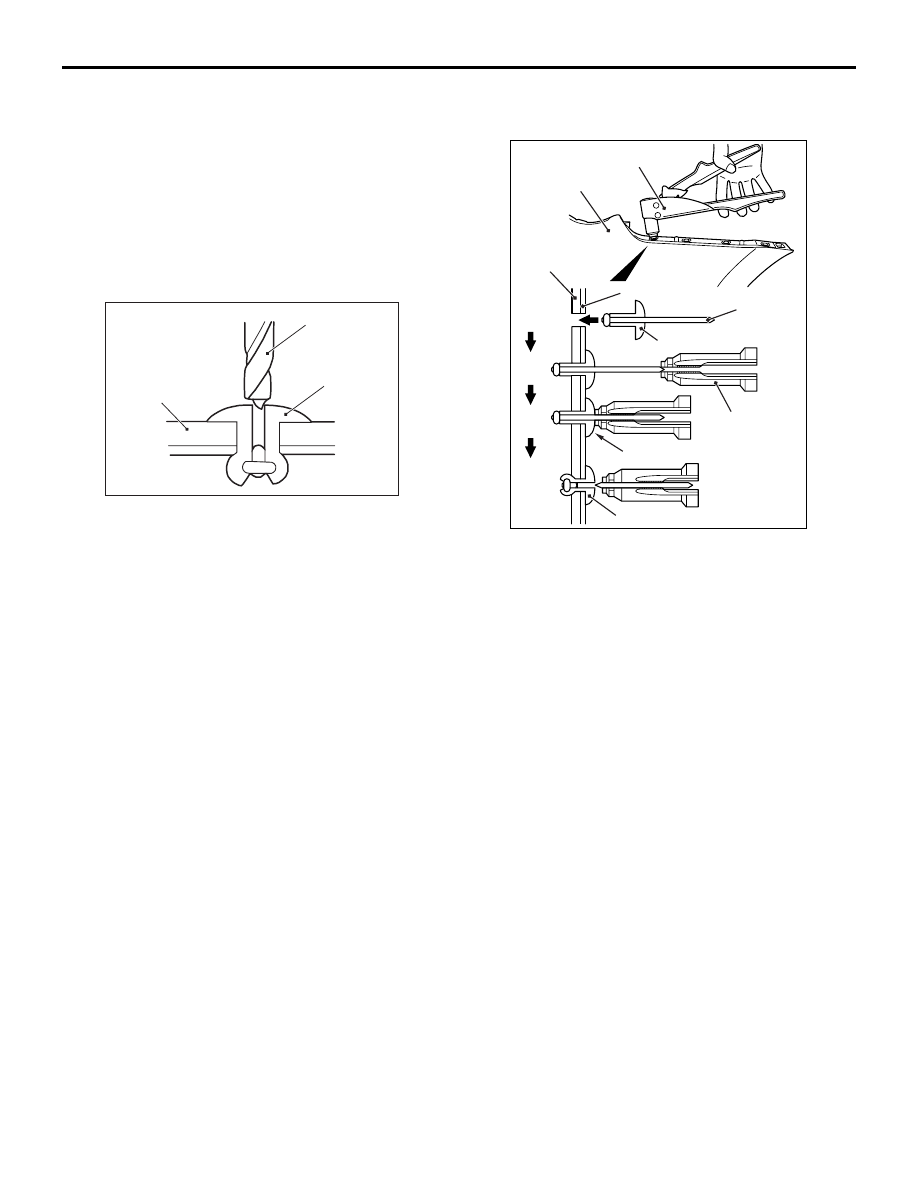

DISASSEMBLY SERVICE POINT

<<A>> RIVETS REMOVAL

AC303663AL

Rivet

Drill

Front bumper face

Use a drill (

φ 4.0 mm) to make a hole in the rivet to

break it, and remove the rivet.

REASSEMBLY SERVICE POINT

>>A<< RIVETS INSTALLATION

AC205918

AG

1

2

3

4

Portion A

Flange

Rivet

Rivet

Fixing parts

Rivet tool

Rivet tool

Front bumper
face

Front bumper face

Use a rivet tool shown as in the illustration to connect
the parts with rivets by the following procedures:
1. Insert the rivet into a corresponding location.

2. Set the rivet tool at a portion A of rivet.

3. While pushing the flange surface of the rivet onto

parts to be fixed with the rivet tool, press the
handle of the tool.

4. Thin part of portion A of the rivet will be cut off and

the part is fixed in position.

6. Front fog lamp bezel <Vehicles with

front fog lamps>

7. Front fog lamp <Vehicles with front

fog lamp>

8. Front bumper lamp hole cover

<Vehicles without front fog lamp>

9. Front bumper face

Disassembly steps (Continued)
