Mitsubishi Outlander (2013+). Manual - part 560





Removal steps

• Upper glove box assembly (Refer

to GROUP 52A

− Instrument panel

assembly .)

>>

A

<<

1. OSS-ECU

ENGINE SWITCH

KEYLESS OPERATION SYSTEM (KOS)

42B-101

INSTALLATION SERVICE POINT

>>A<< OSS-ECU INSTALLATION

When the OSS-ECU is replaced, the mode is shifted
to the special operation mode, and the system works
as follows:

• When the engine switch is pressed, the power

supply mode of the vehicle changes without key
certification.

• The lock/unlock control of the electric steering

lock is not performed.

• The engine cannot be started.

• While turning the vehicle power on, the LED of

the engine switch flashes in green.

• After the OSS-related devices including

OSS-ECU are registered and engine start is pos-
sible, the special operation mode will be can-
celled automatically by operating the engine
switch.

• Check that the special operation mode cancella-

tion is completed by checking the diagnosis code,
by checking whether the engine switch LED is
flashing or not, and by checking whether the
engine can be started or not.

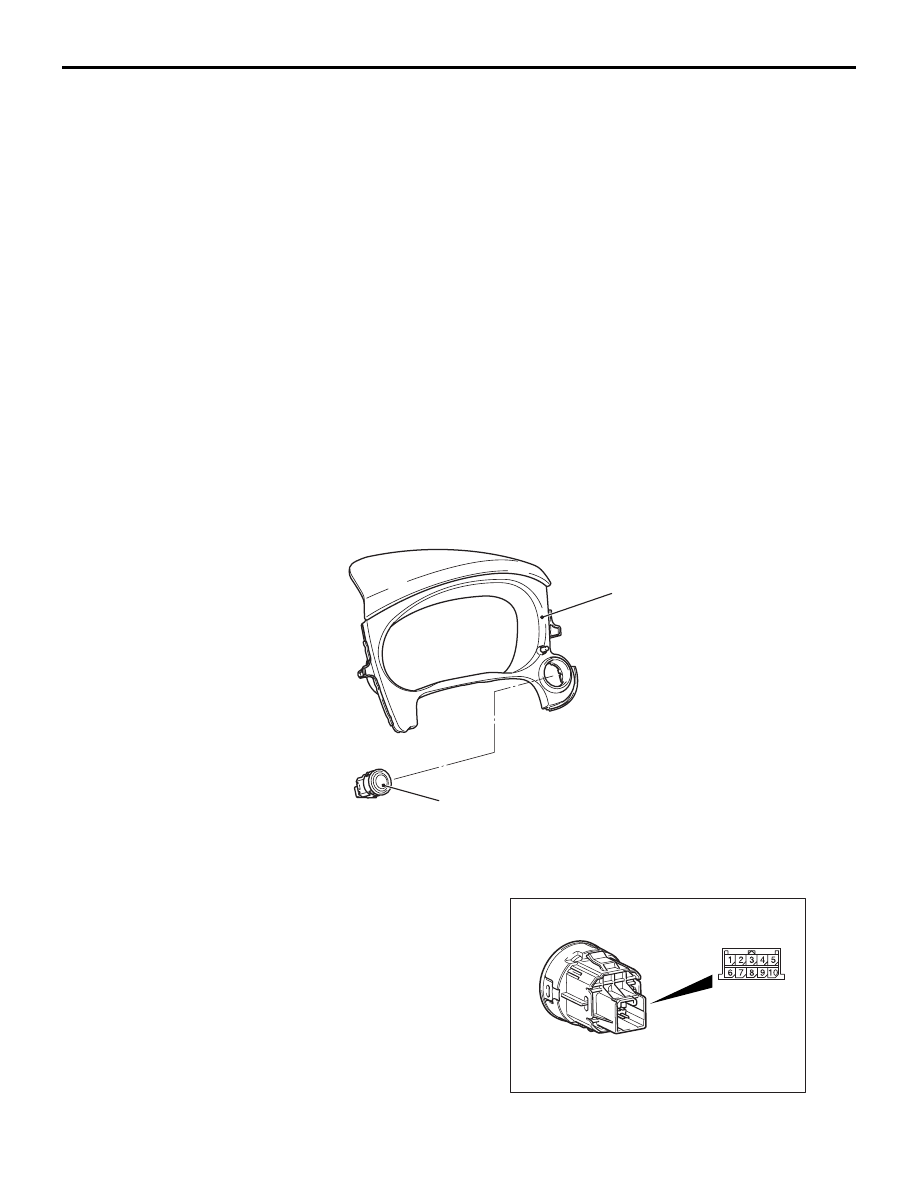

ENGINE SWITCH

REMOVAL AND INSTALLATION

M1429625600033

ACB05708AB

1

2

Removal steps

1. Combination meter bezel (Refer to

GROUP 54A

− Combination meter

.)

2. Engine switch

INSPECTION

M1429625700041

AC904993AE

Switch operation

Terminal
number

Normal
value

Press

− 2

Continuity
exists (2

Ω or

less)

10

− 4

Release

− 2

No continuity

10

− 4

ELECTRIC STEERING LOCK

KEYLESS OPERATION SYSTEM (KOS)

42B-102

ELECTRIC STEERING LOCK

REMOVAL AND INSTALLATION

M1429628100015

CAUTION

When the electric steering lock is replaced, be sure to complete the registration of chassis
number.(Refer to

P.42B-93

.)

Refer to GROUP 37

− Disassembly and Assembly of

Steering Shaft .

Switch operation

Terminal
number

Normal
value

51-1

GROUP 51

EXTERIOR

CONTENTS

FRONT BUMPER ASSEMBLY . . . . .

51-4

REMOVAL AND INSTALLATION . . . . . . . .

51-4

DISASSEMBLY AND REASSEMBLY. . . . .

51-5

REAR BUMPER ASSEMBLY  . . . . . .

51-7

REMOVAL AND INSTALLATION . . . . . . . .

51-7

DISASSEMBLY AND REASSEMBLY. . . . .

51-8

RADIATOR GRILLE. . . . . . . . . . . . . .

51-9

ADHESIVE  . . . . . . . . . . . . . . . . . . . . . . . . .

51-9

REMOVAL AND INSTALLATION . . . . . . . .

51-9

MOULDINGS . . . . . . . . . . . . . . . . . . .

51-9

ADHESIVE  . . . . . . . . . . . . . . . . . . . . . . . . .

51-9

REMOVAL AND INSTALLATION . . . . . . . .

51-10

TAILGATE GARNISH  . . . . . . . . . . . .

51-11

REMOVAL AND INSTALLATION . . . . . . . .

51-11

DOOR SASH TAPE . . . . . . . . . . . . . .

51-12

LUBRICANT . . . . . . . . . . . . . . . . . . . . . . . .

51-12

SPECIAL TOOL  . . . . . . . . . . . . . . . . . . . . .

51-12

REMOVAL AND INSTALLATION . . . . . . . .

51-12

MUD GUARD . . . . . . . . . . . . . . . . . . .

51-16

REMOVAL AND INSTALLATION . . . . . . . .

51-16

SIDE AIR DAM . . . . . . . . . . . . . . . . . .

51-17

ADHESIVE  . . . . . . . . . . . . . . . . . . . . . . . . .

51-17

LUBRICANT . . . . . . . . . . . . . . . . . . . . . . . .

51-17

REMOVAL AND INSTALLATION . . . . . . . .

51-17

UNDER COVER . . . . . . . . . . . . . . . . .

51-19

REMOVAL AND INSTALLATION . . . . . . . .

51-19

ROOF RAIL  . . . . . . . . . . . . . . . . . . . .

51-20

REMOVAL AND INSTALLATION . . . . . . . .

51-20

WINDSHIELD WIPER AND WASHER

51-21

SERVICE SPECIFICATION  . . . . . . . . . . . .

51-21

LUBRICANT  . . . . . . . . . . . . . . . . . . . . . . . .

51-21

SPECIAL TOOLS  . . . . . . . . . . . . . . . . . . . .

51-21

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-24

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-24

TROUBLE SYMPTOM CHART . . . . . . . . . .

51-24

Inspection Procedure 1: The windshield wipers do not
work at all. . . . . . . . . . . . . . . . . . . . . . . . . . .

51-24

INSPECTION PROCEDURE 2: The windshield wipers
do not work when the wiper switch is at the "INT",
"Washer" or "Mist" position. However, the wipers work
at low speed when the switch is at the "Lo" and "Hi"
position. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-26

Inspection Procedure 3: The windshield wipers do not
stop at the specified park position.  . . . . . . .

51-27

Inspection Procedure 4: The windshield wipers do not
work normally. . . . . . . . . . . . . . . . . . . . . . . .

51-27

Inspection Procedure 5: The windshield intermittent
wiper interval cannot be adjusted by operating the
windshield intermittent wiper volume control.



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-29

Inspection Procedure 6: The intermittent wiper interval
is not changed according to the vehicle speed.



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-30

Inspection Procedure 7: The rain sensitive AUTO wiper
function does not work at all <Vehicles with lighting
control sensor>. . . . . . . . . . . . . . . . . . . . . . .

51-30

INSPECTION PROCEDURE 8: The rain sensitive
AUTO wiper function works even though there is no
rainfall <Vehicles with lighting control sensor>.



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-32

INSPECTION PROCEDURE 9: Sometimes the rain
sensitive AUTO wiper function works even though there
is no rainfall <Vehicles with lighting control sensor>.



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-33

Inspection Procedure 10: The windshield washer does
not work.  . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-33

Inspection Procedure 11: The comfort washing function
does not work normally.. . . . . . . . . . . . . . . .

51-35

51-2

Inspection Procedure 12: Delayed finishing wipe
function does not work normally.. . . . . . . . .

51-35

DATA LIST REFERENCE TABLE  . . . . . . .

51-36

ON-VEHICLE SERVICE . . . . . . . . . . . . . . .

51-37

WINDSHIELD INTERMITTENT WIPER INSPECTION



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-37

LIGHTING CONTROL SENSOR (RAIN SENSOR)
INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

51-37

COMFORT WASHING FUNCTION INSPECTION



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-37

DELAYED FINISHING WIPE FUNCTION
INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

51-37

CUSTOMISATION FUNCTION. . . . . . . . . .

51-37

WINDSHIELD WIPER. . . . . . . . . . . . . . . . .

51-39

REMOVAL AND INSTALLATION . . . . . . . .

51-39

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

51-42

WINDSHIELD WASHER. . . . . . . . . . . . . . .

51-43

REMOVAL AND INSTALLATION . . . . . . . .

51-43

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

51-44

LIGHTING CONTROL SENSOR  . . . . . . . .

51-45

LIGHTING CONTROL SENSOR REMOVAL AND
INSTALLATION. . . . . . . . . . . . . . . . . . . . . .

51-45

Lighting control sensor (rain sensor) adaptation



 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-46

REAR WIPER AND WASHER . . . . . .

51-46

SERVICE SPECIFICATION . . . . . . . . . . . .

51-46

SPECIAL TOOLS . . . . . . . . . . . . . . . . . . . .

51-46

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-49

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-49

TROUBLE SYMPTOM CHART. . . . . . . . . .

51-49

INSPECTION PROCEDURE 1: Rear wiper does not
work at all. . . . . . . . . . . . . . . . . . . . . . . . . . .

51-49

INSPECTION PROCEDURE 2: The rear wiper does not
stop at the specified park position. . . . . . . .

51-50

INSPECTION PROCEDURE 3: When the selector
lever is moved to "R" position during the rear wiper
operation, the rear wiper does not operate at the
continuous mode. . . . . . . . . . . . . . . . . . . . .

51-51

INSPECTION PROCEDURE 4: The rear washer does
not work normally. . . . . . . . . . . . . . . . . . . . .

51-52

ON-VEHICLE SERVICE . . . . . . . . . . . . . . .

51-52

OPERATION CHECK OF REVERSE GEAR-LINKED
OPERATION OF REAR WIPER . . . . . . . . .

51-52

CUSTOMISATION FUNCTION. . . . . . . . . .

51-53

REAR WIPER AND WASHER  . . . . . . . . . .

51-54

REMOVAL AND INSTALLATION . . . . . . . .

51-54

INSPECTION  . . . . . . . . . . . . . . . . . . . . . . .

51-55

WIPER DEICER  . . . . . . . . . . . . . . . . .

51-57

SERVICE SPECIFICATION  . . . . . . . . . . . .

51-57

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-57

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-57

INSPECTION PROCEDURE: The wiper deicer does
not work at all. . . . . . . . . . . . . . . . . . . . . . . .

51-57

ON-VEHICLE SERVICE  . . . . . . . . . . . . . . .

51-59

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

51-59

WIPER DEICER INSPECTION . . . . . . . . . .

51-59

HEADLAMP WASHER . . . . . . . . . . . .

51-60

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-60

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-60

Inspection Procedure: The headlamp washer does not
work.  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51-60

HEADLAMP WASHER  . . . . . . . . . . . . . . . .

51-62

REMOVAL AND INSTALLATION  . . . . . . . .

51-62

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

51-63

MARK . . . . . . . . . . . . . . . . . . . . . . . . .

51-64

LUBRICANT  . . . . . . . . . . . . . . . . . . . . . . . .

51-17

REMOVAL AND INSTALLATION  . . . . . . . .

51-64

OUTSIDE MIRROR . . . . . . . . . . . . . . .

51-66

SERVICE SPECIFICATION  . . . . . . . . . . . .

51-66

SPECIAL TOOLS  . . . . . . . . . . . . . . . . . . . .

51-66

TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-68

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING  . . . . . . . . . . . . . . . .

51-68

TROUBLE SYMPTOM CHART . . . . . . . . . .

51-68

Inspection Procedure 1: Electric-folding door mirrors do
not work at all. . . . . . . . . . . . . . . . . . . . . . . .

51-68

Inspection Procedure 2: One of electric-folding door
mirrors does not work. . . . . . . . . . . . . . . . . .

51-69

Inspection Procedure 3: Electric-folding door mirror
timer function does not work normally.  . . . .

51-70

Inspection Procedure 4: Vehicle speed-dependent
unfolding function does not work normally. .

51-71

Inspection Procedure 5: Ignition-linked fold/unfold
function does not work normally. . . . . . . . . .

51-72

Inspection Procedure 6: Keyless entry system-linked
fold/unfold function does not work normally.

51-73

Inspection Procedure 7: None of the heated door
mirrors operate  . . . . . . . . . . . . . . . . . . . . . .

51-73

Inspection Procedure 8: Either of the door mirror heater
elements does not work. . . . . . . . . . . . . . . .

51-74

ON-VEHICLE SERVICE  . . . . . . . . . . . . . . .

51-75

CHECK THE VEHICLE SPEED-DEPENDENT
