Mitsubishi Outlander (2013+). Manual - part 558





ON-VEHICLE SERVICE <OSS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-93

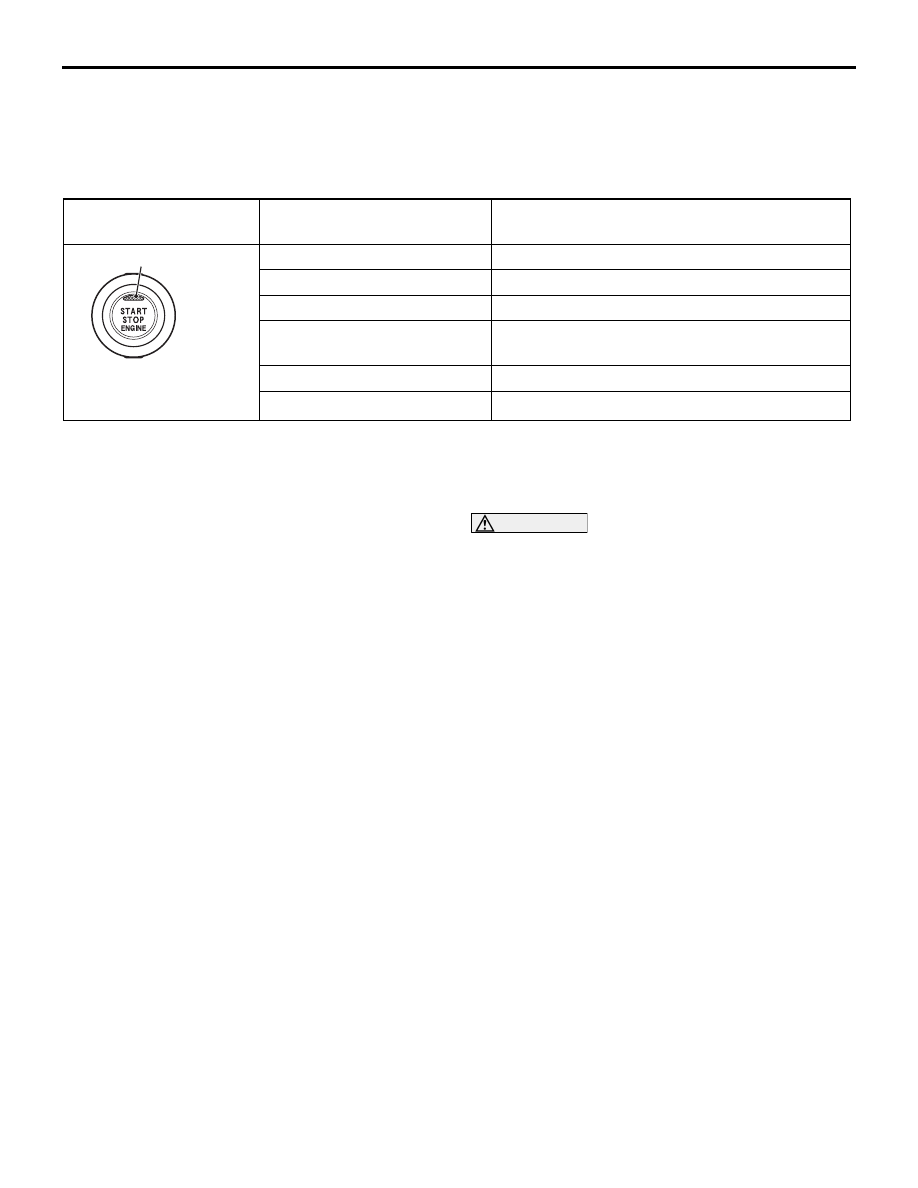

CHECK OF ENGINE SWITCH INDICATOR
FUNCTION

M1429627100023

Check that the engine switch indicator is switched as
follows in each power supply mode and when an
error is detected.

INDICATOR

Power supply mode and at
error detection

INDICATOR

AC904994AB

Indicator

OFF

Extinguished

ACC

Illuminated in orange

ON

Illuminated in green

ON (after engine start)

Extinguished at 3 seconds after the engine is
started

System error

Flashes in orange

Special operation mode

*

Flashes in green (when ACC and ON only)

NOTE:

*

: The special operation mode indicates that

OSS-ECU is brand new.

CHECK OF ENGINE SWITCH REMINDER
BUZZER

M1429620300026

1. With the driver's door kept closed, release the

steering lock, and then turn the power supply
mode to ACC or ON.

2. Open the driver's door.
3. Check that the buzzer sounds normally.
4. If there is a malfunction, troubleshoot the combi-

nation meter. (Refer to GROUP 54A

− Combina-

tion Meter, Trouble Symptom Chart .)

REGISTRATION WHEN REPLACING
OSS-ECU AND ELECTRIC STEERING
LOCK

M1429627200031

CAUTION

• When KOS-ECU is replaced, all the registra-

tions that need to be performed at KOS-ECU
replacement must be completed before the
registration of OSS-ECU and electric steering
lock.

• Be sure to check that the diagnosis code

No.B1157 OSS EEPROM error and No.B1155
ESL EEPROM error are not set. If the diagno-
sis code No.B1157 "OSS EEPROM error" and
No.B1155 "ESL EEPROM error" are set, the
chassis number cannot be stored in memory
even when it is written. Therefore, when these
diagnosis codes are set, be sure to carry out
the troubleshooting first to repair the trouble,
and then write the chassis number to
OSS-ECU or electric steering lock.

When OSS-ECU or electric steering lock is replaced,
the chassis number needs to be registered to the
replaced ECU.

CHASSIS NUMBER REGISTRATION
PROCEDURE

NOTE: Regardless of which of OSS-ECU or electric
steering lock is replaced, the registration can be per-
formed by executing the same menu selection.
(Even when both OSS-ECU and electric steering
lock were replaced as a set, they can be registered
by performing the registration process only once.)
1. Replace the OSS-ECU or electric steering lock.

ACB05017

MB992747, MB992748, MB991827

MB992744, MB991824

AB

MB992745, MB991910

Diagnosis connector

ON-VEHICLE SERVICE <OSS-ECU>

KEYLESS OPERATION SYSTEM (KOS)

42B-94

2. Connect M.U.T.-III to the diagnosis connector.

3. From the system selection screen of M.U.T.-III,

select "OSS".

4. From the OSS function menu screen, select

"Coding".

AC905137

Please select function.

Chassis No./VIN Writing

Coding

Coding

AD

Chassis No./VIN Information

5. From the coding menu screen, select "Chassis

No./VIN Writing."

AC905138

Coding

Chassis No./VIN Writing

Writing status

ECU Name

Chassis No./VIN

Status

Completed

Completed

Not completed

The Chassis No./VIN is written into blank ECU.
(The same Chassis No./VIN as Engine ECU is written.)
Press OK button to execute.

AF

OK button

AC905139

Chassis No./VIN Writing

Chassis No./VIN Writing will start.
Are you sure?
Caution:
You can write Chassis No./VIN into ECU only once.

AC

Cancel button

OK button

AC905140

Chassis No./VIN Writing

Completed.

AB

6. Following the instruction on the screen, press the

OK button to execute the chassis number writing.
(M.U.T. screen above indicates when OSS-ECU
is replaced.)

AC905141

Coding

Chassis No./VIN Writing

Writing status

ECU Name

Chassis No./VIN

Status

Completed

Completed

Completed

Please confirm the writing result.

AE

7. On the writing result confirmation screen, check

that the chassis number is written, and finish the
registration.

8. Operate the engine switch to turn OFF the power

supply.

KOS-ECU

KEYLESS OPERATION SYSTEM (KOS)

42B-95

NOTE: After the M.U.T.-III has executed the chas-
sis number writing, it will turn the engine switch on
forcibly. Therefore, after completion, turn the
engine switch off.

9. Set the driver's door from open to close or from

close to open.

10.Carrying the keyless operation key, perform the

engine switch operation to turn the power from
OFF to ON twice.

11.Check that the OSS-ECU diagnosis code (B1160,

B1164, B1165, B1166 or U1199) is not set, and
finish the registration.

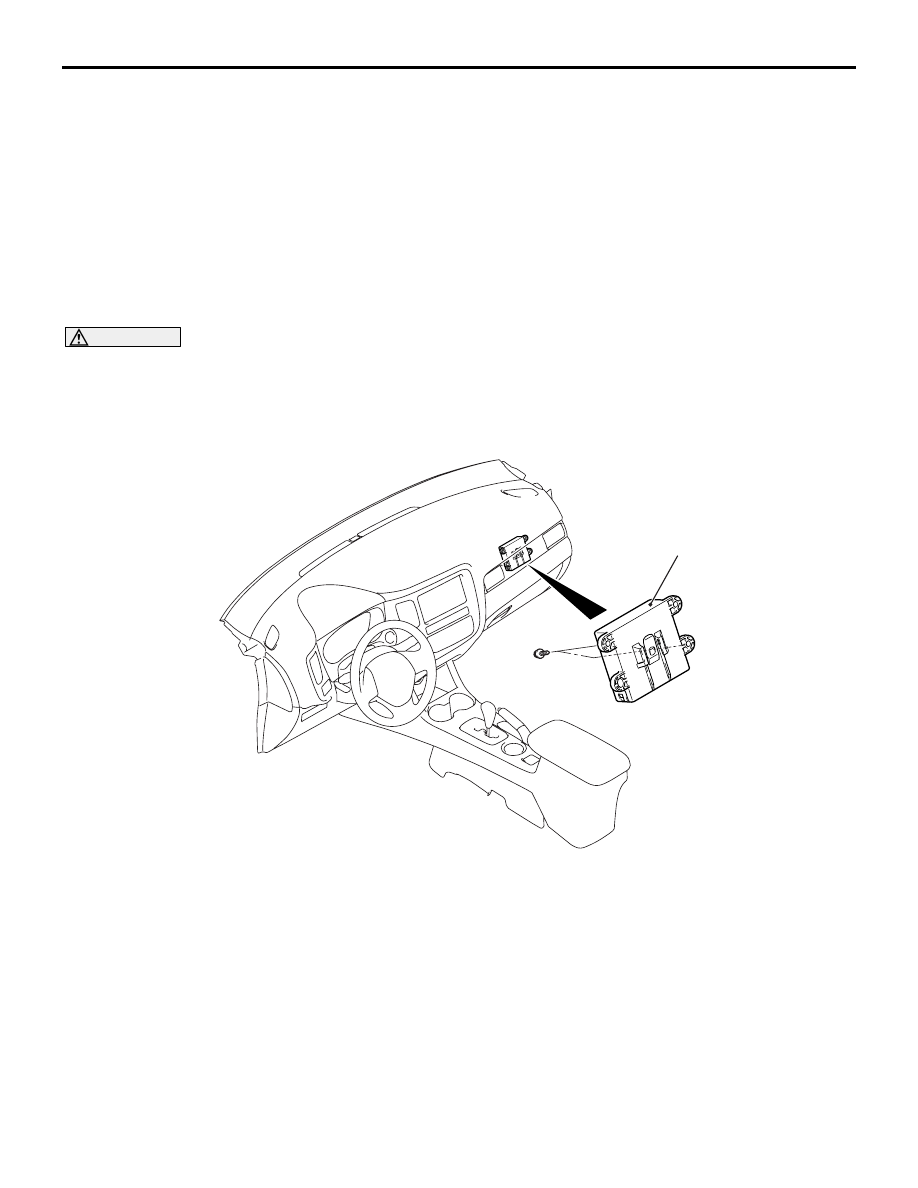

KOS-ECU

REMOVAL AND INSTALLATION

M1429605900407

CAUTION

If KOS-ECU is replaced, refer to ID code registration need judgement table

P.42B-88

 to complete the

registration of each ID code.

ACB05639

1

AB

Removal steps

• Upper glove box assembly (Refer

to GROUP 52A

− Instrument panel

assembly .)

• OSS-ECU (Refer to

P.42B-100

.)

1. KOS-ECU

Removal steps (Continued)

OUTSIDE TRANSMISSION ANTENNA ASSEMBLY, INSIDE TRANSMISSION ANTENNA

KEYLESS OPERATION SYSTEM (KOS)

42B-96

OUTSIDE TRANSMISSION ANTENNA ASSEMBLY, INSIDE

TRANSMISSION ANTENNA ASSEMBLY

REMOVAL AND INSTALLATION

M1429619300099

AC905335

ACB05641

2

1

3

4

5

6

AB

5.0 ± 2.0 N·m

Outside transmission antenna
assembly (driver’s side)
removal steps

•

Centre pillar trim upper (LH)
(Refer to GROUP 52A

− Interior

Trim .)

1.

Outside transmission antenna
assembly (driver’s side)

Outside transmission antenna
assembly (passenger’s side)
removal steps

•

Centre pillar trim upper (RH)
(Refer to GROUP 52A

− Interior

Trim .)

2.

Outside transmission antenna
assembly (passenger’s side)
