Mitsubishi Outlander (2013+). Manual - part 564





ACB05481AB

4.0

37

4

4

1

(3)

(3)

4

(3)

4

(3)

4

(3)

4.0

4.0

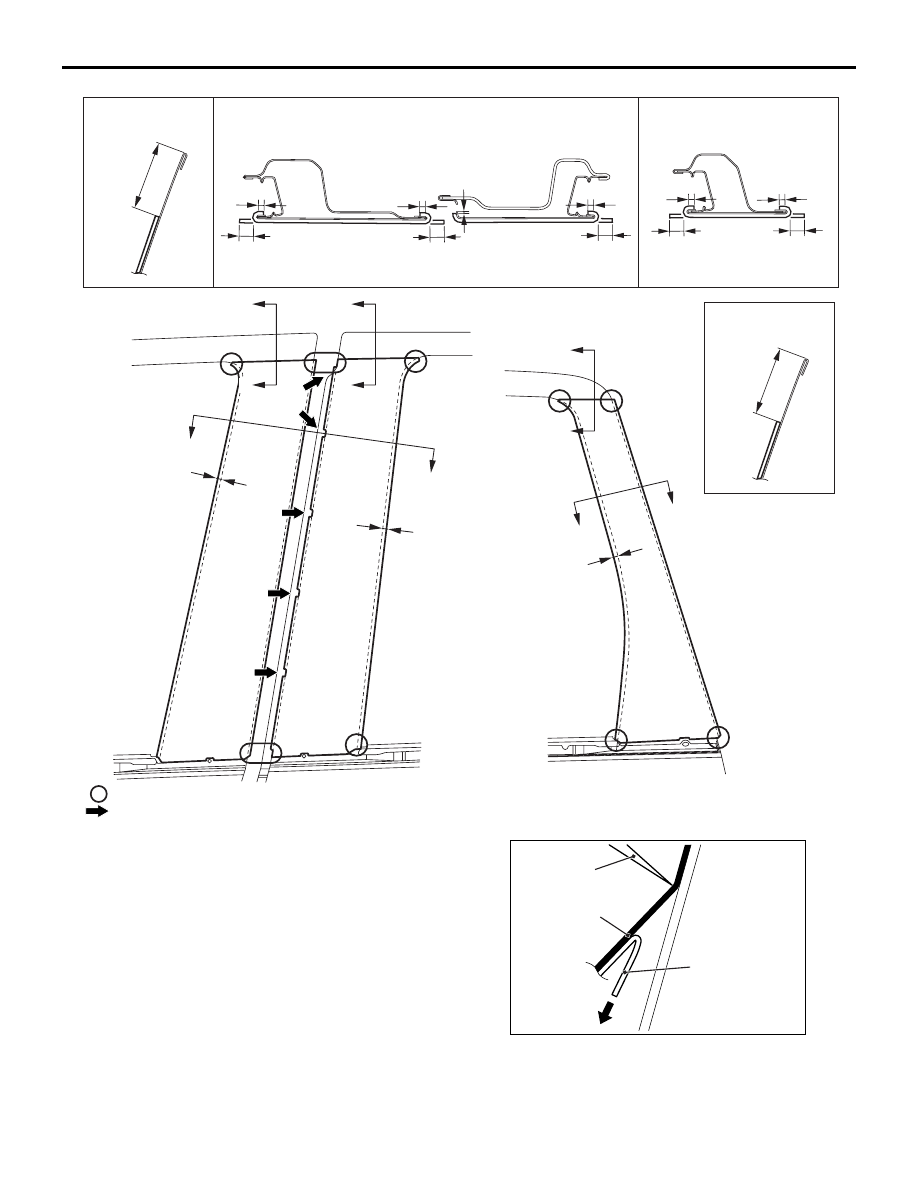

: Tape locating points

: T-stud for door opening weatherstrip attaching locations (5 places in all).

Section A – A

30.9

Section D – D

B

C

C

B

A

A

A

D

D

Section B – B

Section C – C

Unit: mm

A

DOOR SASH TAPE

EXTERIOR

51-15

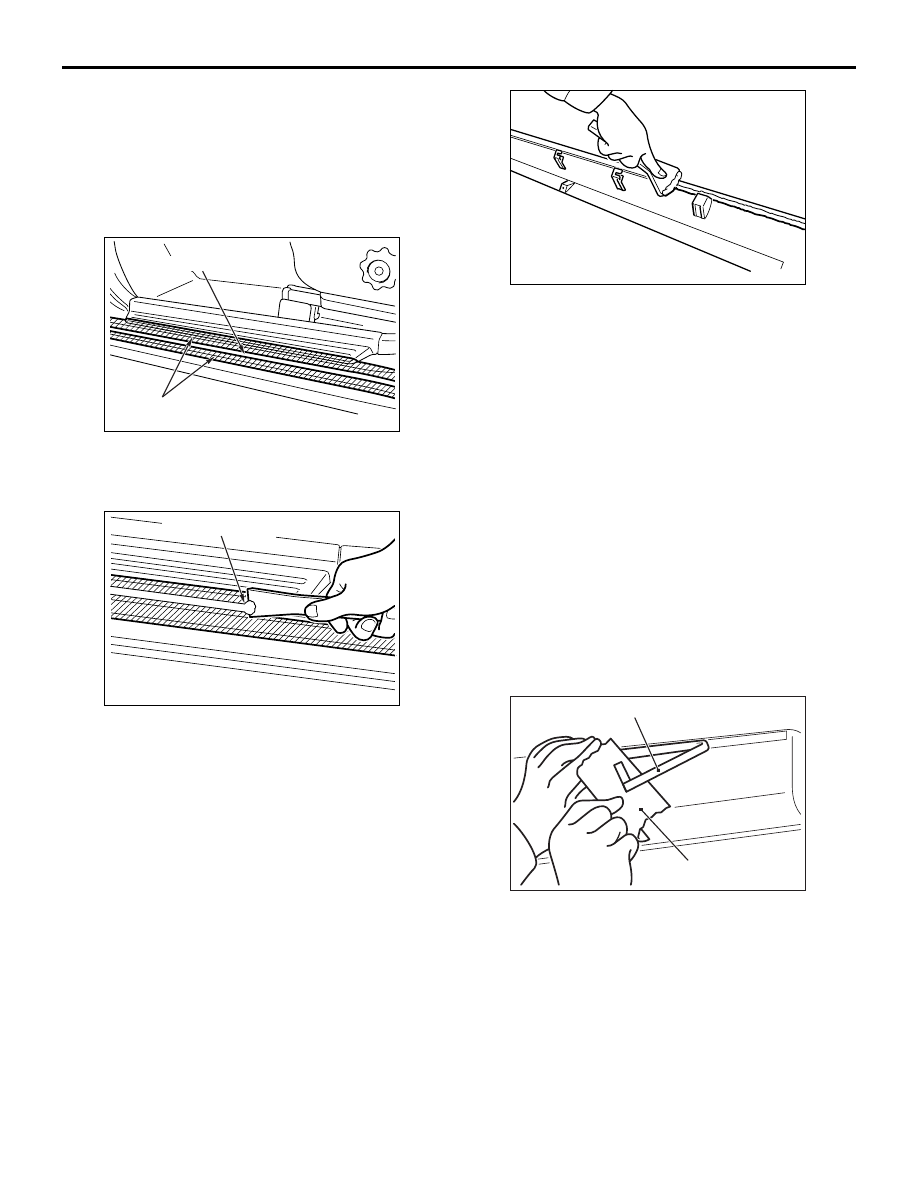

4. Apply the door sash tape according to the

procedure below.
(1) Position the tape at the upper and lower

locating points.

(2) Peel of backing strip from the top of the tape

and attach it temporarily.

(3) Peel off the backing strip to the half length of

the tape.

AC402197

AD

MB990528

Backing paper

Door sash
tape

(4) Apply the tape using the special tool while

peeling off the remaining backing strip.

AC506860

AB

A

B

Rear door sash tape front

Stepped part

Plain part

MUD GUARD

EXTERIOR

51-16

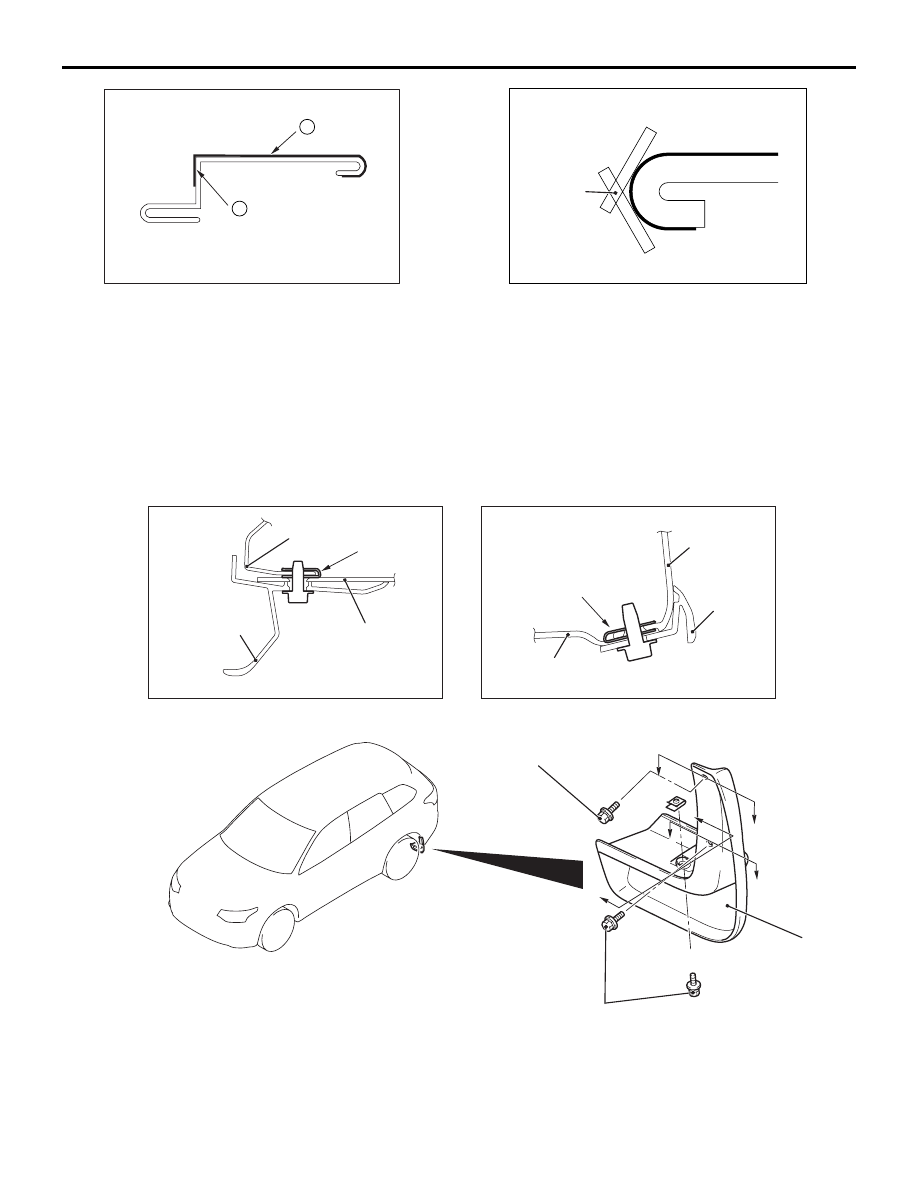

(5) For the front rear door sash tape, apply it to

plain surface (A). Then apply it to stepped
surface (B).

AC303415

AB

MB990528

120˚

60˚

Hemming part

(6) Press the folded area of the tape by three

stages (60 degrees, 120 degrees, and
holding), rolling in toward the vehicle inside
direction.

MUD GUARD

REMOVAL AND INSTALLATION

M1511011200560

ACB06001

ACB05436

ACB05435

ACB05434

AB

5.0 ± 2.0 N·m

Section A – A

5.0 ± 2.0 N·m

A

A

B

B

Section B – B

1

Spring  nut

Rear bumper
face

Spring  nut

Rear bumper
face

1

1

Rear splash
shield

Rear splash
shield

B

B

Removal step

1.

Rear mud guard

SIDE AIR DAM

EXTERIOR

51-17

SIDE AIR DAM

ADHESIVE

M1511000501269

Application

Specified adhesive

Side air dam

Double-sided tape: Generic products, 4.0 mm width and
1.2 mm thickness

Specified primer: 3M K-500

LUBRICANT

M1511000400140

Item

Specified lubricant

Quantity

Degrease agent

Grease and dirt removal
from parts surface

Parts cleaner (MZ100387 or
equivalent)

As required

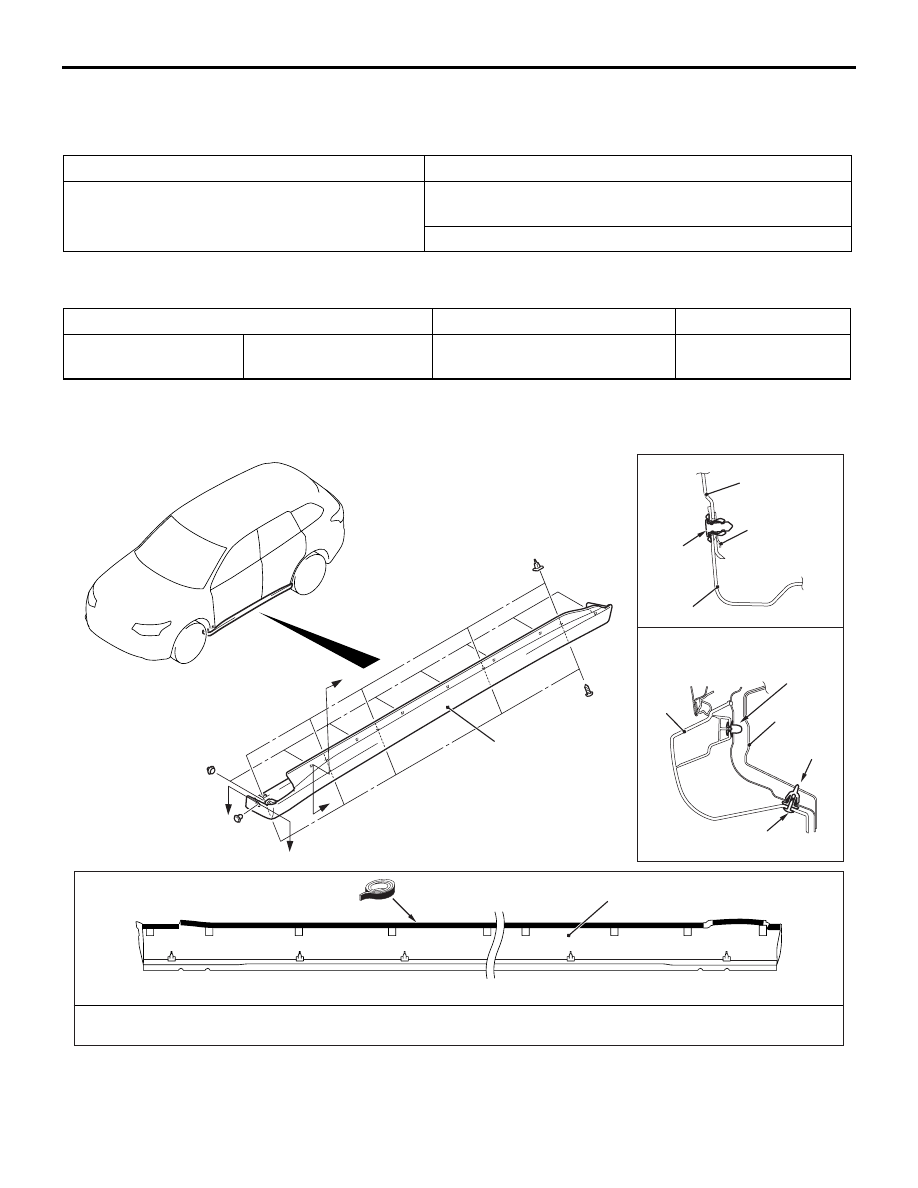

REMOVAL AND INSTALLATION

M1511005501468

ACB06004

B

A

B

A

AB

Clip

Clip

Grommet

Screw

Section A – A

Section B – B

Front fender

Splash shield

Side outer
panel

1

1

1

1

Double-sided tape affixed location

Double-sided tape: Generic products 4.0 mm width,  1.2 mm thickness
Specified primer: 3M K-500

Removal step

<<A>>

>>A<<

1.

Side air dam

SIDE AIR DAM

EXTERIOR

51-18

REMOVAL SERVICE POINT

<<A>> SIDE AIR DAM REMOVAL

Gently lift and remove the side air dam. If there is
any double-sided tape remaining on the side air dam,
remove according to the following instructions.
<Remove double-sided tape remaining on the body
surface>

AC200049

AB

Protection tape

Double-sided tape

1. Attach protection tape all the way along the edges

of the double-sided tape which is still adhering to
the body.

AC200050

AB

Double-sided tape

2. Scrape off the double-sided tape with a resin

spatula as much as possible.

3. Peel off the protection tape.

4. Wipe the body surface and clean it with a rag

moistened with Parts Cleaner (MZ100387 or
equivalent).

<Remove double-sided tape remaining on side air
dam and adhere double-sided tape (when re-using
side air dam)>

AC103187

1. Scrape off the double-sided tape on the side air

dam with a resin spatula as much as possible.

2. Wipe the side air dam surface and clean it with a

rag moistened with Parts Cleaner (MZ100387 or
equivalent).

3. Remove only a small portion of the residual

adhesive.

4. Adhere the double-sided tape as specified on the

side air dam (Refer to double-sided tape
adherence location ).

INSTALLATION SERVICE POINT

>>A<< SIDE AIR DAM INSTALLATION

1. Use the parts cleaner (MZ100387 or equivalent)

wipe off the adhesion surface to decrease it.

2. Apply the specified primer to the double-sided

adhesive tape surface. Then dry it off swfficiently.

Specified primer : 3M K-500

AC103247

Backing paper

Adhesive tape

AC

3. Tear off the double-sided tape backing paper.

NOTE: If attach the adhesive tape to the edge of
the backing paper, it will be easy to tear off.

4. Install the side air dam.

NOTE: If the double-sided tape is difficult to affix
in cold temperature, etc., warm the bonding sur-
faces of the body and side air dam to about 40



60

°

C before affixing the tape.

5. Firmly press in the side air dam.
