SUNROOF ASSEMBLY

BODY

42A-148

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points -
How to Cope with Intermittent Malfunction ).

NO :

Replace the sunroof motor assembly.

INSPECTION PROCEDURE 3: The Sunroof Lid Glass does not Open (Tilt-up, Tilt-down, And Close
Normally).

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the earth circuit and the communi-
cation circuit are normal.

COMMENTS ON TROUBLE SYMPTOM

Malfunctions of the sunroof motor assembly or sun-
roof switch are suspected.

PROBABLE CAUSES

• Malfunction of the sunroof motor assembly

• Malfunction of the sunroof switch

• Damaged wiring harness and connectors

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III diagnosis code
Check that any sunroof operation-related diagnosis
codes are set in ETACS-ECU.

Q: Is the diagnosis code set?

YES :

Refer to diagnosis code chart

P.42A-139

.

NO :

Go to Step 2.

STEP 2. Sunroof switch check
Refer to sunroof switch check

P.42A-154

.

Q: Is the sunroof switch normal?

YES :

Go to Step 3.

NO :

Replace the sunroof switch.

STEP 3. Check of open circuit in OPEN line
between sunroof motor assembly connector and
sunroof switch connector.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the wiring harness.

STEP 4. Retest the system.
Check that the roof lid glass is open.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Replace the sunroof motor assembly.

INSPECTION PROCEDURE 4: The Sunroof Lid Glass does not Tilt-down or Close (Tilt-up and Open
Normally).

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the earth circuit and the communi-
cation circuit are normal.

COMMENTS ON TROUBLE SYMPTOM

Malfunctions of the sunroof motor assembly and/or
sunroof switch are suspected.

PROBABLE CAUSES

• Malfunction of the sunroof motor assembly

• Malfunction of the sunroof switch

• Damaged wiring harness and connectors

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III diagnosis code
Check that any sunroof operation-related diagnosis
codes are set in ETACS-ECU.

Q: Is the diagnosis code set?

YES :

Refer to diagnosis code chart

P.42A-139

.

NO :

Go to Step 2.

STEP 2. Sunroof switch check
Refer to sunroof switch check

P.42A-154

.

Q: Is the sunroof switch normal?

SUNROOF ASSEMBLY

BODY

42A-149

YES :

Go to Step 3.

NO :

Replace the sunroof switch.

STEP 3. Check of open circuit in CLOS line
between sunroof motor assembly and sunroof
switch connector.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector(s) or wiring harness.

STEP 4. Retest the system.
Check that the roof lid glass tilts down or closes.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Replace the sunroof motor assembly.

INSPECTION PROCEDURE 5: Sunroof Anti-trap Function (Safety Mechanism) does not work
Normally.

CAUTION

Before replacing the ECU, ensure that the power
supply circuit, the earth circuit and the communi-
cation circuit are normal.

COMMENTS ON TROUBLE SYMPTOM

Malfunction of the sunroof motor assembly or incor-
rect learning of the sunroof fully closed position is
suspected.

PROBABLE CAUSES

• Malfunction of the sunroof motor assembly

• Incorrect learning of the sunroof fully closed posi-

tion

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III diagnosis code
Check that any sunroof operation-related diagnosis
codes are set in ETACS-ECU.

Q: Is the diagnosis code set?

YES :

Refer to diagnosis code chart

P.42A-139

.

NO :

Go to Step 2.

STEP 2. Check the trouble symptom.
Check the sunroof trouble symptom according to the
following procedures.
(1) Carry out the learning procedures of the sunroof

fully closed position (Refer to

P.42A-151

).

(2) Check the trouble symptom.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction ).

NO :

Replace the sunroof motor assembly.

CHECK AT ECU TERMINAL

M1426002400424

SUNROOF MOTOR ASSEMBLY TERMI-
NAL CHECK

ACC00145

Terminal
number

Terminal
code

Check items

Check conditions

Normal
conditions

1

SW

−

Earth

Always

1 V or less

2

E

Earth

Always

1 V or less

3

IG1

Battery power supply (for ECU)

Ignition switch: ON

System voltage

4

UP

Input from sunroof switch (tilt-up)

Sunroof switch: Up

1 V or less

5

OPEN

Input from sunroof switch (open)

Sunroof switch: Open

1 V or less

6

SR+

Battery power supply (for motor)

Always

System voltage

SUNROOF ASSEMBLY

BODY

42A-150

ON-VEHICLE SERVICE

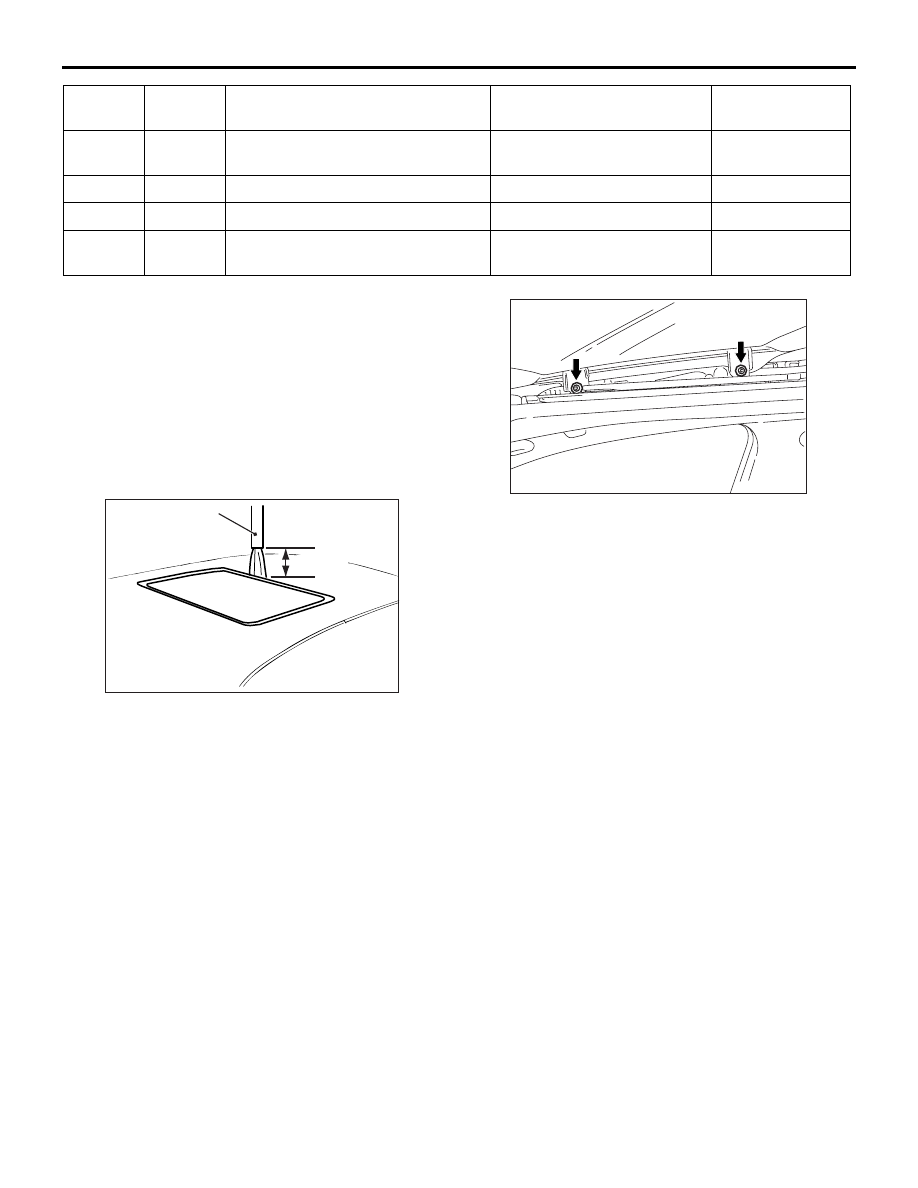

SUNROOF LEAKAGE CHECK

M1426000900401

Check the sunroof for leakage as follows:
1. Close the roof lid glass fully.

2. Using tap water, adjust the water pressure so that

the height of water spouted out from the end of a
hose is approximately 50 cm with the end of the
hose facing up.

AC303362 AB

Hose

Approx
30 cm

3. Apply tap water to the weatherstrip from

approximately 30 cm above the roof surface for 5
minutes or longer.

4. While applying water, check the vehicle interior for

any trace of leakage. If any leakage from around
the roof lid glass is collected by the drip section,
there is no problem.

SUNROOF ALIGNMENT

M1426001000412

1. Close the roof lid glass fully.

2. Open the sun shade fully.

AC506534 AB

3. Loosen the roof lid glass assembly mounting

screws. Adjust the roof lid glass height by moving
the roof lid glass assembly along the sunroof lid
guide oblong hole so that the clearance between
the roof lid glass and the vehicle body is even
throughout the circumference.

4. After adjustment, check that the sunroof operates

smoothly.

SUNROOF SAFETY FUNCTION CHECK

M1426004400550

1. Close the roof lid glass while placing an

approximately 10 mm thickness wood chip at right
angles with the roof lid glass.

2. Check to see if the sunroof motor assembly turns

in the opposite direction and the roof lid glass
opens when the roof lid glass touches the wood
chip. If any problem occurs, perform
troubleshooting (Refer to

P.42A-145

).

SUNROOF OPERATION CHECK

M1426002600600

Check to see that the sunroof operates by pressing
the sunroof switch. If it does not operate, perform
troubleshooting. Refer to

P.42A-145

.

SUNROOF LID GLASS OPERATION
CURRENT CHECK

M1426003200553

7

LIN

LIN communication line (between
ETACS-ECU)

Always

0 to 12 V (pulse
signal)

8

-

−

−

−

9

-

−

−

−

10

CLOS

Input from sunroof switch (close or
down)

Sunroof switch: Close or
down

1 V or less

Terminal
number

Terminal
code

Check items

Check conditions

Normal
conditions

ACB04413AC

ETACS-ECU

SUNROOF ASSEMBLY

BODY

42A-151

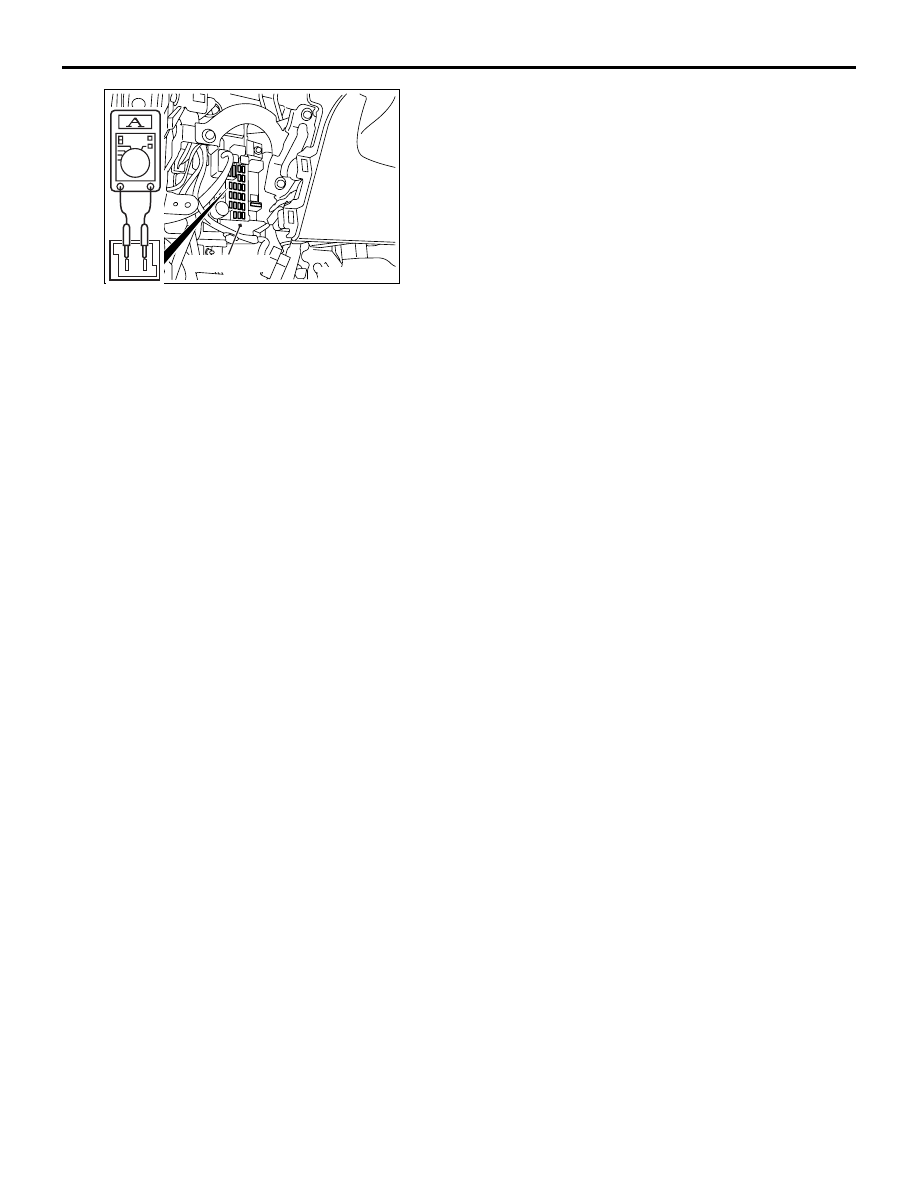

1. Remove the sunroof fuse to check that it is

normal, and then connect a circuit tester as
shown.

2. Operate the sunroof switch to ON, and measure

at the intermediate section other than the sunroof
activated, fully opened, and fully opened
positions.

Standard value: 7 A or less (at 20

°C)

3. Check the following areas if the operating current

of the sunroof lid glass exceeds the standard
value.

• Sunroof assembly assembling state, deformation

and biting of any foreign substances.

• Drive cable fastening

• Tilting of sunroof lid glass

LEARNING PROCEDURES OF THE
SUNROOF FULLY CLOSED POSITION

M1426004600491

SHIFTING CONDITIONS FOR THE FULLY
CLOSED POSITION ADJUSTMENT MODE

• When shifting to the forced fully closed position

adjustment mode

How to shift to the forced fully closed position adjust-

ment mode

1. Turn the ignition switch to the "ON" position.
2. With the roof lid glass stopped (the position of

the roof lid glass can be any position between
fully opened and fully closed), press and hold
the up switch for 10 seconds.

• When the anti-trap function (safety mechanism)

is activated consecutively five times

• When the position information may be incorrect

due to abnormal power supply during the sunroof
operation

NOTE: When installing the sunroof assembly, or
installing/replacing the sunroof motor assembly,
operate the forced fully closed position adjustment
mode to adjust the fully closed position.

HOW TO ADJUST THE FULLY CLOSED
POSITION

<FORCED FULLY CLOSED POSITION
ADJUSTMENT MODE>

1. With the roof lid glass stopped (the position of the

roof lid glass can be any position between fully
opened and fully closed), press and hold the up
switch.

NOTE: If operating the up switch moves the sun-
roof normally, use the open switch to fully open
the roof lid glass. After the roof lid glass stops,
press and hold the up switch.

2. Use the up switch to set the roof lid glass to the

tilt-up position. The roof lid glass activates for
approximately 30 mm and stops automatically
when the switch is pressed once. Repeat this
operation until the tilt-up position is reached and
hold there for 3 seconds so that the fully closed
position learning is completed.

<SUCH AS WHEN THE SAFETY
FUNCTION IS ACTIVATED
CONSECUTIVELY FIVE TIMES>

Use the up switch to set the roof lid glass to the tilt-up
position. The roof lid glass activates for approxi-
mately 30 mm and stops automatically when the
switch is pressed once. Repeat this operation until
the tilt-up position is reached and hold there for 3
seconds so that the fully closed position learning is
completed.

HOW TO ADJUST THE FULLY CLOSED
POSITION

<FORCED FULLY CLOSED POSITION
ADJUSTMENT MODE>

1. With the roof lid glass stopped (the position of the

roof lid glass can be any position between fully
opened and fully closed), press and hold the up
switch.

NOTE: If operating the up switch moves the sun-
roof normally, use the open switch to fully open
the roof lid glass. After the roof lid glass stops,
press and hold the up switch.

2. Use the up switch to set the roof lid glass to the

tilt-up position. The roof lid glass activates for
approximately 30 mm and stops automatically
when the switch is pressed once. Repeat this
operation until the tilt-up position is reached.

3. After the roof lid glass has reached the tilt-up

position, press and hold the up switch for five

seconds.
