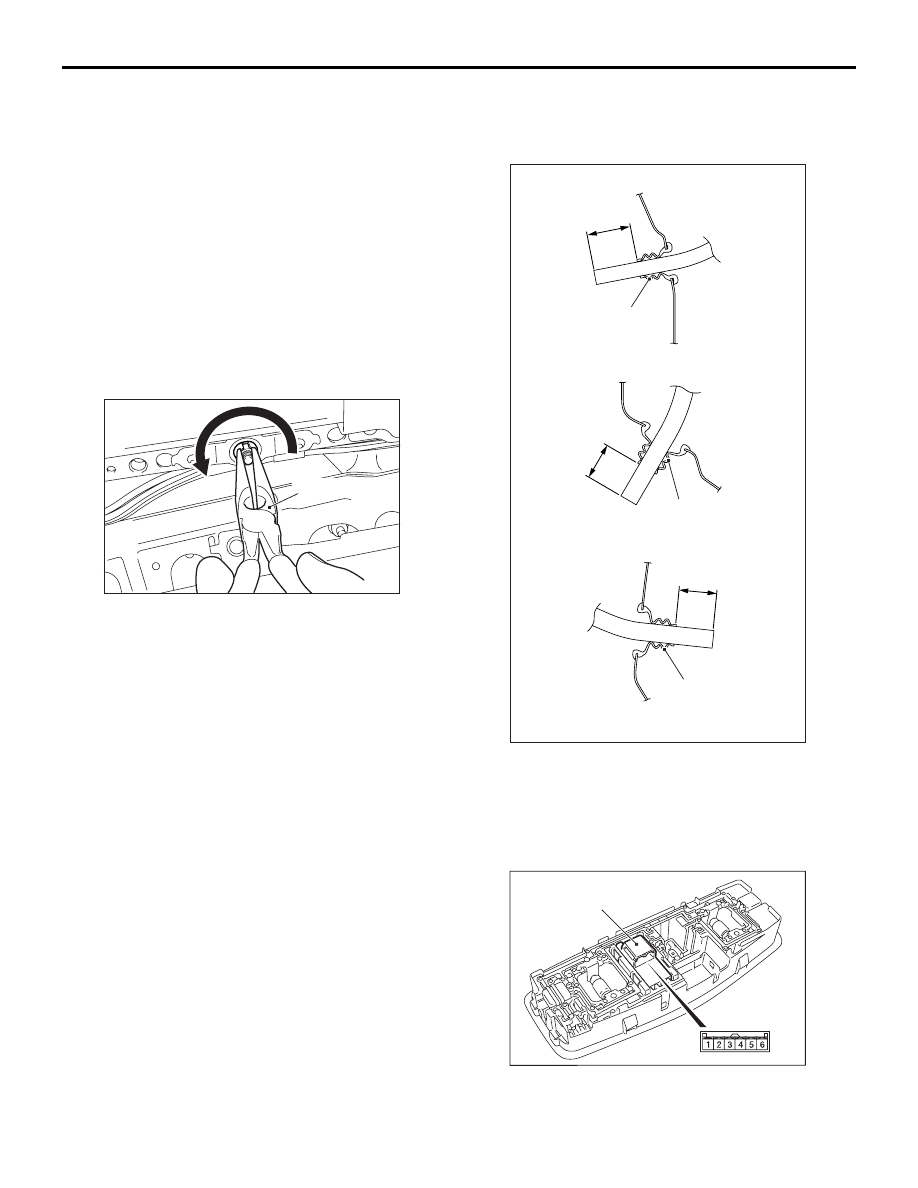

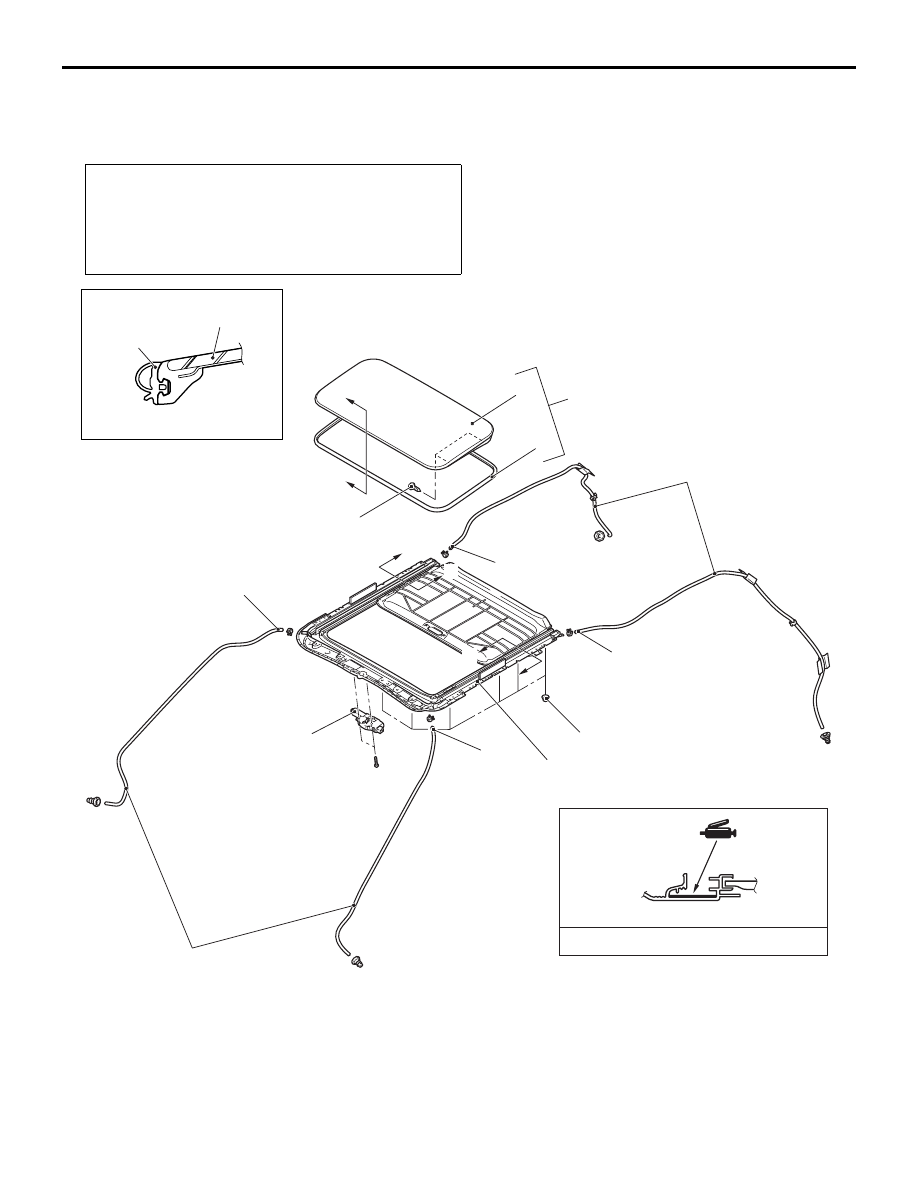

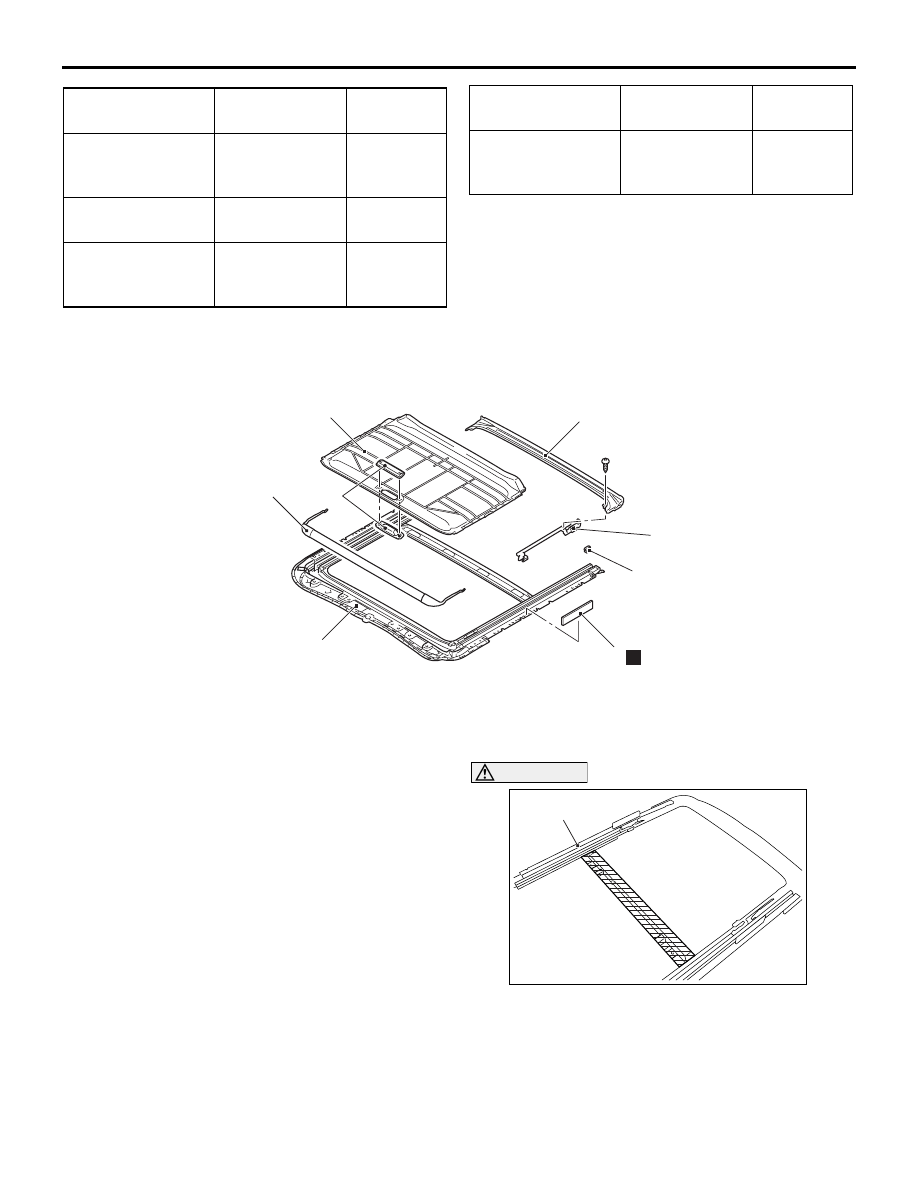

SUNROOF ASSEMBLY

BODY

42A-152

4. Release the up switch once, and then press and

hold it again.

5. The roof lid glass will be tilted down, fully opened

and then fully closed while the up switch is held
down. Press and hold the up switch until the roof
lid glass is fully closed and then stopped. When
the roof lid glass has been fully closed and then
stopped, the fully closed position learning is
completed.

<SUCH AS WHEN THE SAFETY
FUNCTION IS ACTIVATED
CONSECUTIVELY FIVE TIMES>

1. Use the up switch to set the roof lid glass to the

tilt-up position. The roof lid glass activates for
approximately 30 mm and stops automatically
when the switch is pressed once. Repeat this
operation until the tilt-up position is reached.

2. After the roof lid glass has reached the tilt-up

position, press and hold the up switch for five
seconds.

3. Release the up switch once, and then press and

hold it again.

4. The roof lid glass will be tilted down, fully opened

and then fully closed while the up switch is held
down. Press and hold the up switch until the roof
lid glass is fully closed and then stopped. When
the roof lid glass has been fully closed and then
stopped, the fully closed position learning is
completed.

SUNROOF ASSEMBLY

BODY

42A-153

SUNROOF ASSEMBLY

REMOVAL AND INSTALLATION

M1426001201204

Post-installation operation
<Roof lid glass assembly and sunroof assembly>
• Sunroof leakage check (Refer to

P.42A-150

.)

• Sunroof alignment (Refer to

P.42A-150

.)

• Learning procedures for sunroof fully closed position

(Refer to

P.42A-151

.)

ACC00120

ACC00470

ACB05471

AB

5

5

6

8

3

2

1

4

7

5

5

3.5 ± 0.5 N·m

5.0 ± 2.0 N·m

B

B

2

3

Section B – B

Section A – A

Grease: Use resin-proof silicone grease

A

A

A

A

Sunroof switch removal

•

Front room lamp (Refer to GROUP
54A

− Front room lamp .)

Sunroof lid glass assembly
removal

1.

Sunroof lid glass assembly

2.

Sunroof lid weatherstrip

3.

Sunroof lid glass
Sunroof motor assembly
removal steps

4.

Sunroof motor assembly

Sunroof lid glass assembly
removal (Continued)

Sunroof assembly removal
steps

5.

Drain pipe connection

<<

A

>>

6.

Sunroof assembly
Drain pipe removal steps

•

Headlining (Refer to GROUP 52A

−

Headlining .)

•

Splash shield front (Refer to

P.42A-9

.)

>>

A

<<

7.

Front drain pipe

•

Splash shield rear (rear bumper
side) (Refer to

P.42A-9

.)

>>

A

<<

8.

Rear drain pipe

SUNROOF ASSEMBLY

BODY

42A-154

REMOVAL SERVICE POINT

<<A>> SUNROOF ASSEMBLY REMOVAL

AC506535AB

Long nose pliers

Use a pair of long nose pliers or the like to remove
the sunroof assembly while turning it in the direction
shown in the figure.

INSTALLATION SERVICE POINT

>>A<< FRONT DRAIN PIPE/REAR DRAIN
PIPE INSTALLATION

ACC00364

ACC00122

ACC00123

ACC00365

AB

32 ± 5

<Front drain pipe>

<Rear drain pipe (LH side)>

Unit: mm

Grommet

Grommet

<Rear drain pipe (RH side)>

32 ± 5

Grommet

32 ± 5

Install the grommet, and adjust the drain pipe projec-
tion as shown.

INSPECTION

M1426004700409

SUNROOF SWITCH CONTINUITY CHECK

AC506531AB

Sunroof switch

Switch position

Terminal
number

Normal
value

Tilt up

3

− 4

Continuity
exists (2

Ω

or less)

OFF

3

− 4, 4 − 5, 4 −

6

No
continuity

Open

4

− 5

Continuity
exists (2

Ω

or less)

Close/down

4

− 6

Continuity
exists (2

Ω

or less)

SUNROOF ASSEMBLY

BODY

42A-155

DISASSEMBLY AND REASSEMBLY

M1426001400551

ACB05470AB

1

2

3

4

5

6

7

8

N

Disassembly steps

1.

Sunroof drip rail

2.

Sunroof sunshade stopper

3.

Sunroof sunshade knob

<<

A

>>

4.

Sunroof sunshade

5.

Sunroof drip plate

6.

Sunroof deflector

>>

A

<<

7.

Sunroof pad

8.

Sunroof housing

REMOVAL SERVICE POINTS

<<A>> SUNROOF SUNSHADE REMOVAL

ACC00127

AB

Sunroof housing

CAUTION

Before removing the sunroof sunshade, clean up
the slash area of the sunroof housing as shown.
If you fail to do so, it may get dirty when remov-
ing the sunroof sunshade.

Switch position

Terminal
number

Normal
value
