Mitsubishi Outlander (2013+). Manual - part 494

AC705585AF

Mechanical steering lock/
Electric steering lock

MB992678

Steering lock
bracket

Steering
lock bolt

STEERING COLUMN SHAFT ASSEMBLY

ELECTRIC POWER STEERING (EPS)

37-47

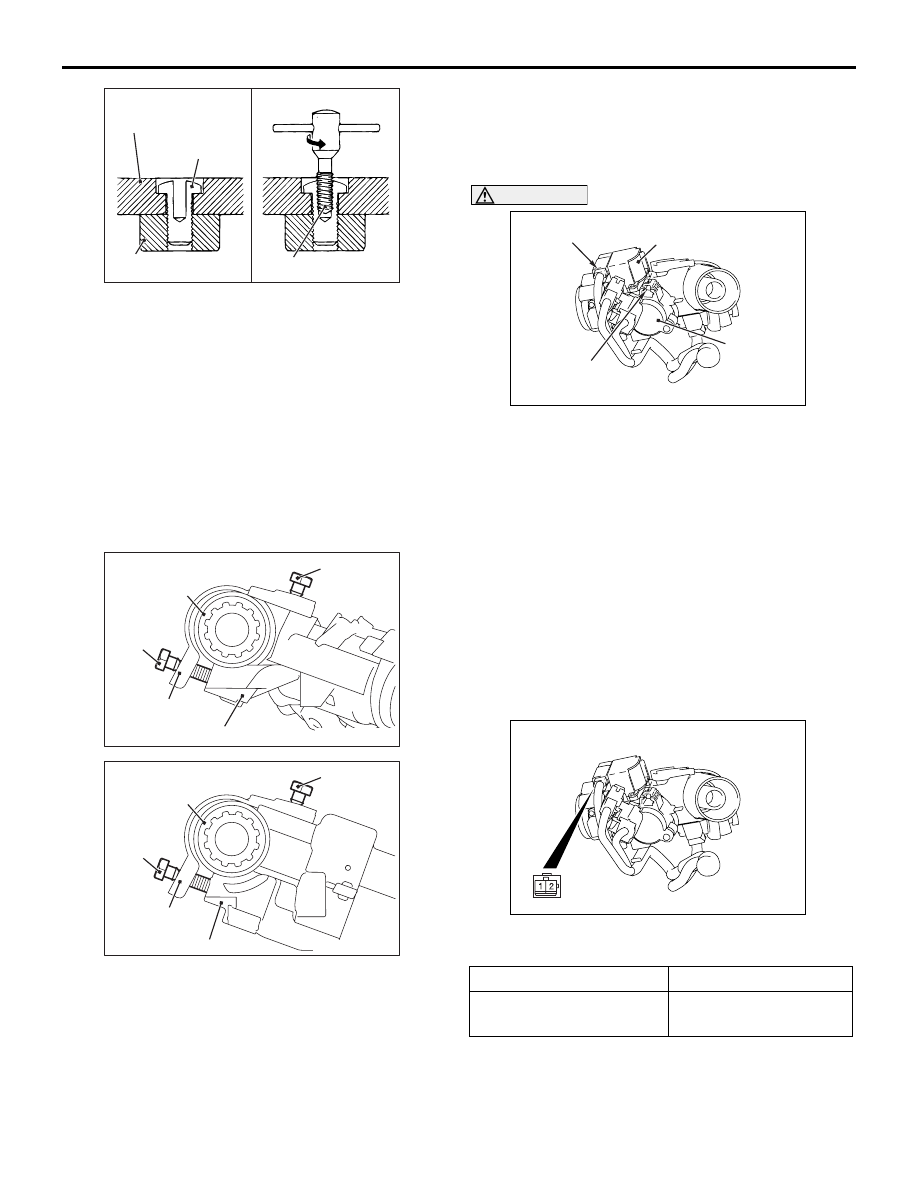

2. Remove the steering lock bolt using the screw

extractor (Recommended tool: MB992684), or
equivalent.

REASSEMBLY SERVICE POINT

>>A<< MECHANICAL STEERING LOCK
<VEHICLES WITHOUT KOS>/ELECTRIC
STEERING LOCK <VEHICLE WITH
KOS>/STEERING LOCK
BRACKET/STEERING LOCK BOLT
INSTALLATION

AC905466AD

Steering column shaft
assembly

Steering lock
bracket

Mechanical steering lock

Steering lock
bolt
(Lower side)

Steering
lock bolt
(Upper side)

<Vehicles without KOS>

AC905467 AC

Steering column shaft
assembly

Steering lock
bracket

Electric steering lock

Steering lock
bolt
(Lower side)

Steering
lock bolt
(Upper side)

<Vehicles with KOS>

1. Secure the steering lock bracket to the steering

lock with steering lock bolt (Upper). Tighten the
steering lock bolt until its head is broken off.

2. Insert the steering lock into the tip of the column

shaft, fit the protrusion of the steering lock to the
hole of the steering column shaft assembly, install
the steering lock and tighten the steering lock bolt
(lower) until its head is broken off.

AC905487

Steering lock
solenoid

Steering lock
solenoid connector

Steering lock
solenoid dummy
connector

Ignition
switch

CAUTION

As for the mechanical steering lock for vehicles
with CVT, connect the body side wiring harness
connector to the steering lock solenoid connec-
tor. Do not connect the harness connector to the
steering lock solenoid dummy connector. As for
the mechanical steering lock for vehicles with
M/T, connect the body side wiring harness con-
nector to the steering lock solenoid dummy con-
nector.

INSPECTION

M1372011001542

STEERING LOCK SOLENOID
CONTINUITY CHECK <VEHICLES
WITHOUT KOS (VEHICLES WITH CVT)>

AC905487

Disconnect the steering lock solenoid connector, and
then perform the continuity check.

Terminal number

Normal value

− 2

Continuity exists (2

Ω or

less)

POWER STEERING GEAR BOX AND LINKAGE

ELECTRIC POWER STEERING (EPS)

37-48

POWER STEERING GEAR BOX AND LINKAGE

REMOVAL AND INSTALLATION

M1372010902062

Remove the front axle crossmember assembly, and
then remove and install the steering gear and link-
age.(Refer to GROUP 32

− Crossmember .)

INSPECTION

M1372011001650

STEERING GEAR TOTAL PINION
TORQUE CHECK

CAUTION

When holding the steering gear in a vice, secure
its mounting positions. If it is secured in any
other place, the gear housing may become
deformed or damaged.

ACA00946

MB991006

1. Using special tool preload socket (MB991006),

rotate the pinion gear at the rate of one rotation in
approximately 4 to 6 seconds to check the total
pinion torque.

Standard value:

Total rotational torque: 0.7

− 1.3 N⋅m

Torque fluctuation: 0.7 N

⋅m or less

NOTE: When measuring, remove the bellows
from the rack housing. Measure the pinion torque
through the whole stroke of the rack.

2. If not within the specification, replace the steering

gear and linkage assembly (Refer to

P.37-48

DISASSEMBLY AND REASSEMBLY

M1372011101594

ACA00056

84 ± 14 N·m

52 ± 2 N·m

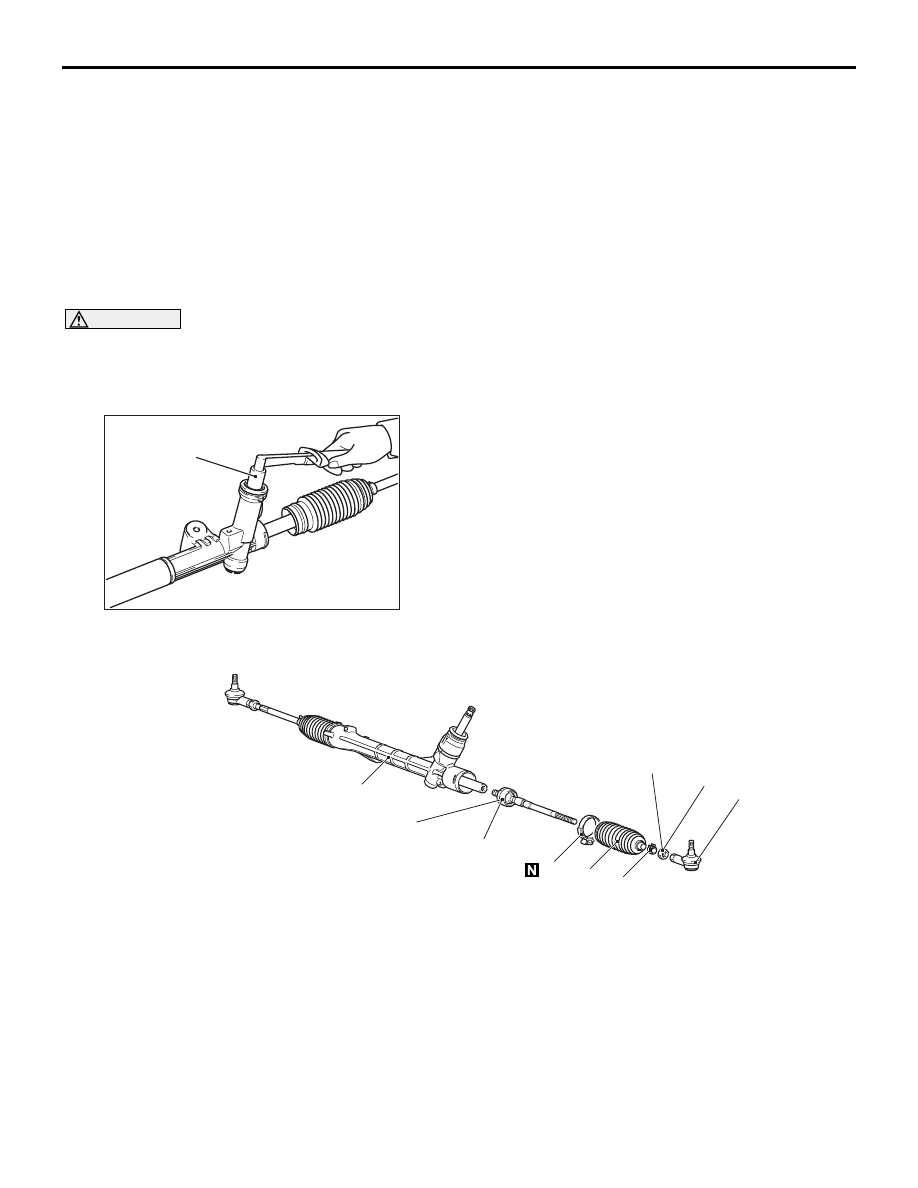

Disassembly steps

Lock nut

Tie-rod end

Clip

Band

Bellows

Tie-rod

Gear housing

Disassembly steps

POWER STEERING GEAR BOX AND LINKAGE

ELECTRIC POWER STEERING (EPS)

37-49

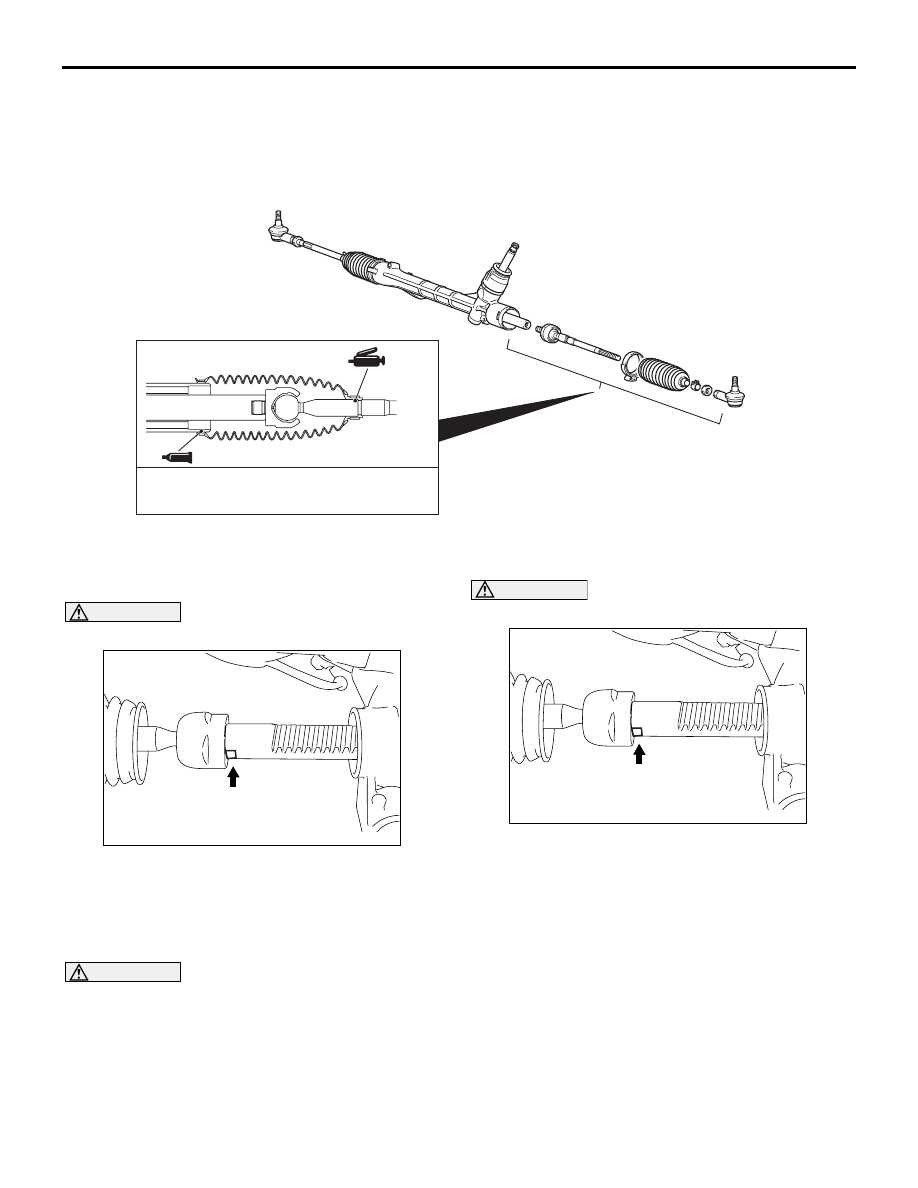

GREASE/SEALANT APPLICATION
POINTS

ACA00947 AB

Sealant: 3M ATD Part No. 8663 or equivalent
Grease: Silicone grease

DISASSEMBLY SERVICE POINT

<<A>> TIE-ROD REMOVAL

CAUTION

Be careful not to damage the rack sealing face.

ACC00491AB

Roll back the right bellows and turn the steering
wheel anticlockwise to the stop. Then counterhold
the rack at the flattened surfaces as shown to
remove the tie rod.

REASSEMBLY SERVICE POINTS

>>A<< TIE-ROD INSTALLATION

CAUTION

Be careful not to damage the rack sealing face.

ACC00491AB

Turn the steering wheel anticlockwise to the stop.
Then counterhold the rack at the flattened surfaces
as shown to remove the tie rod.

>>B<< BAND INSTALLATION

CAUTION

• Hold the rack housing, and use special tool

bellows band crimping tool (MB992209) to
crimp the bellows band securely.

• Crimp the bellows band until special tool

(MB992209) touches the stopper.

AC701769

MB992209

POWER STEERING GEAR BOX AND LINKAGE

ELECTRIC POWER STEERING (EPS)

37-50

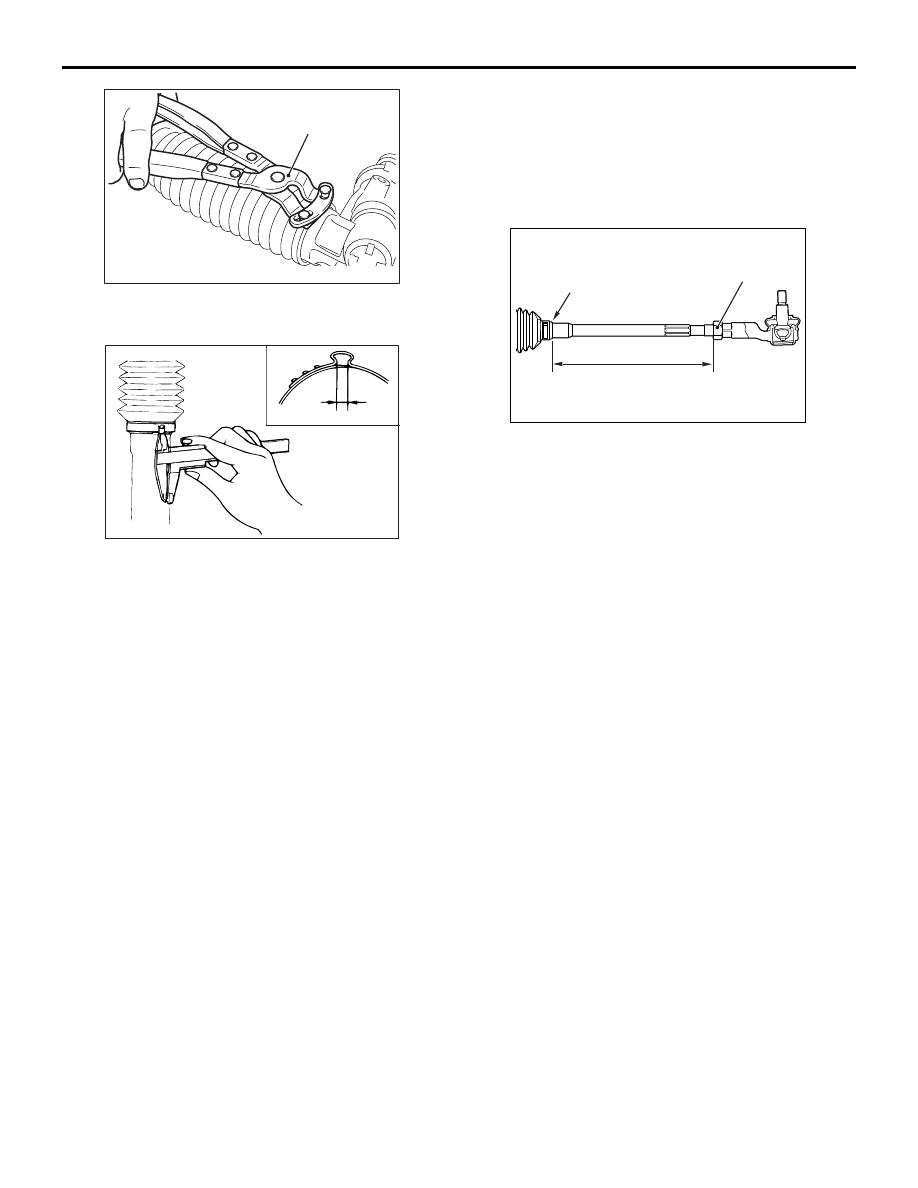

1. Use special tool (MB992209) to crimp the bellows

band.

ACX01166 AB

2. Check that crimped width (A) is within the

standard value.

Standard value (A): 2.4

− 2.8 mm

>>C<< TIE

−ROD END/LOCK NUT

INSTALLATION

AC703667

190 mm

Lock nut

Edge of bellows
assembly

Screw in the tie-rod to the length shown in the figure,
and hand-tighten the lock nut.

NOTE: Install the steering gear & linkage to the body,
adjust the toe-in, and then tighten the lock nut to the
specified torque.
