DRIVESHAFT ASSEMBLY

FRONT AXLE

26-18

NOTE: To adjust the special tool jaws to be paral-
lel, set the orientation of the knob as shown in the
figure.

3. Unscrew the bolt to disconnect the ball joint.

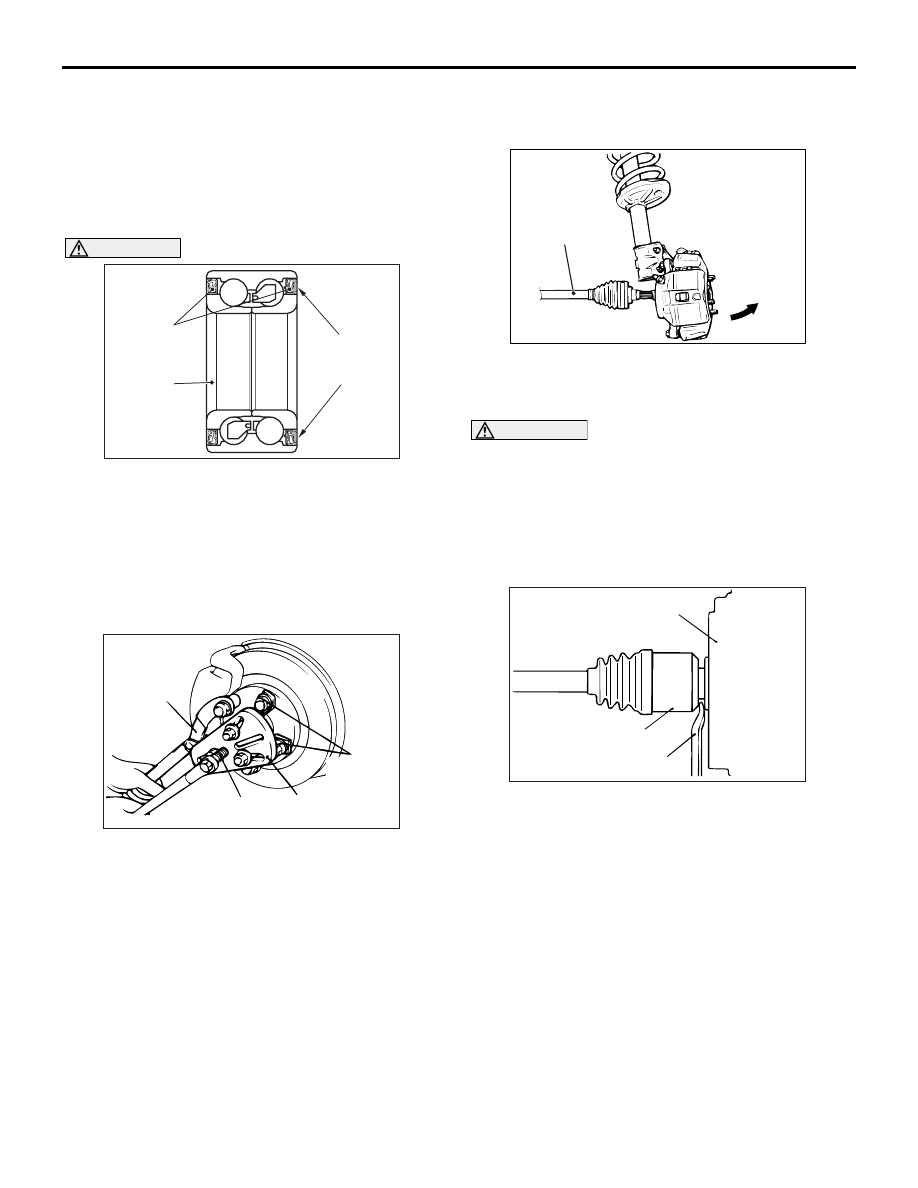

<<D>> DRIVESHAFT ASSEMBLY
REMOVAL

AC504925

Oil seal

Magnetic
encoder

AC

Wheel
bearing

CAUTION

• The wheel speed detection magnetic encoder

collects metallic particles easily, because it is
magnetised. Make sure that the magnetic
encoder does not collect metallic particles.

•

AC102550AD

MB990767

MB990242

MB991354

MB990244
(Three)

When removing the driveshaft, make sure that
it does not contact with the wheel speed
detection magnetic encoder (integrated with
the inner oil seal) to avoid damage.

1. If the driveshaft is seized with the hub, use the

following special tools to push the driveshaft
assembly out from the hub:

• Puller shaft (MB990242)

• Puller bar (MB990244)

• Front hub and flange yoke holder (MB990767)

•

AC102551AE

Driveshaft

Puller body (MB991354)

2. While pulling the lower side of the brake disc

toward you, remove the driveshaft assembly from
the hub.

CAUTION

• Never pull out the driveshaft assembly from

the EBJ assembly side. Otherwise, the PTJ
assembly may be damaged. Always pull out
from the PTJ side with a lever.

•

AC102552 AM

Transmission

Lever

Driveshaft assembly

Care must be taken to ensure that the oil seal
of the transmission is not damaged by the
spline part of the driveshaft assembly.

3. For driveshafts other than 2WD-RH driveshaft,

insert a lever between the transmission case or
transfer and driveshaft assembly, and then pull
the driveshaft assembly out from the
transmission.

AC210315

AC505562

MB991017

MB991000

AC

DRIVESHAFT ASSEMBLY

FRONT AXLE

26-19

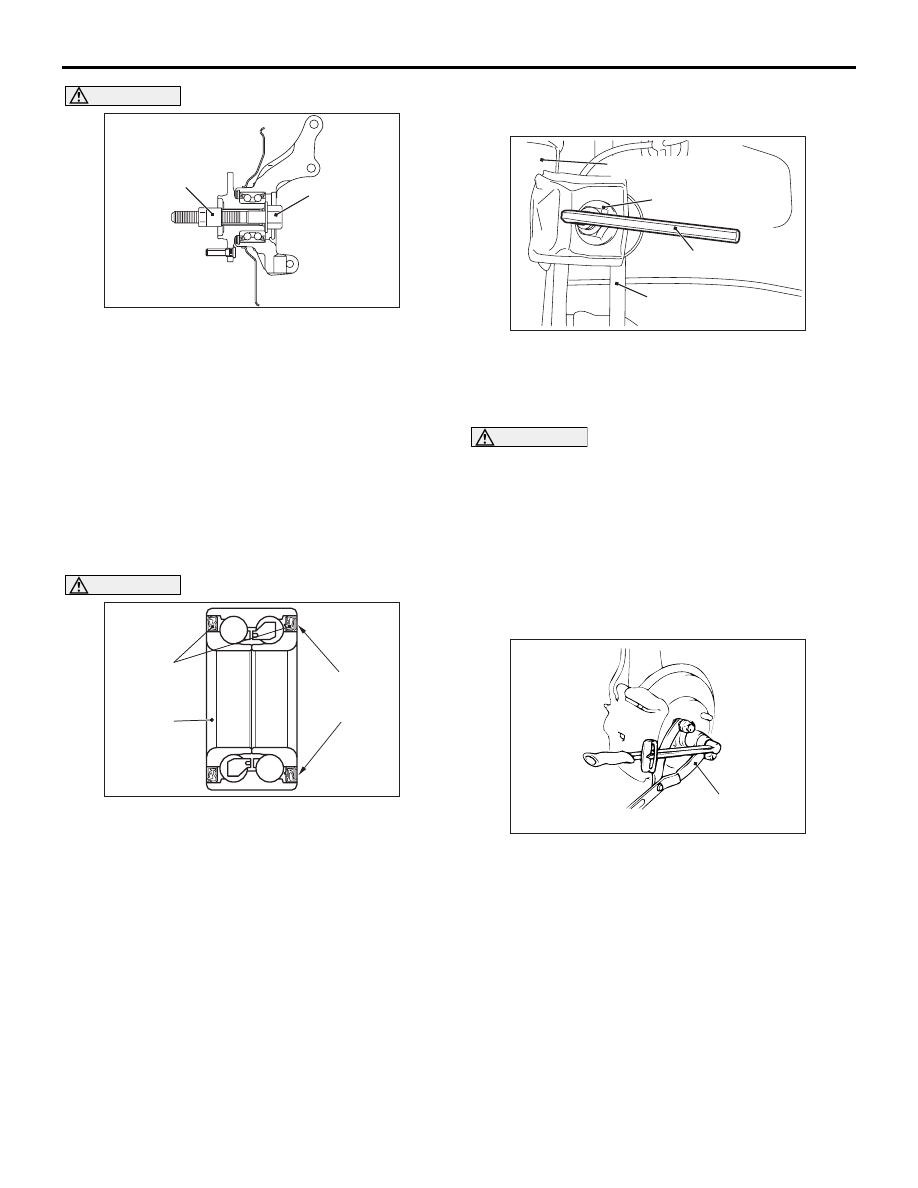

CAUTION

Do not apply the vehicle weight to the wheel
bearing with the driveshaft assembly removed. If,
however, the vehicle weight shall be applied to
the bearing (in order to move the vehicle), tighten
the following special tools to the specified torque
(270

± 27 N⋅m):

• Spacer (MB991000)
• Front hub remover and installer (MB991017)

INSTALLATION SERVICE POINTS

>>A<< DRIVESHAFT ASSEMBLY INSTAL-
LATION

CAUTION

•

AC504925

Oil seal

Magnetic
encoder

AC

Wheel
bearing

The wheel speed detection magnetic encoder

collects metallic particles easily, because it is
magnetised. Make sure that the magnetic
encoder should not collect metallic particles.
Check that there is not any trouble prior to
reassembling it.

• When installing the driveshaft, make sure that

it does not contact with the wheel speed
detection magnetic encoder (integrated with
the inner oil seal) to avoid damage.

• Care must be taken to ensure that the oil seal

of the transmission is not damaged by the
spline part of the driveshaft assembly.

>>B<< STABILIZER LINK CONNECTION

AC613526 AB

Stabilizer link

Strut assembly

Hexagon wrench

Stabilizer link and
strut connection nut

Use a hexagon wrench to install the stabilizer link
and strut connection nut as shown in the figure.

>>C<< DRIVESHAFT NUT INSTALLATION

CAUTION

Do not apply the vehicle weight on the front
wheel hub assembly before fully tightening the
driveshaft nut. Otherwise, the wheel bearing may
be broken.
1. Check the hub seated surface for damage or

corrosion. Whenever solvent is used for removing
the corrosion, the surface should be degreased.

2. Check that the new driveshaft nut can be turned

smoothly by hand. Then tighten it until it is seated.

ACA01201AB

MB990767

3. Using special tool front hub and flange yoke

holder (MB990767), tighten the driveshaft nut.

Tightening torque: 270

± 27 N⋅m

4. After tightening to the specified torque, check that

the nut is seated securely.

ACA01211

1.6 mm
or more

AC

Groove

Staked portion

DRIVESHAFT ASSEMBLY

FRONT AXLE

26-20

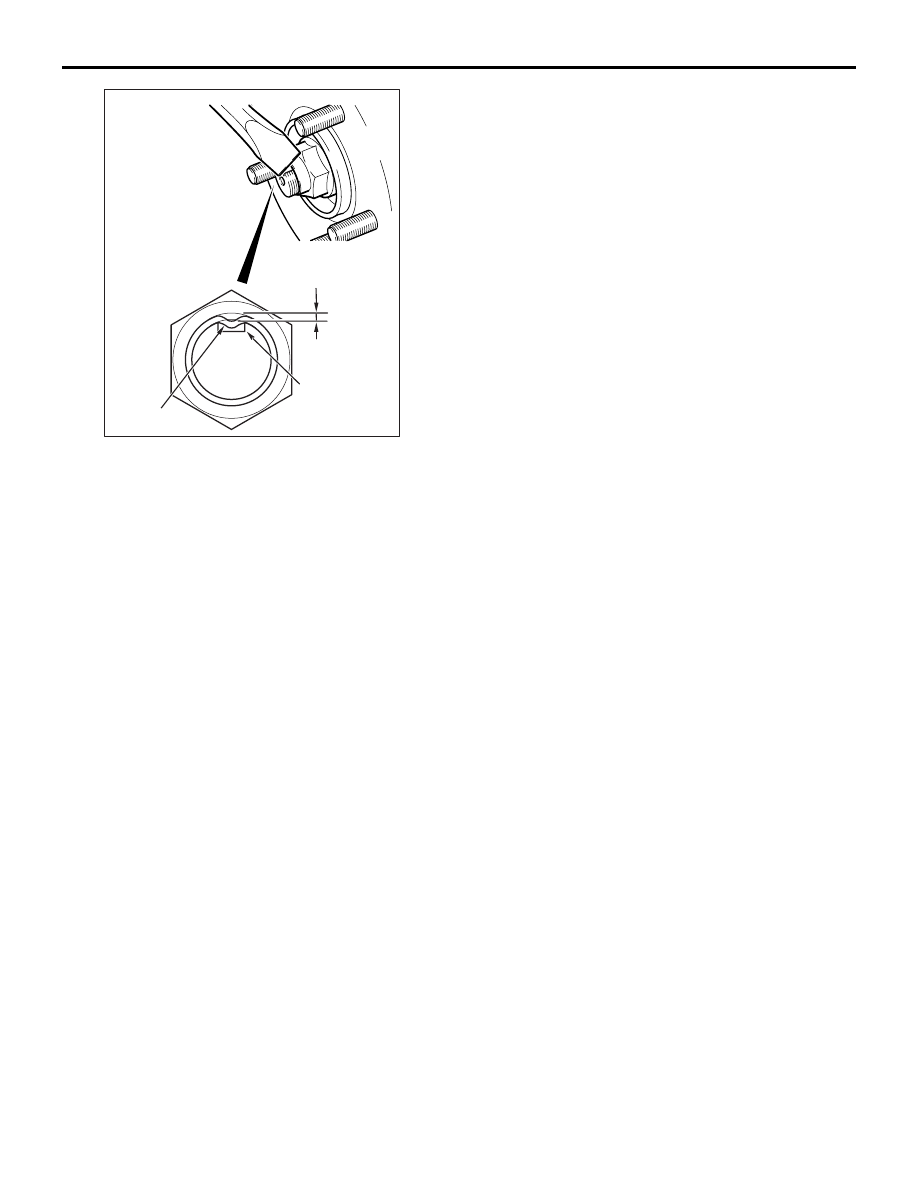

5. Use the chisel and a hammer to stake the nut until

the centre in the staked portion reaches the
shown dimension.

6. Finally, check that the nut is not cracked at its

staked portion.

DRIVESHAFT ASSEMBLY

FRONT AXLE

26-21

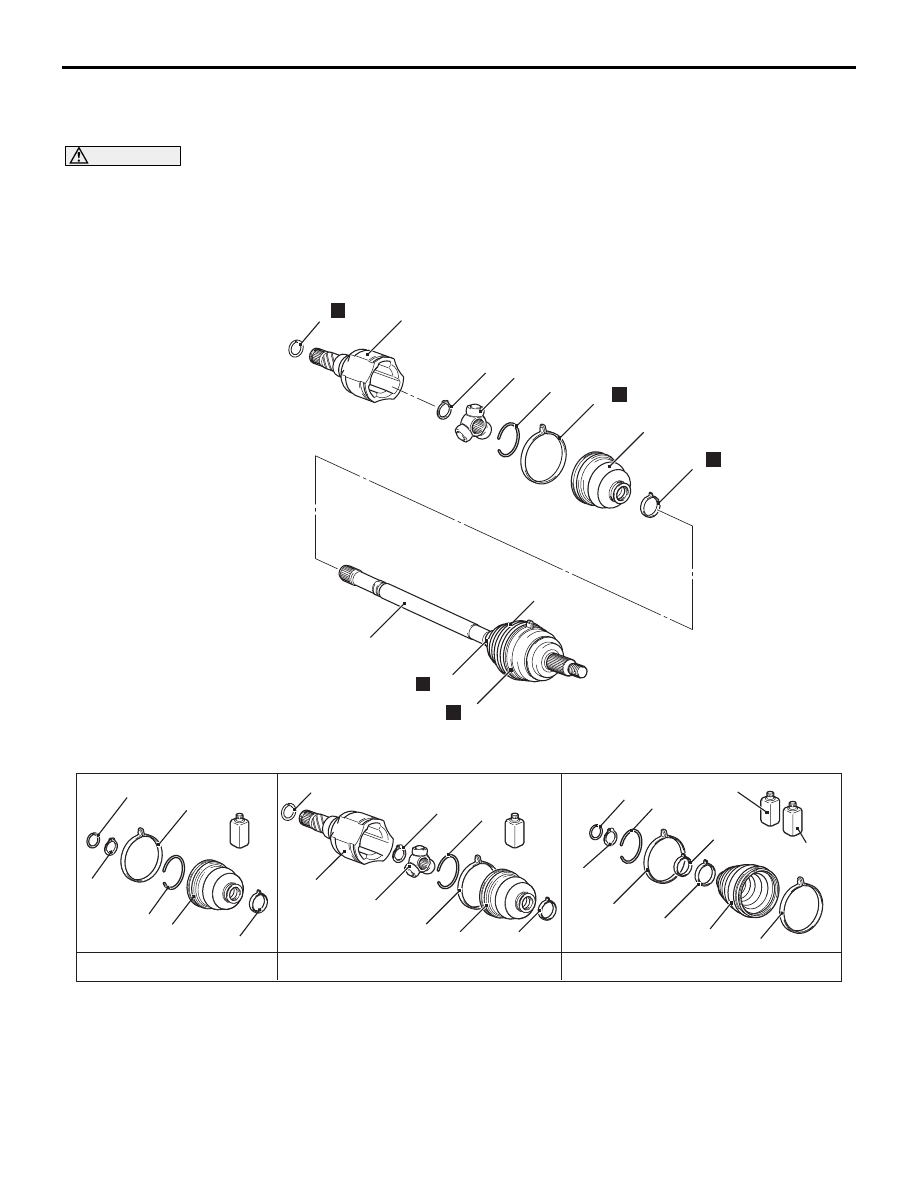

DISASSEMBLY AND REASSEMBLY
<2WD>

M1261003702775

CAUTION

As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassem-
bled.

<LH>

AC701756

AC505537

1

5

2

3

8

7

1

4

6

6

2

3

8

4

1

6

11

3

2

9

10

4

2

5

6

8

N

N

11

N

N

12

10

9

4

1

N

7

3

AB

EBJ grease

PTJ grease

EBJ boots repair kit

PTJ boots repair kit

PTJ repair kit

Disassembly steps

1.

Circlip

>>

C

<<

2.

PTJ boot band (large)

>>

C

<<

3.

PTJ boot band (small)

4.

Circlip

<<

A

>>

>>

B

<<

5.

PTJ case

6.

Snap ring

>>

B

<<

7.

Spider assembly

<<

B

>>

>>

A

<<

8.

PTJ boot

9.

EBJ boot band (large)

10. EBJ boot band (small)
11. EBJ boot
12. EBJ assembly

Disassembly steps (Continued)
