TROUBLESHOOTING

ENGINE COOLING

14-6

• Malfunction of fusible link SBF4.

• Malfunction of radiator fan relay.

• Malfunction of condenser fan relay.

• Malfunction of fan control relay.

• Malfunction of radiator fan motor.

• Malfunction of condenser fan motor.

• Malfunction of engine compartment relay box.

• Malfunction of ETACS-ECU.

• Malfunction of engine-ECU.

DIAGNOSIS PROCEDURE

CAUTION

• If there is any problem in the CAN bus lines,

an incorrect diagnosis code may be set. Prior
to this diagnosis, diagnose the CAN bus
lines.

• Before replacing the ECU, ensure that the

CAN bus lines is normal.

STEP 1. Check the CAN bus system diagnosis.
Using M.U.T.-III, perform CAN bus diagnosis (Refer
to GROUP 54C

− Explanation About The M.U.T-III

CAN Bus Diagnostics ).

Q: Is the check result satisfactory?

YES :

Go to Step 2.

NO :

Repair the CAN bus lines (Refer to GROUP
54C

− Troubleshooting, CAN Bus

Diagnostic Table ). Then go to Step 23.

STEP 2. Check the MPI system actuator test.
Using M.U.T.-III to check the MPI system actuator
test (Refer to GROUP 13A

− Troubleshooting, Actua-

tor Test Reference Table ).

• Item 14: Cooling fan motor

Q: Is the check result normal?

YES :

Go to Step 22.

NO :

Go to Step 3.

STEP 3. Check the MPI system diagnosis code.
Using M.U.T.-III, perform MPI system diagnosis code
(Refer to GROUP 13A

− Troubleshooting, Diagnosis

Function ).

Q: Is any diagnosis code set?

YES :

Repair the MPI system (Refer to GROUP

13A

− Troubleshooting, Inspection Chart for

Diagnosis Code ). Then go to Step 23.

NO :

Go to Step 5 <M/T>.

NO :

Go to Step 4 <CVT>.

STEP 4. Check the CVT system diagnosis code .
Using M.U.T.-III, perform CVT system diagnosis
code (Refer to GROUP 23A

− Troubleshooting, Diag-

nosis Function ).

Q: Is any diagnosis code set?

YES :

Repair the CVT system (Refer to GROUP

23A

− Troubleshooting, Diagnosis Code

Chart ). Then go to Step 23.

NO :

Go to Step 5.

STEP 5. Check the A/C system diagnosis code.
Using M.U.T.-III, perform A/C system diagnosis code
(Refer to GROUP 55

− Troubleshooting, Diagnosis

Function ).

Q: Is any diagnosis code set?

YES :

Repair the A/C system (Refer to GROUP 55

− Troubleshooting, Diagnosis Code Chart ).
Then go to Step 23.

NO :

Go to Step 6.

STEP 6. Check the ETACS system diagnosis
code.
Using M.U.T.-III, perform ETACS system diagnosis
code (Refer to GROUP 54A

− ETACS, Troubleshoot-

ing, Diagnosis Function ).

Q: Is any diagnosis code set?

YES :

Repair the ETACS system (Refer to

GROUP 54A

− ETACS, Troubleshooting,

Diagnosis Code Chart ). Then go to Step 23.

NO :

Go to Step 7.

STEP 7. Measure the terminal voltage at
ETACS-ECU connector.
(1) Disconnect the ETACS-ECU connector and

measure at the harness connector side.

(2) Measure the terminal voltage between terminal

F/LO and earth, between terminal F/HI and earth.

OK: System voltage.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Go to Step 8.

STEP 8. Connectors check: condenser fan relay
connector, radiator fan relay connector, fan
control relay connector, and ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair or replace the damaged connector or
replace the relay box. Then go to Step 23 .

TROUBLESHOOTING

ENGINE COOLING

14-7

STEP 9. Check the harness wire between
condenser fan relay connector and ETACS-ECU
connector terminal F/HI, between radiator fan
relay connector and ETACS-ECU connector
terminal F/LO, and between fan control relay
connector and condenser fan connector.

• Check harness wire for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair or replace the damaged harness
wire. Then go to Step 23.

STEP 10. Check the harness wire between fusible
link SBF3 and condenser fan relay connector,
between fusible link SBF3 and fan control relay
connector, and between fusible link SBF4 and
radiator fan relay connector.

• Check harness wire for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair or replace the damaged harness
wire. Then go to Step 23.

STEP 11. Check the radiator fan relay, the
condenser fan relay, and the fan control relay.
Refer to

P.14-11

.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Replace the damaged relay (Refer to

P.14-10

). Then go to Step 23.

STEP 12. Check the fusible link SBF3 and SBF4.

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Replace the damaged fusible link. Then go
to Step 23.

STEP 13. Connectors check: condenser fan relay
connector, radiator fan relay connector, fan
control relay connector, radiator fan motor
connector, and condenser fan motor connector.

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair or replace the damaged connector or
replace the relay box. Then go to Step 23 .

STEP 14. Check the harness wire between
condenser fan relay connector and condenser
fan motor connector, and between condenser fan
motor connector and earth.

• Check harness wire for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair or replace the damaged harness
wire. Then go to Step 23.

STEP 15. Check the harness wire between
radiator fan relay connector and radiator fan
motor connector, and between radiator fan motor
connector and fan control relay connector.

• Check harness wire for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair or replace the damaged harness
wire. Then go to Step 23.

STEP 16. Check the harness wire between fan
control relay connector and condenser fan relay
connector, and between fan control relay
connector and earth.

• Check harness wire for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair or replace the damaged harness
wire. Then go to Step 23.

STEP 17. Check the harness wire between fusible
link SBF3 and condenser fan relay connector,
and between fusible link SBF4 and radiator fan
relay connector.

• Check harness wire for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair or replace the damaged harness
wire. Then go to Step 23.

STEP 18. Check the radiator fan relay, the
condenser fan relay, and the fan control relay.
Refer to

P.14-11

.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Replace the damaged relay (Refer to

P.14-10

). Then go to Step 23.

ON-VEHICLE SERVICE

ENGINE COOLING

14-8

STEP 19. Check the radiator fan motor and the
condenser fan motor.
Refer to

P.14-12

.

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Replace the damaged fan motor (Refer to

P.14-19

). Then go to Step 23.

STEP 20. Check the ETACS system diagnosis
code.
Using M.U.T.-III, perform ETACS system diagnosis
code (Refer to GROUP 54A

− ETACS, Troubleshoot-

ing, Diagnosis Function ).

Q: Is any diagnosis code set?

YES :

Replace the ETACS-ECU (Refer to GROUP

54A

− ETACS, ETACS-ECU ). Then go to

Step 23.

NO :

Go to Step 21.

STEP 21. Check the MPI system actuator test.
Using M.U.T.-III, check the MPI system actuator test
(Refer to GROUP 13A

− Troubleshooting, Actuator

Test Reference Table ).

• Item 14: Cooling fan motor.

Q: Is the check result normal?

YES :

Go to Step 22.

NO :

Replace the engine-ECU (Refer to GROUP
13A

− Engine-ECU ). Then go to Step 23.

STEP 22. Check the symptoms.

Q: Does the radiator fan and condenser fan operate

normal?
YES :

It can be assumed that this malfunction is

intermittent (Refer to GROUP 00

− How to

Use Troubleshooting/Inspection Service
Points, How to Cope with Intermittent
Malfunction ).

NO :

Replace the engine-ECU (Refer to GROUP
13A

− Engine-ECU ). Then go to Step 23.

STEP 23. Check the symptoms.

Q: Does the radiator fan and condenser fan operate

normal?
YES :

The procedure is complete.

NO :

Return to Step 1.

ON-VEHICLE SERVICE

ENGINE COOLANT LEAK CHECK

M1141001001240

WARNING

When pressure testing the cooling system,
slowly release cooling system pressure to
avoid getting burned by hot coolant.

CAUTION

• Be sure to completely clean away any mois-

ture from the places checked.

• When the tester is taken out, be careful not to

spill any coolant.

•

ACX01844

Cap adapter

Adapter

AC

Be careful when installing and removing the
tester and when testing not to deform the
filler neck of the radiator.

1. Check that the coolant level is up to the filler neck.

Install a radiator tester and apply 160 kPa
pressure, and then check for leakage from the
radiator hose or connections.

2. If there is leakage, repair or replace the

appropriate part.

RADIATOR CAP VALVE OPENING
PRESSURE CHECK

M1141001301445

NOTE: Be sure that the cap is clean before test-

ing. Rust or other foreign material on the cap seal
will cause an improper reading.

AC211643 AB

Cap adapter

ON-VEHICLE SERVICE

ENGINE COOLING

14-9

1. Use a cap adapter to attach the cap to the tester.

2. Increase the pressure until the indicator of the

gauge stops moving.

Minimum limit: 83 kPa
Standard value: 93

− 123 kPa

3. Replace the radiator cap if the reading does not

remain at or above the limit.

ENGINE COOLANT REPLACEMENT

M1141001202991

1. Remove the front under cover panel (Refer to

GROUP 51

− Under Cover − Removal and

Installation ).

WARNING

When removing the radiator cap, use care to
avoid contact with hot engine coolant or
steam. Place a shop towel over the radiator
cap and turn the radiator cap anti-clockwise
a little to let the pressure escape through the
vinyl tube. After relieving the steam pres-
sure, remove the radiator cap by slowly turn-
ing it anti-clockwise.

2. Drain the water from the radiator, heater core and

engine after unplugging the radiator drain plug
and removing the radiator cap.

AC612051AB

Exhaust side

3. Drain the water in the water jacket by unplugging

the drain plug of the cylinder block.

4. Remove the radiator condenser tank and drain

the coolant.

AC611991AB

Cylinder block
drain plug

Gasket

5. Replace the cylinder block drain plug gasket, and

tighten the drain plug to the specified torque.

Tightening torque: 39

± 3 N⋅m

6. Securely tighten the radiator drain plug.

7. Reinstall the radiator condenser tank.

CAUTION

Do not use alcohol or methanol anti-freeze or any
engine coolants mixed with alcohol or methanol
anti-freeze. The use of an improper anti-freeze
can cause corrosion of the aluminium compo-
nents.

ACB05863

MB991871

Air hose

AB

8. Use special tool LLC changer (MB991871) to refill

the engine coolant up to the top of the radiator
port.

Recommended antifreeze: DIA QUEEN SUPER

LONG LIFE COOLANT PREMIUM or equiva-
lent*

NOTE: *similar high quality ethylene glycol

based non-silicate, non-amine, non-nitrate
and non-borate coolant with long life hybrid
organic acid technology.

Quantity: Approximately 7.5 L
(including 0.65 L in the radiator condenser

tank)

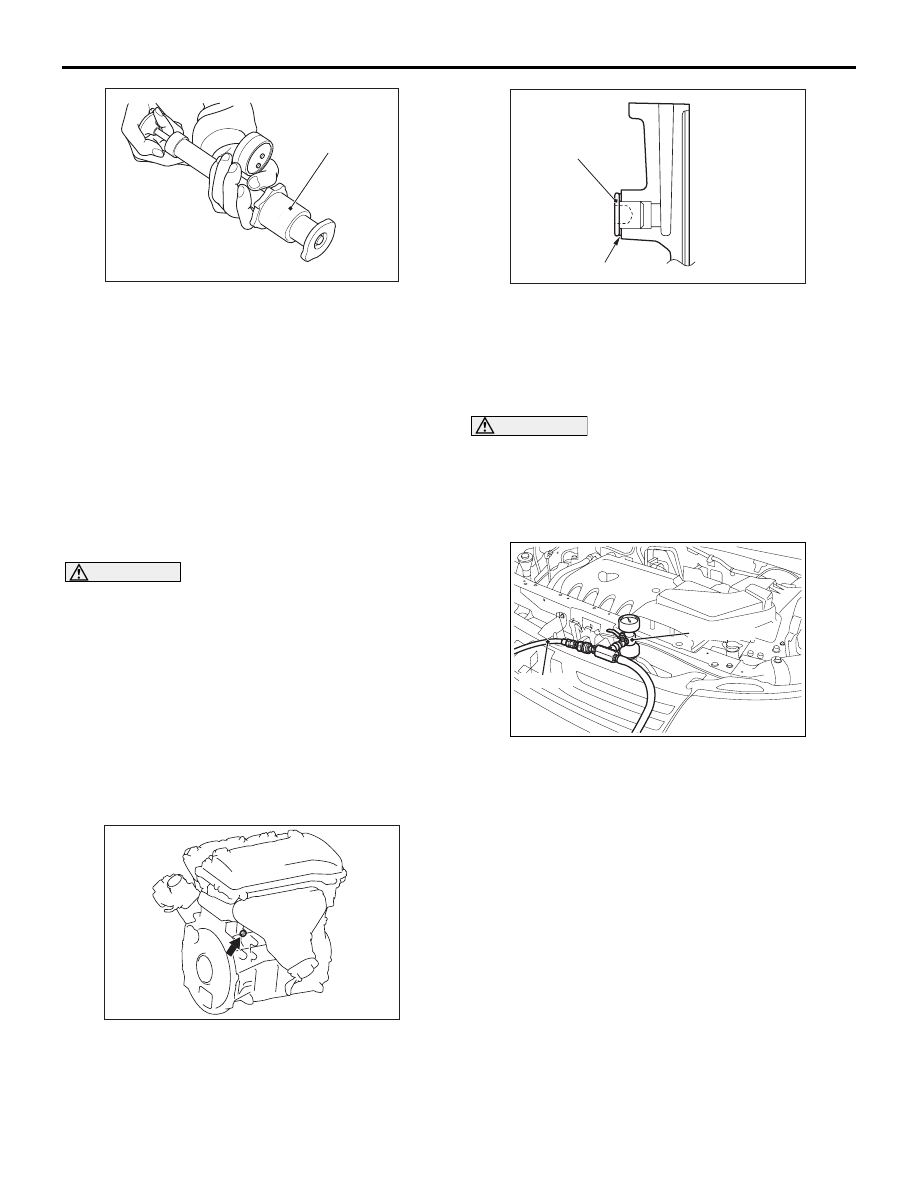

NOTE: For how to use special tool (MB991871),
refer to its manufacturer’s instructions.

9. Tighten the radiator cap securely.

10.Remove the radiator condenser tank cap, and

add the engine coolant up to the "FULL" line.
