FUEL TANK <4WD>

FUEL SUPPLY

13B-16

DISASSEMBLY AND REASSEMBLY

M1135006800681

ACB05948

2.5 ± 0.4 N·m

2.5 ± 0.4 N·m

5.0 ± 1.0 N·m

1

2

3

4

8

9

AB

6

N

5

7

N

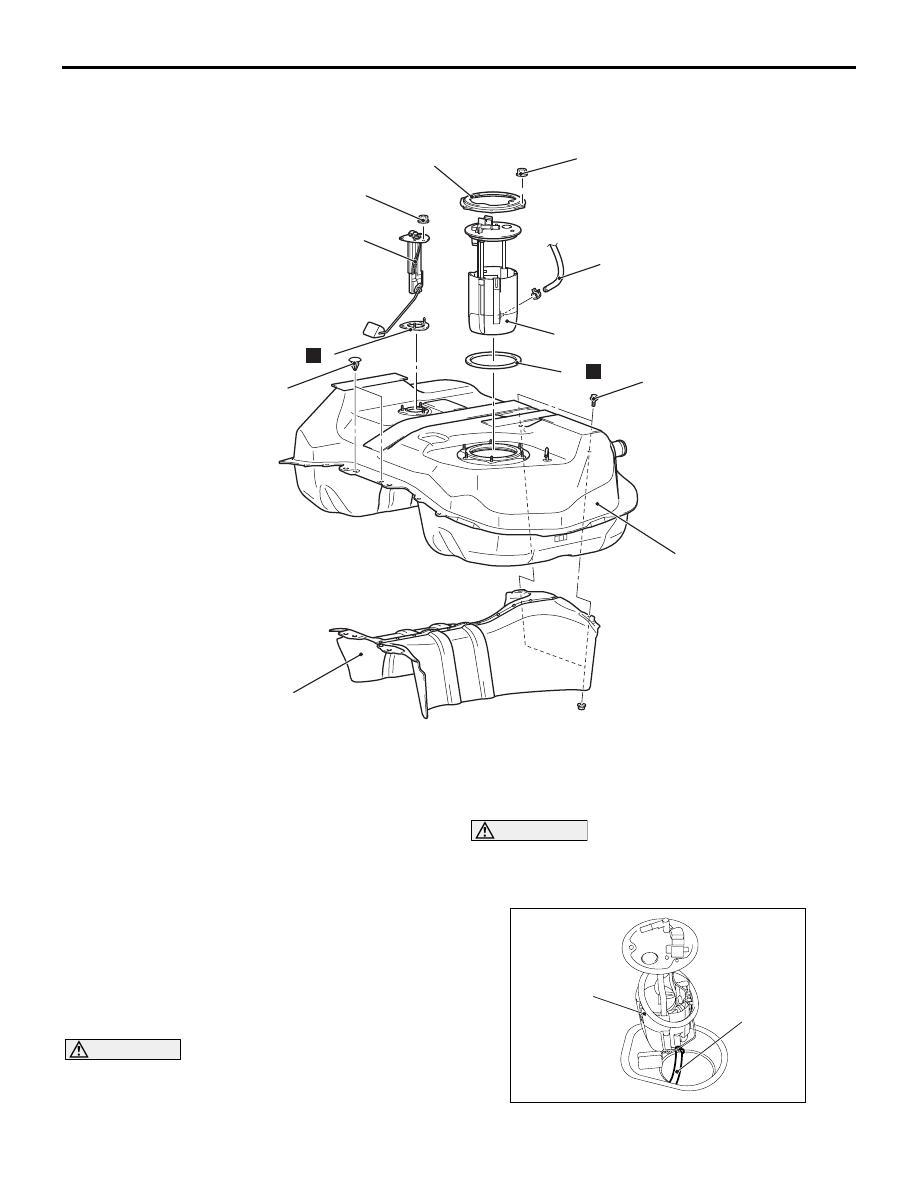

Removal steps

<<

A

>>

>>

B

<<

1.

Fuel gauge unit

2.

Fuel gauge unit gasket

3.

Fuel pump bracket plate

<<

B

>>

>>

A

<<

4.

Suction hose connection

<<

B

>>

>>

A

<<

5.

Fuel pump and gauge assembly

6.

Fuel pump and gauge assembly
gasket

7.

Clip

8.

Fuel tank lower protector

9.

Fuel tank

DISASSEMBLY SERVICE POINTS

<<A>> FUEL GAUGE UNIT REMOVAL

CAUTION

Pay attention not to damage the gauge unit and
the float of fuel gauge unit when removing it from
the fuel tank.

<<B>> SUCTION HOSE/FUEL PUMP AND
GAUGE ASSEMBLY REMOVAL

CAUTION

Pay attention not to damage the gauge unit and
the float of fuel pump and gauge assembly when
removing it from the fuel tank.

ACB05940AB

Suction hose

Fuel pump and
gauge assembly

FUEL TANK <4WD>

FUEL SUPPLY

13B-17

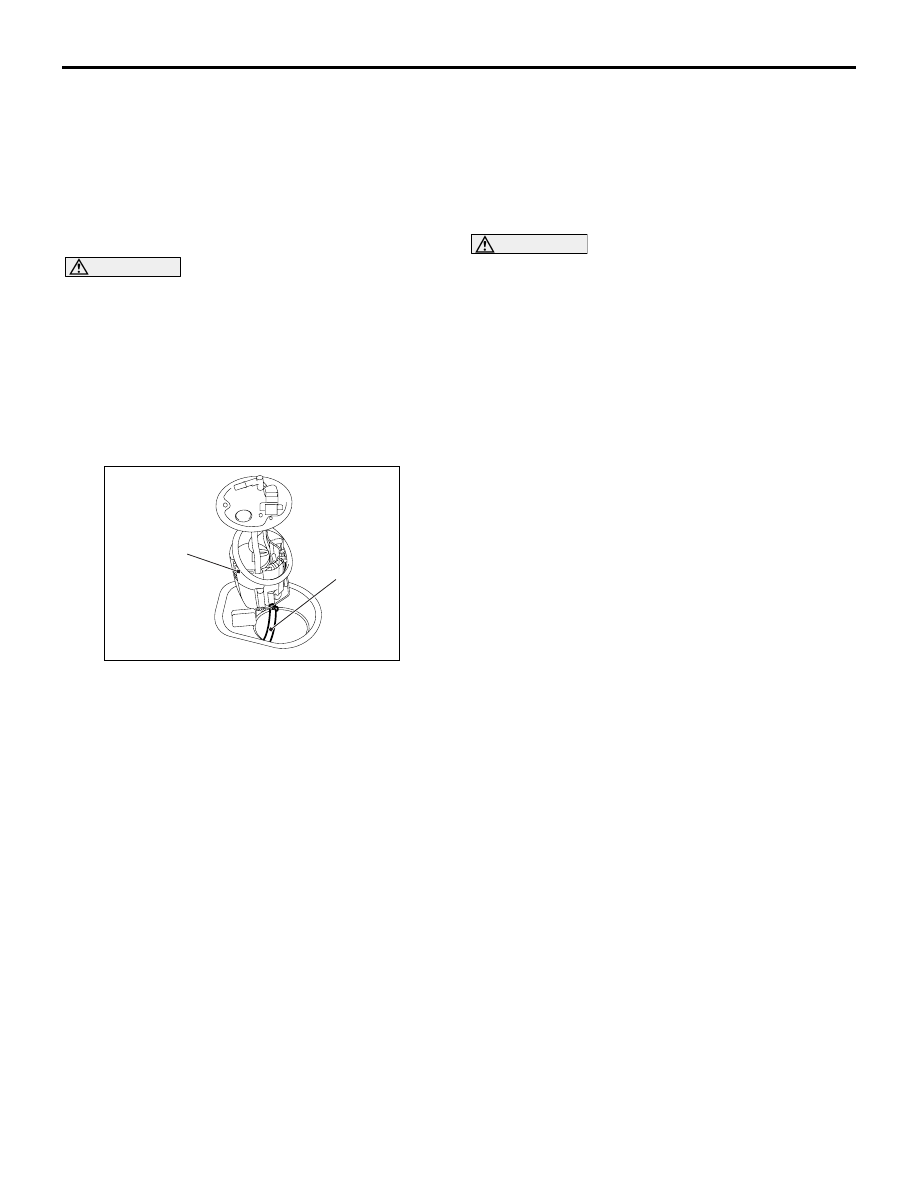

While removing the fuel pump and gauge assembly
from the fuel tank, disconnect the suction hose from
the fuel pump and gauge assembly to remove the
fuel pump and gauge assembly from the fuel tank.

REASSEMBLY SERVICE POINTS

>>A<< FUEL PUMP AND GAUGE ASSEM-
BLY/SUCTION HOSE INSTALLATION

CAUTION

• Pay attention not to damage the gauge unit

and the float of fuel pump and gauge assem-
bly when installing it to the fuel tank.

• Pay attention to prevent the float of fuel pump

and gauge assembly from being trapped by
the suction hose inside the fuel tank.

ACB05940AB

Suction hose

Fuel pump and
gauge assembly

When installing the fuel pump and gauge
assembly to the fuel tank, check that the
gauge moving area moves smoothly.

While inserting the fuel pump and gauge assembly
into the fuel tank, connect the suction hose to the fuel
pump and gauge assembly to install the fuel pump
and gauge assembly to the fuel tank.

>>B<< FUEL GAUGE UNIT
INSTALLATION

CAUTION

Pay attention not to damage the gauge unit and
the float of fuel gauge unit when installing it to
the fuel tank.

DISASSEMBLY AND REASSEMBLY

M1135004601844

<FUEL PUMP AND GAUGE ASSEMBLY>

NOTE: For installation and removal, refer to Fuel
Pump and Gauge Assembly Replacement in
On-vehicle Service (refer to

P.13B-2

).

ACC00458

1

2

3

4

5

6

7

8

15

N

10

11

N

12

9

N

14

AB

13

N

N

N

N

N

N

N

N

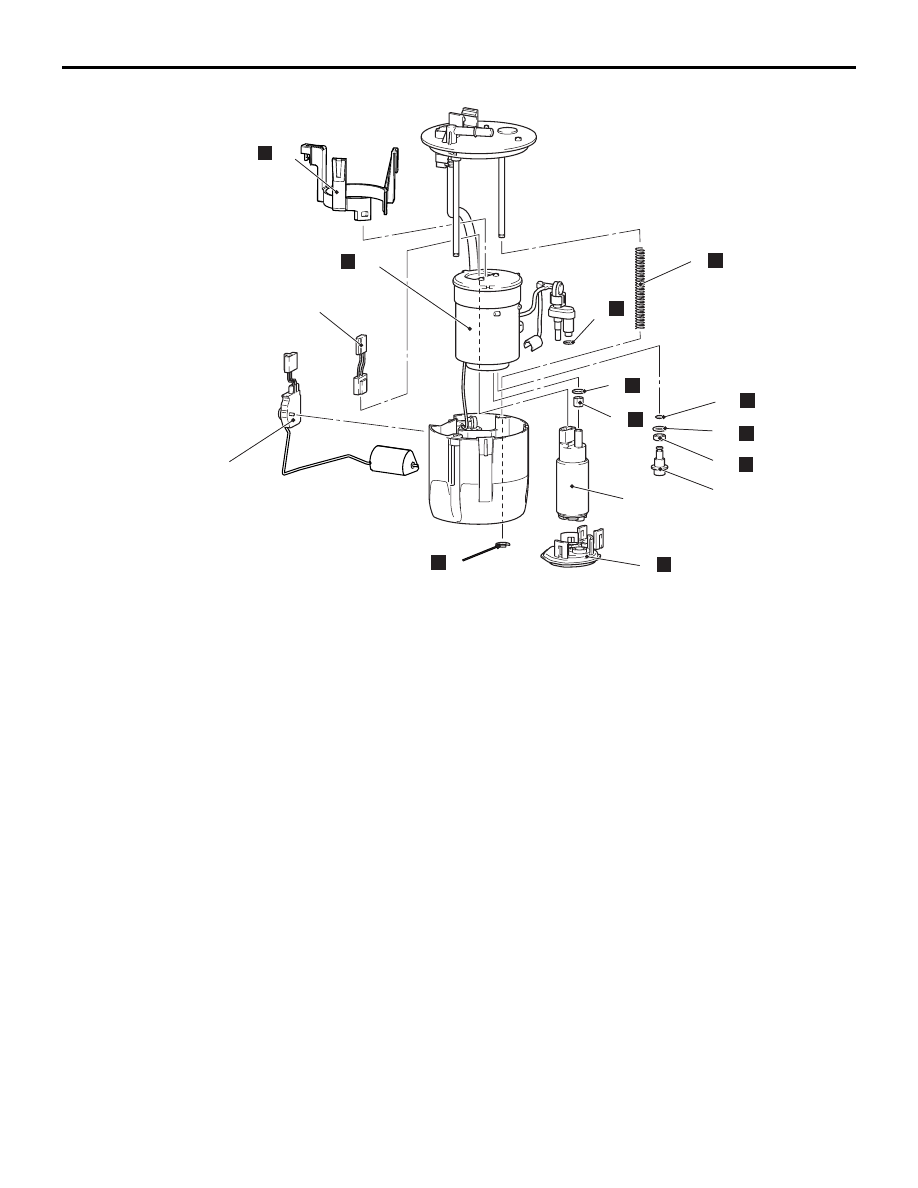

Disassembly steps

1.

Fuel gauge unit

2.

Clip

3.

Spring

4.

Fuel pump wiring harness

5.

Fuel filter

6.

Fuel pump assembly

>>

A

<<

7.

O-ring

8.

Spacer

9.

Fuel pressure regulator

>>

A

<<

10. O-ring

>>

A

<<

11. O-ring

12. Back up ring

>>

A

<<

13. O-ring
14. Bracket
15. Fuel flange and filter assembly

FUEL TANK <4WD>

FUEL SUPPLY

13B-18

REASSEMBLY SERVICE POINT

>>A<< O-RING INSTALLATION

To avoid twisting and damage, apply gasoline before
installation of the O-ring.
